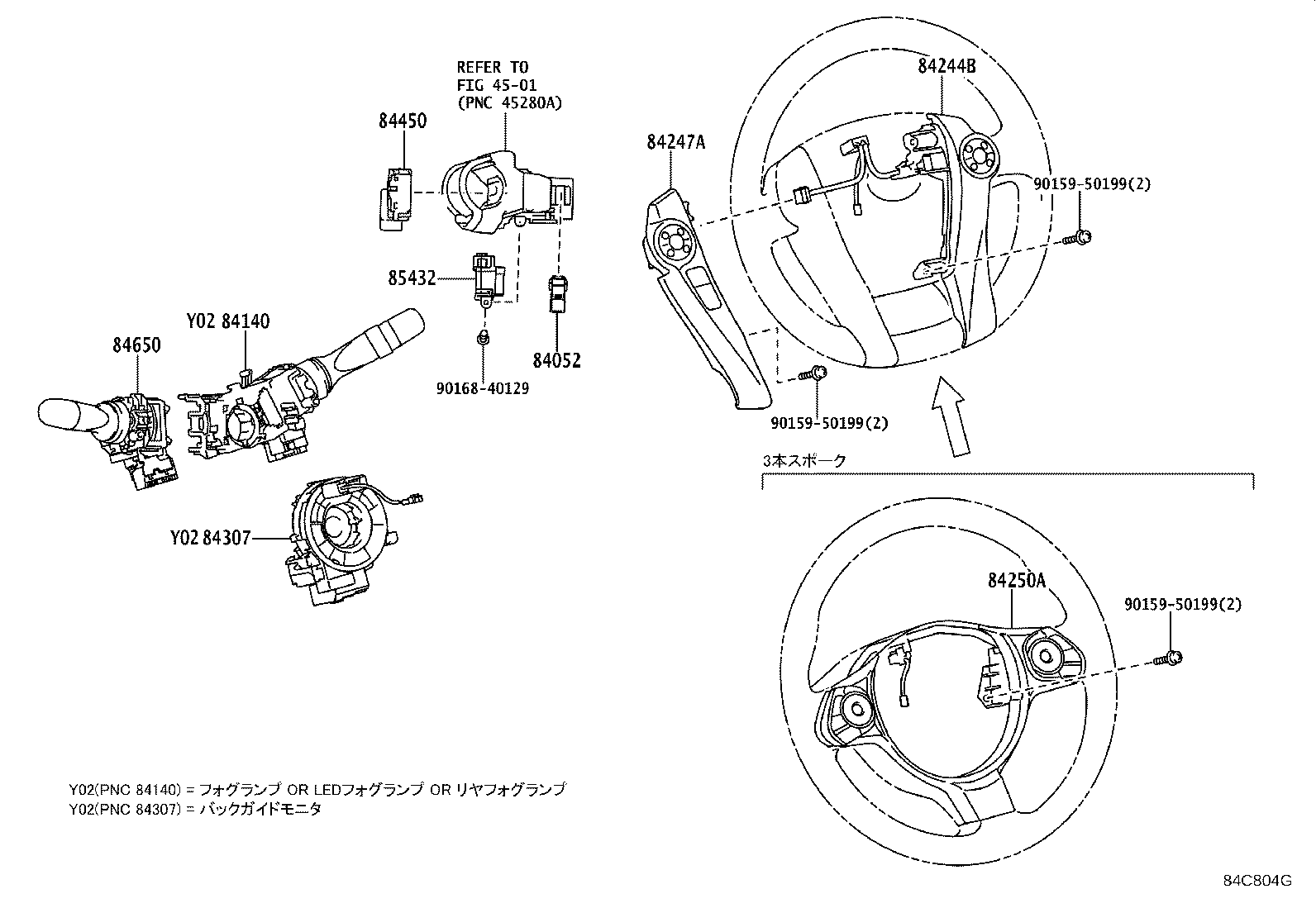

NHP10-AHXEB (2011)
Toyota Aqua
ILLUST NO. 6 OF 8(1112- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NHP10 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-42030 |
NHP10 |
1 | ||
| 84140-12580 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42040 |
NHP10 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42040 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 84140-42060 |
NHP10 寒冷地仕様&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42070 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42070 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 84140-42080 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42060 |
NHP10..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42050 |
NHP10 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-42070 |
NHP10..G G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 84140-42040 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 84140-42080 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 84140-12570 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 84244B - SWITCH, STEERING PAD, RH | ||||
| 84244-47080B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47080B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47081B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47101B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47100B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47101B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-WY030C0 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK MC.,TRIM2# |
1 | ||
| 84244-47081B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-WY020C0 |
NHP10..G G’s&ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK MC.,TRIM2# |
1 | ||
| 84244-WY020C0 |
NHP10..G G’s&ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),BLACK MC.,TRIM2# |
1 | ||
| 84244-47100B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47101B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84244-47100B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-52130B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-47050B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-52131B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-52130B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-47051B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-52131B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-WY070C0 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK MC.,TRIM2# |
1 | ||
| 84247-52130B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-52131B0 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-47051B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-WY060C0 |
NHP10..G G’s&ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK MC.,TRIM2# |
1 | ||
| 84247-47050B0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),ORNAMENT SILVER,TRIM2# |
1 | ||
| 84247-WY060C0 |
NHP10..G G’s&ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ),BLACK MC.,TRIM2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-74020 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ) |
1 | ||
| 84307-68050 |
NHP10 |
1 | ||
| 84307-74020 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84307-74020 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ |
1 | ||
| 84307-74020 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ |
1 | ||
| 84307-74020 |
NHP10..G,S ｽﾋﾟｰﾄﾞﾒｰﾀ−有り(TFTﾏﾙﾁｲﾝﾌｫﾒｰｼｮﾝﾃﾞｨｽﾌﾟﾚｲ)&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NHP10 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-42130 |
NHP10..G,S |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NHP10 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||

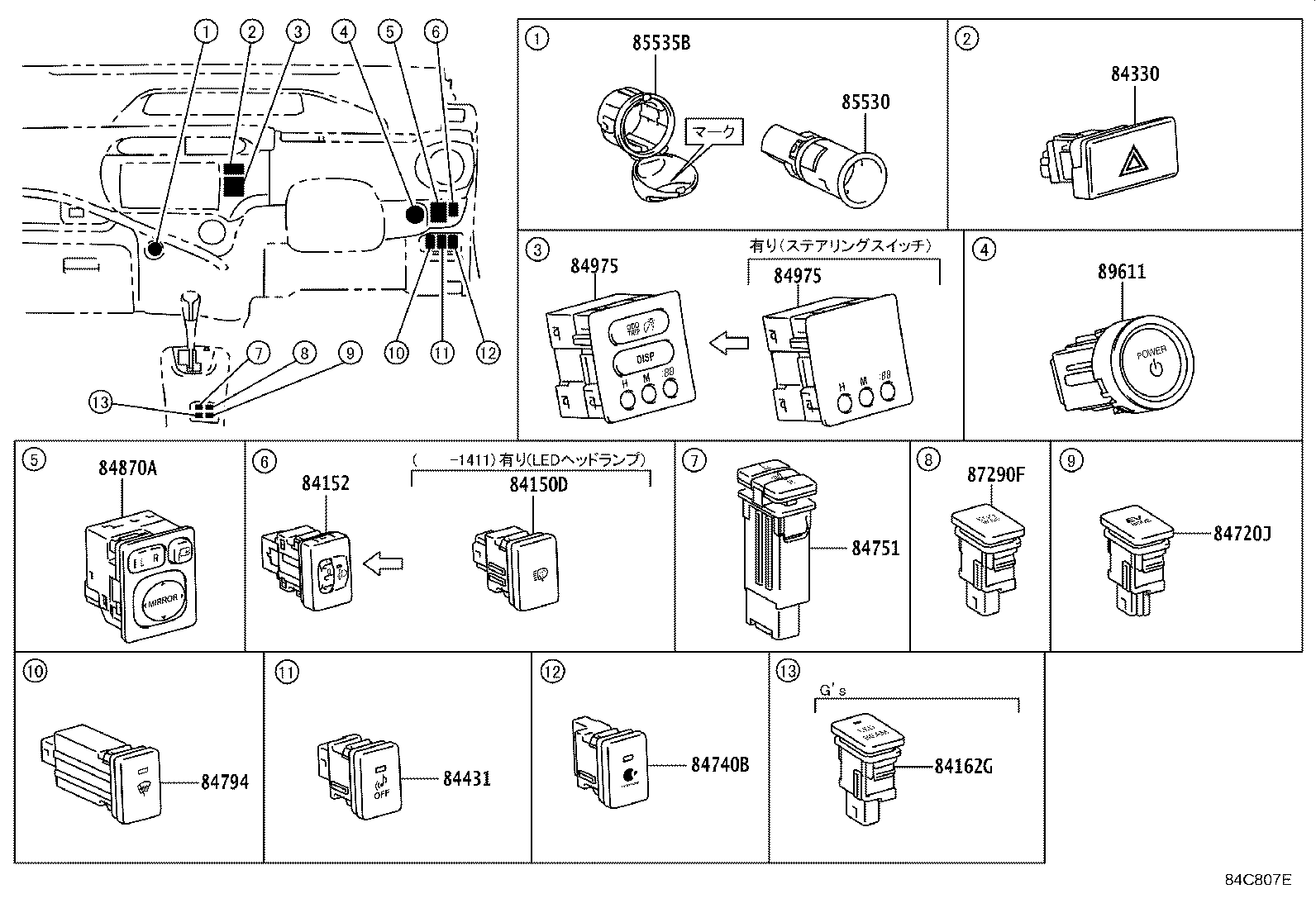

ILLUST NO. 5 OF 8(1112-1412)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-47010 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52130 |
NHP10 |
1 | ||
| 84162G - SWITCH, LED ILLUMINATION BEAM | ||||
| 84163-52020 |
NHP10..G G’s |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52090 |
NHP10 |
1 | ||
| 84431 - SWITCH, VEHICLE APPROACHING SPEAKER | ||||
| 84431-76010 |
NHP10 |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-33080 |
NHP10 |
1 | ||
| 84740B - SWITCH ASSY, AIR PURIFIER | ||||
| 84741-52010 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-52030 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 84751-52030 |
NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 84751-52030 |
NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-52010 |
NHP10 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-52111 |
NHP10 |
1 | ||
| 84870-52110 |
NHP10 |
1 | ||
| 84870-28020 |
NHP10 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52190 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ |
1 | ||
| 84975-52270 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84975-52200 |
NHP10 |
1 | ||
| 84975-52190 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84975-52280 |
NHP10..G G’s |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-52190 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ |
1 | ||
| 84975-52270 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84975-52200 |
NHP10 |
1 | ||
| 84975-52190 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ) |
1 | ||
| 84975-52280 |
NHP10..G G’s |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
NHP10 ﾏｰｸ=450(PNC 85535B) |
1 | ||
| 85530-52010 |
NHP10 ﾏｰｸ=564(PNC 85535B) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52051 |
NHP10 ﾏｰｸ=450 |
1 | ||
| 85535-52052 |
NHP10 ﾏｰｸ=564 |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 87290-33060 |
NHP10 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-33021 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611-33020 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89611-WY030 |
NHP10..G G’s&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||

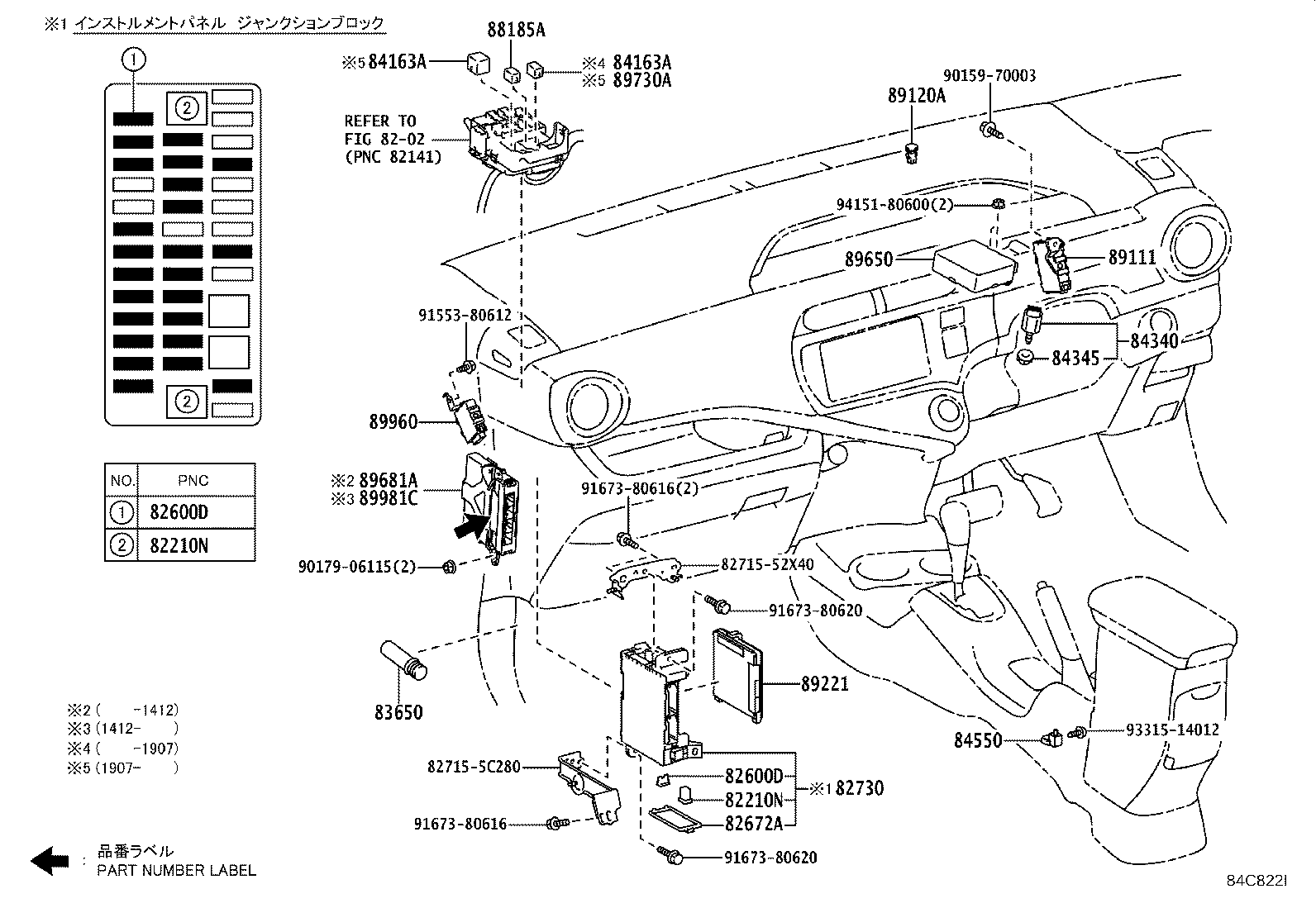

ILLUST NO. 4 OF 8(1112- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP10 30A,ﾒｽ端子,桃 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
NHP10 30A,ﾒｽ端子,桃 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NHP10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
NHP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
NHP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NHP10 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
NHP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
NHP10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
NHP10 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09021 |
NHP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09020 |
NHP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09024 |
NHP10 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
NHP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
NHP10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-52040 |
NHP10 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52P40 |
NHP10 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NHP10 |
1 | ||
| 84163A - RELAY, LIGHT EMITTING DIODE ILLUMINATION | ||||
| 90987-02027 |
NHP10..G G’s |
1 | ||
| 84163A - RELAY, LIGHT EMITTING DIODE ILLUMINATION | ||||
| 90987-02027 |
NHP10..G G’s |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-59635 |
NHP10 |
1 | ||
| 84340-19065 |
NHP10 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NHP10 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
NHP10 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52550 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89220-52501 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89220-52500 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89220-52440 |
NHP10 |
1 | ||
| 89220-52550 |
NHP10..G,S 寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89220-52441 |
NHP10..G G’s&寒冷地仕様&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 89220-52501 |
NHP10..G G’s&寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 89220-52550 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89220-52501 |
NHP10 寒冷地仕様 |
1 | ||
| 89220-52441 |
NHP10 |
1 | ||
| 89220-52500 |
NHP10..G,S 寒冷地仕様&ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89220-52501 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89220-52500 |
NHP10 寒冷地仕様 |
1 | ||
| 89220-52550 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52B71 |
NHP10..G,S JTEKT/DENSO |
1 | ||
| 89650-52B90 |
NHP10..G,S JTEKT/DENSO,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−195/50R16 6J ｻ}ｰﾀｲﾔ ｱﾙﾐ |
1 | ||
| 89650-52B91 |
NHP10..G JTEKT/DENSO,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−195/45R17 6.5J@ｱﾙﾐ 切削光輝 G’s |
1 | ||
| 89650-52B91 |
NHP10..G JTEKT/DENSO,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−195/45R17 6.5J@ｱﾙﾐ G’s ﾀﾞｰｸｽﾊﾟｯﾀﾘﾝｸﾞ(MOP) |
1 | ||
| 89650-52B72 |
NHP10..G,S JTEKT/DENSO |
1 | ||
| 89650-52B91 |
NHP10..G,S JTEKT/DENSO,ﾀｲﾔ & ﾃﾞｨｽｸﾎｲｰﾙ−195/50R16 6J ｻ}ｰﾀｲﾔ ｱﾙﾐ |
1 | ||
| 89650-52B70 |
NHP10..G,S JTEKT/DENSO |
1 | ||
| 89681A - COMPUTER, POWER MANAGEMENT CONTROL | ||||
| 89690-52130 |
NHP10 |
1 | ||
| 89690-52220 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89690-52100 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89690-52131 |
NHP10 |
1 | ||
| 89690-52101 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89690-52280 |
NHP10 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52520 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89960-52280 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| Common parts | ||||
| 82715-52X40 | ||||
| 82715-5C280 | ||||
| 90159-70003 | ||||
| 90179-06115 | ||||
| 91553-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93315-14012 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

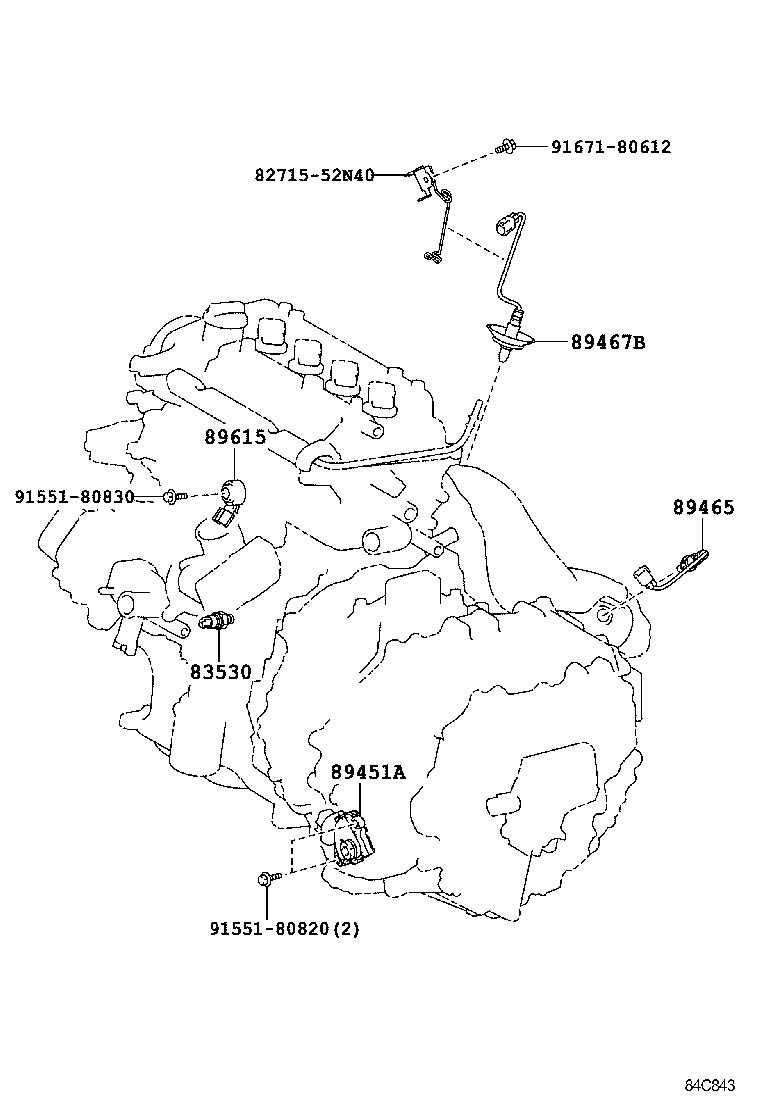

ILLUST NO. 1 OF 8(1112- )
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
NHP10 DENSO |
1 | ||
| 83530-60020 |
NHP10 YAZAKI |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-52040 |
NHP10 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52670 |
NHP10 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52080 |
NHP10 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NHP10 |
1 | ||
| Common parts | ||||
| 82715-52N40 | ||||
| 91551-80820 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||

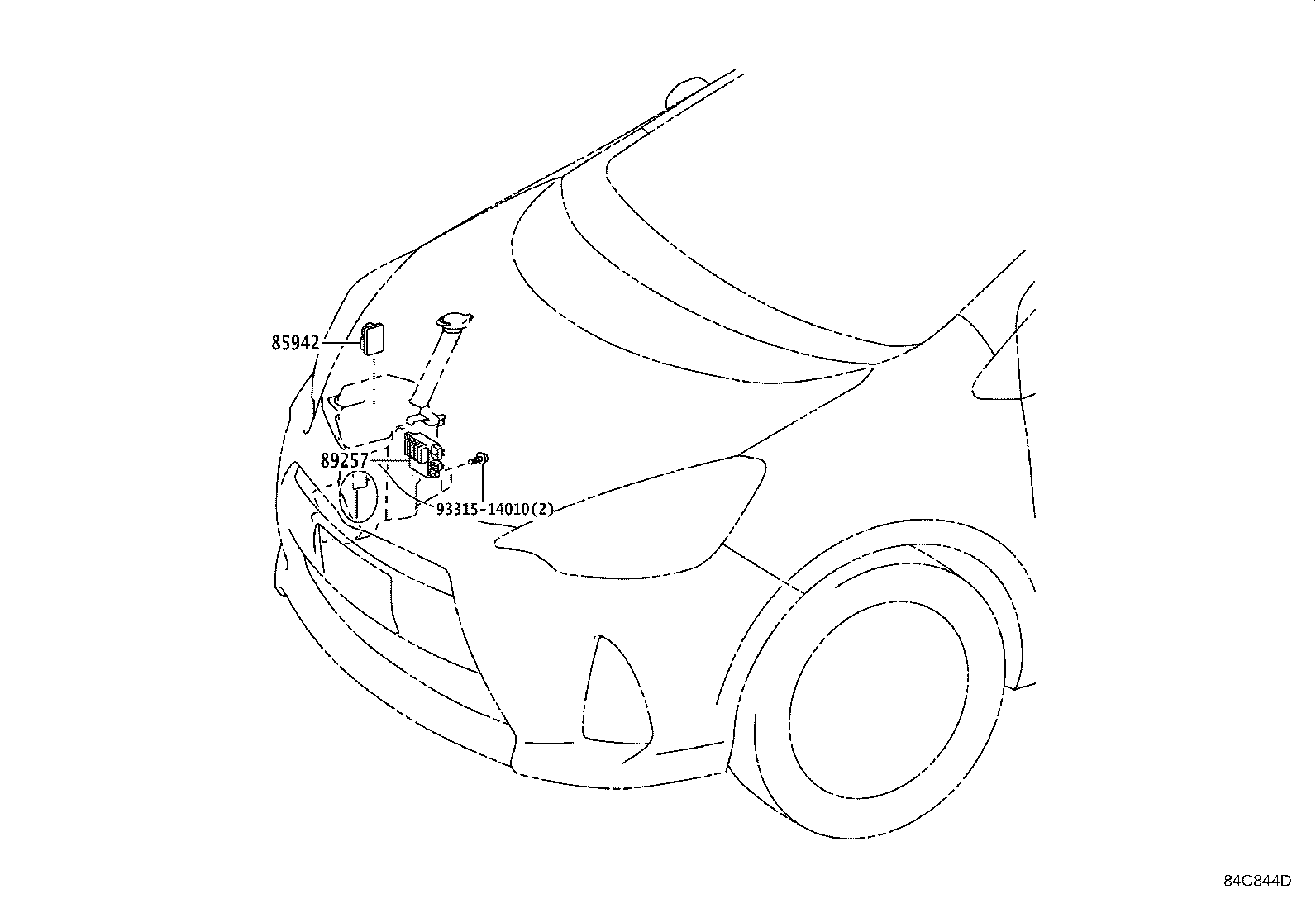

ILLUST NO. 2 OF 8(1112- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-58010 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12020 |
NHP10 |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||

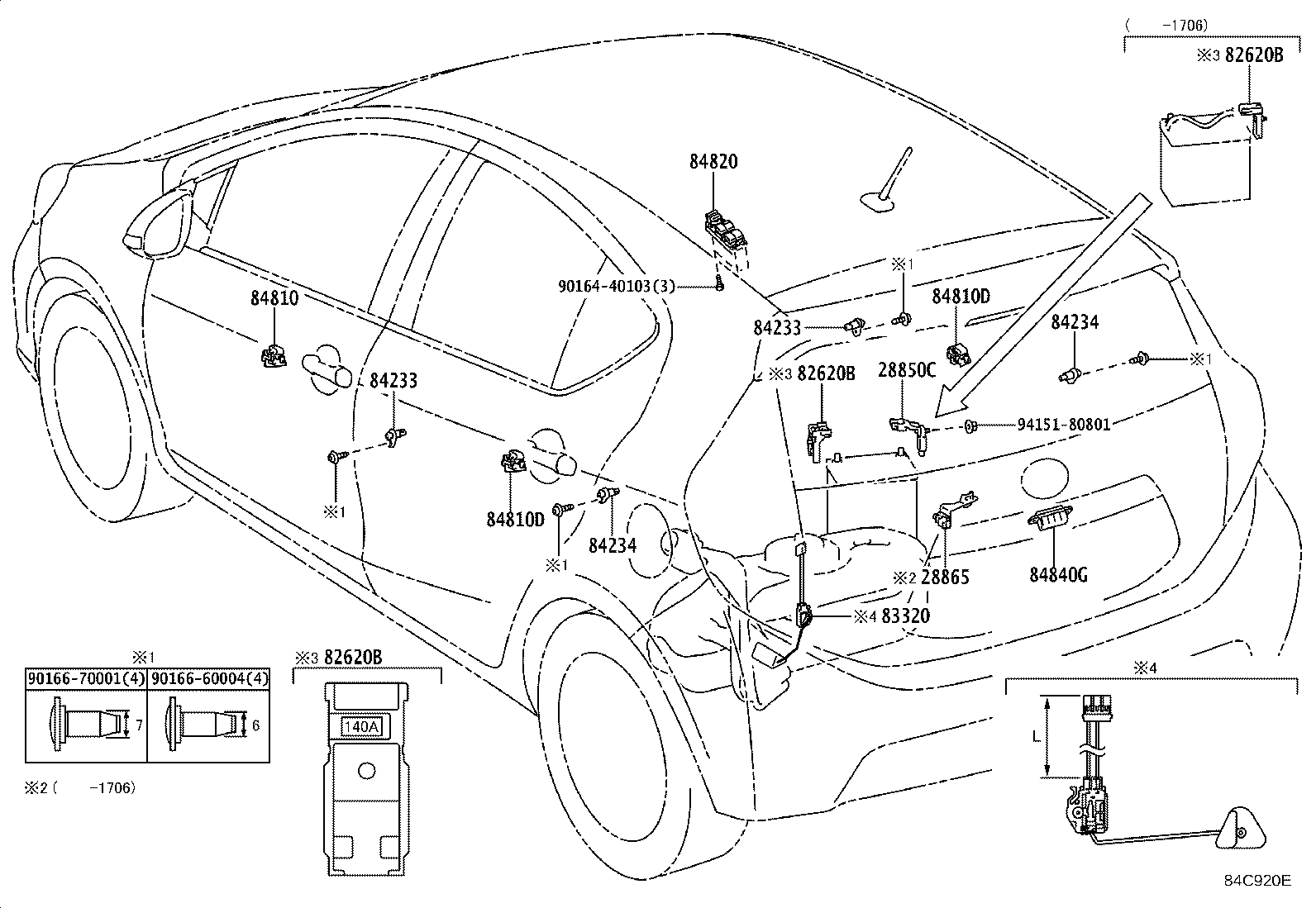

ILLUST NO. 7 OF 8(1112- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28865 - SENSOR, BATTERY THERMOMETER | ||||
| 28865-21020 |
1NZFXE..NHP10 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
NHP10 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
NHP10 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47070 |
NHP10 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52280 |
NHP10 |
1 | ||
| 83320-52240 |
NHP10 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52230 |
NHP10 |
2 | ||
| 84231-52010 |
NHP10 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52230 |
NHP10 |
2 | ||
| 84231-52010 |
NHP10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
NHP10 |
2 | ||
| 84231-52230 |
NHP10 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52010 |
NHP10 |
2 | ||
| 84231-52230 |
NHP10 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NHP10 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NHP10..G,S |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NHP10..G,S |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-33260 |
NHP10..G,S |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NHP10 |
1 | ||
| 84840-28040 |
NHP10..G,S ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 94151-80801 | ||||

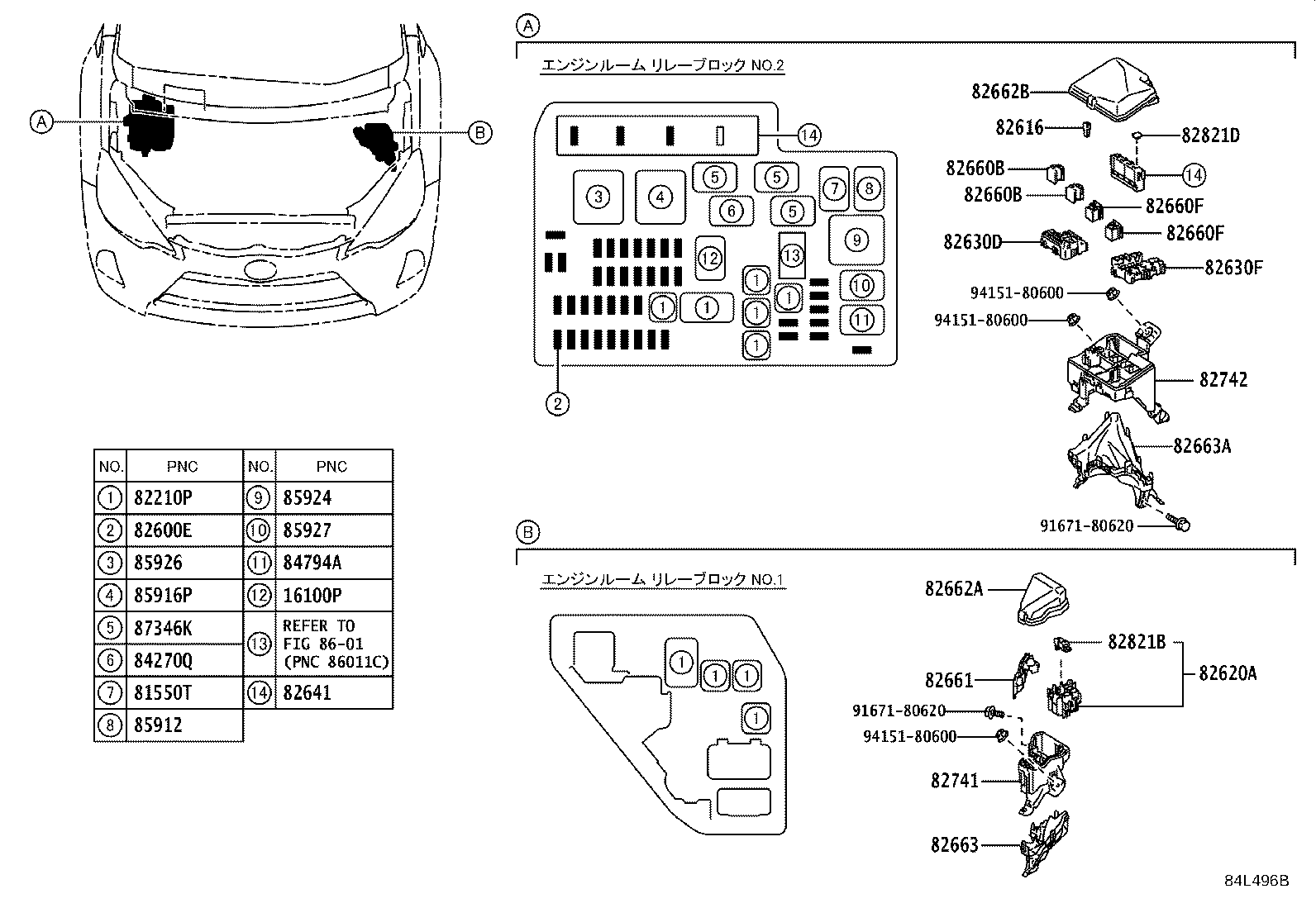

ILLUST NO. 3 OF 8(1112- )
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
1NZFXE..NHP10 |
1 | ||
| 81550T - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
NHP10 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08246 |
NHP10 100A,ｵｽ端子,青 |
1 | ||
| 90982-08300 |
NHP10 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08295 |
NHP10 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08294 |
NHP10 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08296 |
NHP10 50A,ﾒｽ端子,赤 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
NHP10 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09021 |
NHP10 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09025 |
NHP10 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09022 |
NHP10 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09023 |
NHP10 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
NHP10 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52090 |
NHP10 |
1 | ||
| 82620-52091 |
NHP10 |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52050 |
NHP10 |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52060 |
NHP10 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
NHP10 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-52030 |
NHP10 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52731 |
NHP10 |
1 | ||
| 82662-52730 |
NHP10 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52740 |
NHP10 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52100 |
NHP10 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52110 |
NHP10 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52090 |
NHP10 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52100 |
NHP10 |
1 | ||
| 82821B - COVER, CONNECTOR | ||||
| 82821-52270 |
NHP10 |
1 | ||
| 82821D - COVER, CONNECTOR | ||||
| 82821-47090 |
NHP10 |
1 | ||
| 84270Q - RELAY, LAMP CUT | ||||
| 90987-02027 |
NHP10 |
1 | ||
| 84794A - RELAY, FR WIPER DEICER | ||||
| 90987-02027 |
NHP10 寒冷地仕様 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
NHP10 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NHP10 |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02025 |
NHP10 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-02025 |
NHP10 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NHP10 |
1 | ||
| 87346K - RELAY, PTC HEATER | ||||
| 90987-02027 |
NHP10 寒冷地仕様 |
3 | ||
| Common parts | ||||
| 91671-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
