NHP10-AHXEB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

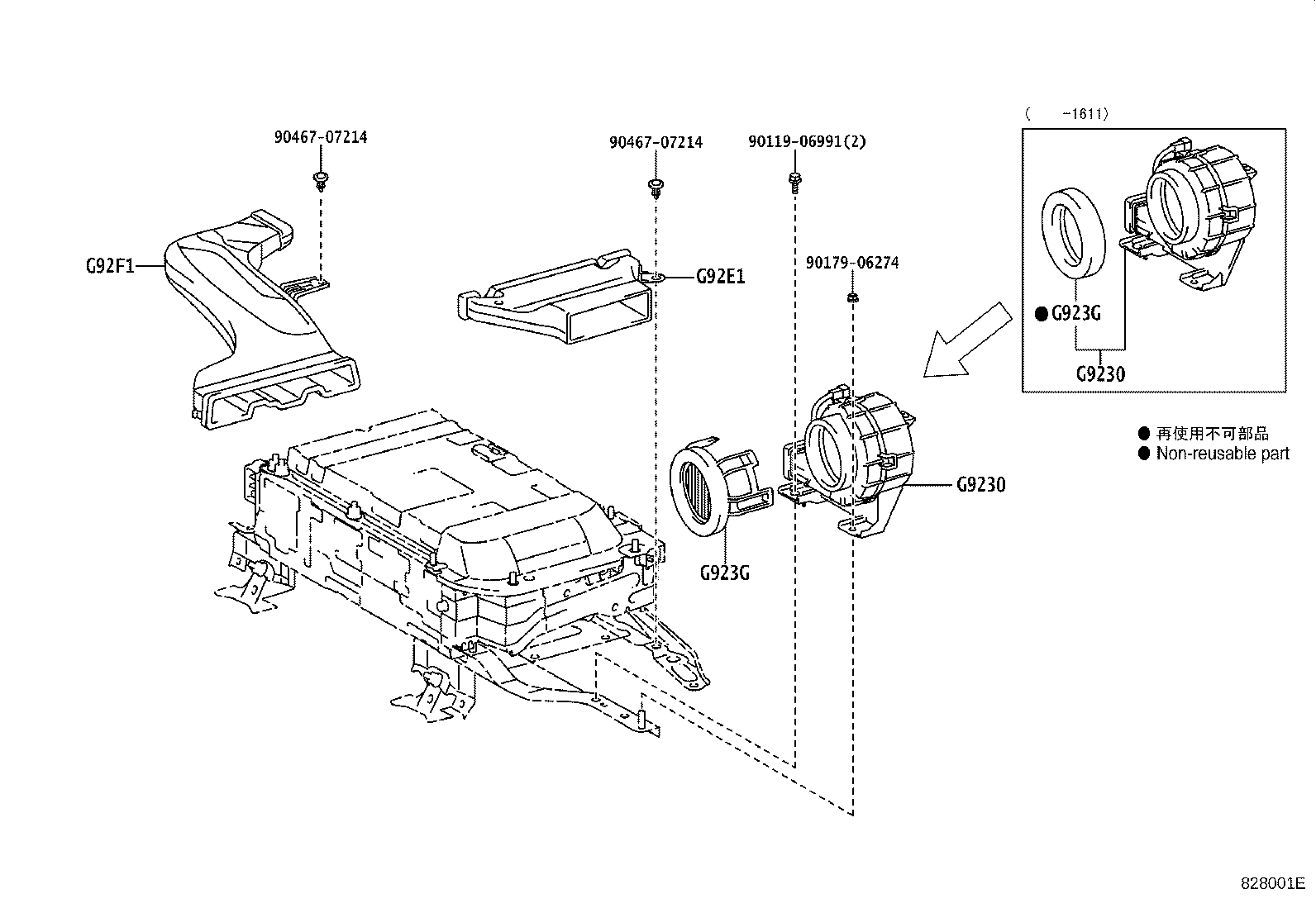

ILLUST NO. 2 OF 4(1112- )

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 9011906991 9017906274 9046707214 9046707214 G9230 G9230 G923G G923G G92E1 G92F1
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-52010

NHP10

 1
G9230-52020

NHP10

 1
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-52010

NHP10

 1
G9230-52020

NHP10

 1
G923G - MESH, BATTERY COOLING BLOWER
G923G-52010

NHP10

 1
G923G - MESH, BATTERY COOLING BLOWER
G923G-52010

NHP10

 1
G92E1 - DUCT, HV BATTERY COVER INTAKE, NO.1
G92E1-52010

NHP10

 1
G92F1 - DUCT, HYBRID BATTERY EXHAUST, NO.1
G92F1-52010

NHP10

 1
Common parts
90119-06991
90179-06274
90467-07214

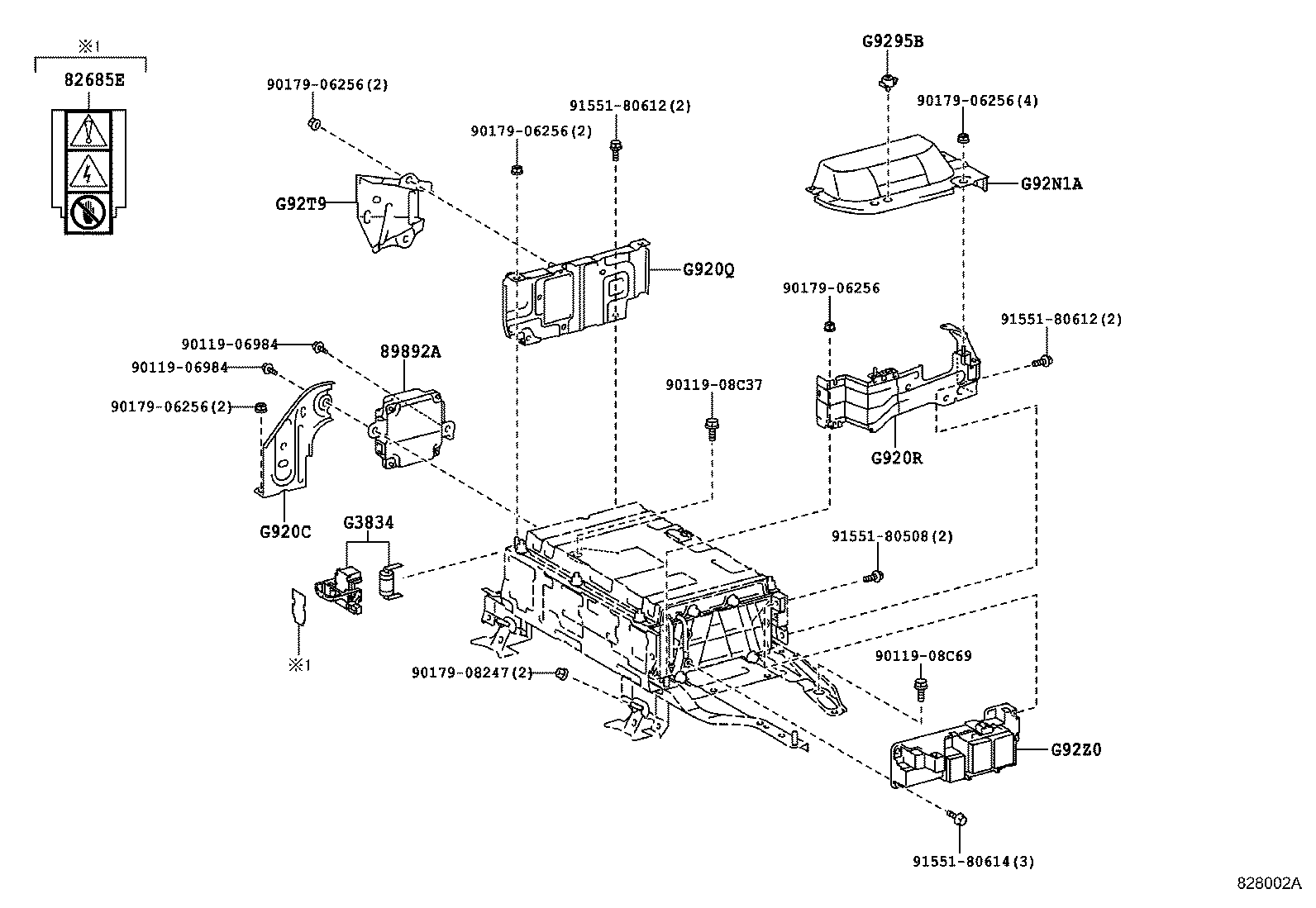

ILLUST NO. 3 OF 4(1112- )

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82685E 89892A 9011906984 9011906984 9011908C37 9011908C69 9017906256 9017906256 9017906256 9017906256 9017906256 9017908247 9155180508 9155180612 9155180612 9155180614 G3834 G920C G920Q G920R G9295B G92N1A G92T9 G92Z0
Part # Description Qty Price
89892A - SENSOR, BATTERY VOLTAGE
89892-52011

NHP10

 1
89892-52010

NHP10

 1
G3834 - GRIP, SERVICE PLUG
G3834-48010

NHP10

 1
G920C - BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.2
G92LB-52010

NHP10

 1
G920Q - SHIELD SUB-ASSY, HYBRID BATTERY, NO.1
G920Q-52010

NHP10

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-52010

NHP10

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

NHP10

 1
G92N1A - PANEL, HV BATTERY LH COVER, NO.1
G92NE-52010

NHP10

 1
G92T9 - COVER, HYBRID BATTERY SERVICE PLUG
G92T9-52010

NHP10

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33020

NHP10

 1
G92Z0-33030

NHP10

 1
Common parts
90119-06984
90119-08C37
90119-08C69
90179-06256
90179-08247
91551-80508
91551-80612
91551-80614

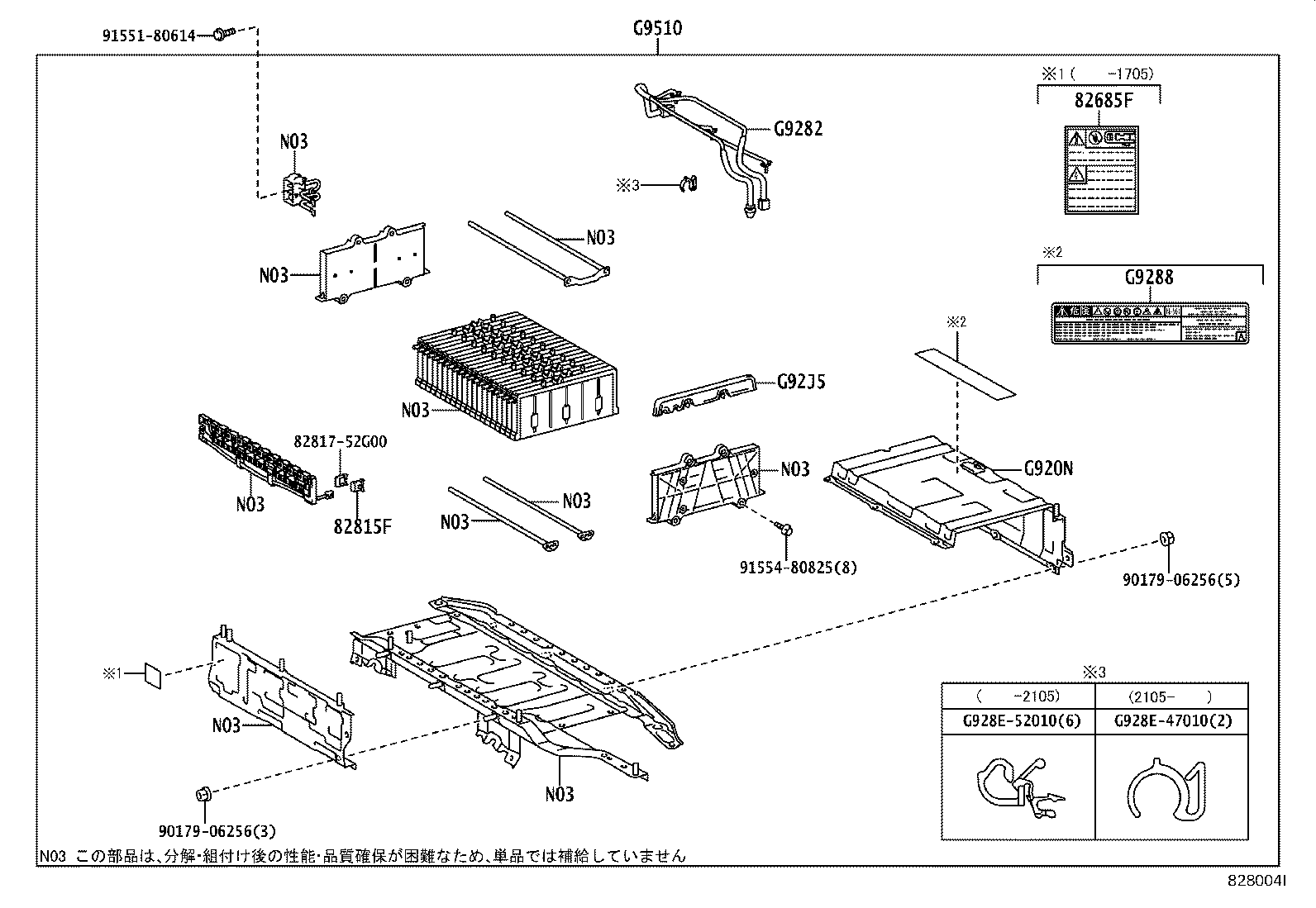

ILLUST NO. 4 OF 4(1112- )

Click highlighted areas on diagram

HV ﾊﾞｯﾃﾘ

diagram 82685F 82815F 8281752G00 9017906256 9017906256 9155180614 9155480825 G920N G9282 G9288 G928E47010 G928E52010 G92J5 G9510
Part # Description Qty Price
82685F - MAIN BATTERY CAUTION PLATE, NO.1
82685-76010

NHP10

 1
82815F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-52430

NHP10

 1
G920N - COVER SUB-ASSY, HV BATTERY, UPPER NO.2
G920N-52010

NHP10

 1
G9282 - THERMISTOR, HYBRID BATTERY
G9282-52010

NHP10

 1
G9288 - LABEL, BATTERY CHARGING NOTICE
G9288-50010

NHP10

 1
G92J5 - PACKING, HYBRID BATTERY, NO.1
G92J5-52010

NHP10

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-52030

NHP10

 1
G9510-52031

NHP10

 1
Common parts
82817-52G00
90179-06256
91551-80614
91554-80825
G928E-47010
G928E-52010

ILLUST NO. 1 OF 4(1112-1706)

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800 28800D 28885B 28899 7102 7102 7102 7402 7402 7402 7402 7402 8202 8202 82675C 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-21181

1NZFXE..NHP10

S34B20R

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-47110

1NZFXE..NHP10

 1
28885B - HOSE, BATTERY
28885-21070

1NZFXE..NHP10

 1
28899 - INSULATOR, BATTERY
28877-21030

1NZFXE..NHP10

 1
82675C - TERMINAL, JUNCTION
82675-52160

NHP10

 1
Common parts
94151-80801
Linked diagrams
7102
7402
8202
8401
