NHP10-AHXEB (2011)
Toyota Aqua
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

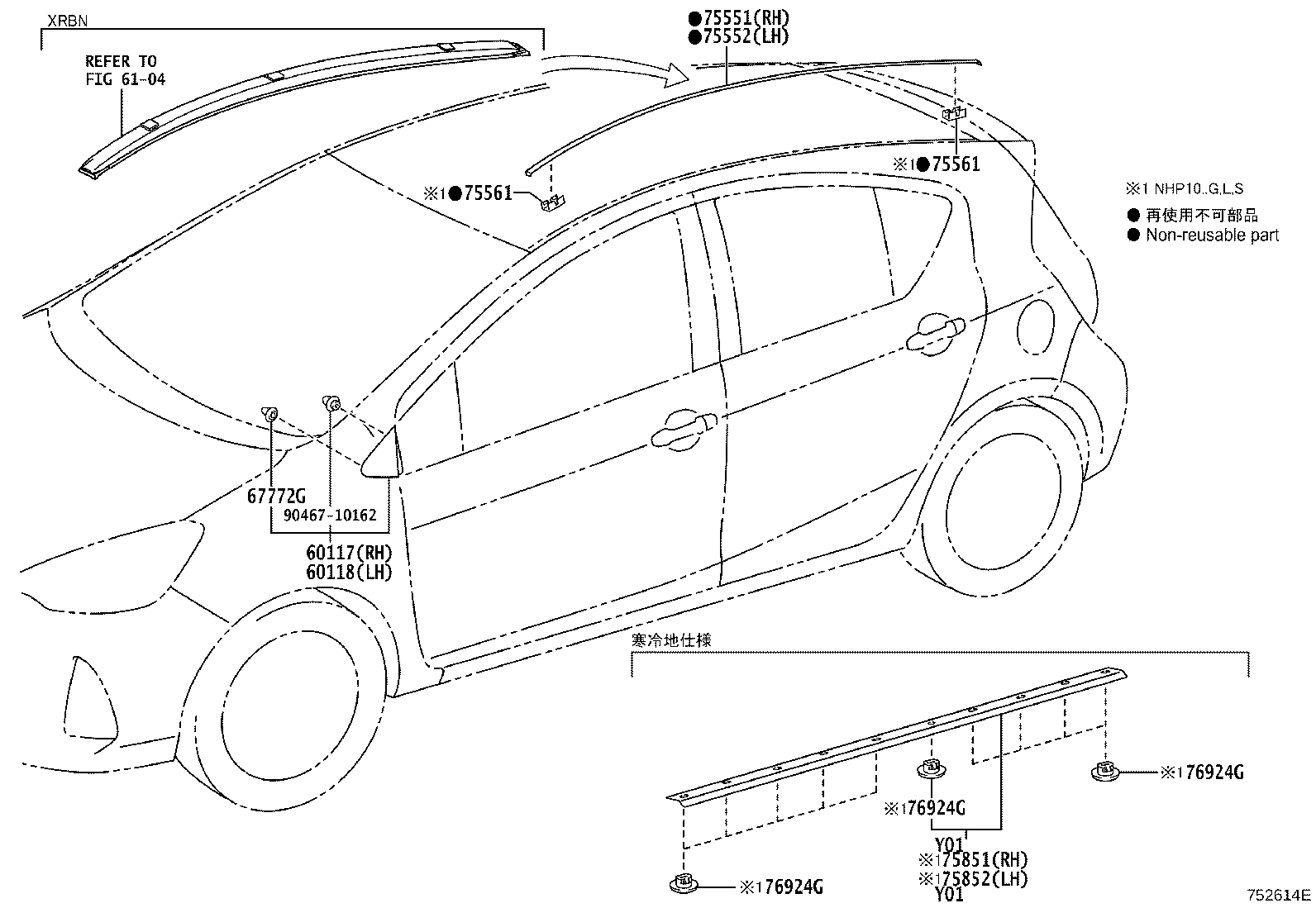

ILLUST NO. 1 OF 2(1112- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 60117 - COVER SUB-ASSY, FRONT PILLAR, UPR RH | ||||
| 60117-52080 |
NHP10 |
1 | ||
| 60118 - COVER SUB-ASSY, FRONT PILLAR, UPR LH | ||||
| 60118-52080 |
NHP10 |
1 | ||
| 67772G - CAP, FRONT PILLAR COVER | ||||
| 67772-95J03 |
NHP10 |
2 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-52210 |
NHP10 塗装不要 |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-52190 |
NHP10 塗装不要 |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NHP10 |
4 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75561-33030 |
NHP10 |
4 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75851-52070 |
NHP10 寒冷地仕様 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75852-52090 |
NHP10 寒冷地仕様 |
1 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-12040 |
NHP10 寒冷地仕様 |
20 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-12040 |
NHP10 寒冷地仕様 |
20 | ||
| 76924G - RETAINER, ROCKER PANEL MOULDING | ||||
| 76924-12040 |
NHP10 寒冷地仕様 |
20 | ||
| Common parts | ||||
| 90467-10162 | ||||
| Linked diagrams | ||||
| 6104 | ||||
