Toyota Aqua NHP10 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty

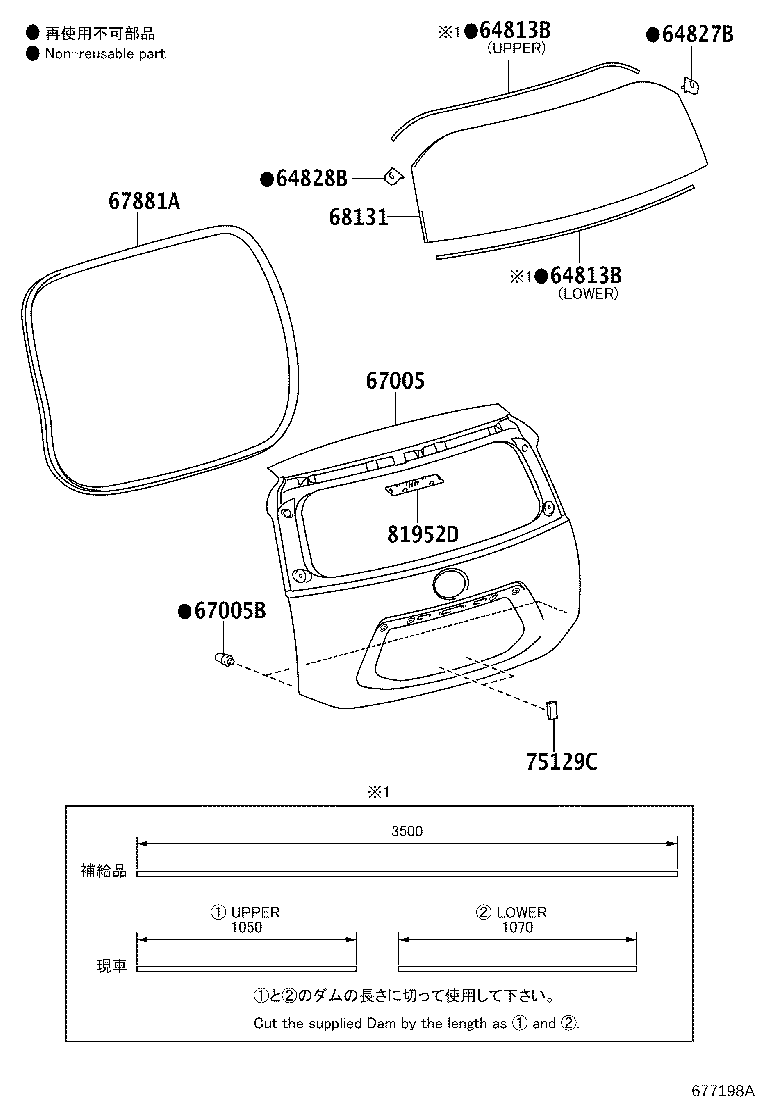

64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-64010	NHP10 上側 & 下側	12/2011 - 12/2014	1
64813B - DAM, BACK WINDOW GLASS ADHESIVE
56117-64010	NHP10 上側 & 下側	12/2011 - 12/2014	1
64827B - CLIP, BACK WINDOW GLASS, RH
64827-52100	NHP10	12/2011 - 12/2014	1
64828B - CLIP, BACK WINDOW GLASS, LH
64828-52100	NHP10	12/2011 - 12/2014	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-52D00	NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ)	12/2011 - 12/2014	1
67005-52D10	NHP10..G,S	12/2011 - 12/2014	1
67005B - CUSHION(FOR BACK DOOR PANEL)
90541-09146	NHP10	12/2011 - 12/2014	2
67881A - WEATHERSTRIP, BACK DOOR
67881-52190	NHP10	12/2011 - 12/2014	1
68131 - GLASS, BACK DOOR
68105-52913	NHP10..G,S	12/2011 - 12/2014	1
75129C - CUSHION, REAR LICENCE PLATE
75129-30010	NHP10	12/2011 - 12/2014	2
81952D - COVER, REAR LAMP
81952-52030	NHP10	12/2011 - 12/2014	1

Part #	Description	Period	Qty

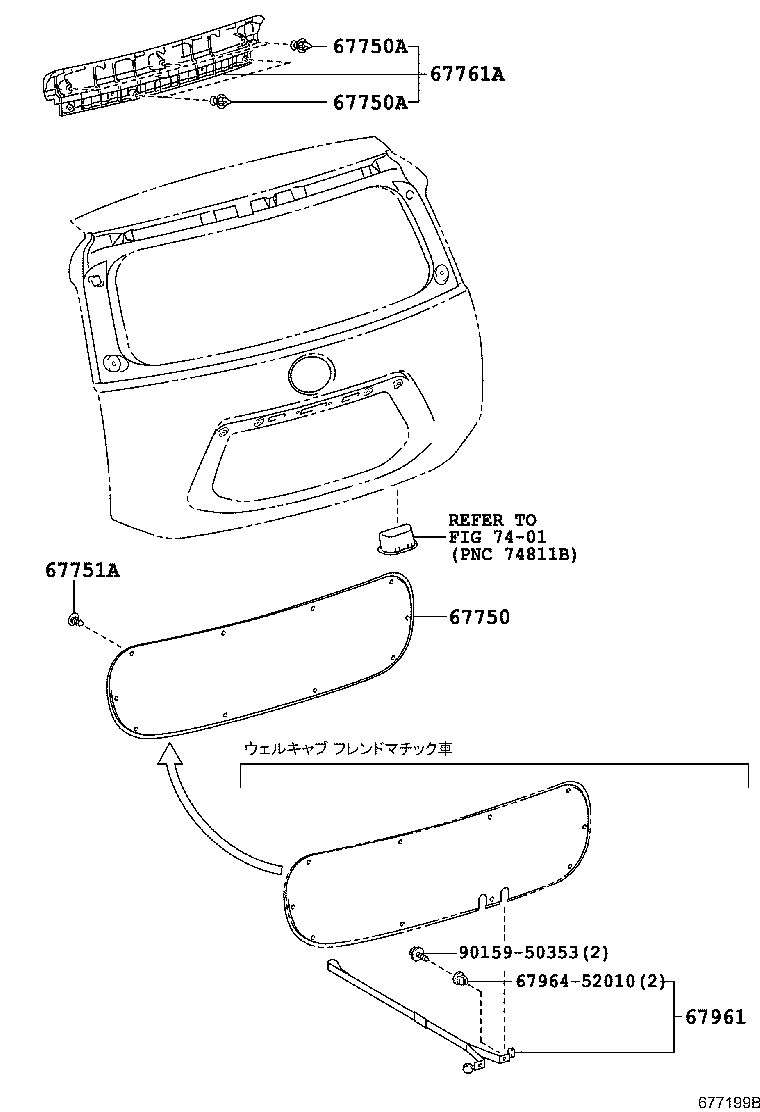

67750 - BOARD ASSY, BACK DOOR TRIM
67750-52150B1	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV),DARK GRAY,TRIM2#	12/2011 - 12/2014	1
67750-52140B1	NHP10 DARK GRAY,TRIM2#	12/2011 - 12/2014	1
67750-52150B1	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU),DARK GRAY,TRIM2#	12/2011 - 12/2014	1
67750-52150B1	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT),DARK GRAY,TRIM2#	12/2011 - 12/2014	1
67750-52150B1	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW),DARK GRAY,TRIM2#	12/2011 - 12/2014	1
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU)	01/2014 - 02/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV)	01/2014 - 02/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT)	01/2014 - 02/2014	5
90467-10161	NHP10	12/2011 - 01/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW)	01/2014 - 02/2014	5
90467-10161	NHP10	01/2014 - 12/2014	4
67750A - CLIP(FOR BACK DOOR TRIM)
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU)	01/2014 - 02/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV)	01/2014 - 02/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT)	01/2014 - 02/2014	5
90467-10161	NHP10	12/2011 - 01/2014	5
90467-10161	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW)	01/2014 - 02/2014	5
90467-10161	NHP10	01/2014 - 12/2014	4
67751A - CLIP(FOR BACK DOOR TRIM BOARD)
90467-08186C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV),BLACK,TRIM2#	12/2011 - 12/2014	9
90467-08186C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU),BLACK,TRIM2#	12/2011 - 12/2014	9
90467-08186C0	NHP10 BLACK,TRIM2#	12/2011 - 12/2014	10
90467-08186C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW),BLACK,TRIM2#	12/2011 - 12/2014	9
90467-08186C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT),BLACK,TRIM2#	12/2011 - 12/2014	9
67761A - COVER, BACK DOOR TRIM
67761-52020C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV),BLACK,TRIM2#	12/2011 - 12/2014	1
67761-52020C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU),BLACK,TRIM2#	12/2011 - 12/2014	1
67761-52010C0	NHP10 BLACK,TRIM2#	12/2011 - 12/2014	1
67761-52020C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT),BLACK,TRIM2#	12/2011 - 12/2014	1
67761-52020C0	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW),BLACK,TRIM2#	12/2011 - 12/2014	1
67961 - STRAP, BACK DOOR PULL
67908-52040	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟU)	12/2011 - 12/2014	1
67908-52040	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟW)	12/2011 - 12/2014	1
67908-52040	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟV)	12/2011 - 12/2014	1
67908-52040	NHP10..G,S ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸﾀｲﾌﾟT)	12/2011 - 12/2014	1
Common parts
67964-52010
90159-50353
Linked diagrams
7401

NHP10-AHXEB (2011)

ILLUST NO. 1 OF 2(1112- )

ILLUST NO. 2 OF 2(1112- )
