NHP10-AHXEB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1112- )

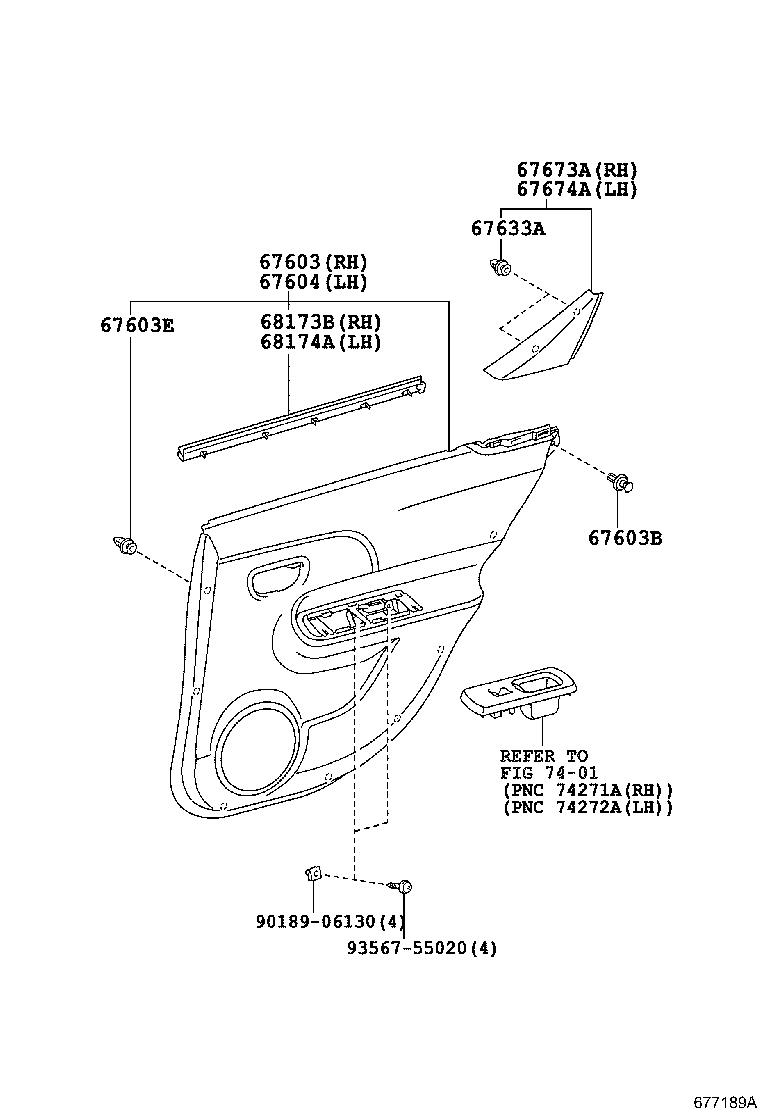

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 67603 67603B 67603E 67604 67633A 67673A 67674A 68173B 68174A 7401 9018906130 9356755020
Part # Description Qty Price
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-52W00C0

NHP10..G

G’s,BLACK,TRIM2#

 1
67630-52W00E0

NHP10..G

GREGE,TRIM2#

 1
67630-52W00E0

NHP10..G

GREGE,TRIM24

 1
67630-52W00C0

NHP10..G

G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM2#

 1
67630-52W00C0

NHP10..G,S

BLACK,TRIM22

 1
67630-52W00B0

NHP10..S

LT.BLUE GRAY,TRIM28

 1
67630-52W00E0

NHP10..S

GREGE,TRIM24

 1
67603B - CLIP(FOR REAR DOOR TRIM BOARD)
90467-07214

NHP10

 2
90467-07201

NHP10

 2
67603E - CLIP(FOR REAR DOOR TRIM BOARD)
90467-09206

NHP10

 14
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-52V20E0

NHP10..S

GREGE,TRIM24

 1
67640-52V20C0

NHP10..G

G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM2#

 1
67640-52V20B0

NHP10..S

LT.BLUE GRAY,TRIM28

 1
67640-52V20C0

NHP10..G,S

BLACK,TRIM22

 1
67640-52V20C0

NHP10..G

G’s,BLACK,TRIM2#

 1
67640-52V20E0

NHP10..G

GREGE,TRIM2#

 1
67640-52V20E0

NHP10..G

GREGE,TRIM24

 1
67633A - RETAINER, REAR DOOR TRIM, UPPER
67771-26240

NHP10

 4
67673A - GARNISH, REAR DOOR FRAME, RH
67673-52050

NHP10

 1
67674A - GARNISH, REAR DOOR FRAME, LH
67674-52050

NHP10

 1
68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH
68173-52170

NHP10

 1
68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68174-52180

NHP10

 1
Common parts
90189-06130
93567-55020
Linked diagrams
7401

ILLUST NO. 1 OF 2(1112- )

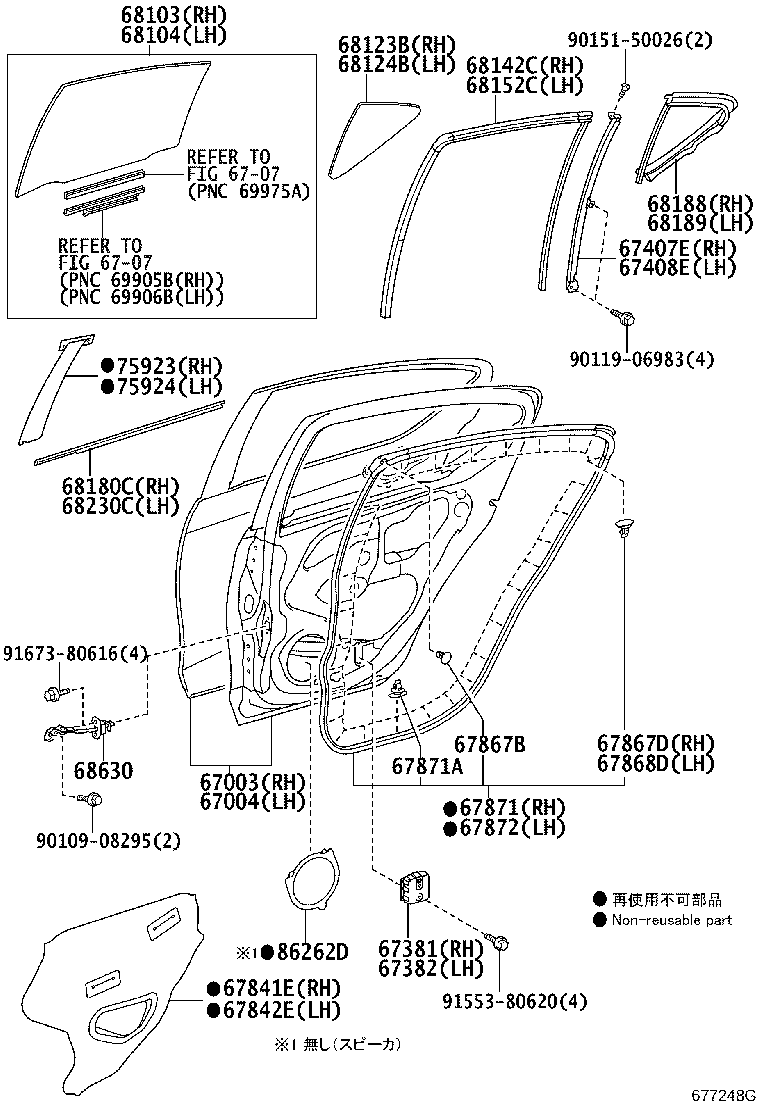

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 67003 67004 6707 6707 67381 67382 67407E 67408E 67841E 67842E 67867B 67867D 67868D 67871 67871A 67872 68103 68104 68123B 68124B 68142C 68152C 68180C 68188 68189 68230C 68630 75923 75924 86262D 9010908295 9011906983 9015150026 9155380620 9167380616
Part # Description Qty Price
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-52460

NHP10

 1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-52470

NHP10

 1
67381 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 RH
67381-52030

NHP10

 1
67382 - BRACKET, REAR DOOR INSIDE PANEL, NO.1 LH
67381-52030

NHP10

 1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-52180

NHP10

 1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-52180

NHP10

 1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-52330

NHP10

 1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-52200

NHP10

 1
67867B - CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
90467-06084

NHP10

 2
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-52010

NHP10

 9
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-52040

NHP10

 9
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-52190

NHP10

 1
67871A - RETAINER(FOR REAR DOOR WEATHERSTRIP)
67867-12150

NHP10

 42
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-52210

NHP10

 1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68130-52380

NHP10..G,S

 1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68140-52380

NHP10..G,S

 1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-52200

NHP10..G,S

 1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-52200

NHP10..G,S

 1
68142C - RUN, REAR DOOR GLASS, RH
68142-52190

NHP10

 1
68152C - RUN, REAR DOOR GLASS, LH
68152-52200

NHP10

 1
68180C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH
68180-52180

NHP10

 1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-52110

NHP10

 1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-52110

NHP10

 1
68230C - WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH
68230-52180

NHP10

 1
68630 - CHECK ASSY, REAR DOOR
68630-52130

NHP10

 2
75923 - TAPE, BLACK OUT, NO.2 RH
75923-52130

NHP10

 1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-52130

NHP10

 1
Common parts
90109-08295
90119-06983
90151-50026
91553-80620
91673-80616
Linked diagrams
6707
