NHP10-AHXEB (2011)
Toyota Aqua

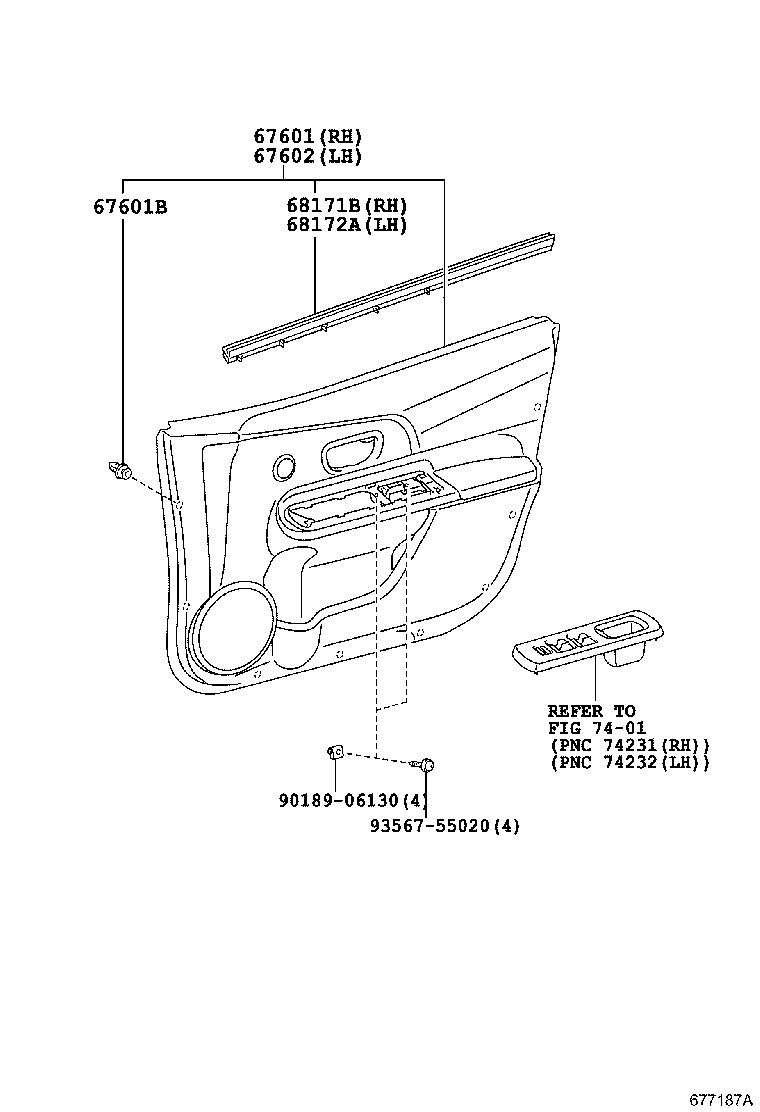

ILLUST NO. 2 OF 2(1112- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-52X90E2 |
NHP10..G ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM2# |
1 | ||
| 67610-52X90B2 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,LT.BLUE GRAY,TRIM28 |
1 | ||
| 67610-52X90B2 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),LT.BLUE GRAY,TRIM28 |
1 | ||
| 67610-52X90C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,BLACK,TRIM22 |
1 | ||
| 67610-52X90E2 |
NHP10..G ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM2# |
1 | ||
| 67610-52W90E2 |
NHP10..G GREGE,TRIM24 |
1 | ||
| 67610-52X90E2 |
NHP10..G ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67610-52W90B2 |
NHP10..S LT.BLUE GRAY,TRIM28 |
1 | ||
| 67610-52X90E2 |
NHP10..G ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67610-52X90E2 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67610-5CL90C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM22 |
1 | ||
| 67610-5CL70C0 |
NHP10..G,S BLACK,TRIM22 |
1 | ||
| 67610-52X90C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM22 |
1 | ||
| 67610-52W90E2 |
NHP10..S GREGE,TRIM24 |
1 | ||
| 67610-5CL90C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,BLACK,TRIM22 |
1 | ||
| 67610-5CL90E0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67610-52W90E2 |
NHP10..G GREGE,TRIM2# |
1 | ||
| 67610-52W90C0 |
NHP10..G,S BLACK,TRIM22 |
1 | ||
| 67610-52X90E2 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67610-5CM70C0 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM2# |
1 | ||
| 67610-5CL70E0 |
NHP10..G,S GREGE,TRIM24 |
1 | ||
| 67610-5CM60C0 |
NHP10..G G’s,BLACK,TRIM2# |
1 | ||
| 67610-5CL90E0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
NHP10 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-5CD40E2 |
NHP10..S GREGE,TRIM24 |
1 | ||
| 67620-5CD40B2 |
NHP10..S LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CD40E2 |
NHP10..G GREGE,TRIM2# |
1 | ||
| 67620-5CD60E2 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67620-5CD60B2 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CK70B0 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CD60B2 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CK70E0 |
NHP10..G ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM2# |
1 | ||
| 67620-5CD60E2 |
NHP10..G ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM2# |
1 | ||
| 67620-5CK60B0 |
NHP10..S LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CK60E0 |
NHP10..S GREGE,TRIM24 |
1 | ||
| 67620-5CK70E0 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67620-5CK60E0 |
NHP10..G GREGE,TRIM2# |
1 | ||
| 67620-5CK60C0 |
NHP10..G,S BLACK,TRIM22 |
1 | ||
| 67620-5CD60E2 |
NHP10..G ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM2# |
1 | ||
| 67620-5CK70C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM22 |
1 | ||
| 67620-5CL90C0 |
NHP10..G,S BLACK,TRIM22 |
1 | ||
| 67620-5CD60E2 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67620-5CK60E0 |
NHP10..G GREGE,TRIM24 |
1 | ||
| 67620-5CK70E0 |
NHP10..G ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67620-5CK70E0 |
NHP10..S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67620-5CK70C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,BLACK,TRIM22 |
1 | ||
| 67620-5CK70B0 |
NHP10..S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),LT.BLUE GRAY,TRIM28 |
1 | ||
| 67620-5CM10E0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67620-5CK70E0 |
NHP10..G ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,GREGE,TRIM24 |
1 | ||
| 67620-5CM10C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−CD & 6ｽﾋﾟｰｶ,BLACK,TRIM22 |
1 | ||
| 67620-5CM10C0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM22 |
1 | ||
| 67620-5CM60C0 |
NHP10..G G’s&ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),BLACK,TRIM2# |
1 | ||
| 67620-5CK70E0 |
NHP10..G ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM2# |
1 | ||
| 67620-5CL90E0 |
NHP10..G,S GREGE,TRIM24 |
1 | ||
| 67620-5CM10E0 |
NHP10..G,S ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ﾊﾞｯｸｶﾒﾗ),GREGE,TRIM24 |
1 | ||
| 67620-5CM50C0 |
NHP10..G G’s,BLACK,TRIM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-52230 |
NHP10 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-52200 |
NHP10 |
1 | ||
| Common parts | ||||
| 90189-06130 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 7401 | ||||

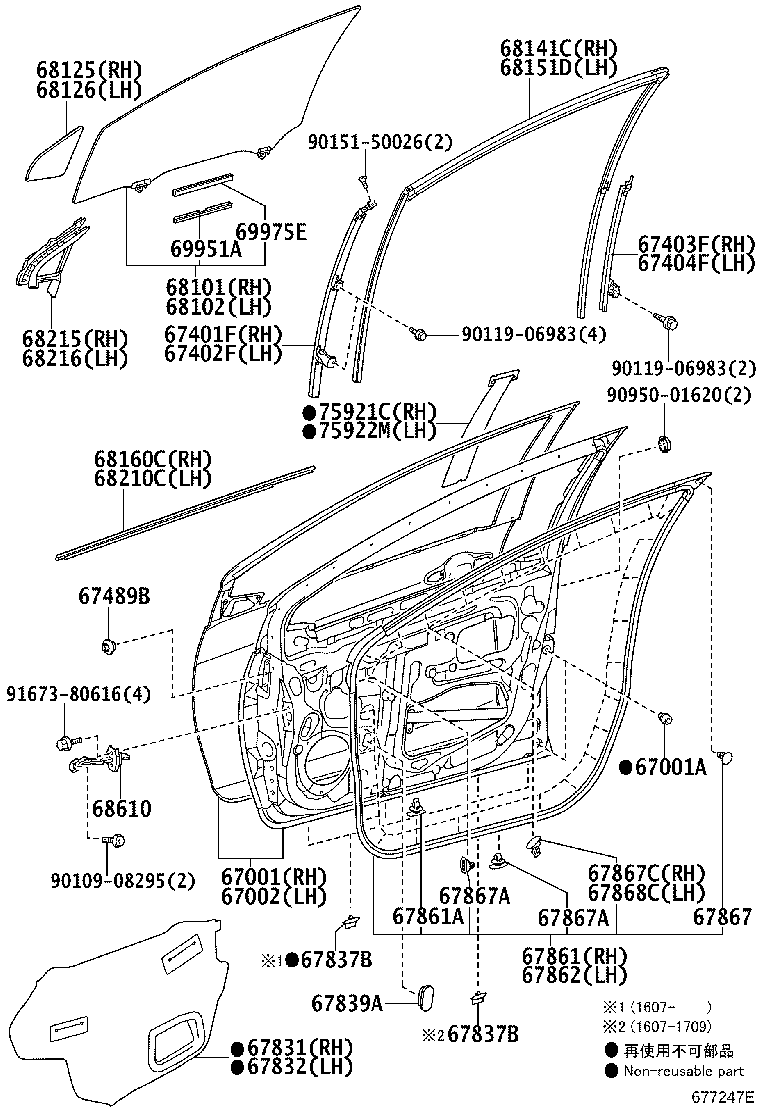

ILLUST NO. 1 OF 2(1112- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-52590 |
NHP10 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
NHP10 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-52540 |
NHP10 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-52150 |
NHP10 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-52140 |
NHP10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-52210 |
NHP10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-52180 |
NHP10 |
1 | ||
| 67489B - PACKING, FRONT DOOR LOWER COVER | ||||
| 67489-52020 |
NHP10 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-52420 |
NHP10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-52300 |
NHP10 |
1 | ||
| 67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER | ||||
| 67833-52040 |
NHP10 |
2 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-52260 |
NHP10 |
1 | ||
| 67861-52270 |
NHP10 寒冷地仕様 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
NHP10 |
32 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-52260 |
NHP10 寒冷地仕様 |
1 | ||
| 67862-52250 |
NHP10 |
1 | ||
| 67867 - CLIP, DOOR WEATHERSTRIP | ||||
| 90467-06084 |
NHP10 |
2 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
NHP10 |
8 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
NHP10 |
8 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-52030 |
NHP10 |
9 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-52020 |
NHP10 |
9 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-52050 |
NHP10..G,S |
1 | ||
| 68101-52040 |
NHP10..G,S |
1 | ||
| 68101-52050 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 68101-52051 |
NHP10..G,S |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-52030 |
NHP10..G,S |
1 | ||
| 68102-52040 |
NHP10..G,S |
1 | ||
| 68102-52041 |
NHP10..G,S |
1 | ||
| 68102-52040 |
NHP10..G,S 除菌ｲｵﾝ&ﾏｲﾅｽｲｵﾝ発生装置−有り |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-52040 |
NHP10 |
1 | ||
| 68125-52070 |
NHP10 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-52040 |
NHP10 |
1 | ||
| 68126-52060 |
NHP10 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-52260 |
NHP10 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-52240 |
NHP10 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68160-52210 |
NHP10 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68210-52210 |
NHP10 |
1 | ||
| 68215 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH | ||||
| 68215-52050 |
NHP10 |
1 | ||
| 68215-52030 |
NHP10 |
1 | ||
| 68216 - WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH | ||||
| 68216-52040 |
NHP10 |
1 | ||
| 68216-52030 |
NHP10 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-52170 |
NHP10 |
2 | ||
| 69951A - CHANNEL, FRONT DOOR GLASS | ||||
| 69955-47010 |
NHP10 |
2 | ||
| 69975E - FILLER, FRONT DOOR GLASS CHANNEL, NO.1 | ||||
| 69975-47010 |
NHP10 |
2 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-52140 |
NHP10 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-52140 |
NHP10 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90950-01620 | ||||
| 91673-80616 | ||||
