NHP10-AHXEB (2011)

Toyota Aqua

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

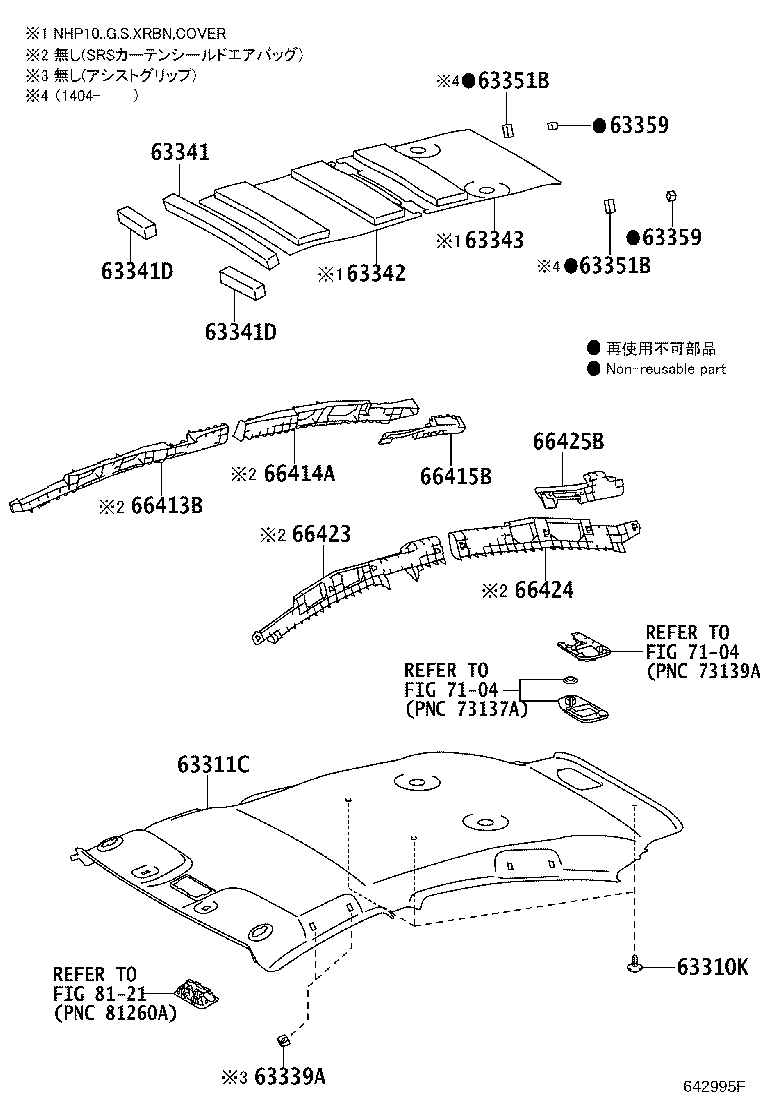

Click highlighted areas on diagram

diagram 63310K 63311C 63339A 63341 63341D 63341D 63342 63343 63351B 63351B 63359 63359 66413B 66414A 66415B 66423 66424 66425B 7104 7104 8121
Part # Description Qty Price
63310K - CLIP
90467-05164B0

NHP10

LT.GRAY,TRIM2#

 3
63311C - HEADLINING, ROOF
63311-52150B0

NHP10..G,S

LT.GRAY,TRIM2#

 1
63339A - COVER, ROOF HEADLINING SERVICE HOLE
63339-52030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV),LT.GRAY,TRIM2#

 2
63388-60030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#

 2
63339-52030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU),LT.GRAY,TRIM2#

 2
63388-60030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#

 2
63388-60030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#

 2
63388-60030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS &*PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#

 2
63339-52030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟW),LT.GRAY,TRIM2#

 2
63339-52030B0

NHP10..G,S

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ ﾀｲﾌﾟT),LT.GRAY,TRIM2#

 2
63341 - PAD, ROOF SILENCER, NO.1
63341-52310

NHP10

 1
63341D - PAD, ROOF SILENCER, FRONT
63345-52020

NHP10

 2
63341D - PAD, ROOF SILENCER, FRONT
63345-52020

NHP10

 2
63342 - PAD, ROOF SILENCER, NO.2
63342-52180

NHP10..G,S

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-52100

NHP10..G,S

 1
63351B - PAD, ROOF HEADLINING
63387-52010

NHP10

 2
63351B - PAD, ROOF HEADLINING
63387-52010

NHP10

 2
63359 - PAD, ROOF HEADLINING END
63387-52020

NHP10

 2
63359 - PAD, ROOF HEADLINING END
63387-52020

NHP10

 2
66413B - SPACER, SIDE RAIL, FRONT RH
66413-52310

NHP10

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-52360

NHP10

 1
66415B - SPACER, SIDE RAIL, REAR NO.2 RH
66415-52100

NHP10

 1
66423 - SPACER, SIDE RAIL, FRONT LH
66423-52320

NHP10

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-52350

NHP10

 1
66425B - SPACER, SIDE RAIL, REAR NO.2 LH
66425-52100

NHP10

 1
Linked diagrams
7104
8121
