NHP10-AHXEB (2011)
Toyota Aqua
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

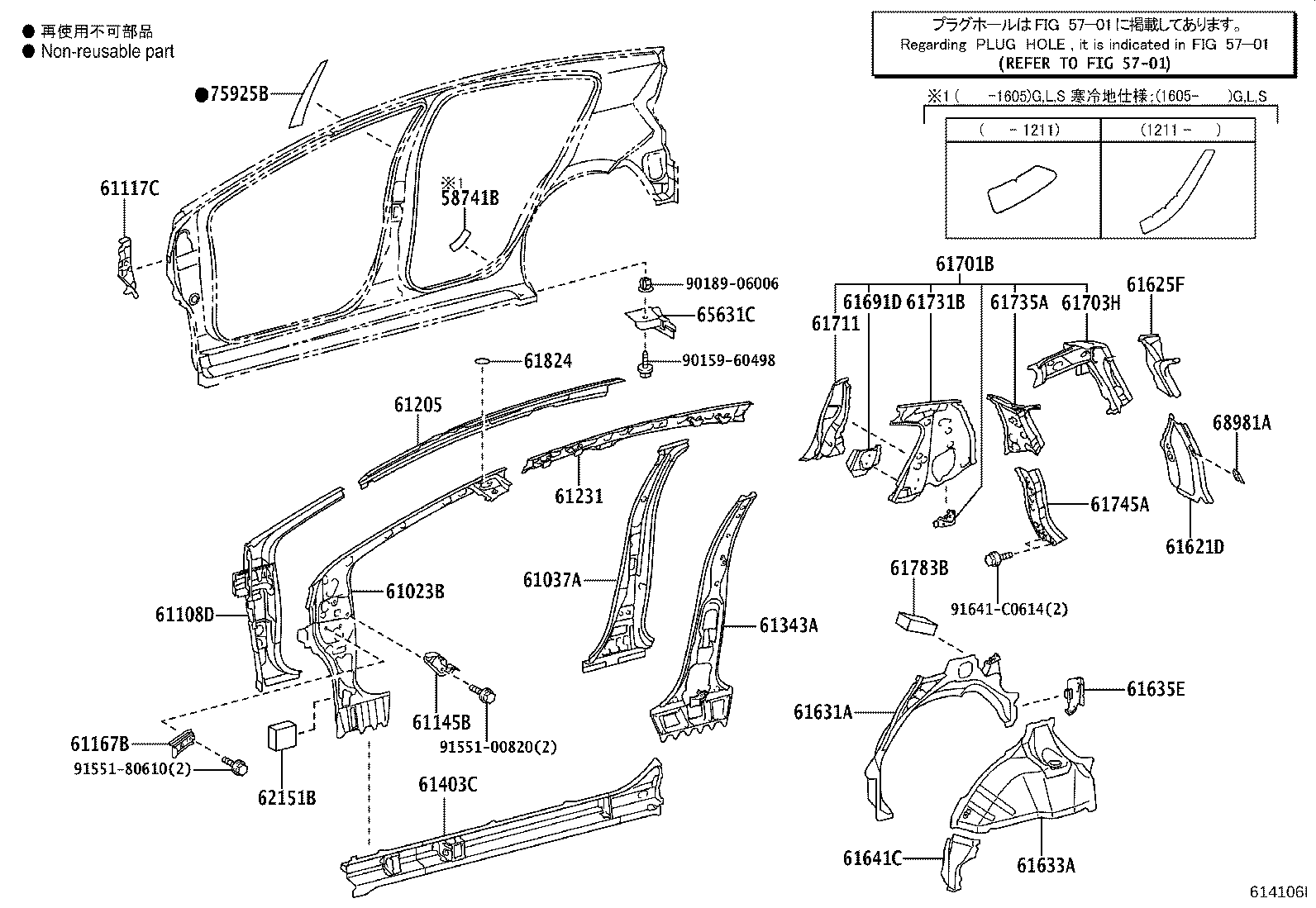

ILLUST NO. 2 OF 2(1112- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-52372 |
NHP10 寒冷地仕様 |
1 | ||
| 58741-52371 |
NHP10 寒冷地仕様 |
1 | ||
| 58741-52370 |
NHP10 寒冷地仕様 |
1 | ||
| 58741-52373 |
NHP10 寒冷地仕様 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-52180 |
NHP10 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-52290 |
NHP10 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-52180 |
NHP10 |
1 | ||
| 61117C - GUSSET, SIDE PANEL TO COWL, RH | ||||
| 61117-52030 |
NHP10 |
1 | ||
| 61145B - GUSSET, FRONT BODY PILLAR, LOWER RH | ||||
| 61145-52070 |
NHP10 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52030 |
NHP10 右側 |
1 | ||
| 61167-52020 |
NHP10 左側 |
1 | ||
| 61205 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR RH | ||||
| 61205-52010 |
NHP10 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61201-52140 |
NHP10 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61032-52160 |
NHP10 |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-52220 |
NHP10 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-52170 |
NHP10 |
1 | ||
| 61625F - EXTENSION, QUARTER PANEL, UPPER RH | ||||
| 61625-52160 |
NHP10 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-52910 |
NHP10 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-52330 |
NHP10 |
1 | ||
| 61635E - EXTENSION, QUARTER WHEEL HOUSE, RH | ||||
| 61635-52110 |
NHP10 |
1 | ||
| 61641C - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-52100 |
NHP10 |
1 | ||
| 61691D - REINFORCE, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 61691-52030 |
NHP10 |
1 | ||
| 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH | ||||
| 61701-52170 |
NHP10 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-52110 |
NHP10 |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-52190 |
NHP10 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-52270 |
NHP10 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-52130 |
NHP10 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-52130 |
NHP10 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NHP10 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NHP10 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NHP10 |
2 | ||
| 65631C - PLATE, REAR WHEEL HOUSE, FRONT RH | ||||
| 65631-52130 |
NHP10 |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-52110 |
NHP10 |
1 | ||
| 75925B - TAPE, BLACK OUT, NO.3 RH | ||||
| 75925-52130 |
NHP10 |
1 | ||
| 75925-52131 |
NHP10 |
1 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06006 | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||

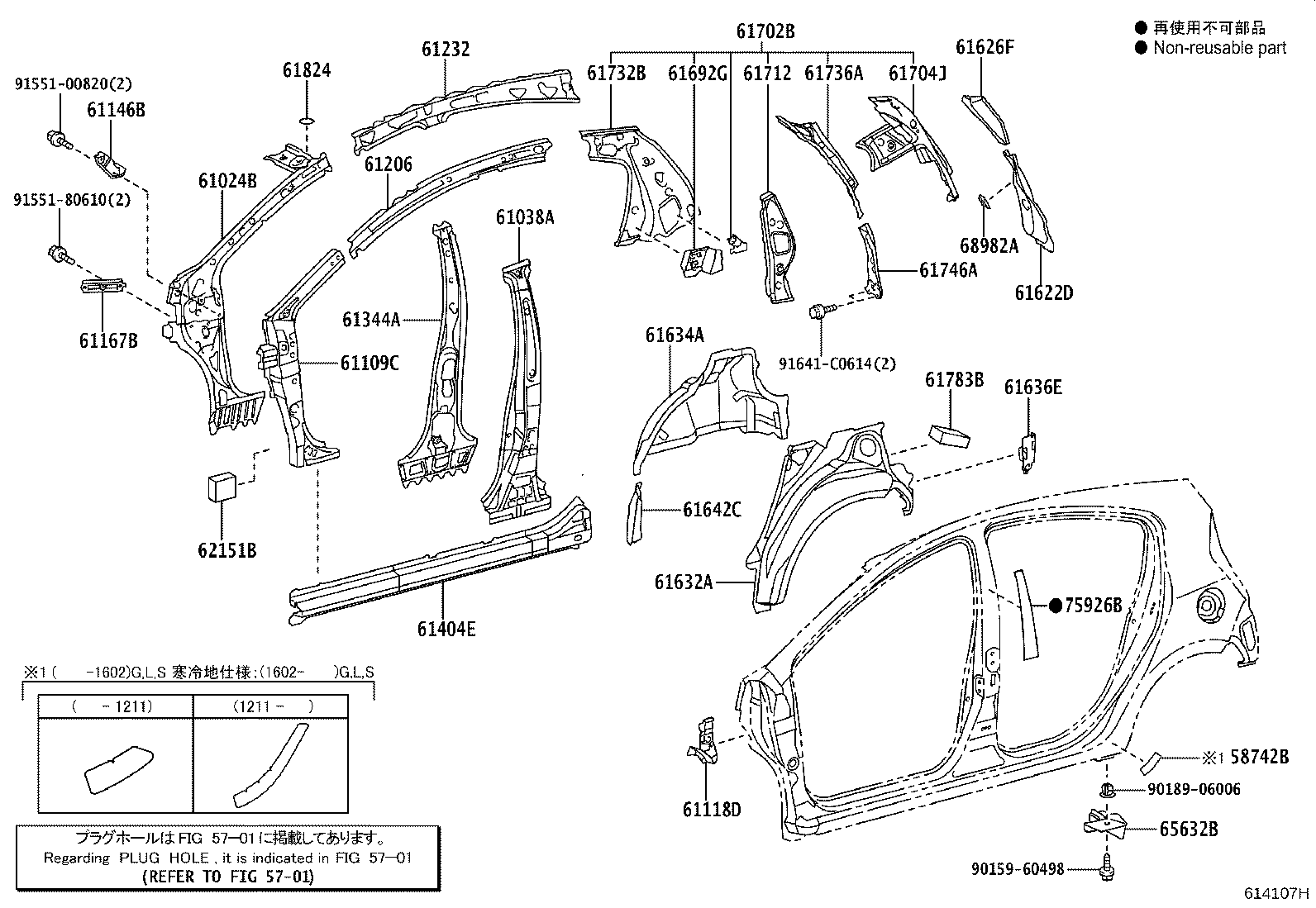

ILLUST NO. 2 OF 2(1112- )
Click highlighted areas on diagram
ｲﾝﾅﾊﾟﾈﾙ,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-52361 |
NHP10 寒冷地仕様 |
1 | ||
| 58742-52363 |
NHP10 寒冷地仕様 |
1 | ||
| 58742-52362 |
NHP10 寒冷地仕様 |
1 | ||
| 58742-52360 |
NHP10 寒冷地仕様 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-52191 |
NHP10 |
1 | ||
| 61024-52190 |
NHP10 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-52290 |
NHP10 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-52180 |
NHP10 |
1 | ||
| 61118D - GUSSET, SIDE PANEL TO COWL, LH | ||||
| 61118-52030 |
NHP10 |
1 | ||
| 61146B - GUSSET, FRONT BODY PILLAR, LOWER LH | ||||
| 61146-52080 |
NHP10 |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-52030 |
NHP10 右側 |
1 | ||
| 61167-52020 |
NHP10 左側 |
1 | ||
| 61206 - RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH | ||||
| 61206-52020 |
NHP10 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61202-52130 |
NHP10 |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61042-52140 |
NHP10 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-52220 |
NHP10 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-52170 |
NHP10 |
1 | ||
| 61626F - EXTENSION, QUARTER PANEL, UPPER LH | ||||
| 61626-52160 |
NHP10 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-52180 |
NHP10 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-52370 |
NHP10 |
1 | ||
| 61636E - EXTENSION, QUARTER WHEEL HOUSE, LH | ||||
| 61636-52110 |
NHP10 |
1 | ||
| 61642C - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-52100 |
NHP10 |
1 | ||
| 61692G - REINFORCE, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 61692-52030 |
NHP10 |
1 | ||
| 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH | ||||
| 61702-52180 |
NHP10 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-52130 |
NHP10 |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-52220 |
NHP10 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-52320 |
NHP10 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-52120 |
NHP10 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-52130 |
NHP10 |
1 | ||
| 61783B - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-52070 |
NHP10 |
2 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-52010 |
NHP10 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-52030 |
NHP10 |
2 | ||
| 65632B - PLATE, REAR WHELL HOUSE, FRONT LH | ||||
| 65632-52130 |
NHP10 |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68981-52110 |
NHP10 |
1 | ||
| 75926B - TAPE, BLACK OUT, NO.3 LH | ||||
| 75926-52131 |
NHP10 |
1 | ||
| 75926-52130 |
NHP10 |
1 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90189-06006 | ||||
| 91551-00820 | ||||
| 91551-80610 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 5701 | ||||

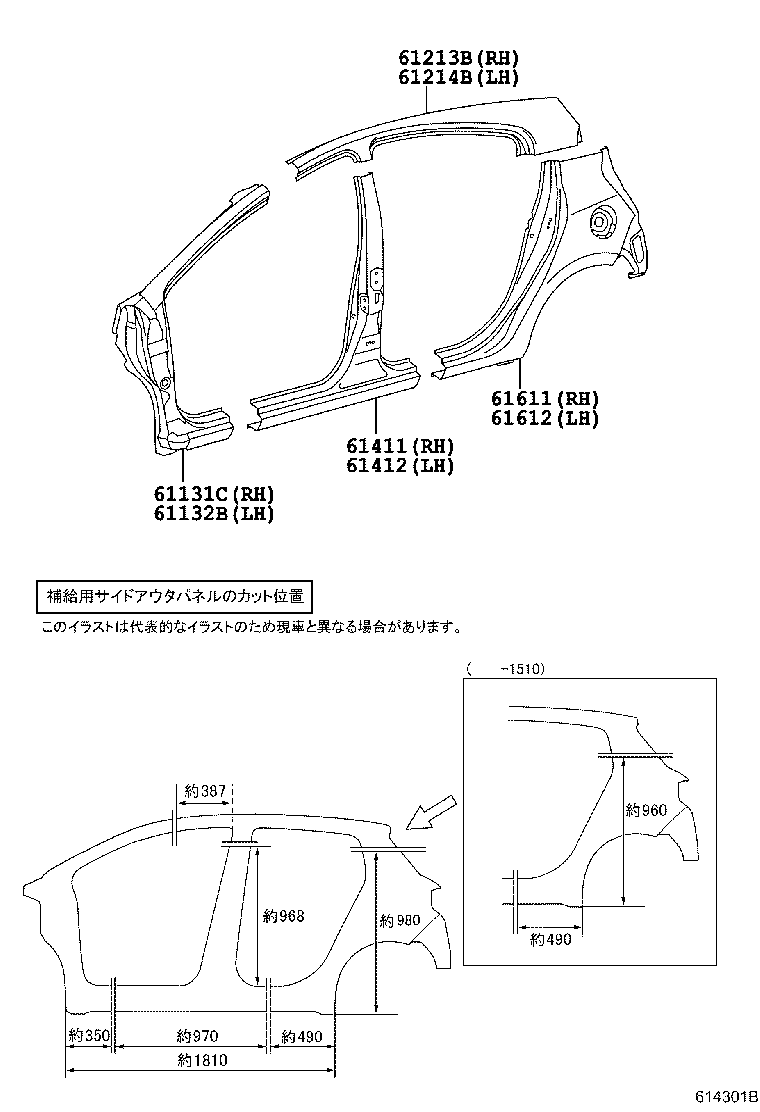

ILLUST NO. 1 OF 2(1112- )
Click highlighted areas on diagram
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-52350 |
NHP10..G G’s |
1 | ||
| 61131-52330 |
NHP10 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-52300 |
NHP10 |
1 | ||
| 61132-52320 |
NHP10..G G’s |
1 | ||
| 61213B - RAIL, ROOF SIDE, OUTER NO.2 RH | ||||
| 61213-52220 |
NHP10 |
1 | ||
| 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH | ||||
| 61214-52210 |
NHP10 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-52320 |
NHP10 |
1 | ||
| 61411-52340 |
NHP10..G G’s |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-52330 |
NHP10 |
1 | ||
| 61412-52350 |
NHP10..G G’s |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-52660 |
NHP10 |
1 | ||
| 61601-52670 |
NHP10..G G’s |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-52680 |
NHP10 |
1 | ||
| 61602-52700 |
NHP10..G G’s |
1 | ||
