NHP10-AHXEB (2011)
Toyota Aqua

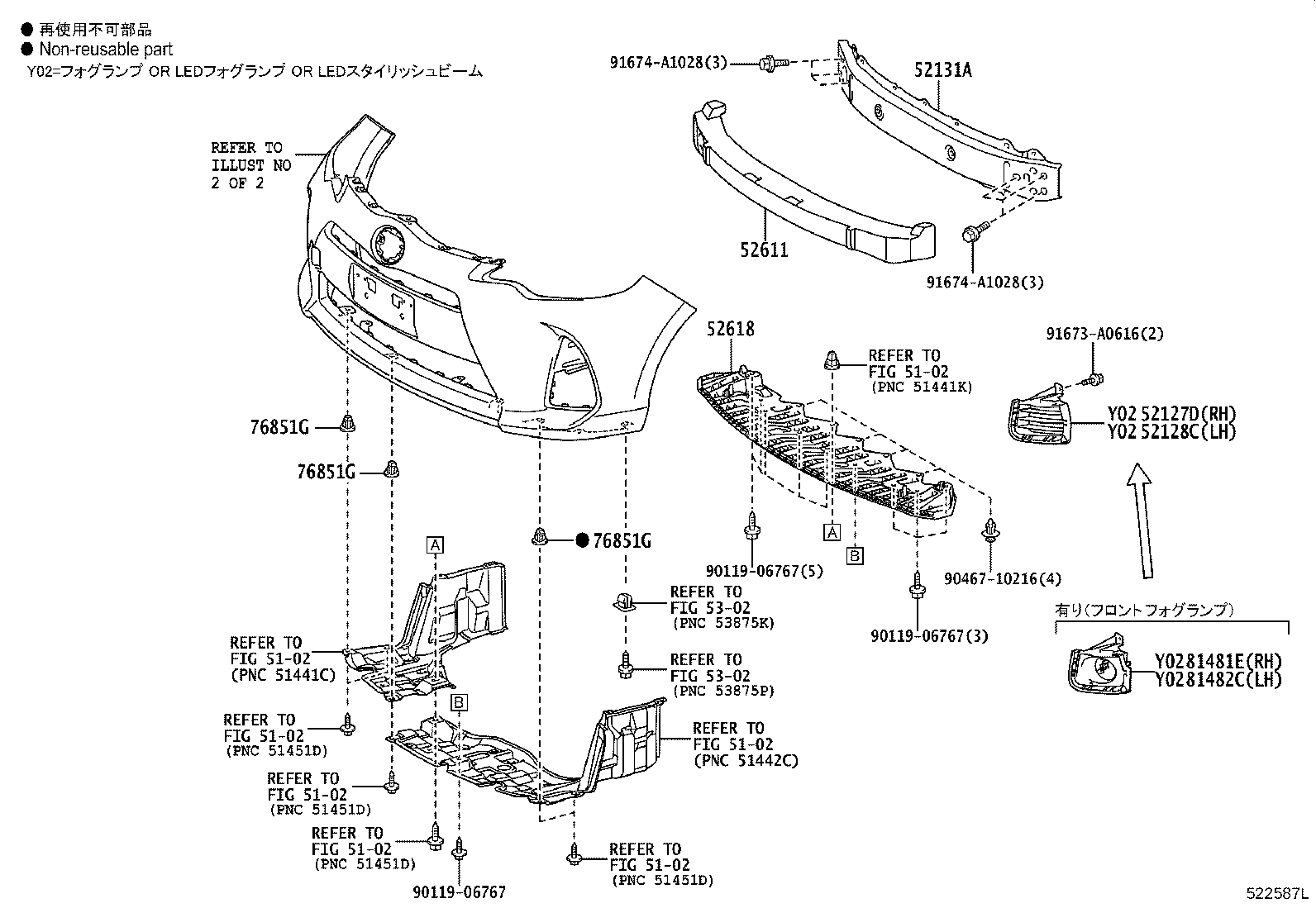

ILLUST NO. 1 OF 2(1112-1412)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-52440 |
NHP10 塗装不要 |
1 | ||
| 81481-52440 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 81481-52440 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 81482-52370 |
NHP10 塗装不要 |
1 | ||
| 81482-52370 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 81482-52370 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-52250 |
NHP10 |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-52200 |
NHP10..G G’s |
1 | ||
| 52611-52150 |
NHP10 |
1 | ||
| 52611-52150 |
NHP10..G G’s |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-52050 |
NHP10 |
1 | ||
| 52618-52080 |
NHP10..G G’s |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NHP10 |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NHP10 |
3 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
NHP10 |
3 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-52450 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81481-52450 |
NHP10 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52127-52590 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 52127-52590 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-52140 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 81482-52380 |
NHP10 ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP) |
1 | ||
| 52128-52140 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 81482-52380 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-10216 | ||||
| 91673-A0616 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||

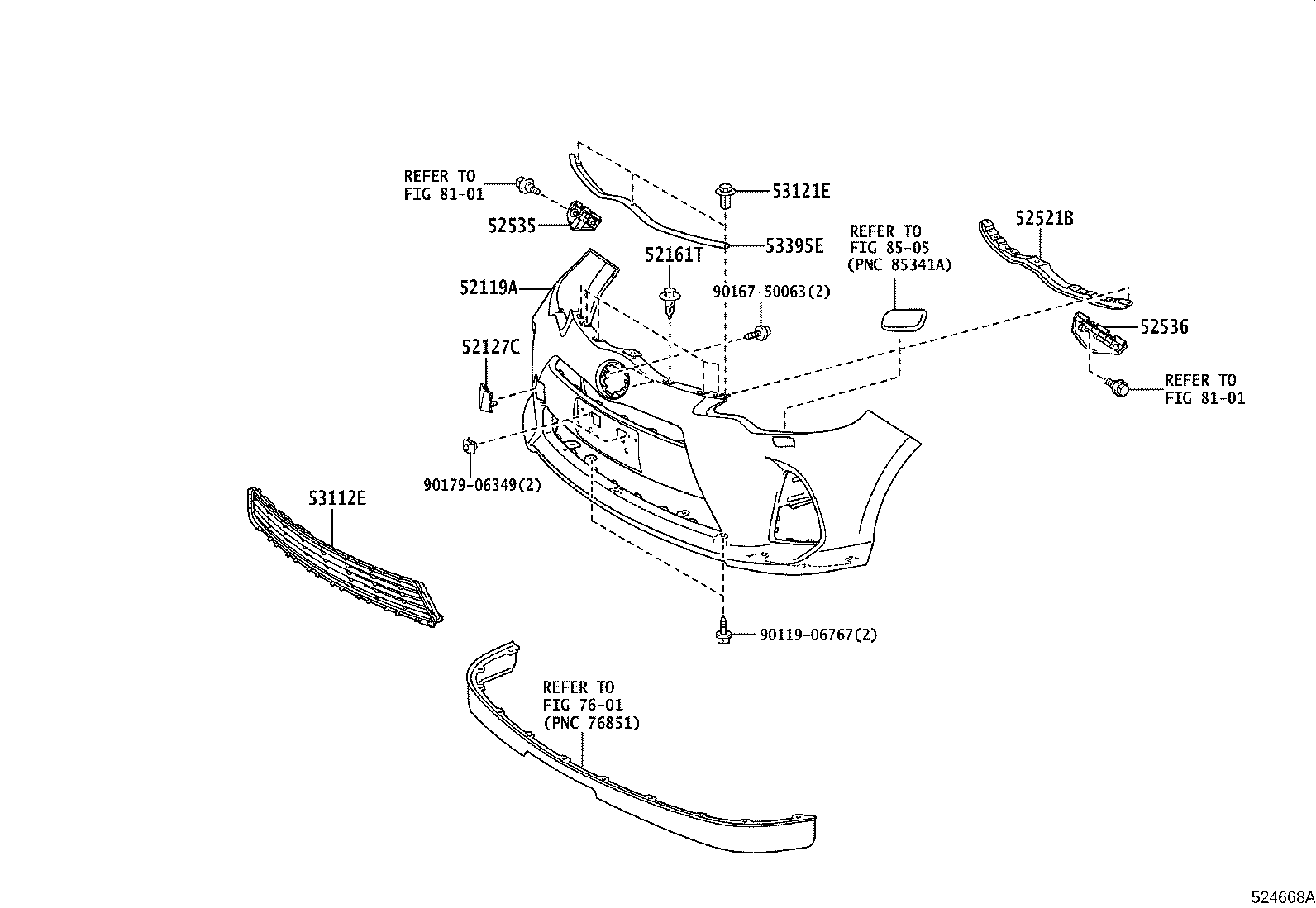

ILLUST NO. 2 OF 2(1112-1412)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-52620A1 |
NHP10 LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52620A0 |
NHP10 SUPER WHITE 2,040 |
1 | ||
| 52119-52620A1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52620A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER WHITE 2,040 |
1 | ||
| 52119-52620A1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52620B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SILVER ME.,1F7 |
1 | ||
| 52119-52620C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLACK MC.,209 |
1 | ||
| 52119-52620B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,GRAY ME.,1G3 |
1 | ||
| 52119-52620B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7 |
1 | ||
| 52119-52620E1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MANDARIN ORANGE M.M.,4V7 |
1 | ||
| 52119-52620A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SUPER WHITE 2,040 |
1 | ||
| 52119-52620B0 |
NHP10 SILVER ME.,1F7 |
1 | ||
| 52119-52620D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER RED 5,3P0 |
1 | ||
| 52119-52620C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209 |
1 | ||
| 52119-52620D0 |
NHP10 SUPER RED 5,3P0 |
1 | ||
| 52119-52620F0 |
NHP10 YELLOW,5A3 |
1 | ||
| 52119-52620E1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),MANDARINORANGE M.M.,4V7 |
1 | ||
| 52119-52620J1 |
NHP10 COOL SODA ME.,8V7 |
1 | ||
| 52119-52620C0 |
NHP10 BLACK MC.,209 |
1 | ||
| 52119-52620F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),YELLOW,5A3 |
1 | ||
| 52119-52620J1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),COOL SODA ME.,8V7 |
1 | ||
| 52119-52620J1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,COOL SODA ME.,8V7 |
1 | ||
| 52119-52620J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLUE ME.,8T7 |
1 | ||
| 52119-52620E1 |
NHP10 MANDARIN ORANGE M.M.,4V7 |
1 | ||
| 52119-52630B0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7 |
1 | ||
| 52119-52620D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SUPER RED 5,3P0 |
1 | ||
| 52119-52620B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),GRAY ME.,1G3 |
1 | ||
| 52119-52620B1 |
NHP10 GRAY ME.,1G3 |
1 | ||
| 52119-52630A0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER WHITE 2,040 |
1 | ||
| 52119-52630B1 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,GRAY ME.,1G3 |
1 | ||
| 52119-52630D0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER RED 5,3P0 |
1 | ||
| 52119-52630C0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209 |
1 | ||
| 52119-52630A1 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52620F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,YELLOW,5A3 |
1 | ||
| 52119-52470B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7 |
1 | ||
| 52119-52470B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SILVER ME.,1F7 |
1 | ||
| 52119-52470C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209 |
1 | ||
| 52119-52470A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52630E1 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MANDARIN ORANGE M.M.,4V7 |
1 | ||
| 52119-52630J1 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,COOL SODA ME.,8V7 |
1 | ||
| 52119-52470C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLACK MC.,209 |
1 | ||
| 52119-52620J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7 |
1 | ||
| 52119-52630J0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7 |
1 | ||
| 52119-52620J0 |
NHP10 BLUE ME.,8T7 |
1 | ||
| 52119-52470D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SUPER RED 5,3P0 |
1 | ||
| 52119-52470B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),GRAY ME.,1G3 |
1 | ||
| 52119-52470D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER RED 5,3P0 |
1 | ||
| 52119-52470B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,GRAY ME.,1G3 |
1 | ||
| 52119-52630K0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52630F0 |
NHP10..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−LED,YELLOW,5A3 |
1 | ||
| 52119-52620K0 |
NHP10..G,S DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52470J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLUE ME.,8T7 |
1 | ||
| 52119-52470A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,LIME WHITE PEARL CS.,082 |
1 | ||
| 52119-52470F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),YELLOW,5A3 |
1 | ||
| 52119-52470F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,YELLOW,5A3 |
1 | ||
| 52119-52470J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7 |
1 | ||
| 52119-52620K0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),DEEP AMETHYST M.M.,9AH |
1 | ||
| 52119-52620K0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DEEP AMETHYST M.M.,9AH |
1 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-52540B1 |
NHP10 GRAY ME.,1G3 |
1 | ||
| 52127-52540B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SILVER ME.,1F7 |
1 | ||
| 52127-52540C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209 |
1 | ||
| 52127-52540B0 |
NHP10 SILVER ME.,1F7 |
1 | ||
| 52127-52540B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),GRAY ME.,1G3 |
1 | ||
| 52127-52540C0 |
NHP10 BLACK MC.,209 |
1 | ||
| 52127-52540D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SUPER RED 5,3P0 |
1 | ||
| 52127-52540C0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLACK MC.,209 |
1 | ||
| 52127-52540A1 |
NHP10 LIME WHITE PEARL CS.,082 |
1 | ||
| 52127-52540A0 |
NHP10 SUPER WHITE 2,040 |
1 | ||
| 52127-52540B0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7 |
1 | ||
| 52127-52540A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER WHITE 2,040 |
1 | ||
| 52127-52540A1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,LIME WHITE PEARL CS.,082 |
1 | ||
| 52127-52540A1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),LIME WHITE PEARL CS.,082 |
1 | ||
| 52127-52540B1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,GRAY ME.,1G3 |
1 | ||
| 52127-52540E1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,MANDARIN ORANGE M.M.,4V7 |
1 | ||
| 52127-52540F0 |
NHP10 YELLOW,5A3 |
1 | ||
| 52127-52540J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7 |
1 | ||
| 52127-52540D0 |
NHP10 SUPER RED 5,3P0 |
1 | ||
| 52127-52540F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,YELLOW,5A3 |
1 | ||
| 52127-52540E1 |
NHP10 MANDARIN ORANGE M.M.,4V7 |
1 | ||
| 52127-52540J0 |
NHP10 BLUE ME.,8T7 |
1 | ||
| 52127-52540J1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,COOL SODA ME.,8V7 |
1 | ||
| 52127-52540A0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),SUPER WHITE 2,040 |
1 | ||
| 52127-52540J1 |
NHP10 COOL SODA ME.,8V7 |
1 | ||
| 52127-52540J1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),COOL SODA ME.,8V7 |
1 | ||
| 52127-52540D0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER RED 5,3P0 |
1 | ||
| 52127-52540K0 |
NHP10..G,S DEEP AMETHYST M.M.,9AH |
1 | ||
| 52127-52540F0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),YELLOW,5A3 |
1 | ||
| 52127-52540K0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED,DEEP AMETHYST M.M.,9AH |
1 | ||
| 52127-52540E1 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),MANDARINORANGE M.M.,4V7 |
1 | ||
| 52127-52540K0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),DEEP AMETHYST M.M.,9AH |
1 | ||
| 52127-52540J0 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ),BLUE ME.,8T7 |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NHP10 |
7 | ||
| 52521B - RETAINER, FRONT BUMPER, UPPER | ||||
| 52521-52040 |
NHP10 |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-52150 |
NHP10 |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-52110 |
NHP10 |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-52430 |
NHP10..G 塗装不要,G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 53112-52370 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 53112-52370 |
NHP10..G G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−LED |
1 | ||
| 53112-52370 |
NHP10 塗装不要 |
1 | ||
| 53112-52430 |
NHP10..G 塗装不要,G’s&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ(G’s & ｴｸｽﾃﾝｼｮﾝ ﾌﾞﾗｯｸ) |
1 | ||
| 53121E - CLIP(FOR FRONT BUMPER), NO.1 | ||||
| 90467-05063C0 |
NHP10 BLACK |
3 | ||
| 53395E - SEAL, HOOD TO FRONT END PANEL | ||||
| 53395-52050 |
NHP10 |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90167-50063 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 7601 | ||||
| 8101 | ||||
| 8505 | ||||
