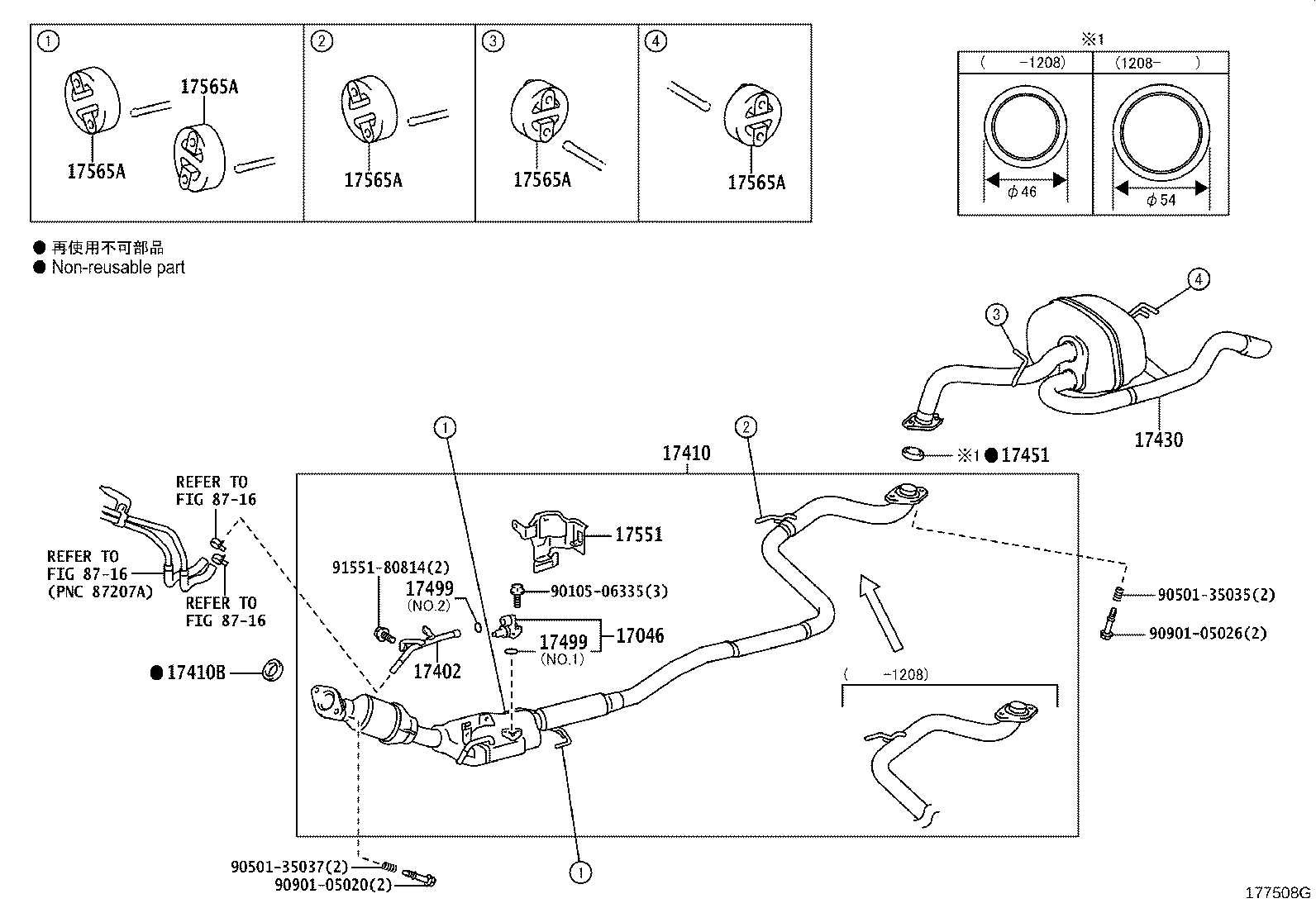

NHP10-AHXEB (2011)
Toyota Aqua
(1112- )
ｱﾘ(ﾊｲｷﾈﾂｶｲｼｭｳｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17046 - ACTUATOR SUB-ASSY, EXHAUST PIPE GAS CONTROL | ||||
| 17046-31031 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17046-21030 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17046-31031 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17046-31031 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17046-21032 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17046-21032 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17046-21031 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17046-21030 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17046-21031 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17046-21031 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17046-21030 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17046-21032 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2 | ||||
| 17402-21010 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17402-21010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17402-21010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-21C30 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C30 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C30 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C40 |
1NZFXE..NHP10 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C41 |
1NZFXE..NHP10 |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-21070 |
1NZFXE..NHP10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-21870 |
1NZFXE..NHP10 |
1 | ||
| 17430-21871 |
1NZFXE..NHP10 |
1 | ||
| 17430-21871 |
1NZFXE..NHP10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-40032 |
1NZFXE..NHP10 |
1 | ||
| 17451-23042 |
1NZFXE..NHP10 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ,NO.1 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ,NO.2 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様,NO.2 |
1 | ||
| 17499-31020 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様,NO.1 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10 寒冷地仕様,NO.2 |
1 | ||
| 17499-31020 |
1NZFXE..NHP10 寒冷地仕様,NO.1 |
1 | ||
| 17499 - GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR | ||||
| 17499-31020 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ,NO.1 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ,NO.2 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様,NO.2 |
1 | ||
| 17499-31020 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様,NO.1 |
1 | ||
| 17499-37010 |
1NZFXE..NHP10 寒冷地仕様,NO.2 |
1 | ||
| 17499-31020 |
1NZFXE..NHP10 寒冷地仕様,NO.1 |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-21030 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17551-21030 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17551-21030 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| Common parts | ||||
| 90105-06335 | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
| 91551-80814 | ||||
| Linked diagrams | ||||
| 8716 | ||||

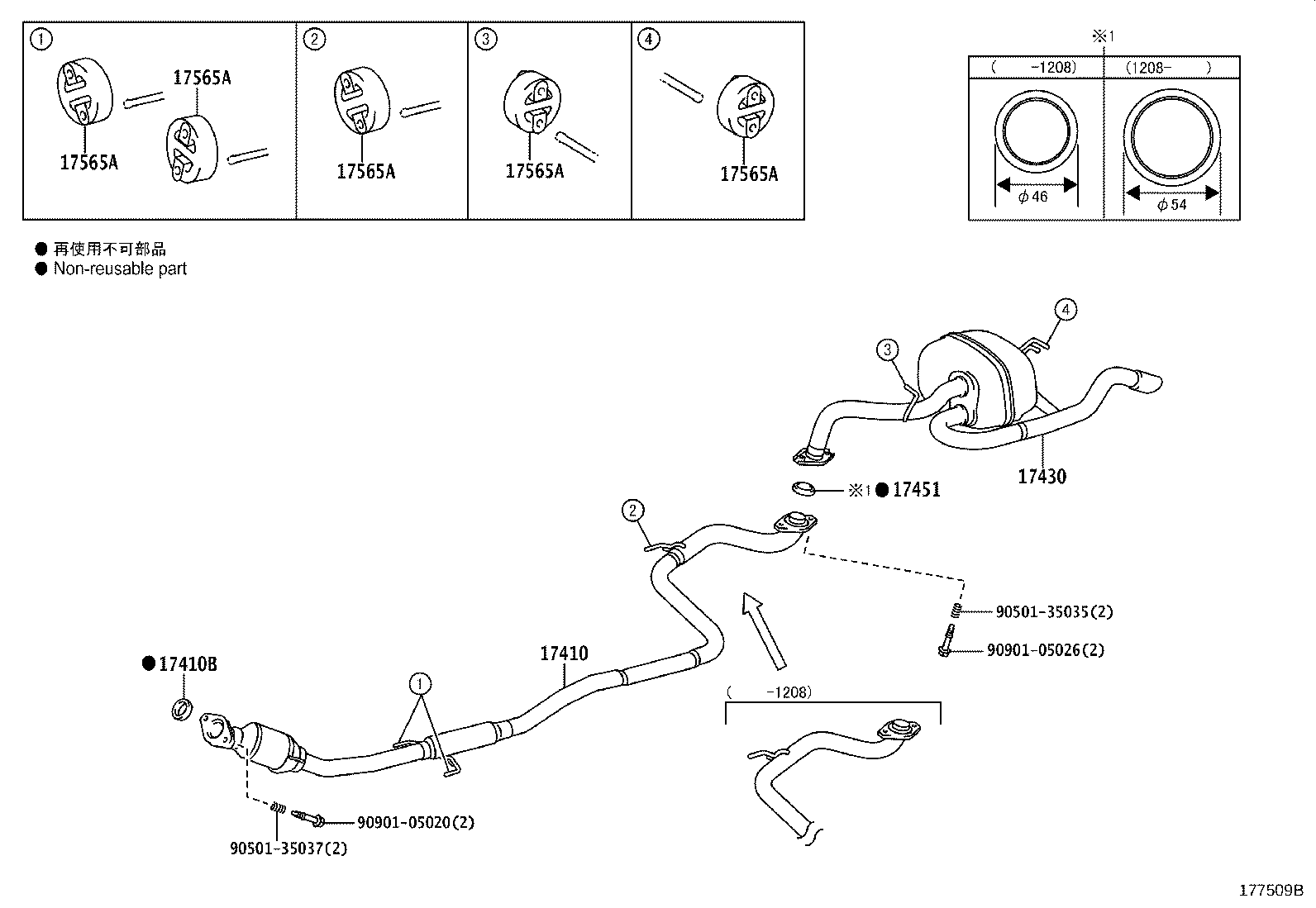

(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-21C30 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C30 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C30 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C40 |
1NZFXE..NHP10 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C32 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ |
1 | ||
| 17410-21C31 |
1NZFXE..NHP10..G,S ﾋﾞｭｰﾃｨｰﾊﾟｯｹｰｼﾞ&寒冷地仕様 |
1 | ||
| 17410-21C41 |
1NZFXE..NHP10 |
1 | ||
| 17410-21C33 |
1NZFXE..NHP10 寒冷地仕様 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-21070 |
1NZFXE..NHP10 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-21870 |
1NZFXE..NHP10 |
1 | ||
| 17430-21871 |
1NZFXE..NHP10 |
1 | ||
| 17430-21871 |
1NZFXE..NHP10 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-40032 |
1NZFXE..NHP10 |
1 | ||
| 17451-23042 |
1NZFXE..NHP10 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-47010 |
1NZFXE..NHP10 |
5 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-35037 | ||||
| 90901-05020 | ||||
| 90901-05026 | ||||
