NHP10-AHXEB (2017)

Toyota Aqua

Production Jun 2017 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(1706- )

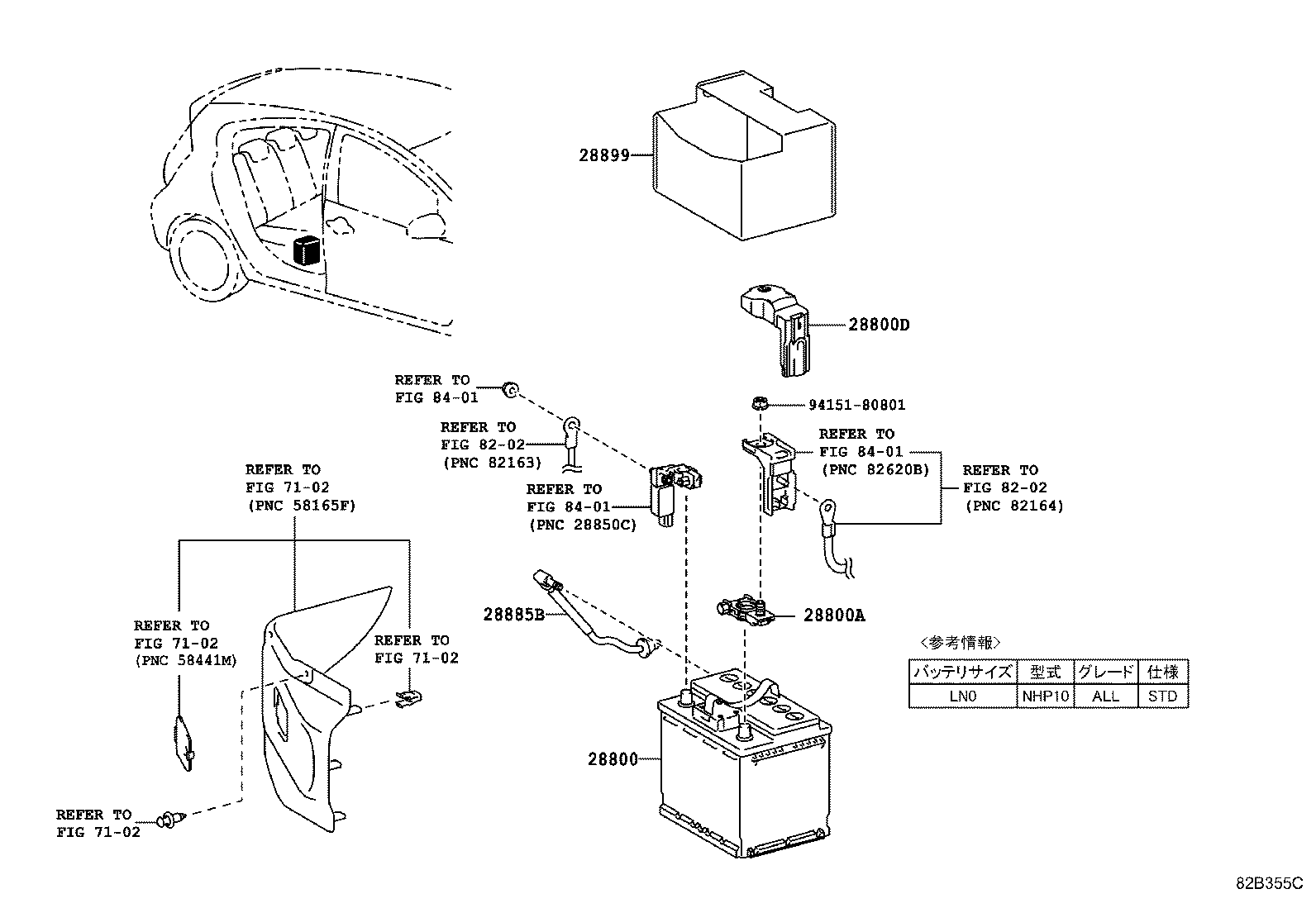

Click highlighted areas on diagram

12V ﾊﾞｯﾃﾘ

diagram 28800 28800A 28800D 28885B 28899 7102 7102 7102 7102 8202 8202 8401 8401 8401 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-21211

1NZFXE..NHP10

LN0

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

1NZFXE..NHP10

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-52320

1NZFXE..NHP10

 1
28885B - HOSE, BATTERY
28885-21100

1NZFXE..NHP10

 1
28899 - INSULATOR, BATTERY
28877-21040

1NZFXE..NHP10

 1
Common parts
94151-80801
Linked diagrams
7102
8202
8401
