NHP10-AHXCB (2011)
Toyota Aqua
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

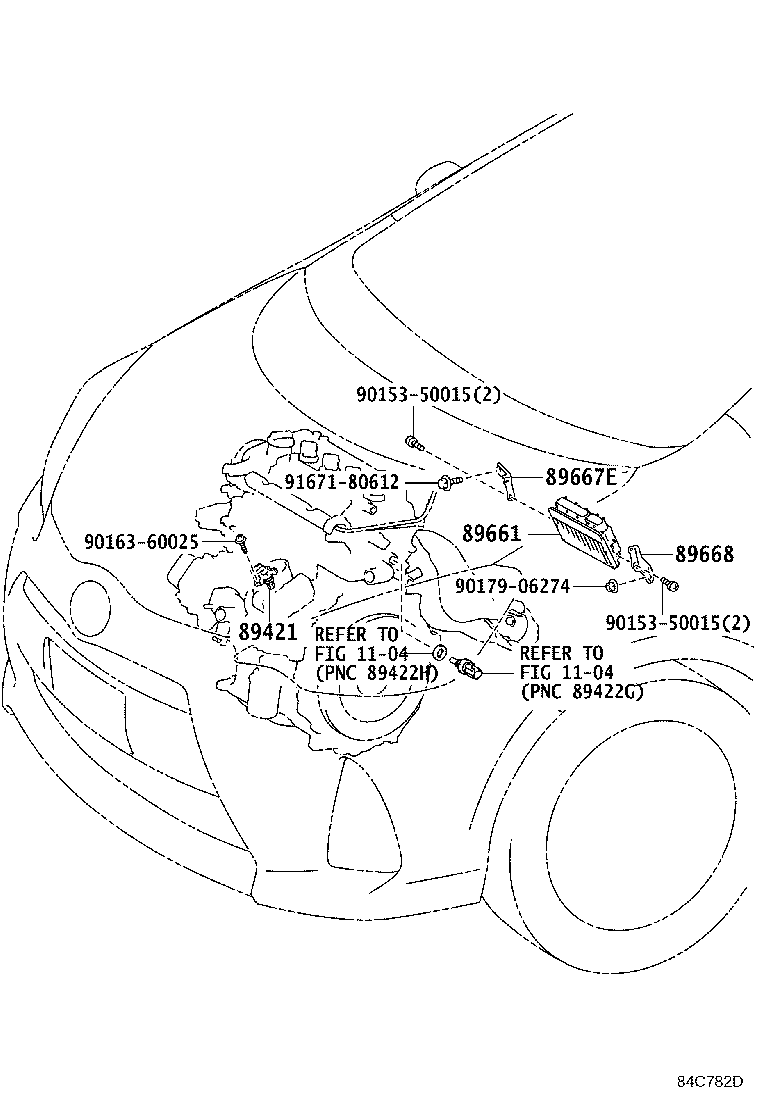

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-47010 |
NHP10 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-5C570 |
NHP10 DENSO |
1 | ||
| 89661-5C571 |
NHP10 DENSO |
1 | ||
| 89661-52U90 |
NHP10 DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-52340 |
NHP10 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-52350 |
NHP10 |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 90163-60025 | ||||
| 90179-06274 | ||||
| 91671-80612 | ||||
| Linked diagrams | ||||
| 1104 | ||||
