SXE10-AEFVF (1998)

Toyota Altezza/Altezza Gita

Production Oct 1998 - Jul 2005
Engine 3SGE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9810- )

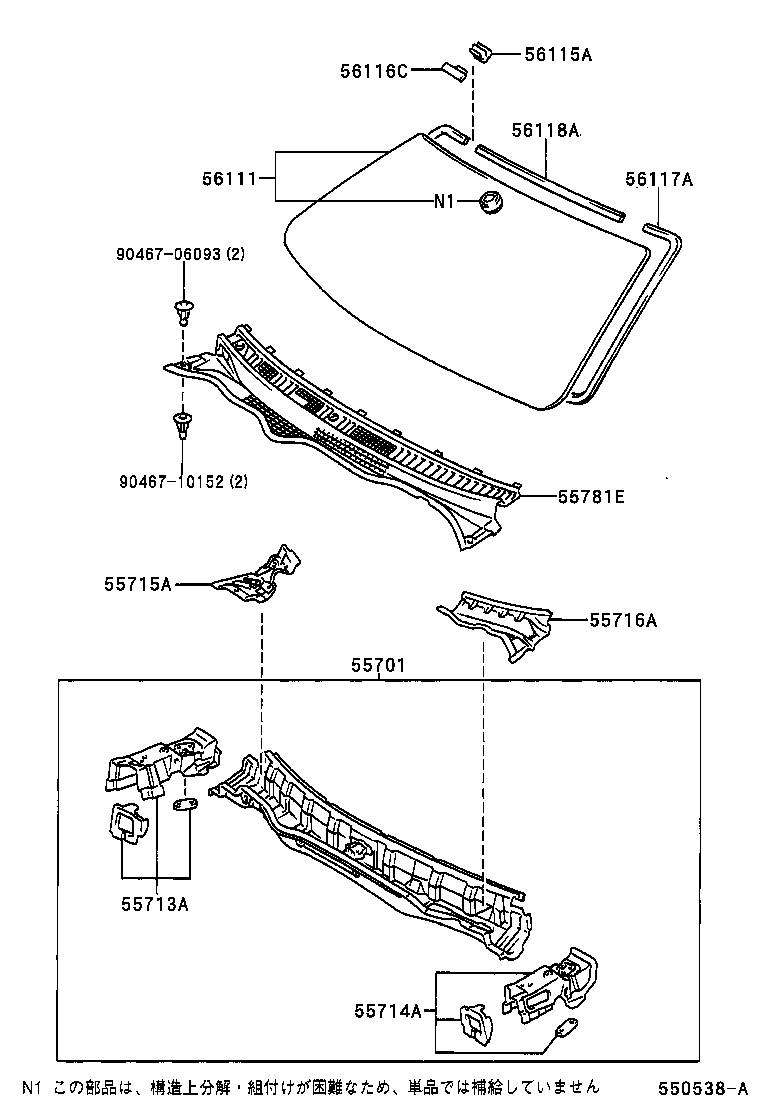

Click highlighted areas on diagram

diagram 55701 55713A 55714A 55715A 55716A 55781E 56111 56115A 56116C 56117A 56118A 9046706093 9046710152
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-53010

GXE10,SXE10

 1
55700-53010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-53900

GXE10,SXE10

 1
55713-53900

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-53900

GXE10,SXE10

 1
55714-53900

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
55715A - BRACE, COWL TOP TO APRON, RH
55715-53010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
55715-53010

GXE10,SXE10

 1
55716A - BRACE, COWL TOP TO APRON, LH
55716-53010

GXE10,SXE10

 1
55716-53010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-53010

GXE10,SXE10

 1
55708-53020

GXE10,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55708-53011

GXE1#,JCE1#,SXE10

 1
55708-53010

GXE1#,JCE1#,SXE10

 1
55708-53020

GXE1#,JCE1#,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
55708-53021

GXE1#,JCE1#,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
56111 - GLASS, WINDSHIELD
56111-53010

GXE10,SXE10

*TL,T=4.7,ｸﾞﾘｰﾝ

 1
56111-53011

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

*TL,T=4.7,ｸﾞﾘｰﾝ

 1
56111-53020

GXE10,SXE10

*EHTL,T=4.7,ｸﾞﾘｰﾝ

 1
56111-53021

GXE1#,JCE1#,SXE10

*EHTL,T=4.7,ｸﾞﾘｰﾝ

 1
56111-53022

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

*EHTL,T=4.7,ｸﾞﾘｰﾝ

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-22010

GXE10,SXE10

 2
56115-22010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 2
56116-22050

GXE10,SXE10

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-53010

GXE10,SXE10

*D,L=2972

 1
56117-53010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

*D,L=2972

 1
56118A - DAM, WINDOW GLASS ADHESIVE, NO.2
56118-53010

GXE10,SXE10

長さ=665

 1
56118-53010

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

長さ=665

 1
Common parts
90467-06093
90467-10152
