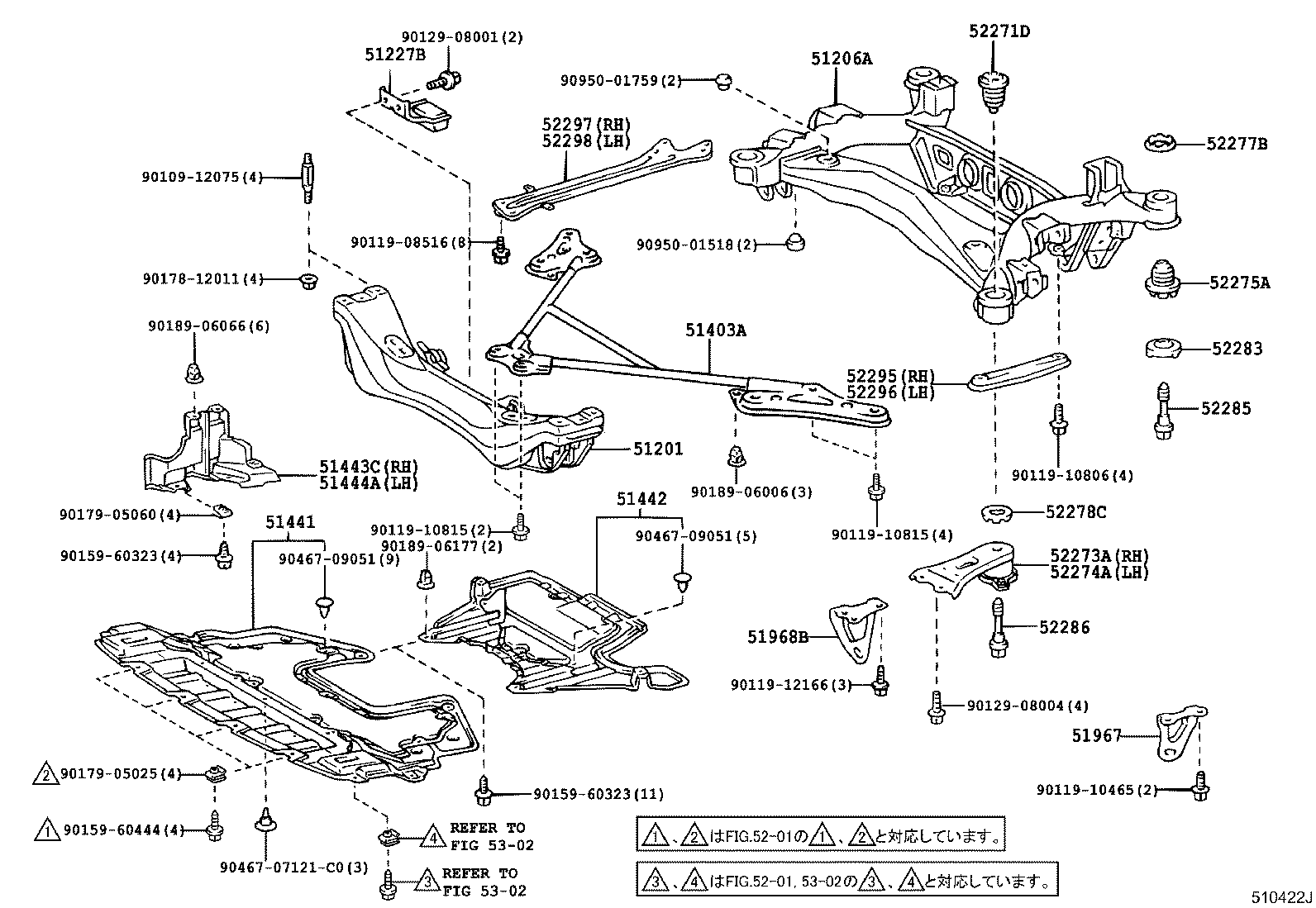

Toyota Altezza/altezza gita SXE10 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-53020	GXE10,JCE10,SXE10	05/2001 - 08/2003	1
51201-53020	GXE10,SXE10	10/1998 - 05/2001	1
51201-53020	GXE10,JCE10,SXE10	08/2003 - 12/2999	1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-51020	GXE10,SXE10	05/1999 - 02/2000	1
51206-53011	GXE10,SXE10	06/2000 - 07/2000	1
51206-53010	GXE10,SXE10	02/2000 - 06/2000	1
51206-53020	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
51206-53020	GXE10,SXE10	07/2000 - 05/2001	1
51206-53020	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
51206-51010	GXE10,SXE10	10/1998 - 05/1999	1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-53010	SXE10	05/2001 - 12/2999	1
51227-53010	SXE10	10/1998 - 05/2001	1
51403A - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH
51403-53010	GXE10,SXE10	10/1998 - 05/2001	1
51403-53010	GXE10,JCE10,SXE10	05/2001 - 08/2003	1
51403-53010	GXE10,JCE10,SXE10	08/2003 - 12/2999	1
51441 - COVER, ENGINE UNDER, NO.1
51410-53021	SXE10	02/2000 - 02/2001	1
51410-53020	SXE10	10/1998 - 02/2000	1
51410-53022	SXE10	02/2001 - 05/2001	1
51410-53022	JCE10,SXE10	05/2001 - 12/2999	1
51442 - COVER, ENGINE UNDER, NO.2
51420-53020	SXE10	05/2001 - 12/2999	1
51420-53020	SXE10	10/1998 - 05/2001	1
51443C - COVER, ENGINE UNDER, REAR RH
51443-51010	GXE10,JCE10,SXE10	05/2001 - 08/2003	1
51443-51010	GXE10,SXE10	10/1998 - 05/2001	1
51443-51010	GXE10,JCE10,SXE10	08/2003 - 12/2999	1
51444A - COVER, ENGINE UNDER, REAR LH
51444-51010	GXE10,SXE10	10/1998 - 05/2001	1
51444-51010	GXE10,JCE10,SXE10	08/2003 - 12/2999	1
51444-51010	GXE10,JCE10,SXE10	05/2001 - 08/2003	1
51967 - HOOK, TRANSPORT, REAR
51967-22070	GXE10,SXE10	10/1998 - 05/2001	1
51967-22070	GXE10,SXE10..SED	05/2001 - 12/2999	1
51968B - HOOK, TRANSPORT, REAR LH
51968-30040	GXE1#,JCE1#,SXE10	08/2002 - 08/2003	1
51968-30040	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52271-53010	GXE10,SXE10	10/1998 - 05/2001	2
52271-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52203-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
52203-53010	GXE10,SXE10	10/1998 - 05/2001	1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52204-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
52204-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52204-53010	GXE10,SXE10	10/1998 - 05/2001	1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-53011	GXE10,SXE10	12/1999 - 05/2001	2
52275-53011	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52275-53011	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52275-53010	GXE10,SXE10	10/1998 - 12/1999	2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52277-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52277-53010	GXE10,SXE10	10/1998 - 05/2001	2
52278C - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52278-53010	GXE10,SXE10	10/1998 - 05/2001	2
52278-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52278-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-30050	GXE10,SXE10	10/1998 - 05/2001	2
52283-30050	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52283-30050	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-30021	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52285-30021	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52285-30021	GXE10,SXE10	10/1998 - 05/2001	2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	2
52286-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	2
52286-53010	GXE10,SXE10	10/1998 - 05/2001	2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-50010	GXE10,SXE10	10/1998 - 05/2001	1
52295-50010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
52295-50010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-50010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
52295-50010	GXE10,SXE10	10/1998 - 05/2001	1
52295-50010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
52297-53010	GXE10,SXE10	10/1998 - 05/2001	1
52297-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52298-53010	GXE10,SXE10	10/1998 - 05/2001	1
52298-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
52298-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
Common parts
90109-12075
90119-08516
90119-10465
90119-10806
90119-10815
90119-12166
90129-08001
90129-08004
90159-60323
90159-60444
90178-12011
90179-05025
90179-05060
90189-06006
90189-06066
90189-06177
90467-07121C0
90467-09051
90950-01518
90950-01759
Linked diagrams
5302

SXE10-AEFVF (1998)

(9810- )SXE10
