SXE10-AEFVF (1998)
Toyota Altezza/Altezza Gita

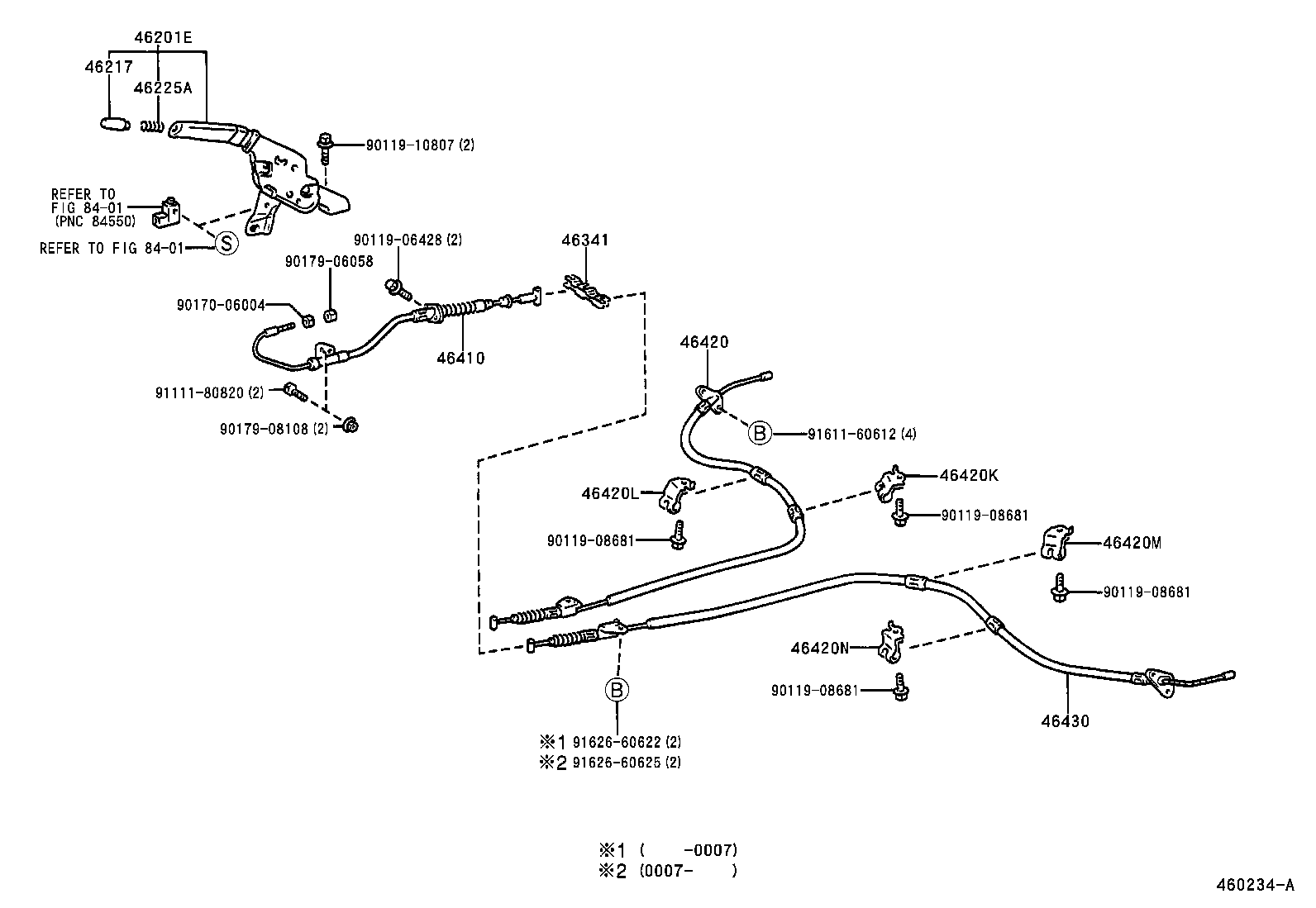

ILLUST NO. 1 OF 2(9810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-53020C1 |
SXE10 Z ｴﾃﾞｲｼﾖﾝ *(G),BLACK,TRIM2# |
1 | ||
| 46201-53020C1 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(G),BLACK,TRIM2# |
1 | ||
| 46201-53020C1 |
GXE10,JCE1#,SXE10 ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,BLACK,TRIM20 |
1 | ||
| 46201-53020C1 |
GXE1#,JCE15,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) OR L ｴﾃﾞｲｼﾖﾝ *(A),BLACK,TRIM0#,2# |
1 | ||
| 46201-53020C1 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) OR L ｴﾃﾞｲｼﾖﾝ *(A),BLACK,TRIM0#,2# |
1 | ||
| 46201-53010C1 |
SXE10;GXE10..MTM BLACK,TRIM2# |
1 | ||
| 46201-53010C1 |
GXE1#,JCE15,SXE10 BLACK,TRIM0#,2# |
1 | ||
| 46201-53020C1 |
GXE10..MTM;JCE15,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) OR L ｴﾃﾞｲｼﾖﾝ *(A),BLACK,TRIM2# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-53010 |
GXE10,SXE10 |
1 | ||
| 46217-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46217-53010 |
GXE1#,JCE10,SXE10 |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90504-12005 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90504-12005 |
GXE1#,JCE10,SXE10 |
1 | ||
| 90504-12005 |
GXE10,SXE10 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-24010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46341-24010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46341-24010 |
GXE10,SXE10 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-53010 |
GXE10,SXE10 |
1 | ||
| 46410-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46410-53010 |
GXE1#,JCE10,SXE10 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-53010 |
GXE10,SXE10 |
1 | ||
| 46420-53011 |
GXE10,SXE10 |
1 | ||
| 46420-53011 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 46421-51010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46421-51010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46421-51010 |
GXE10,SXE10 |
1 | ||
| 46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE) | ||||
| 46421-51020 |
GXE10,SXE10 |
1 | ||
| 46421-51020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46421-51020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE) | ||||
| 46431-51010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46431-51010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46431-51010 |
GXE10,SXE10 |
1 | ||
| 46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE) | ||||
| 46431-51020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46431-51020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46431-51020 |
GXE10,SXE10 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-53010 |
GXE10,SXE10 |
1 | ||
| 46430-53011 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 46430-53011 |
GXE10,SXE10 |
1 | ||
| Common parts | ||||
| 90119-06428 | ||||
| 90119-08681 | ||||
| 90119-10807 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| 90179-08108 | ||||
| 91111-80820 | ||||
| 91611-60612 | ||||
| 91626-60622 | ||||
| 91626-60625 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(9810- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-30090 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46503-30090 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-30090 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46504-30090 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-44010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46540-28010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-28010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46550-44010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 90507-20016 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 90507-20016 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12051 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 90506-12051 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-28010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46540-44010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-28010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 46590-44010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 47405-30040 |
GXE10,SXE10 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
GXE10,SXE10 |
1 | ||
| 47406-30040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 47406-30040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-50010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 47447-50010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-30020 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ) |
2 | ||
| 47447-30020 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 47447H - SPRING, COMPRESSION, NO.1(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
2 | ||
| 90501-16053 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 47447J - SPRING, COMPRESSION, NO.2(FOR PARKING BRAKE SHOE HOLD D | ||||
| 90501-16118 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
2 | ||
| 90501-16053 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲ-ﾙ) |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GXE10,SXE10 |
4 | ||
| 47449-30030 |
GXE10,JCE1#,SXE10 |
4 | ||
| 47449-30030 |
GXE1#,JCE1#,SXE10 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
GXE10,SXE10 |
4 | ||
| 47449-30030 |
GXE10,JCE1#,SXE10 |
4 | ||
| 47449-30030 |
GXE1#,JCE1#,SXE10 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 47449-40010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47449-40010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 47449-40010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-33010 |
GXE10,SXE10 |
2 | ||
| 47456-33010 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
GXE10,SXE10 |
2 | ||
| 47459-30010 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-50010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47611-50010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90213-07018 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 90213-07018 |
GXE10,JCE1#,SXE10 |
2 | ||
| 90213-07018 |
GXE10,SXE10 |
2 | ||
| 47611B - SHIM(FOR PARKING BRAKE SHOE LEVER) | ||||
| 90564-09184 |
GXE10,SXE10 厚さ=0.3 |
1 | ||
| 90564-09185 |
GXE1#,JCE1#,SXE10 厚さ=0.6 |
1 | ||
| 90564-09186 |
GXE10,SXE10 厚さ=0.9 |
1 | ||
| 90564-09186 |
GXE1#,JCE1#,SXE10 厚さ=0.9 |
1 | ||
| 90564-09185 |
GXE10,SXE10 厚さ=0.6 |
1 | ||
| 90564-09184 |
GXE1#,JCE1#,SXE10 厚さ=0.3 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-50010 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47612-50010 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GXE10,SXE10 |
2 | ||
| 90504-14002 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-30060 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47613-30060 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-30060 |
SXE10;GXE10..MTM ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| 47614-30060 |
GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ) |
1 | ||
| Common parts | ||||
| 90119-10550 | ||||
| 90179-10085 | ||||
| 91611-60612 | ||||
