Toyota Altezza/altezza gita SXE10 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-53010	SXE10..MTM	05/2001 - 12/2999	1
31481-53010	SXE10..MTM	10/1998 - 05/2001	1
31481A - HOSE, CLUTCH, NO.1
90947-02A43	SXE10..MTM	10/1998 - 05/2001	1
90947-02A43	SXE10..MTM	05/2001 - 12/2999	1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-53010	SXE10..MTM	10/1998 - 05/2001	1
31482-53010	SXE10..MTM	05/2001 - 12/2999	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-53011	SXE10..MTM	05/2001 - 12/2999	1
31484-53011	SXE10..MTM	10/1998 - 05/2001	1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-20460	GXE10,SXE10..MTM	10/1998 - 05/2001	1
31484-20460	GXE10,SXE10..MTM	05/2001 - 07/2005	1
Common parts
90461-08702
90468-08032
91651-60616

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-53010	SXE10..MTM	10/1998 - 01/2000	1
31301-53030	GXE10,SXE10..MTM	01/2000 - 05/2001	1
31301-22270	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31301-22270	GXE10,SXE10..MTM	05/2001 - 08/2003	1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03081	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90949-03081	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90949-03081	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	GXE10,SXE10..MTM	08/2003 - 12/2999	3
90541-06036	GXE10,SXE10..MTM	05/2001 - 08/2003	3
90541-06036	GXE10,SXE10..MTM	10/1998 - 05/2001	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	GXE10,SXE10..MTM	08/2003 - 12/2999	3
90541-06036	GXE10,SXE10..MTM	05/2001 - 08/2003	3
90541-06036	GXE10,SXE10..MTM	10/1998 - 05/2001	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	GXE10,SXE10..MTM	08/2003 - 12/2999	3
90541-06036	GXE10,SXE10..MTM	05/2001 - 08/2003	3
90541-06036	GXE10,SXE10..MTM	10/1998 - 05/2001	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	GXE10,SXE10..MTM	10/1998 - 05/2001	2
90386-13015	GXE10,SXE10..MTM	08/2003 - 12/2999	2
90386-13015	GXE10,SXE10..MTM	05/2001 - 08/2003	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	GXE10,SXE10..MTM	10/1998 - 05/2001	2
90386-13015	GXE10,SXE10..MTM	08/2003 - 12/2999	2
90386-13015	GXE10,SXE10..MTM	05/2001 - 08/2003	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90101-10369	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90101-10369	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94130-01001	GXE10,SXE10..MTM	10/1998 - 05/2001	1
94130-01001	GXE10,SXE10..MTM	05/2001 - 08/2003	1
94130-01001	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03104	GXE10,SXE10..MTM	01/2000 - 05/2001	1
90949-03082	SXE10..MTM	10/1998 - 01/2000	1
90949-03104	GXE10,SXE10..MTM	08/2003 - 12/2999	1
90949-03104	GXE10,SXE10..MTM	05/2001 - 08/2003	1
31321 - PAD, CLUTCH PEDAL
31321-53010	GXE10,SXE10..MTM TYPE B ｻﾝｼﾖｳ	10/1998 - 05/2001	1
31321-53010	GXE10,SXE10..MTM TYPE B ｻﾝｼﾖｳ	08/2003 - 12/2999	1
31321-12040	GXE10,SXE10..MTM TYPE A ｻﾝｼﾖｳ	08/2002 - 08/2003	1
31321-53010	GXE10,SXE10..MTM TYPE B ｻﾝｼﾖｳ	05/2001 - 08/2003	1
31321-12040	GXE10,SXE10..MTM TYPE A ｻﾝｼﾖｳ	08/2003 - 12/2999	1
31324 - SHAFT, CLUTCH PEDAL
90101-10015	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90101-10015	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90101-10015	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90387-10003	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90387-10003	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-14010	GXE10,SXE10..MTM	05/2001 - 08/2003	1
31353-14010	GXE10,SXE10..MTM	08/2003 - 12/2999	1
31353-14010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
31354A - BUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90386-13015	GXE10,SXE10..MTM	08/2003 - 12/2999	1
90386-13015	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90386-13015	GXE10,SXE10..MTM	10/1998 - 05/2001	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006	GXE10,SXE10..MTM 長さ=23.5	08/2003 - 12/2999	1
90240-08006	GXE10,SXE10..MTM 長さ=23.5	05/2001 - 08/2003	1
90240-08006	GXE10,SXE10..MTM 長さ=23.5	10/1998 - 05/2001	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08036	GXE10,SXE10..MTM	05/2001 - 08/2003	1
90386-08033	SXE10..MTM	10/1998 - 09/1999	1
90386-08036	GXE10,SXE10..MTM	08/2003 - 12/2999	1
90386-08036	GXE10,SXE10..MTM	09/1999 - 05/2001	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-53010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
55107-22241	GXE10,SXE10..MTM	08/2003 - 12/2999	1
55107-22241	GXE10,SXE10..MTM	05/2001 - 08/2003	1
Common parts
90119-08668
90206-08001
90386-05017
90468-16142
94130-01001
94622-11000
96160-00600

SXE10-AEFVF (1998)

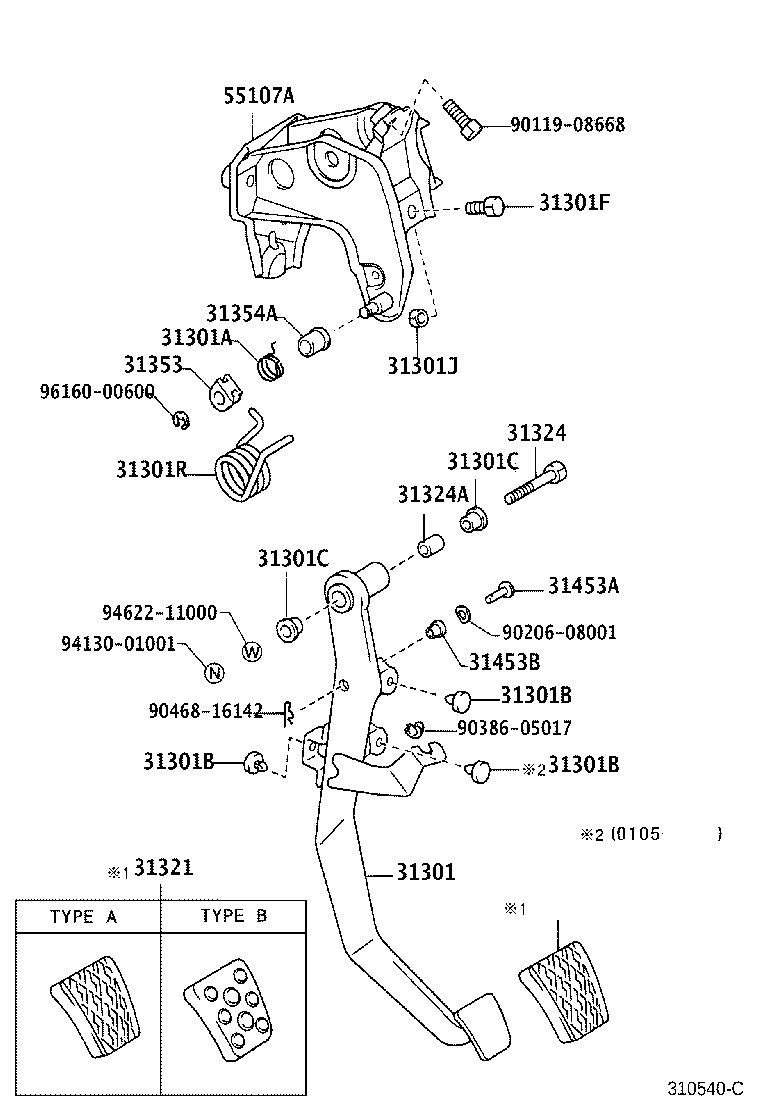

ILLUST NO. 2 OF 2(9810- )MTM

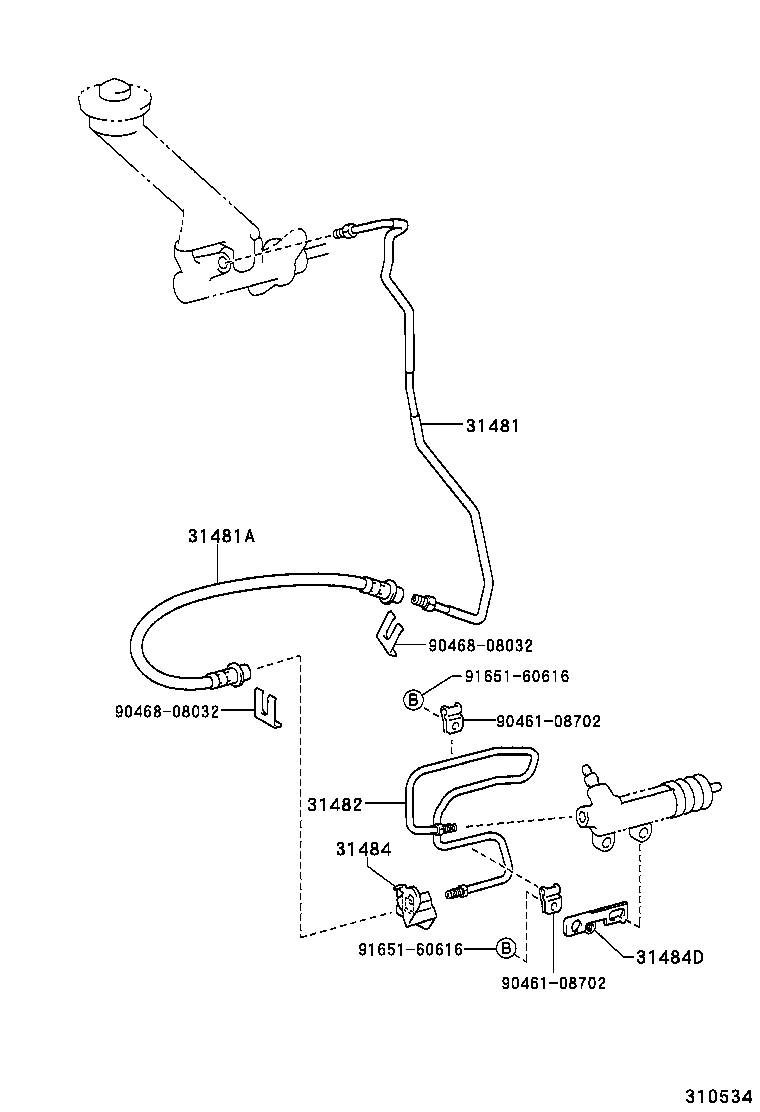

ILLUST NO. 1 OF 2(9810- )MTM
