Toyota Altezza/altezza gita SXE10 FUEL TANK & TUBE

SXE10-AEAVF (1998)

Toyota Altezza/Altezza Gita

Production Oct 1998 - Jul 2005

Engine 3SGE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

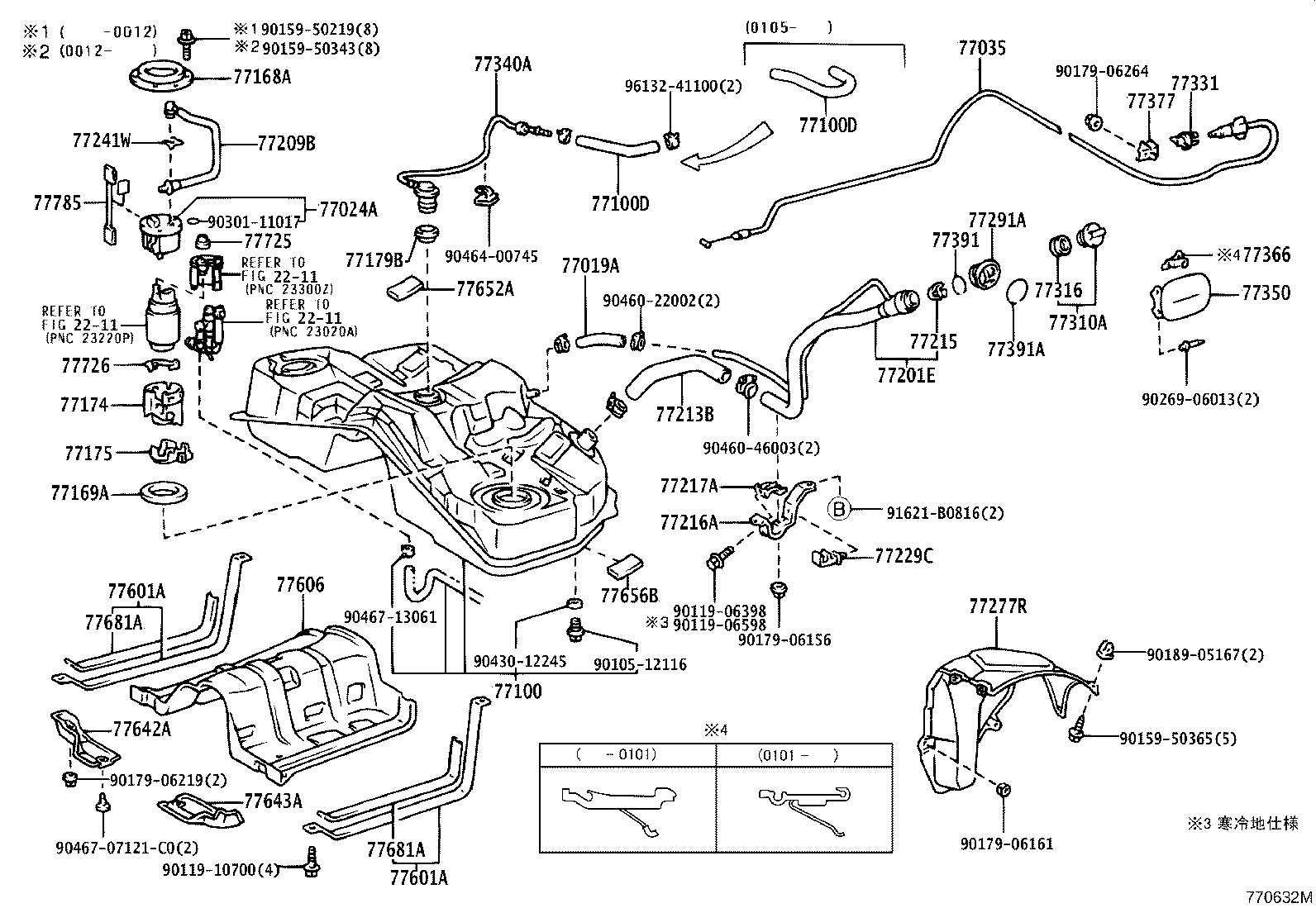

ILLUST NO. 1 OF 2(9810- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
77019A - HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77019-51010	GXE10,SXE10 長さ=200	10/1998 - 05/2001	1
77019-51010	GXE1#,JCE1#,SXE10 長さ=200	05/2001 - 12/2999	1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-53010	GXE10,SXE10	10/1998 - 05/2000	1
77024-30070	GXE10,SXE10	05/2000 - 05/2001	1
77024-30070	GXE1#,SXE10	05/2001 - 12/2999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-53010	GXE10,SXE10..SED	05/2001 - 12/2999	1
77035-53010	GXE10,SXE10	10/1998 - 05/2001	1
77100 - TANK ASSY, FUEL
77001-53011	GXE1#,SXE10	04/2002 - 12/2999	1
77001-53010	GXE1#,SXE10	05/2001 - 04/2002	1
77001-53010	GXE10,SXE10	10/1998 - 05/2001	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77249-30030	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
95333-06020	GXE10,SXE10 *H,L=110	10/1998 - 05/2001	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77249-30030	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
95333-06020	GXE10,SXE10 *H,L=110	10/1998 - 05/2001	1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-33040	GXE10,SXE10	10/1998 - 12/2000	1
77168-12240	GXE10,SXE10	12/2000 - 05/2001	1
77168-12240	GXE10,JCE1#,SXE10	05/2001 - 07/2001	1
77168-33050	GXE1#,JCE1#,SXE10	07/2001 - 12/2999	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-33020	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77169-33020	GXE10,SXE10	10/1998 - 05/2001	1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-33010	GXE10,SXE10	10/1998 - 05/2000	1
77175 - SUPPORT, FUEL SUCTION, NO.2
77175-30050	GXE10,SXE10	05/2000 - 05/2001	1
77175-30050	GXE1#,SXE10	05/2001 - 12/2999	1
77175-33010	GXE10,SXE10	10/1998 - 05/2000	1
77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE
77179-33010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77179-33010	GXE10,SXE10	10/1998 - 05/2001	1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-53020	GXE10,SXE10	10/1998 - 11/2000	1
77201-53030	GXE10,SXE10	11/2000 - 05/2001	1
77201-53030	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77209B - TUBE SUB-ASSY, FUEL PUMP
77209-30070	GXE10,SXE10	10/1998 - 02/1999	1
77209-51020	GXE10,SXE10	05/2000 - 05/2001	1
77209-53010	GXE10,SXE10	02/1999 - 08/1999	1
77209-30070	GXE10,SXE10	08/1999 - 05/2000	1
77209-51020	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-51010	GXE10,SXE10	10/1998 - 05/2000	1
77213-30170	GXE10,JCE1#,SXE10	05/2001 - 09/2001	1
77213-30170	GXE10,SXE10	05/2000 - 05/2001	1
77213-22090	GXE1#,JCE1#,SXE10	09/2001 - 12/2999	1
77215 - PLATE, FUEL TANK FILLER PIPE FLANGE
77215-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77215-51010	GXE10,SXE10	10/1998 - 05/2001	1
77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1
77216-51010	GXE10,SXE10	10/1998 - 05/2001	1
77216-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77217-51010	GXE10,SXE10	10/1998 - 05/2001	1
77229C - CLAMP, BREATHER TUBE
77229-51010	GXE10,SXE10	10/1998 - 05/2001	1
77229-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77241W - CLIP, TUBE JOINT
77241-33011	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77241-33011	GXE10,SXE10	10/1998 - 05/2001	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-53010	GXE10,SXE10	10/1998 - 05/2001	1
77277-53010	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-53021	GXE10,SXE10	01/2001 - 05/2001	1
77291-53021	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77291-53021	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
77291-53020	GXE10,SXE10	10/1998 - 01/2001	1
77310A - CAP ASSY, FUEL TANK
77310-48010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77310-48010	GXE10,SXE10	10/1998 - 05/2001	1
77316 - GASKET, FUEL TANK CAP
77316-16010	GXE10,SXE10	10/1998 - 05/2001	1
77316-16010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77331 - BRACKET, FUEL LID LOCK CONTROL
77331-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
77331-53010	GXE10,SXE10	10/1998 - 05/2001	1
77331-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77340A - VALVE ASSY, FUEL CUT OFF W/TUBE
77340-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77340-51010	GXE10,SXE10	10/1998 - 05/2001	1
77350 - LID ASSY, FUEL FILLER OPENING
77350-53011	GXE10,SXE10 PNC 77366参照	01/2001 - 05/2001	1
77350-53010	GXE10,SXE10 PNC 77366参照	10/1998 - 01/2001	1
77350-53011	GXE10,SXE10..SED	05/2001 - 08/2002	1
77350-53030	GXE10,SXE10..SED	08/2002 - 12/2999	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-33020	GXE1#,JCE1#,SXE10	08/2003 - 09/2003	1
77360-33020	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77360-53010	GXE1#,JCE1#,SXE10	09/2003 - 12/2999	1
77360-12080	GXE10,SXE10	10/1998 - 01/2001	1
77360-33020	GXE10,SXE10	01/2001 - 05/2001	1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-22060	GXE10,SXE10	10/1998 - 05/2001	1
77377-22060	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
77377-22060	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77391 - RING, FUEL INLET BOX
77391-53020	GXE10,SXE10	10/1998 - 05/2001	1
77391-53020	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77391-53020	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
77391A - RING, FUEL INLET BOX
77391-53010	GXE10,SXE10	10/1998 - 05/2001	1
77391-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
77391-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-53010	GXE10,SXE10	05/2000 - 05/2001	2
77601-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	2
77601-51010	GXE10,SXE10	10/1998 - 05/2000	2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-53010	GXE10,SXE10	05/2000 - 05/2001	2
77601-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	2
77601-51010	GXE10,SXE10	10/1998 - 05/2000	2
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77606-53010	GXE10,SXE10	10/1998 - 05/2001	1
77642A - PROTECTOR, FUEL TANK, NO.2
77642-53010	GXE1#,SXE10	05/2001 - 12/2999	1
77642-53010	GXE10,SXE10	10/1998 - 05/2001	1
77643A - PROTECTOR, FUEL TANK, NO.3
77643-53010	GXE1#,SXE10	05/2001 - 12/2999	1
77643-53010	GXE10,SXE10	10/1998 - 05/2001	1
77652A - CUSHION, FUEL TANK, NO.2
77652-12100	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	13
77652-12100	GXE10,SXE10	10/1998 - 05/2001	13
77656B - CUSHION, FUEL TANK, NO.6
77656-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	2
77656-53010	GXE10,SXE10	10/1998 - 05/2001	2
77681A - SEAT, FUEL TANK BAND
77681-32060	GXE10,SXE10	10/1998 - 05/2001	2
77681-32060	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	2
77681A - SEAT, FUEL TANK BAND
77681-32060	GXE10,SXE10	10/1998 - 05/2001	2
77681-32060	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	2
77725 - CUSHION, FUEL FILTER, NO.1
77725-33010	GXE1#,SXE10	05/2001 - 12/2999	1
77725-33010	GXE10,SXE10	10/1998 - 05/2001	1
77726 - CUSHION, FUEL FILTER, NO.2
77726-33010	GXE10,SXE10	10/1998 - 05/2000	1
77785 - HARNESS, FUEL PUMP
77785-52020	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77785-33010	GXE10,SXE10	10/1998 - 05/2000	1
77785-52020	GXE10,SXE10	05/2000 - 05/2001	1
Common parts
90105-12116
90119-06398
90119-06598
90119-10700
90159-50219
90159-50343
90159-50365
90179-06156
90179-06161
90179-06219
90179-06264
90189-05167
90269-06013
90301-11017
90430-12245
90460-22002
90460-46003
90464-00745
90467-07121C0
90467-13061
91621-B0816
96132-41100
Linked diagrams
2211

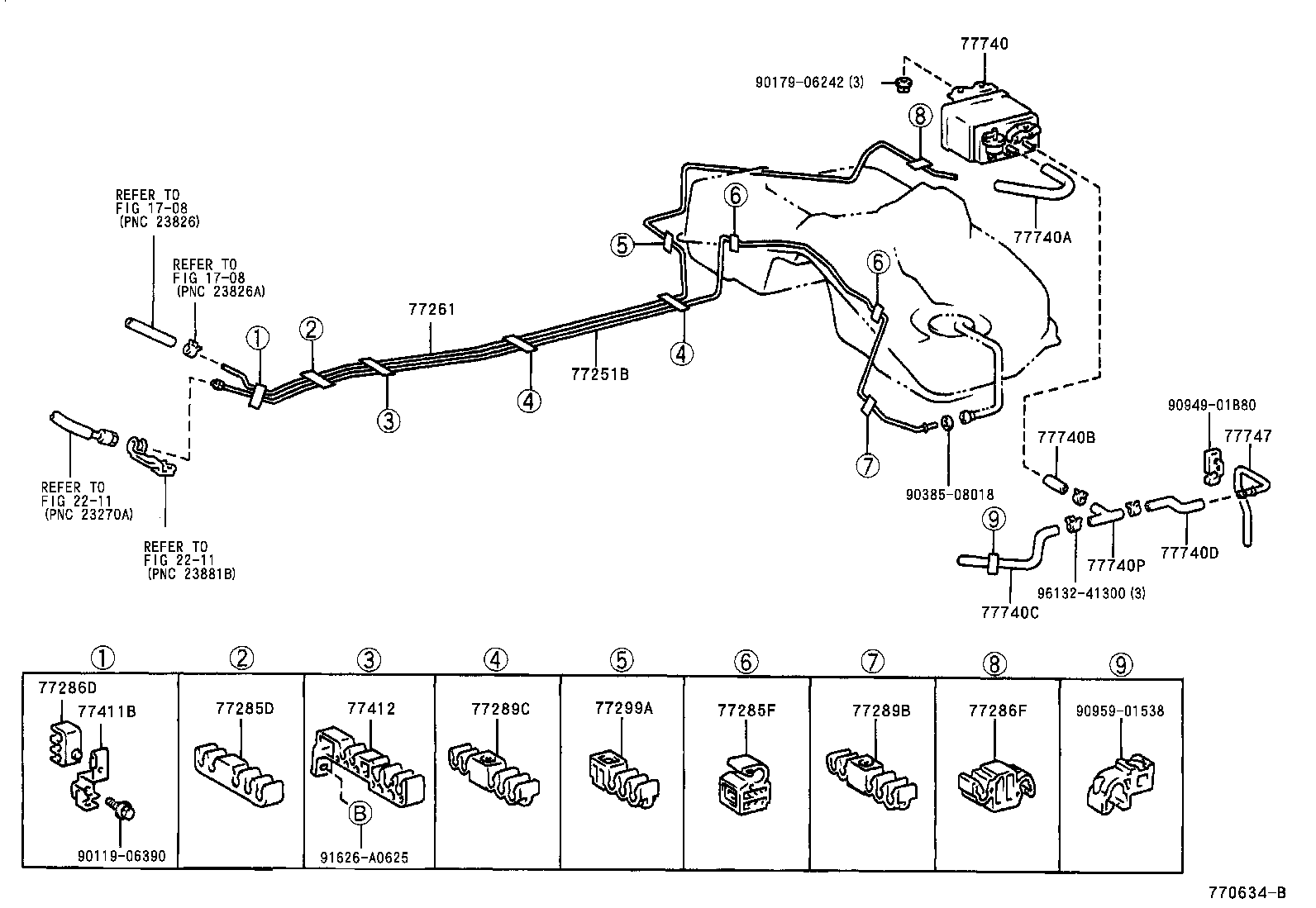

ILLUST NO. 2 OF 2(9810-0105)SXE10

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-53010	SXE10	10/1998 - 05/2001	1
77251-53010	SXE10	05/2001 - 12/2999	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-53010	SXE10	10/1998 - 05/2000	1
77261-53011	SXE10	05/2000 - 05/2001	1
77261-53050	SXE10	05/2001 - 12/2999	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-51010	GXE10,SXE10	10/1998 - 05/2001	1
77285-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-53010	SXE10	10/1998 - 05/2001	2
77285-53010	SXE10	05/2001 - 12/2999	2
77286D - CLAMP, FUEL TUBE, NO.2
77286-30100	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-30100	GXE10,SXE10	10/1998 - 05/2001	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-53010	SXE10;GXE10..MTM	10/1998 - 05/2001	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-30050	SXE10	05/2001 - 12/2999	1
77289-30050	SXE10	10/1998 - 05/2001	1
77289C - CLAMP, FUEL TUBE, NO.4
77289-51010	GXE1#,JCE15,SXE10	05/2001 - 12/2999	2
77289-51010	GXE10,SXE10	10/1998 - 05/2001	2
77299A - CLAMP, FUEL TUBE, NO.5
77299-51010	SXE10	10/1998 - 05/2001	1
77299-51010	SXE10	05/2001 - 12/2999	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22030	SXE10	05/2001 - 12/2999	1
77411-22030	SXE10	10/1998 - 05/2001	1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-53010	SXE10	10/1998 - 05/2001	1
77412-53010	SXE10	05/2001 - 12/2999	1
77740 - CANISTER ASSY, CHARCOAL
77740-22460	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77740-51010	GXE10,SXE10	10/1998 - 05/2001	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23829-46300	SXE10 長さ=320	05/2001 - 12/2999	1
23829-46140	SXE10	10/1998 - 05/2001	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23829-46320	GXE10,SXE10..SED 長さ=40,ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-74120	GXE10..SED;SXE10..ATM 長さ=40	05/2001 - 05/2002	1
23829-74120	GXE10,SXE10..SED 長さ=40	05/2002 - 12/2999	1
23826-70020	GXE10,SXE10 長さ=44	10/1998 - 05/2001	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
23829-46270	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
23829-46230	GXE10,SXE10	10/1998 - 05/2001	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740P - WAY, 3(FOR CHARCOAL CANISTER)
90413-07002	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
90413-07002	GXE10,SXE10	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
Common parts
90119-06390
90179-06242
90385-08018
90949-01B80
90959-01538
91626-A0625
96132-41300
Linked diagrams
1708
2211

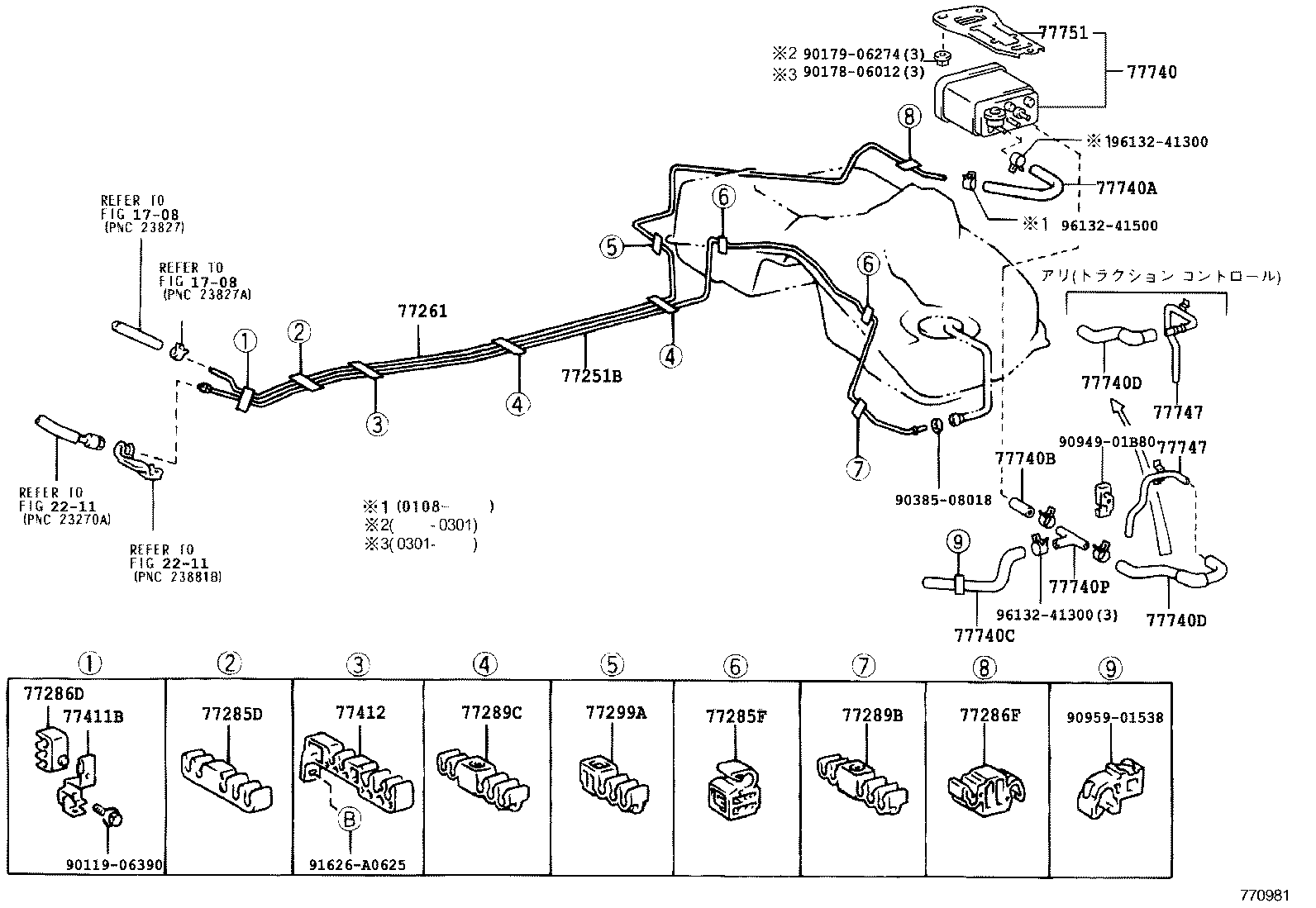

ILLUST NO. 2 OF 2(0105- )SXE10

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-53010	SXE10	10/1998 - 05/2001	1
77251-53010	SXE10	05/2001 - 12/2999	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-53010	SXE10	10/1998 - 05/2000	1
77261-53011	SXE10	05/2000 - 05/2001	1
77261-53050	SXE10	05/2001 - 12/2999	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-51010	GXE10,SXE10	10/1998 - 05/2001	1
77285-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-53010	SXE10	10/1998 - 05/2001	2
77285-53010	SXE10	05/2001 - 12/2999	2
77286D - CLAMP, FUEL TUBE, NO.2
77286-30100	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-30100	GXE10,SXE10	10/1998 - 05/2001	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-53010	SXE10;GXE10..MTM	10/1998 - 05/2001	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-30050	SXE10	05/2001 - 12/2999	1
77289-30050	SXE10	10/1998 - 05/2001	1
77289C - CLAMP, FUEL TUBE, NO.4
77289-51010	GXE1#,JCE15,SXE10	05/2001 - 12/2999	2
77289-51010	GXE10,SXE10	10/1998 - 05/2001	2
77299A - CLAMP, FUEL TUBE, NO.5
77299-51010	SXE10	10/1998 - 05/2001	1
77299-51010	SXE10	05/2001 - 12/2999	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22030	SXE10	05/2001 - 12/2999	1
77411-22030	SXE10	10/1998 - 05/2001	1
77412 - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-53010	SXE10	10/1998 - 05/2001	1
77412-53010	SXE10	05/2001 - 12/2999	1
77740 - CANISTER ASSY, CHARCOAL
77740-22460	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77740-51010	GXE10,SXE10	10/1998 - 05/2001	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23829-46300	SXE10 長さ=320	05/2001 - 12/2999	1
23829-46140	SXE10	10/1998 - 05/2001	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23829-46320	GXE10,SXE10..SED 長さ=40,ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-74120	GXE10..SED;SXE10..ATM 長さ=40	05/2001 - 05/2002	1
23829-74120	GXE10,SXE10..SED 長さ=40	05/2002 - 12/2999	1
23826-70020	GXE10,SXE10 長さ=44	10/1998 - 05/2001	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
23829-46270	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
23829-46230	GXE10,SXE10	10/1998 - 05/2001	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740P - WAY, 3(FOR CHARCOAL CANISTER)
90413-07002	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
90413-07002	GXE10,SXE10	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-22140	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
Common parts
90119-06390
90178-06012
90179-06274
90385-08018
90949-01B80
90959-01538
91626-A0625
96132-41300
96132-41500
Linked diagrams
1708
2211

SXE10-AEAVF (1998)

ILLUST NO. 1 OF 2(9810- )SED

ILLUST NO. 2 OF 2(9810-0105)SXE10

ILLUST NO. 2 OF 2(0105- )SXE10

Part Price Details
