SXE10-AEAVF (1998)

Toyota Altezza/Altezza Gita

Production Oct 1998 - Jul 2005
Engine 3SGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9810-0105)GXE10 ; (9810-0105)SXE10..ATM ; (0201-0308)GXE15

Click highlighted areas on diagram

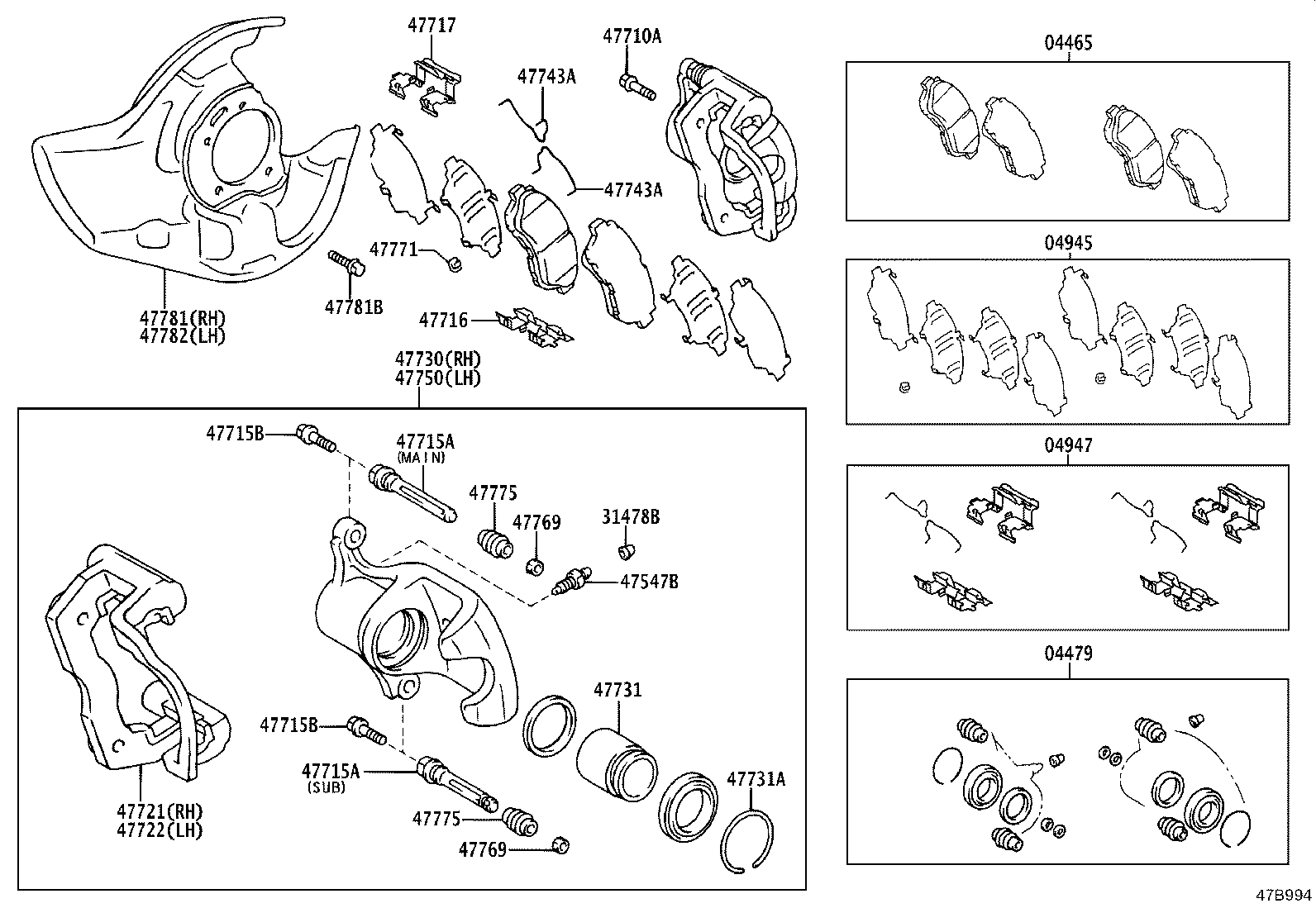

TYPE A

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731A 47743A 47743A 47750 47769 47769 47771 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22310

SXE10

TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30080

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529,TYPE A

 1
04465-30280

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-22311

GXE10..MTM;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30272

SXE10

ﾏｰｸ TEXTAR T4146,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30300

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-30320

SXE10

ﾏｰｸ NBK PN532H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30150

GXE10;SXE10..ATM

TYPE A

 1
04479-30151

GXE10;SXE10..ATM

TYPE A

 1
04478-30250

GXE10;SXE10..ATM

 1
04479-30190

SXE10;GXE10..MTM

TYPE B

 1
04479-30191

GXE10..MTM;SXE10..ATM

TYPE B

 1
04479-30191

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 1
04478-30250

GXE10;SXE10..ATM

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30110

SXE10

TYPE B

 1
04945-30160

GXE10;SXE10..ATM

TYPE A

 1
04945-33020

GXE10;SXE10..ATM

TYPE A

 1
04945-30140

SXE10;GXE10..MTM

TYPE B

 1
04945-30130

SXE10..ATM

TYPE B

 1
04945-30170

GXE10;SXE10..ATM

TYPE A

 1
04945-30120

SXE10

TYPE B

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30090

GXE10..MTM;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
04947-30100

GXE10;SXE10..ATM

TYPE A

 1
04947-30090

GXE10..WG;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE10,SXE10

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

GXE10,SXE10

 2
47547-27030

GXE1#,JCE1#,SXE10

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE10,SXE10

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24010

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47716-30160

GXE10;SXE10..ATM

TYPE A

 2
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-24020

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30170

GXE10;SXE10..ATM

TYPE A

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30070

GXE10..WG;JCE10,SXE10;GXE10..SED..MTM

TYPE B

 2
47717-30050

GXE10;SXE10..ATM

TYPE A

 2
47717-30070

GXE10..MTM;SXE10..ATM

TYPE B

 2
47717-30070

GXE10,JCE10,SXE10

TYPE B

 2
47717-30070

GXE10..WG;GXE10..MTM;JCE10,SXE10

TYPE B

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

GXE10;SXE10..ATM

TYPE A

 2
47717-30080

GXE10,JCE10,SXE10

TYPE B

 2
47717-30080

GXE10..WG;GXE10..MTM;JCE10,SXE10

TYPE B

 2
47717-30080

GXE10..WG;JCE10,SXE10;GXE10..SED..MTM

TYPE B

 2
47717-30080

GXE10..MTM;SXE10..ATM

TYPE B

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-22150

GXE10;SXE10..ATM

TYPE A

 1
47721-22200

GXE10..MTM;SXE10..ATM

TYPE B

 1
47721-30210

GXE10;SXE10..ATM

TYPE A

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47721-53010

SXE10..ATM

TYPE B

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-22110

GXE10;SXE10..ATM

TYPE A

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-53010

SXE10..ATM

TYPE B

 1
47722-22160

GXE10..MTM;SXE10..ATM

TYPE B

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-30110

GXE10;SXE10..ATM

TYPE A

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-53010

SXE10;GXE10..MTM

TYPE B

 1
47730-30330

GXE10;SXE10..ATM

TYPE A

 1
47730-53030

SXE10..ATM

TYPE B

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30110

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10

TYPE B

 4
47731-33070

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

SXE10..ATM

TYPE B

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

GXE1#;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-52006

GXE10..MTM;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30330

GXE10;SXE10..ATM

TYPE A

 1
47750-53010

GXE10..MTM;SXE10..ATM

TYPE B

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-53030

SXE10..ATM

TYPE B

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10;SXE10..ATM

TYPE A

 4
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE A,ｻﾌﾞ

 2
47769-50010

GXE10,SXE10

TYPE B

 2
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B

 2
47769-50010

GXE10;SXE10..ATM

TYPE A,ｻﾌﾞ

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10;SXE10..ATM

TYPE A

 4
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE A,ｻﾌﾞ

 2
47769-50010

GXE10,SXE10

TYPE B

 2
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B

 2
47769-50010

GXE10;SXE10..ATM

TYPE A,ｻﾌﾞ

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-50010

GXE10;SXE10..ATM

TYPE A

 2
47771-30090

GXE10;SXE10..ATM

TYPE A

 4
47771-30090

GXE10;SXE10..ATM

TYPE A

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22161

GXE10;SXE10..ATM

 1
47781-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE10,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22161

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1

(9810- )

Click highlighted areas on diagram

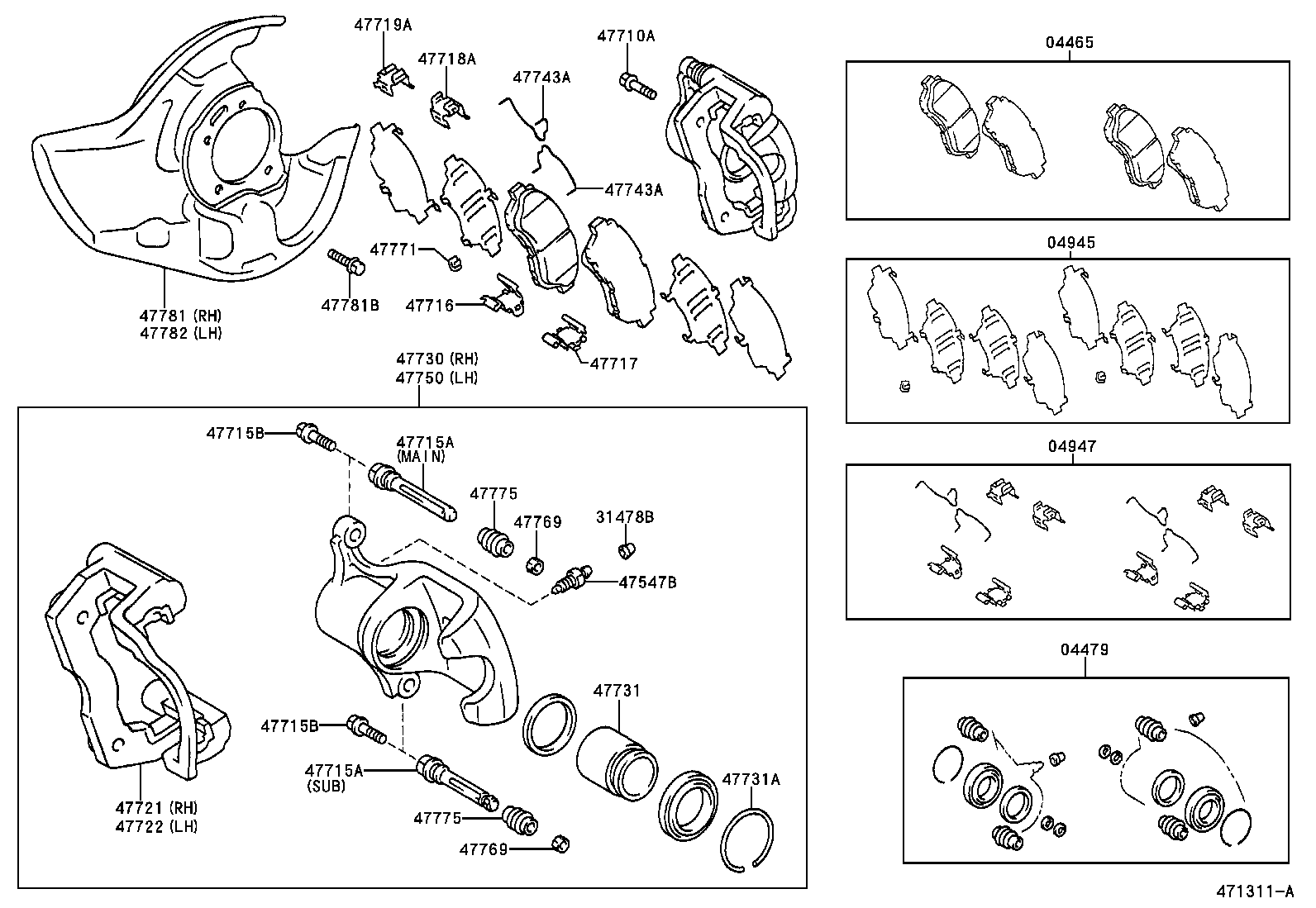

TYPE B

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47718A 47719A 47721 47722 47730 47731 47731 47731A 47731A 47743A 47743A 47750 47769 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22310

SXE10

TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30080

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529,TYPE A

 1
04465-30280

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-22311

GXE10..MTM;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30272

SXE10

ﾏｰｸ TEXTAR T4146,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30300

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-30320

SXE10

ﾏｰｸ NBK PN532H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30150

GXE10;SXE10..ATM

TYPE A

 1
04479-30151

GXE10;SXE10..ATM

TYPE A

 1
04478-30250

GXE10;SXE10..ATM

 1
04479-30190

SXE10;GXE10..MTM

TYPE B

 1
04479-30191

GXE10..MTM;SXE10..ATM

TYPE B

 1
04479-30191

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 1
04478-30250

GXE10;SXE10..ATM

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30110

SXE10

TYPE B

 1
04945-30160

GXE10;SXE10..ATM

TYPE A

 1
04945-33020

GXE10;SXE10..ATM

TYPE A

 1
04945-30140

SXE10;GXE10..MTM

TYPE B

 1
04945-30130

SXE10..ATM

TYPE B

 1
04945-30170

GXE10;SXE10..ATM

TYPE A

 1
04945-30120

SXE10

TYPE B

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30090

GXE10..MTM;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
04947-30100

GXE10;SXE10..ATM

TYPE A

 1
04947-30090

GXE10..WG;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE10,SXE10

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

GXE10,SXE10

 2
47547-27030

GXE1#,JCE1#,SXE10

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE10,SXE10

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24010

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47716-30160

GXE10;SXE10..ATM

TYPE A

 2
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-24020

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30170

GXE10;SXE10..ATM

TYPE A

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47717-30050

GXE10;SXE10..ATM

TYPE A

 2
47717-30070

GXE10..MTM;SXE10..ATM

TYPE B

 2
47717-30070

GXE10,JCE10,SXE10

TYPE B

 2
47717-30070

GXE10..WG;GXE10..MTM;JCE10,SXE10

TYPE B

 2
47717-30070

GXE10..WG;JCE10,SXE10;GXE10..SED..MTM

TYPE B

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47717-30060

GXE10;SXE10..ATM

TYPE A

 2
47717-30080

GXE10,JCE10,SXE10

TYPE B

 2
47717-30080

GXE10..WG;GXE10..MTM;JCE10,SXE10

TYPE B

 2
47717-30080

GXE10..WG;JCE10,SXE10;GXE10..SED..MTM

TYPE B

 2
47717-30080

GXE10..MTM;SXE10..ATM

TYPE B

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-22150

GXE10;SXE10..ATM

TYPE A

 1
47721-22200

GXE10..MTM;SXE10..ATM

TYPE B

 1
47721-30210

GXE10;SXE10..ATM

TYPE A

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47721-53010

SXE10..ATM

TYPE B

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-22110

GXE10;SXE10..ATM

TYPE A

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-53010

SXE10..ATM

TYPE B

 1
47722-22160

GXE10..MTM;SXE10..ATM

TYPE B

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-30110

GXE10;SXE10..ATM

TYPE A

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-53010

SXE10;GXE10..MTM

TYPE B

 1
47730-30330

GXE10;SXE10..ATM

TYPE A

 1
47730-53030

SXE10..ATM

TYPE B

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30110

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10

TYPE B

 4
47731-33070

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

SXE10..ATM

TYPE B

 4
47731 - PISTON, FRONT DISC BRAKE
47731-30110

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10

TYPE B

 4
47731-33070

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

SXE10..ATM

TYPE B

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

GXE1#;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-52006

GXE10..MTM;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

GXE1#;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-52006

GXE10..MTM;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30330

GXE10;SXE10..ATM

TYPE A

 1
47750-53010

GXE10..MTM;SXE10..ATM

TYPE B

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-53030

SXE10..ATM

TYPE B

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10;SXE10..ATM

TYPE A

 4
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE A,ｻﾌﾞ

 2
47769-50010

GXE10,SXE10

TYPE B

 2
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B

 2
47769-50010

GXE10;SXE10..ATM

TYPE A,ｻﾌﾞ

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22161

GXE10;SXE10..ATM

 1
47781-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE10,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22161

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1

(0105- )GXE10 ; (0105- )SXE10..ATM

Click highlighted areas on diagram

TYPE A

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47715A 47715A 47715B 47715B 47716 47717 47721 47722 47730 47731 47731A 47743A 47743A 47750 47769 47769 47771 47775 47775 47781 47781B 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22310

SXE10

TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30080

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529,TYPE A

 1
04465-30280

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-22311

GXE10..MTM;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30272

SXE10

ﾏｰｸ TEXTAR T4146,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04465-30300

GXE10;SXE10..ATM

ﾏｰｸ NBK PN529H,TYPE A

 1
04465-30320

SXE10

ﾏｰｸ NBK PN532H,TYPE B & ｱﾘ(17ｲﾝﾁ ﾃﾞｲｽｸﾎｲ-ﾙ)

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-30150

GXE10;SXE10..ATM

TYPE A

 1
04479-30151

GXE10;SXE10..ATM

TYPE A

 1
04478-30250

GXE10;SXE10..ATM

 1
04479-30190

SXE10;GXE10..MTM

TYPE B

 1
04479-30191

GXE10..MTM;SXE10..ATM

TYPE B

 1
04479-30191

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 1
04478-30250

GXE10;SXE10..ATM

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-30110

SXE10

TYPE B

 1
04945-30160

GXE10;SXE10..ATM

TYPE A

 1
04945-33020

GXE10;SXE10..ATM

TYPE A

 1
04945-30140

SXE10;GXE10..MTM

TYPE B

 1
04945-30130

SXE10..ATM

TYPE B

 1
04945-30170

GXE10;SXE10..ATM

TYPE A

 1
04945-30120

SXE10

TYPE B

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-30090

GXE10..MTM;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
04947-30100

GXE10;SXE10..ATM

TYPE A

 1
04947-30090

GXE10..WG;SXE10..ATM

TYPE B

 1
04947-30131

GXE10;SXE10..ATM

TYPE A

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE1#,JCE1#,SXE10

 2
31478-30010

GXE10,SXE10

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-27030

GXE10,SXE10

 2
47547-27030

GXE1#,JCE1#,SXE10

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE1#,JCE1#,SXE10

*12−1.25PX32−24

 4
90105-12228

GXE10,SXE10

*12−1.25PX32−24

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-22070

GXE10,SXE10

ｻﾌﾞ

 2
47715-22080

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715-22070

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

ｻﾌﾞ

 2
47715-22070

GXE10..WG;SXE10..ATM;GXE10..MTM

ｻﾌﾞ

 2
47715-30060

GXE10..MTM;SXE10..ATM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B,ﾒｲﾝ

 2
47715-30060

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B,ﾒｲﾝ

 2
47715-22070

GXE10;SXE10..ATM

ﾒｲﾝ & ｻﾌﾞ

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08164

GXE10,SXE10

 4
90105-08164

GXE1#,JCE1#,SXE10

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24010

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47716-30160

GXE10;SXE10..ATM

TYPE A

 2
47716-24010

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-30140

GXE10;SXE10..ATM

TYPE A

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47716-24020

GXE10..MTM;SXE10..ATM

TYPE B

 2
47716-30170

GXE10;SXE10..ATM

TYPE A

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47716-24020

GXE10..WG;SXE10..ATM

TYPE B

 2
47717-51010

GXE10;SXE10..ATM

TYPE A

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-22150

GXE10;SXE10..ATM

TYPE A

 1
47721-22200

GXE10..MTM;SXE10..ATM

TYPE B

 1
47721-30210

GXE10;SXE10..ATM

TYPE A

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47721-53010

SXE10..ATM

TYPE B

 1
47721-30211

GXE10;SXE10..ATM

TYPE A

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-22110

GXE10;SXE10..ATM

TYPE A

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-53010

SXE10..ATM

TYPE B

 1
47722-22160

GXE10..MTM;SXE10..ATM

TYPE B

 1
47722-30111

GXE10;SXE10..ATM

TYPE A

 1
47722-30110

GXE10;SXE10..ATM

TYPE A

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-53010

SXE10;GXE10..MTM

TYPE B

 1
47730-30330

GXE10;SXE10..ATM

TYPE A

 1
47730-53030

SXE10..ATM

TYPE B

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47730-30440

GXE10;SXE10..ATM

TYPE A

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30110

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

GXE10..WG;GXE10..SED..MTM;GXE15,JCE1#,SXE10

TYPE B

 4
47731-33070

GXE10;SXE10..ATM

TYPE A

 2
47731-30170

SXE10..ATM

TYPE B

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90520-86005

GXE1#;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-52006

GXE10..MTM;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
90520-52006

GXE10..WG;SXE10..ATM

TYPE B

 4
90520-86005

GXE10;SXE10..ATM

TYPE A

 2
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)
47743-30020

GXE10..MTM;SXE10..ATM

TYPE B

 4
47743-30020

GXE10,JCE1#,SXE10

TYPE B

 4
47743-50010

GXE10;SXE10..ATM

TYPE A

 4
47743-30020

GXE10..WG;GXE10..MTM;JCE1#,SXE10

TYPE B

 4
47743-30020

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

TYPE B

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-30330

GXE10;SXE10..ATM

TYPE A

 1
47750-53010

GXE10..MTM;SXE10..ATM

TYPE B

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-30440

GXE10;SXE10..ATM

TYPE A

 1
47750-53030

SXE10..ATM

TYPE B

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10;SXE10..ATM

TYPE A

 4
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE A,ｻﾌﾞ

 2
47769-50010

GXE10,SXE10

TYPE B

 2
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B

 2
47769-50010

GXE10;SXE10..ATM

TYPE A,ｻﾌﾞ

 2
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10;SXE10..ATM

TYPE A

 4
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE B

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..SED..MTM

TYPE A,ｻﾌﾞ

 2
47769-50010

GXE10,SXE10

TYPE B

 2
47769-50020

GXE10;SXE10..ATM

TYPE A,ﾒｲﾝ

 2
47769-50010

GXE10..WG;SXE10..ATM;GXE10..MTM

TYPE B

 2
47769-50010

GXE10;SXE10..ATM

TYPE A,ｻﾌﾞ

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-50010

GXE10;SXE10..ATM

TYPE A

 2
47771-30090

GXE10;SXE10..ATM

TYPE A

 4
47771-30090

GXE10;SXE10..ATM

TYPE A

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-30070

GXE10,SXE10

 4
47775-30070

GXE10..WG;JCE1#,SXE10;GXE10..SED..MTM

 4
47775-30070

GXE10..WG;GXE10..MTM;JCE1#,SXE10

 4
47775-30070

GXE10,JCE1#,SXE10

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-22161

GXE10;SXE10..ATM

 1
47781-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781-22162

GXE10;SXE10..ATM

 1
47781B - BOLT(FOR DUST COVER SETTING)
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE10,SXE10

*6−1.0PX14−10.5

 8
90148-60028

GXE1#,JCE1#,SXE10

*6−1.0PX14−10.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-22161

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22162

GXE10;SXE10..ATM

 1
47782-22152

SXE10;GXE10..SED..MTM

ｱﾘ(17 ｲﾝﾁ ﾃﾞｲｽｸ ﾎｲｰﾙ)

 1
