JCE15W-AWPVF (2001)

Toyota Altezza/Altezza Gita

Production Jun 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

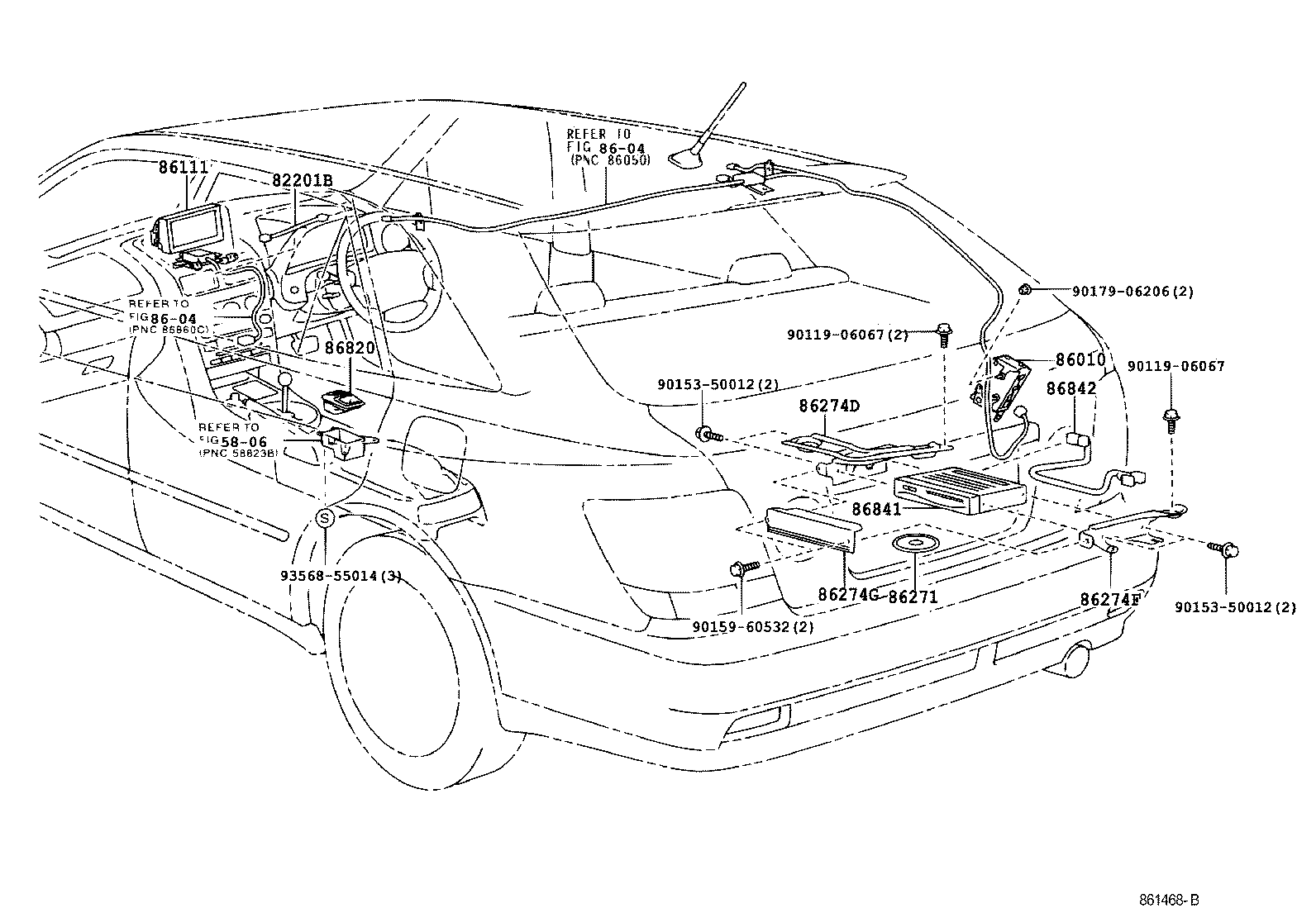

ILLUST NO. 1 OF 2(0106- )WG

Click highlighted areas on diagram

diagram 5806 82201B 86010 8604 8604 86111 86271 86274D 86274F 86274G 86820 86841 86842 9011906067 9011906067 9015350012 9015350012 9015960532 9017906206 9356855014
Part # Description Qty Price
82201B - WIRE, INSTRUMENT PANEL
82201-53010

GXE1#,JCE1#,SXE10

 1
86010 - TUNER ASSY, TELEVISION
86010-53020

GXE1#,JCE1#..WG

 1
86010-53020

GXE1#,JCE1#..WG

 1
86271 - DISC, DISC PLAYER
86271-13031

GXE1#,JCE1#,SXE10

 1
86271-13033

GXE1#,JCE1#,SXE10

 1
86271-13032

GXE1#,JCE1#,SXE10

 1
Common parts
90119-06067
90153-50012
90159-60532
90179-06206
93568-55014
Linked diagrams
5806
8604
