JCE15W-AWPVF (2001)

Toyota Altezza/Altezza Gita

Production Jun 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )WG

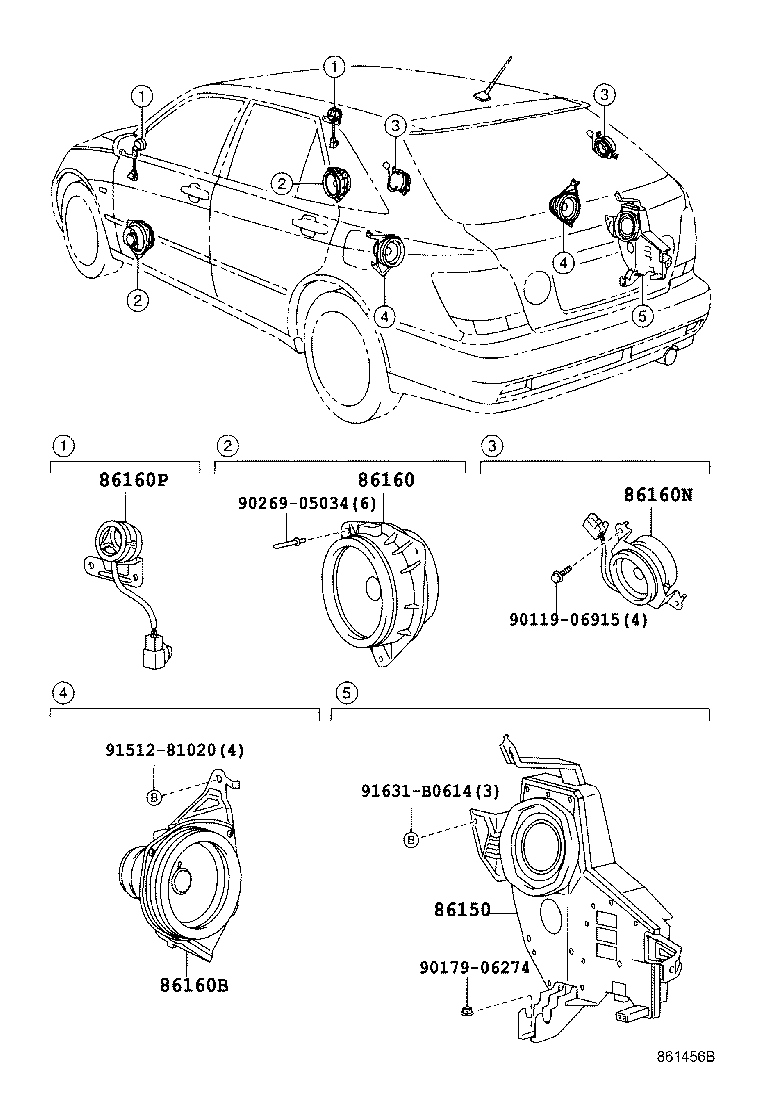

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160N 86160P 9011906915 9017906274 9026905034 9151281020 91631B0614
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-53010

GXE1#,JCE1#..WG

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-53140

GXE1#,JCE1#..WG

ｱﾘ(9 ｽﾋﾟ-ｶ)

 2
86160-68090

SXE10..ATM;GXE1#,JCE1#

 2
86160B - SPEAKER ASSY, REAR
86160-53150

GXE1#,JCE1#..WG

右側

 1
86160-53160

GXE1#,JCE1#..WG

左側

 1
86160N - SPEAKER ASSY, STEREO COMPONENT, REAR
86160-53170

GXE1#,JCE1#..WG

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-53200

GXE1#,JCE1#..WG

ｱﾘ(9 ｽﾋﾟ-ｶ),左側

 1
86160-53190

GXE1#,JCE1#..WG

ｱﾘ(9 ｽﾋﾟ-ｶ),右側

 1
Common parts
90119-06915
90179-06274
90269-05034
91512-81020
91631-B0614
