JCE15W-AWPVF (2001)

Toyota Altezza/Altezza Gita

Production Jun 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )WG

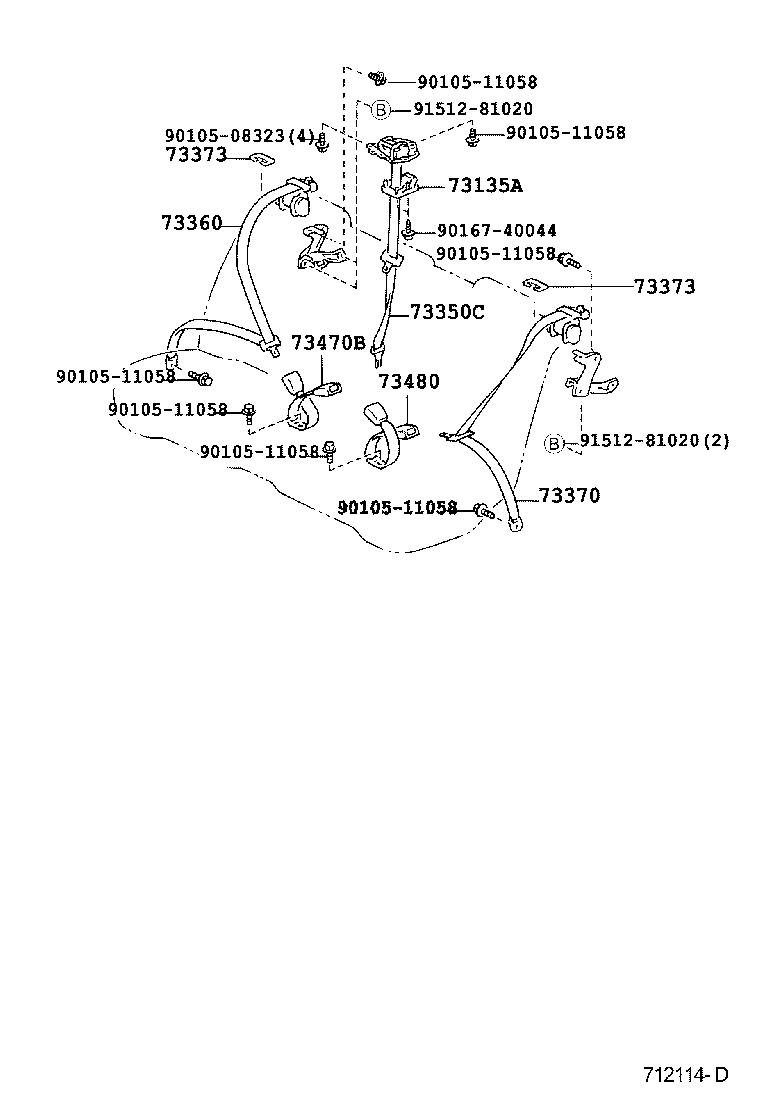

Click highlighted areas on diagram

ﾘﾔ ｼ-ﾄﾍﾞﾙﾄ

diagram 73135A 73350C 73360 73370 73373 73373 73470B 73480 9010508323 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9010511058 9016740044 9151281020 9151281020
Part # Description Qty Price
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-53010B0

GXE1#,JCE1#..WG

MD.CHARCOAL,TRIM2#

 1
73137-53010A0

GXE1#,JCE1#..WG

IVORY,TRIM0#

 1
73350C - BELT ASSY, REAR SEAT, OUTER CENTER
73350-53010A0

GXE1#,JCE1#..WG

IVORY,TRIM0#

 1
73350-53010C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-53060A0

JCE1#

IVORY,TRIM0#

 1
73360-53050C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 1
73360-53060A0

JCE1#

IVORY,TRIM0#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73360-53060A0

JCE1#

IVORY,TRIM0#

 1
73360-53060A0

JCE1#

IVORY,TRIM0#

 1
73360-53050C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 1
73373 - COVER, REAR SEAT SHOULDER BELT
73373-33010C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 2
73373-33010A1

JCE1#

IVORY,TRIM0#

 2
73373 - COVER, REAR SEAT SHOULDER BELT
73373-33010C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 2
73373-33010A1

JCE1#

IVORY,TRIM0#

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-53040A0

JCE1#

IVORY,TRIM0#

 1
73470-53040C0

GXE1#,JCE1#..WG

BLACK,TRIM2#

 1
Common parts
90105-08323
90105-11058
90167-40044
91512-81020
