JCE10W-AWAVF (2001)

Toyota Altezza/Altezza Gita

Production Jun 2001 - Jul 2005
Engine 2JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0106- )WG

Click highlighted areas on diagram

PLUG HOLE

diagram 61815C 61825A 61825G 9033320001 9033320001 9033335001 9033348001 9033348001 9033348001 9033348001 9033348001 9095001006 9095001841 9095001881 9095001955 9095006108 9095006108 9095006109 9095006109
Part # Description Qty Price
61815C - COVER, ROOF SIDE, INNER UPPER
61815-16030

GXE1#,JCE1#..WG

 1
61825A - PLATE, NOISE CONTROL, NO.2
61825-20180

GXE1#,JCE1#..WG

 2
61825G - PAD, NOISE SHUTTER, NO.2
61825-51010

GXE1#,JCE1#..WG

 2
Common parts
90333-20001
90333-35001
90333-48001
90950-01006
90950-01841
90950-01881
90950-01955
90950-06108
90950-06109

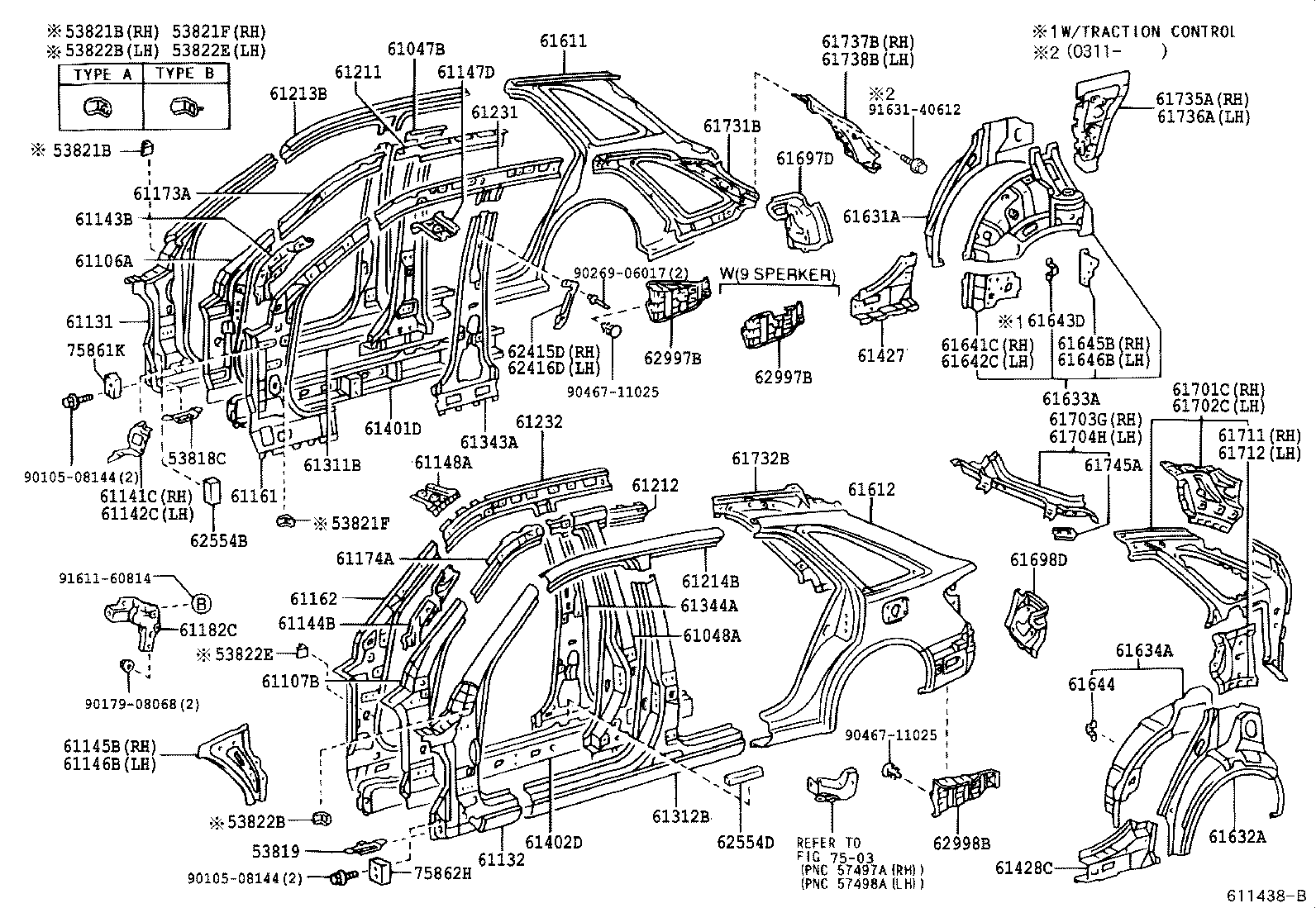

ILLUST NO. 1 OF 2(0106- )WG

Click highlighted areas on diagram

diagram 53818C 53819 53821B 53821B 53821F 53821F 53822B 53822B 53822E 53822E 61047B 61048A 61106A 61107B 61131 61132 61141C 61142C 61143B 61144B 61145B 61146B 61147D 61148A 61161 61162 61173A 61174A 61182C 61211 61212 61213B 61214B 61231 61232 61311B 61312B 61343A 61344A 61401D 61402D 61427 61428C 61611 61612 61631A 61632A 61633A 61634A 61641C 61642C 61643D 61644 61645B 61646B 61697D 61698D 61701C 61702C 61703G 61704H 61711 61712 61731B 61732B 61735A 61736A 61737B 61738B 61745A 62415D 62416D 62554B 62554D 62997B 62997B 62998B 7503 75861K 75862H 9010508144 9010508144 9017908068 9026906017 9046711025 9046711025 9161160814 9163140612
Part # Description Qty Price
61047B - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER RH
61047-53020

GXE1#,JCE1#,SXE10

 1
61048A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, CENTER LH
61048-53020

GXE1#,JCE1#,SXE10

 1
61131 - PILLAR, FRONT BODY, UPPER OUTER RH
61131-53030

GXE1#,JCE1#..WG

 1
61132 - PILLAR, FRONT BODY, UPPER OUTER LH
61132-53030

GXE1#,JCE1#..WG

 1
61161 - PILLAR, FRONT BODY, UPPER INNER RH
61161-53013

GXE1#,JCE1#,SXE10

 1
61162 - PILLAR, FRONT BODY, UPPER INNER LH
61162-53023

GXE1#,JCE1#,SXE10

 1
61213B - RAIL, ROOF SIDE, OUTER NO.2 RH
61213-53020

GXE1#,JCE1#..WG..ATM

 1
61214B - RAIL, ROOF SIDE, OUTER NO.2 LH
61214-53020

GXE1#,JCE1#..WG..ATM

 1
61231 - RAIL, ROOF SIDE, INNER RH
61231-53060

GXE1#,JCE1#..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ﾑ-ﾝﾙ-ﾌ & *80)

 1
61231-53070

GXE1#,JCE1#..WG

ｱﾘ(*80)

 1
61231-53050

JCE1#

 1
61232 - RAIL, ROOF SIDE, INNER LH
61232-53040

GXE1#,JCE1#..WG

 1
61232-53050

GXE1#,JCE1#..WG

ｱﾘ(ﾑ-ﾝﾙ-ﾌ) OR ｱﾘ(ﾑ-ﾝﾙ-ﾌ & *80)

 1
61311B - PILLAR, CENTER BODY, OUTER RH
61311-53020

GXE1#,JCE1#..WG

 1
61312B - PILLAR, CENTER BODY, OUTER LH
61312-53020

GXE1#,JCE1#..WG

 1
61611 - PANEL, QUARTER, RH
61601-53050

GXE1#,JCE1#..WG

 1
61612 - PANEL, QUARTER, LH
61602-53030

GXE1#,JCE1#..WG

 1
61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH
61631-53020

GXE1#,JCE1#..WG

 1
61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH
61632-53020

GXE1#,JCE1#..WG

 1
61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH
61607-53041

GXE15,JCE1#;GXE10..WG..MTM

 1
61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH
61608-53021

GXE1#,JCE1#..WG

 1
61697D - HOUSING, QUARTER PANEL END, RH
61697-53901

GXE1#,JCE1#..WG..ATM

 1
61698D - HOUSING, QUARTER PANEL END, LH
61698-53901

GXE1#,JCE1#..WG

 1
61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH
61701-53010

GXE1#,JCE1#..WG

 1
61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH
61702-53010

GXE1#,JCE1#..WG

 1
61703G - PANEL SUB-ASSY, QUARTER, INNER RH
61703-53010

GXE1#,JCE1#..WG

 1
61704H - PANEL SUB-ASSY, QUARTER, INNER LH
61704-53010

GXE1#,JCE1#..WG

 1
61711 - PANEL, ROOF SIDE, OUTER RH
61711-53020

GXE1#,JCE1#..WG

 1
61712 - PANEL, ROOF SIDE, OUTER LH
61712-53020

GXE1#,JCE1#..WG

 1
61731B - PANEL, ROOF SIDE, INNER RH
61731-53901

GXE1#,JCE1#..WG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
61731-53900

GXE1#,JCE1#..WG

 1
61732B - PANEL, ROOF SIDE, INNER LH
61732-53901

GXE1#,JCE1#..WG

ｱﾘ(ﾑ-ﾝ ﾙ-ﾌ)

 1
61732-53900

GXE1#,JCE1#..WG

 1
61735A - PANEL, ROOF SIDE, INNER REAR RH
61735-53020

GXE1#,JCE1#..WG

 1
61736A - PANEL, ROOF SIDE, INNER REAR LH
61736-53020

GXE1#,JCE1#..WG

 1
61737B - PANEL, ROOF SIDE, INNER LOWER RH
61737-53020

GXE1#,JCE1#..WG

 1
61738B - PANEL, ROOF SIDE, INNER LOWER LH
61738-53020

GXE1#,JCE1#..WG

 1
61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH
61745-53010

GXE1#,JCE1#..WG

 1
62997B - COVER, QUARTER VENT HOLE, RH
62997-53010

GXE1#,JCE1#..WG

 1
62997-53020

GXE1#,JCE1#..WG

ｱﾘ(9 ｽﾋﾟ-ｶ)

 1
62997B - COVER, QUARTER VENT HOLE, RH
62997-53010

GXE1#,JCE1#..WG

 1
62997-53020

GXE1#,JCE1#..WG

ｱﾘ(9 ｽﾋﾟ-ｶ)

 1
62998B - COVER, QUARTER VENT HOLE, LH
62998-53010

GXE1#,JCE1#..WG

 1
Common parts
90105-08144
90179-08068
90269-06017
90467-11025
91611-60814
91631-40612
Linked diagrams
7503
