GXE15W-AWPVK (2002)

Toyota Altezza/Altezza Gita

Production Jan 2002 - Jul 2005
Engine 1GFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )1GFE..GXE15

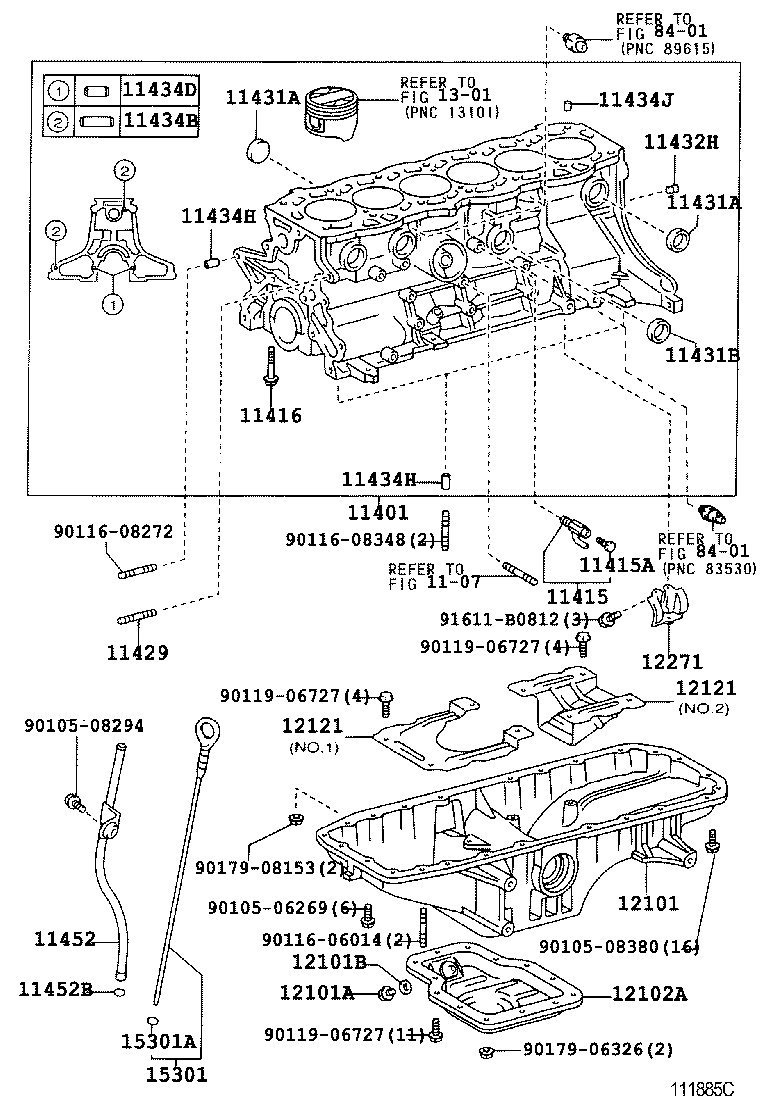

Click highlighted areas on diagram

diagram 1107 11401 11415 11415A 11416 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434H 11434J 11452 11452B 12101 12101A 12101B 12102A 12121 12121 12271 1301 15301 15301A 8401 8401 9010506269 9010508294 9010508380 9011606014 9011608272 9011608348 9011906727 9011906727 9011906727 9017906326 9017908153 91611B0812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80018

1GFE..GXE15

 1
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GFE..GXE15

 4
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GFE..GXE15

 4
11452 - GUIDE, OIL LEVEL GAGE
11452-70080

1GFE..GXE15

 1
12101 - PAN SUB-ASSY, OIL
12101-70080

1GFE..GXE15

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-70010

1GFE..GXE15

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-70050

1GFE..GXE15

NO.2

 1
12121-70070

1GFE..GXE15

NO.1

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12122-70050

1GFE..GXE15

NO.2

 1
12121-70070

1GFE..GXE15

NO.1

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-70120

1GFE..GXE15

 1
Common parts
90105-06269
90105-08294
90105-08380
90116-06014
90116-08272
90116-08348
90119-06727
90179-06326
90179-08153
91611-B0812
