GXE10W-AWFVK (2001)

Toyota Altezza/Altezza Gita

Production Jun 2001 - Aug 2003
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0106- )WG

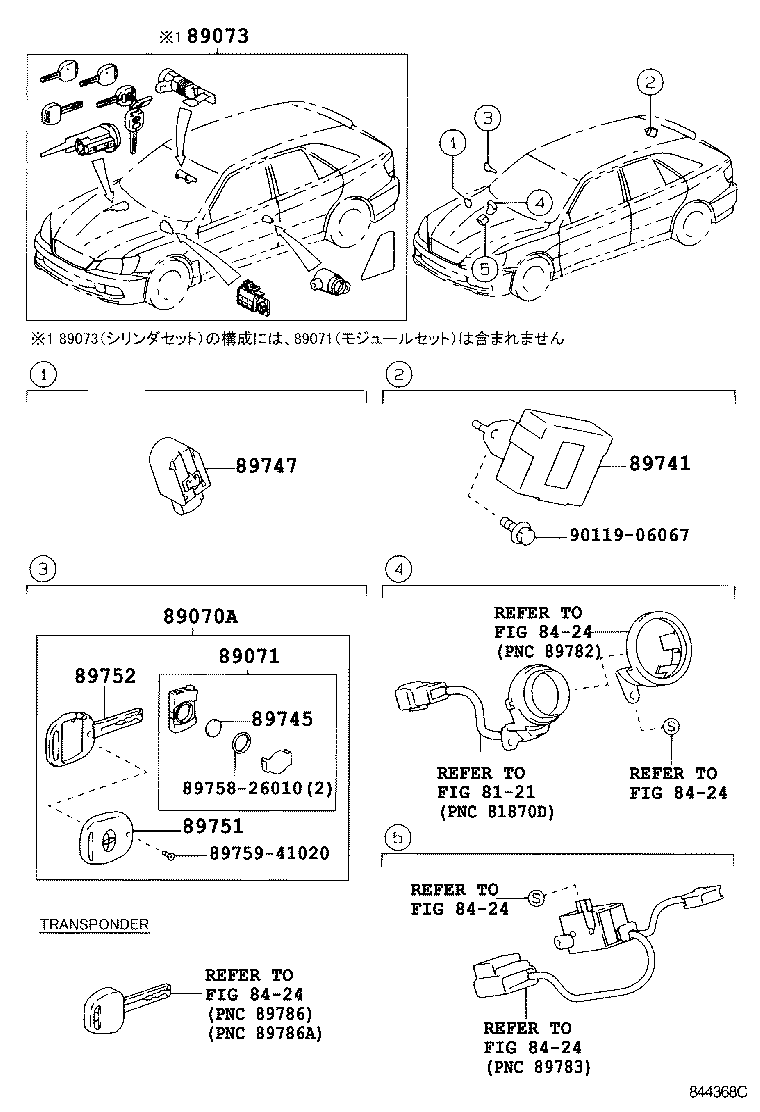

Click highlighted areas on diagram

diagram 8121 8424 8424 8424 8424 8424 89070A 89071 89073 89741 89745 89747 89751 89752 8975826010 8975941020 9011906067
Part # Description Qty Price
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-53210

GXE10,SXE10

 1
89070-53740

JCE1#;GXE10..WG..MTM

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32010

GXE10,SXE10

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-53010

GXE10,SXE10

 1
89741 - RECEIVER, DOOR CONTROL
89741-53010

GXE10,SXE10

 1
89741-53080

GXE1#,JCE1#..WG

 1
89745 - BATTERY, TRANSMITTER
89745-41010

GXE10,SXE10

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010

GXE10,SXE10

 1
Common parts
89758-26010
89759-41020
90119-06067
Linked diagrams
8121
8424
