GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita
Production
May 2000
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

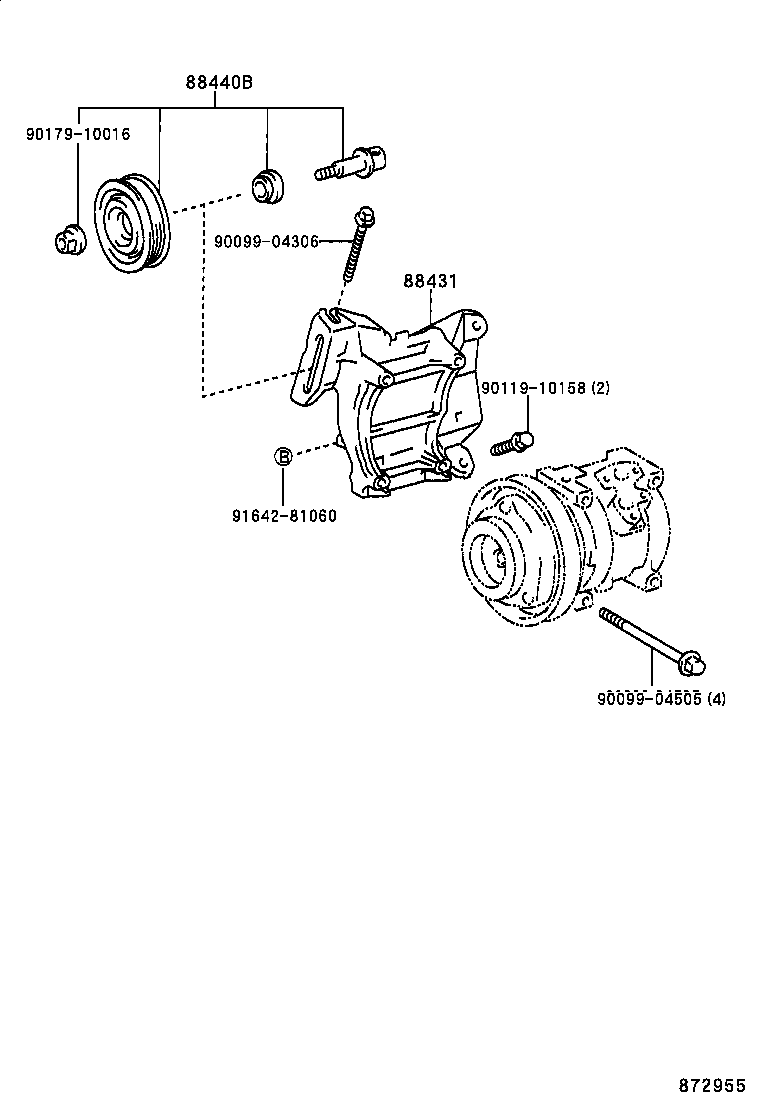

ILLUST NO. 1 OF 2(9810-0105)GXE10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22350 |
GXE10 |
1 | ||
| 88431-22350 |
GXE1# |
1 | ||
| 88431-22350 |
GXE1# |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-20170 |
GXE1# |
1 | ||
| 88440-20170 |
GXE1# |
1 | ||
| 88440-20170 |
GXE10 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04505 | ||||
| 90119-10158 | ||||
| 90179-10016 | ||||
| 91642-81060 | ||||

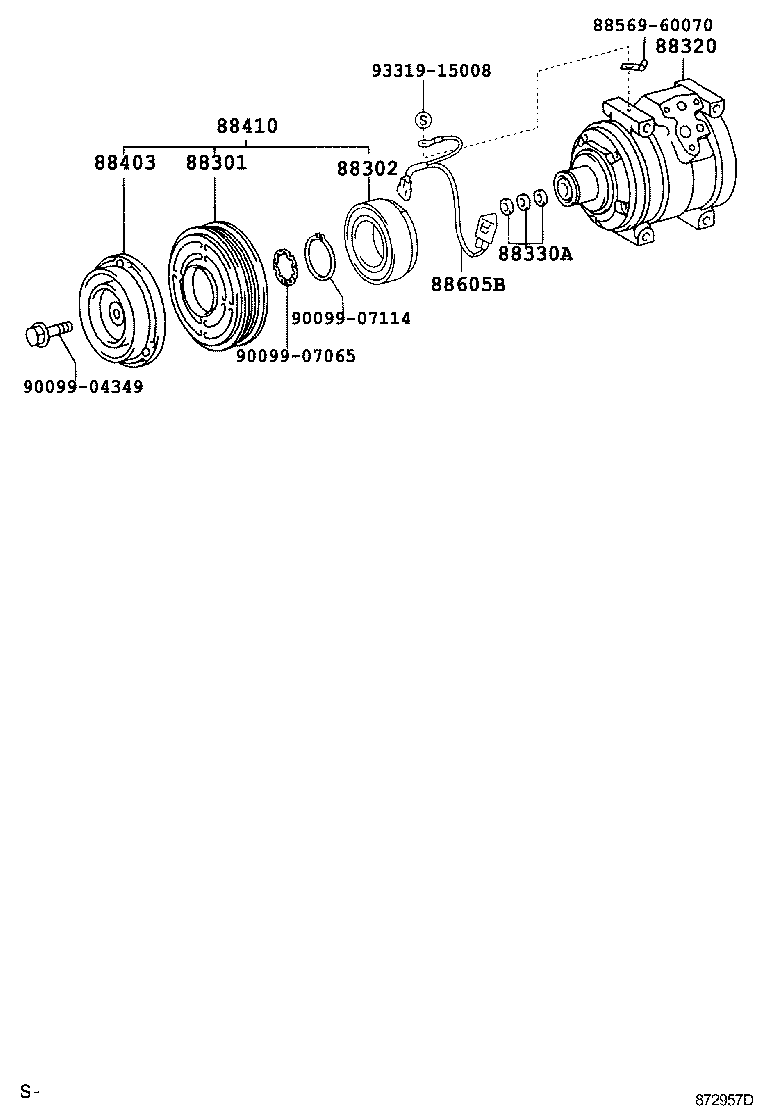

ILLUST NO. 2 OF 2(9810-0105)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-53010 |
GXE10,SXE10 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-44010 |
GXE10,SXE10 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-53020 |
GXE1# |
1 | ||
| 88320-53020 |
GXE1# |
1 | ||
| 88320-53020 |
GXE10 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 88335-14020 |
GXE10,SXE10 |
1 | ||
| 88335-14020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-32010 |
GXE10,SXE10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-53010 |
GXE1#,SXE10 |
1 | ||
| 88410-53010 |
GXE10,SXE10 |
1 | ||
| 88410-53010 |
GXE1#,SXE10 |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-53010 |
GXE1# |
1 | ||
| 88605-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||

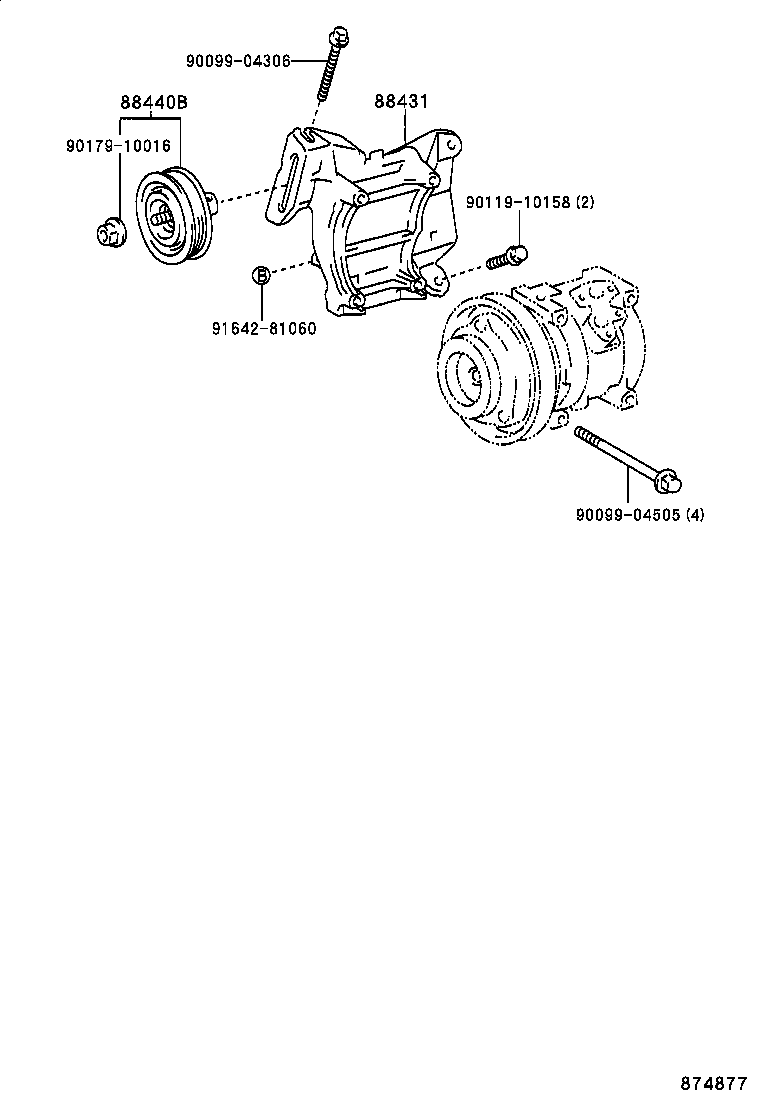

ILLUST NO. 1 OF 2(0105- )GXE1#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22350 |
GXE10 |
1 | ||
| 88431-22350 |
GXE1# |
1 | ||
| 88431-22350 |
GXE1# |
1 | ||
| 88440B - PULLEY ASSY, IDLE | ||||
| 88440-20170 |
GXE1# |
1 | ||
| 88440-20170 |
GXE1# |
1 | ||
| 88440-20170 |
GXE10 |
1 | ||
| Common parts | ||||
| 90099-04306 | ||||
| 90099-04505 | ||||
| 90119-10158 | ||||
| 90179-10016 | ||||
| 91642-81060 | ||||

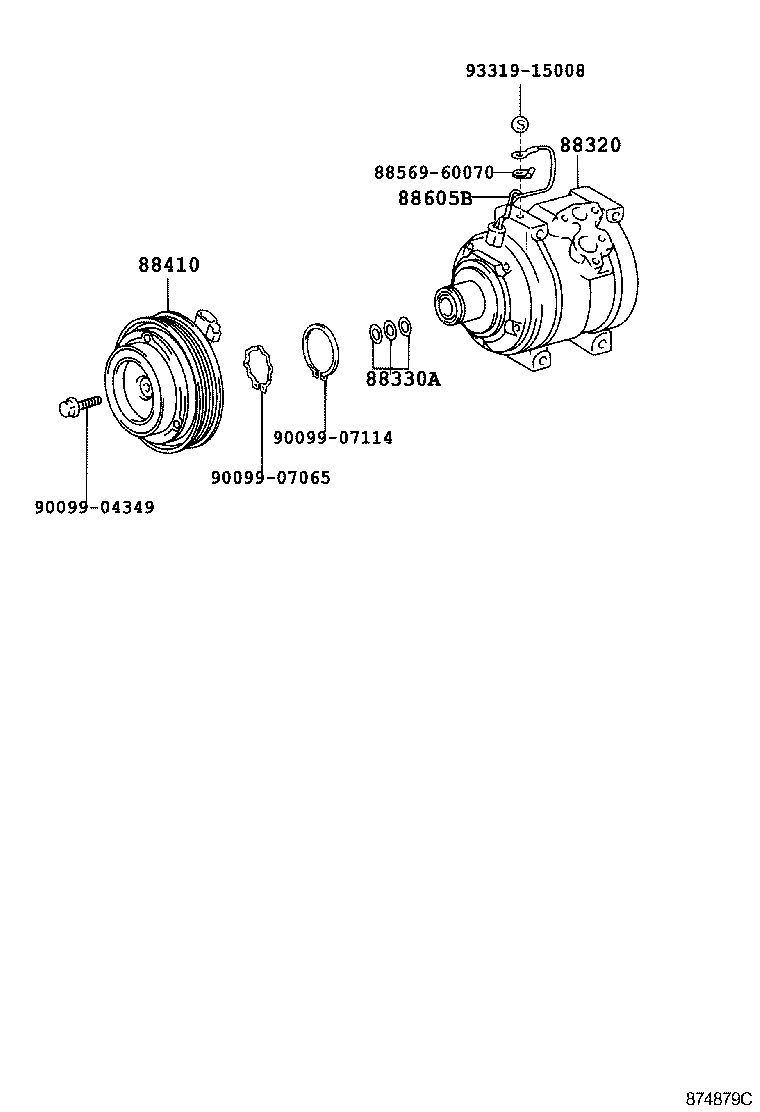

ILLUST NO. 2 OF 2(0105- )GXE1#,SXE10
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-53020 |
GXE1# |
1 | ||
| 88320-53020 |
GXE1# |
1 | ||
| 88320-53020 |
GXE10 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 88335-14020 |
GXE10,SXE10 |
1 | ||
| 88335-14020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-53010 |
GXE1#,SXE10 |
1 | ||
| 88410-53010 |
GXE10,SXE10 |
1 | ||
| 88410-53010 |
GXE1#,SXE10 |
1 | ||
| 88605B - HARNESS SUB-ASSY, AIR CONDITIONER WIRING | ||||
| 88605-53010 |
GXE1# |
1 | ||
| 88605-53010 |
GXE10 |
1 | ||
| Common parts | ||||
| 88569-60070 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 93319-15008 | ||||
