GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005
Engine 1GFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9810-0105)

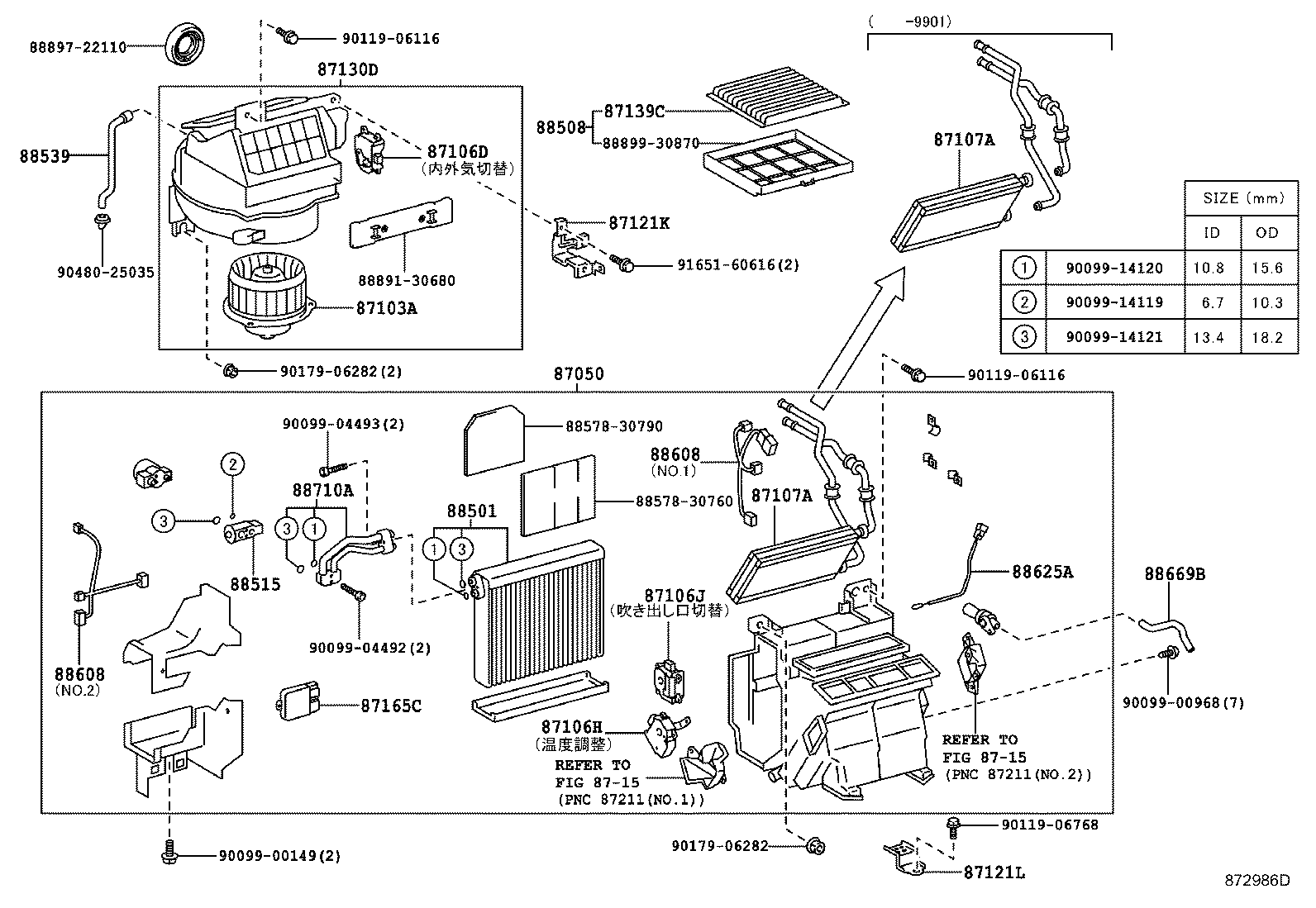

Click highlighted areas on diagram

diagram 87050 87103A 87106D 87106H 87106J 87107A 87107A 87121K 87121L 87130D 87139C 8715 8715 87165C 88501 88508 88515 88539 8857830760 8857830790 88608 88608 88625A 88669B 88710A 8889130680 8889722110 8889930870 9009900149 9009900968 9009904492 9009904493 9009914119 9009914120 9009914121 9011906116 9011906116 9011906768 9017906282 9017906282 9048025035 9165160616
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-53010

GXE10,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87050-53032

GXE10,SXE10..SED

 1
87050-53012

GXE10,SXE10

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87050-53030

GXE10,SXE10

 1
87050-53012

GXE10,SXE10

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-53010

GXE1#,JCE1#,SXE10

 1
87103-53010

GXE1#,JCE1#,SXE10

 1
87103-53010

GXE10,SXE10

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-53010

GXE1#,JCE1#,SXE10

 1
87106-53010

GXE10,SXE10

 1
87106-53010

GXE1#,JCE1#,SXE10

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30350

GXE1#,JCE1#,SXE10

 1
87106-30350

GXE10,SXE10

 1
87106-30351

GXE1#,JCE1#,SXE10

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30361

GXE1#,JCE1#,SXE10

 1
87106-30361

GXE1#,JCE1#,SXE10

 1
87106-30361

GXE10,SXE10

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-53050

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
87107-53010

GXE10,SXE10

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-53050

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
87107-53010

GXE10,SXE10

 1
87121K - BRACKET, HEATER
87121-53020

GXE1#,JCE1#,SXE10

 1
87121-53020

GXE1#,JCE1#,SXE10

 1
87121L - BRACKET, HEATER
87121-53030

GXE1#,JCE1#,SXE10

 1
87121-53030

GXE1#,JCE1#,SXE10

 1
87130D - BLOWER ASSY
87130-53030

GXE10,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130-53030

GXE1#,JCE1#,SXE10

 1
87130-53030

GXE1#,JCE1#,SXE10

 1
87130-53010

GXE10,SXE10

 1
87139C - FILTER, CLEAN AIR
87139-48030

GXE1#,JCE1#,SXE10

 1
87165C - CONTROL, BLOWER MOTOR
87165-22050

GXE1#,JCE1#,SXE10

 1
87165-22050

GXE1#,JCE1#,SXE10

 1
87165-22050

GXE10,SXE10

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-53010

GXE1#,JCE1#,SXE10

 1
88501-48010

GXE10,SXE10

 1
88501-53010

GXE1#,JCE1#,SXE10

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

GXE1#,JCE1#,SXE10

 1
88508-48020

GXE1#,JCE1#,SXE10

 1
88508-48020

GXE10,SXE10

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

GXE10,SXE10

 1
88515-48040

GXE1#,SXE10

 1
88515-28160

GXE1#,SXE10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-53060

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,SXE10

 1
88539-53060

GXE10,JCE10,SXE10

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53010

GXE10,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53020

GXE10,SXE10

NO.2

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53010

GXE10,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53020

GXE10,SXE10

NO.2

 1
88625A - THERMISTOR, COOLER NO.2
88625-48010

GXE10,SXE10

 1
88625-48010

GXE10,SXE10

 1
88669B - HOSE, COOLER AIR
88669-53010

GXE1#,JCE1#,SXE10

 1
88669-53010

GXE1#,JCE1#,SXE10

 1
88669-53010

GXE10,SXE10

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A140

GXE1#,JCE1#,SXE10

 1
88710-3A140

GXE1#,JCE1#,SXE10

 1
88710-3A140

GXE10,SXE10

 1
Common parts
88578-30760
88578-30790
88891-30680
88897-22110
88899-30870
90099-00149
90099-00968
90099-04492
90099-04493
90099-14119
90099-14120
90099-14121
90119-06116
90119-06768
90179-06282
90480-25035
91651-60616
Linked diagrams
8715

(0105- )

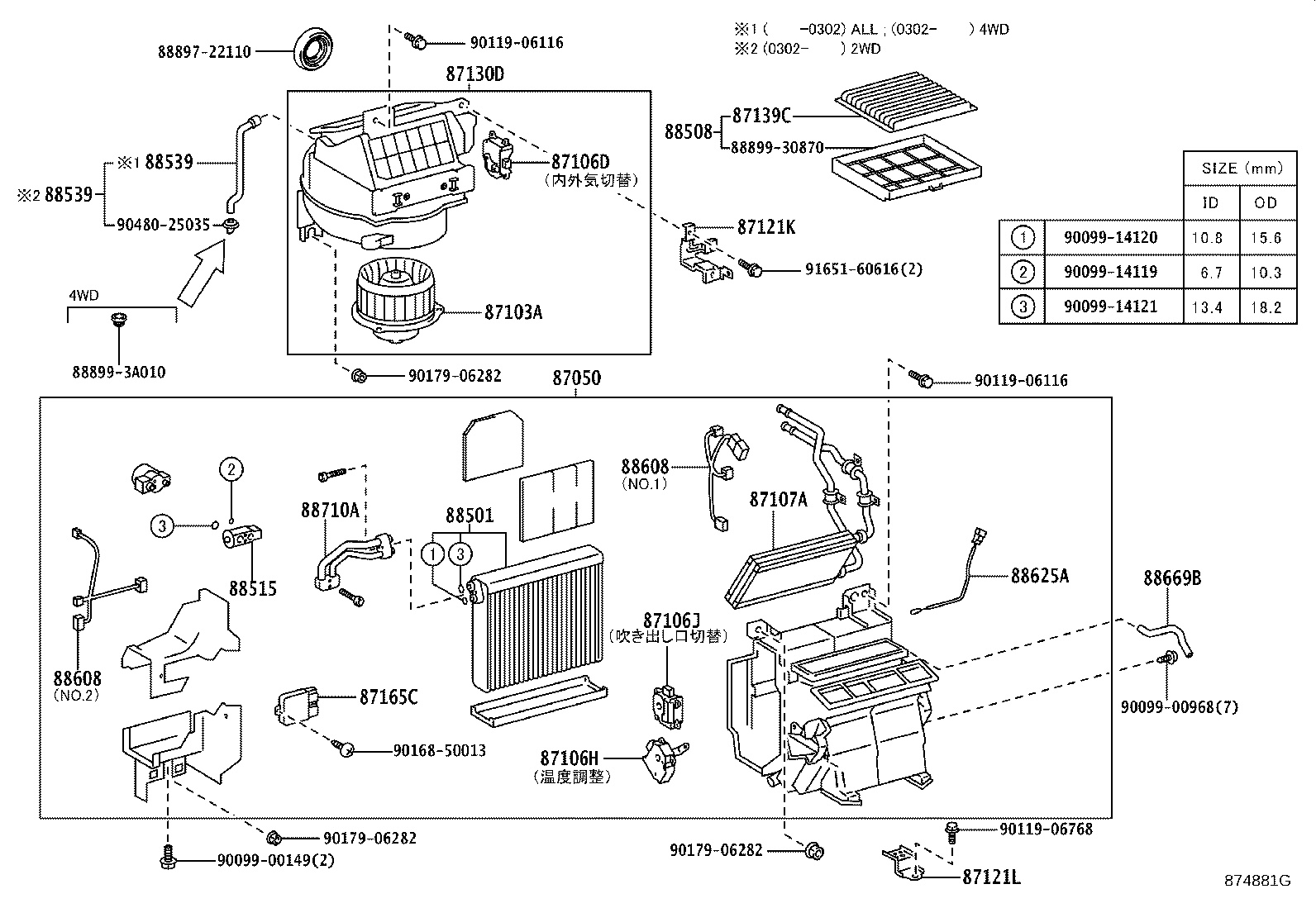

Click highlighted areas on diagram

diagram 87050 87103A 87106D 87106H 87106J 87107A 87121K 87121L 87130D 87139C 87165C 88501 88508 88515 88539 88539 88608 88608 88625A 88669B 88710A 8889722110 8889930870 888993A010 9009900149 9009900968 9009914119 9009914120 9009914121 9011906116 9011906116 9011906768 9016850013 9017906282 9017906282 9017906282 9048025035 9165160616
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-53010

GXE10,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87050-53032

GXE10,SXE10..SED

 1
87050-53012

GXE10,SXE10

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87050-53030

GXE10,SXE10

 1
87050-53012

GXE10,SXE10

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN
87103-53010

GXE1#,JCE1#,SXE10

 1
87103-53010

GXE1#,JCE1#,SXE10

 1
87103-53010

GXE10,SXE10

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-53010

GXE1#,JCE1#,SXE10

 1
87106-53010

GXE10,SXE10

 1
87106-53010

GXE1#,JCE1#,SXE10

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-30350

GXE1#,JCE1#,SXE10

 1
87106-30350

GXE10,SXE10

 1
87106-30351

GXE1#,JCE1#,SXE10

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-30361

GXE1#,JCE1#,SXE10

 1
87106-30361

GXE1#,JCE1#,SXE10

 1
87106-30361

GXE10,SXE10

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-53050

GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10

 1
87107-53010

GXE10,SXE10

 1
87121K - BRACKET, HEATER
87121-53020

GXE1#,JCE1#,SXE10

 1
87121-53020

GXE1#,JCE1#,SXE10

 1
87121L - BRACKET, HEATER
87121-53030

GXE1#,JCE1#,SXE10

 1
87121-53030

GXE1#,JCE1#,SXE10

 1
87130D - BLOWER ASSY
87130-53030

GXE10,SXE10

ｶﾝﾚｲﾁ ｼﾖｳ

 1
87130-53030

GXE1#,JCE1#,SXE10

 1
87130-53030

GXE1#,JCE1#,SXE10

 1
87130-53010

GXE10,SXE10

 1
87139C - FILTER, CLEAN AIR
87139-48030

GXE1#,JCE1#,SXE10

 1
87165C - CONTROL, BLOWER MOTOR
87165-22050

GXE1#,JCE1#,SXE10

 1
87165-22050

GXE1#,JCE1#,SXE10

 1
87165-22050

GXE10,SXE10

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-53010

GXE1#,JCE1#,SXE10

 1
88501-48010

GXE10,SXE10

 1
88501-53010

GXE1#,JCE1#,SXE10

 1
88508 - FILTER SUB-ASSY, CLEAN AIR
88508-48020

GXE1#,JCE1#,SXE10

 1
88508-48020

GXE1#,JCE1#,SXE10

 1
88508-48020

GXE10,SXE10

 1
88515 - VALVE, COOLER EXPANSION
88515-48040

GXE10,SXE10

 1
88515-48040

GXE1#,SXE10

 1
88515-28160

GXE1#,SXE10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-53060

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,SXE10

 1
88539-53060

GXE10,JCE10,SXE10

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-53060

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,JCE10,SXE10

 1
88539-53010

GXE10,SXE10

 1
88539-53060

GXE10,JCE10,SXE10

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53010

GXE10,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53020

GXE10,SXE10

NO.2

 1
88608 - HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53020

GXE1#,JCE1#,SXE10

NO.2

 1
88608-53010

GXE10,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53050

GXE1#,SXE10

NO.1

 1
88608-53020

GXE10,SXE10

NO.2

 1
88625A - THERMISTOR, COOLER NO.2
88625-48010

GXE10,SXE10

 1
88625-48010

GXE10,SXE10

 1
88669B - HOSE, COOLER AIR
88669-53010

GXE1#,JCE1#,SXE10

 1
88669-53010

GXE1#,JCE1#,SXE10

 1
88669-53010

GXE10,SXE10

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-3A140

GXE1#,JCE1#,SXE10

 1
88710-3A140

GXE1#,JCE1#,SXE10

 1
88710-3A140

GXE10,SXE10

 1
Common parts
88897-22110
88899-30870
88899-3A010
90099-00149
90099-00968
90099-14119
90099-14120
90099-14121
90119-06116
90119-06768
90168-50013
90179-06282
90480-25035
91651-60616
