Toyota Altezza/altezza gita GXE10 ANTENNA

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

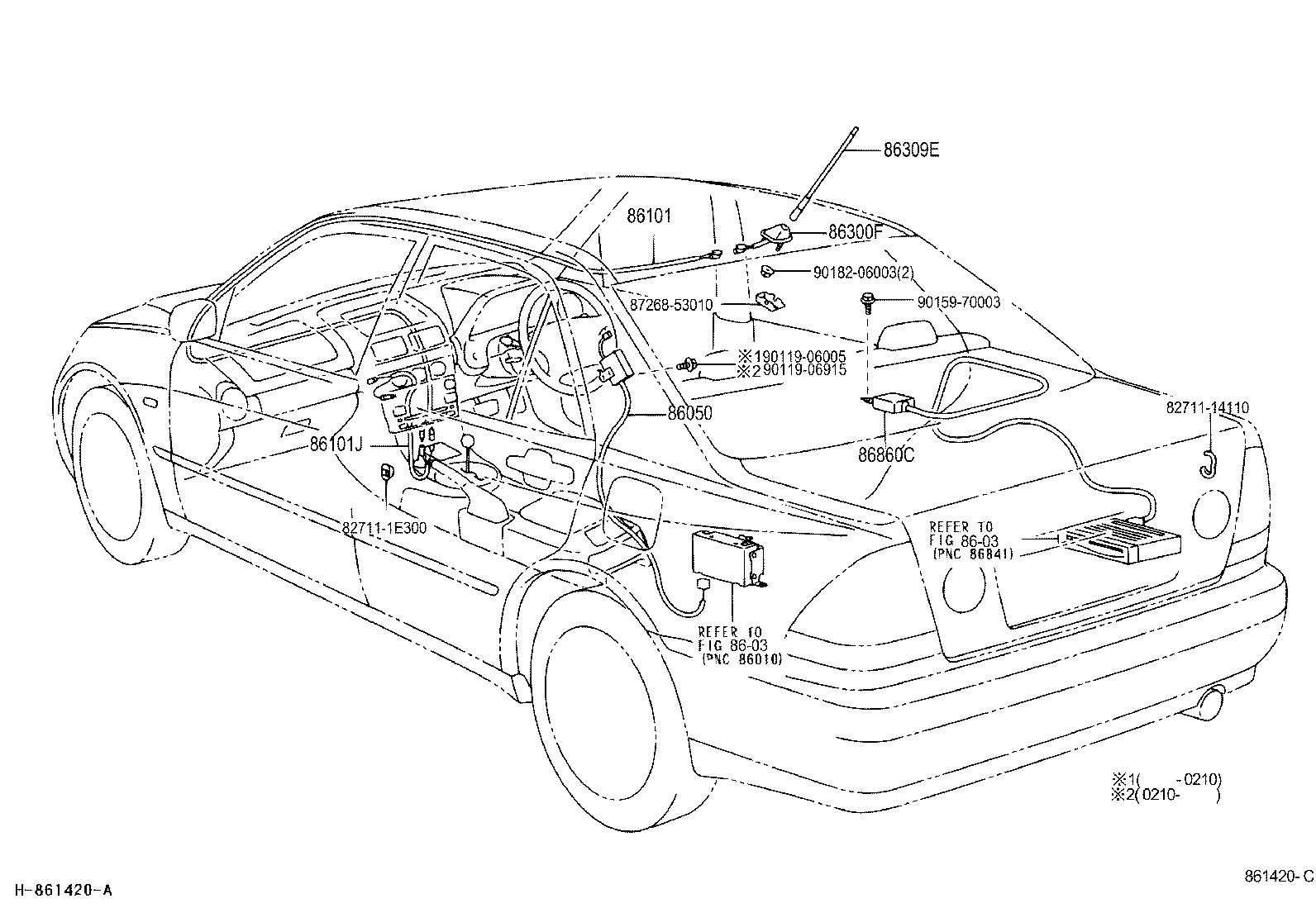

Click highlighted areas on diagram

Part #	Description	Period	Qty
86050 - ANTENNA ASSY, TELEVISION
86050-53040	GXE10 ｱﾘ(ﾗｼﾞｵﾚｽ)	01/2001 - 05/2001	1
86050-53030	GXE10,SXE10..SED	05/2001 - 12/2999	1
86050-53010	GXE10,SXE10	10/1998 - 05/2001	1
86101 - CORD SUB-ASSY, ANTENNA
86101-53010	GXE10,SXE10 ｱﾘ(6 ｽﾋﾟ-ｶ OR 8 ｽﾋﾟ-ｶ)	10/1998 - 05/2001	1
86101-53140	GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ & *80)	05/2001 - 07/2005	1
86101-53020	GXE10,SXE10 ｱﾘ(6 ｽﾋﾟ-ｶ OR 8 ｽﾋﾟ-ｶ) & ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	10/1998 - 05/2001	1
86101-53070	GXE10,SXE10	10/1998 - 05/2001	1
86101-53080	GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	10/1998 - 05/2001	1
86101-53020	GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	05/2001 - 07/2005	1
86101-53010	GXE10,SXE10..SED	05/2001 - 07/2005	1
86101-53130	GXE10,SXE10..SED ｱﾘ(*80)	05/2001 - 07/2005	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-53330	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
86101-53050	GXE10,SXE10	10/1998 - 05/2001	1
86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)
86300-53010	GXE10,SXE10	10/1998 - 05/2001	1
86300-53050	GXE10,SXE10..SED	05/2001 - 07/2005	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-53010	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
86309-53010	GXE10,SXE10	10/1998 - 05/2001	1
86860C - ANTENNA ASSY, NAVIGATION
86860-53011	GXE10,SXE10	05/2000 - 05/2001	1
86860-53020	GXE10,SXE10..SED	05/2001 - 07/2005	1
86860-53010	GXE10,SXE10	10/1998 - 04/2000	1
Common parts
82711-14110
82711-1E300
87268-53010
90119-06005
90159-70003
90182-06003
Linked diagrams
8603

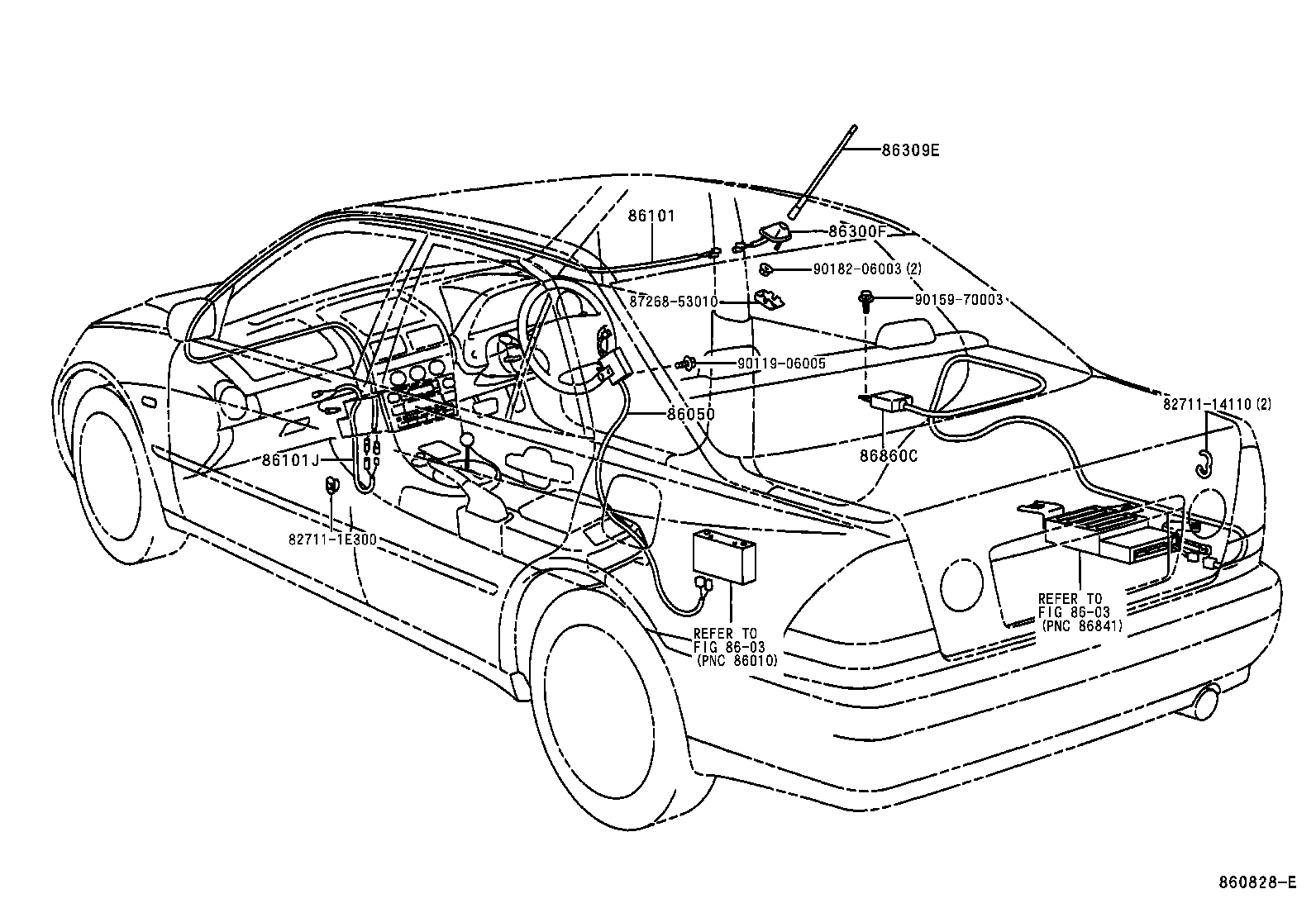

Click highlighted areas on diagram

Part #	Description	Period	Qty
86050 - ANTENNA ASSY, TELEVISION
86050-53040	GXE10 ｱﾘ(ﾗｼﾞｵﾚｽ)	01/2001 - 05/2001	1
86050-53030	GXE10,SXE10..SED	05/2001 - 12/2999	1
86050-53010	GXE10,SXE10	10/1998 - 05/2001	1
86101 - CORD SUB-ASSY, ANTENNA
86101-53010	GXE10,SXE10 ｱﾘ(6 ｽﾋﾟ-ｶ OR 8 ｽﾋﾟ-ｶ)	10/1998 - 05/2001	1
86101-53140	GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ & *80)	05/2001 - 07/2005	1
86101-53020	GXE10,SXE10 ｱﾘ(6 ｽﾋﾟ-ｶ OR 8 ｽﾋﾟ-ｶ) & ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	10/1998 - 05/2001	1
86101-53070	GXE10,SXE10	10/1998 - 05/2001	1
86101-53080	GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	10/1998 - 05/2001	1
86101-53020	GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ)	05/2001 - 07/2005	1
86101-53010	GXE10,SXE10..SED	05/2001 - 07/2005	1
86101-53130	GXE10,SXE10..SED ｱﾘ(*80)	05/2001 - 07/2005	1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-53330	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
86101-53050	GXE10,SXE10	10/1998 - 05/2001	1
86300F - HOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)
86300-53010	GXE10,SXE10	10/1998 - 05/2001	1
86300-53050	GXE10,SXE10..SED	05/2001 - 07/2005	1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-53010	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
86309-53010	GXE10,SXE10	10/1998 - 05/2001	1
86860C - ANTENNA ASSY, NAVIGATION
86860-53011	GXE10,SXE10	05/2000 - 05/2001	1
86860-53020	GXE10,SXE10..SED	05/2001 - 07/2005	1
86860-53010	GXE10,SXE10	10/1998 - 04/2000	1
Common parts
82711-14110
82711-1E300
87268-53010
90119-06005
90119-06915
90159-70003
90182-06003
Linked diagrams
8603
