Toyota Altezza/altezza gita GXE10 NAVIGATION & FRONT MONITOR DISPLAY

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

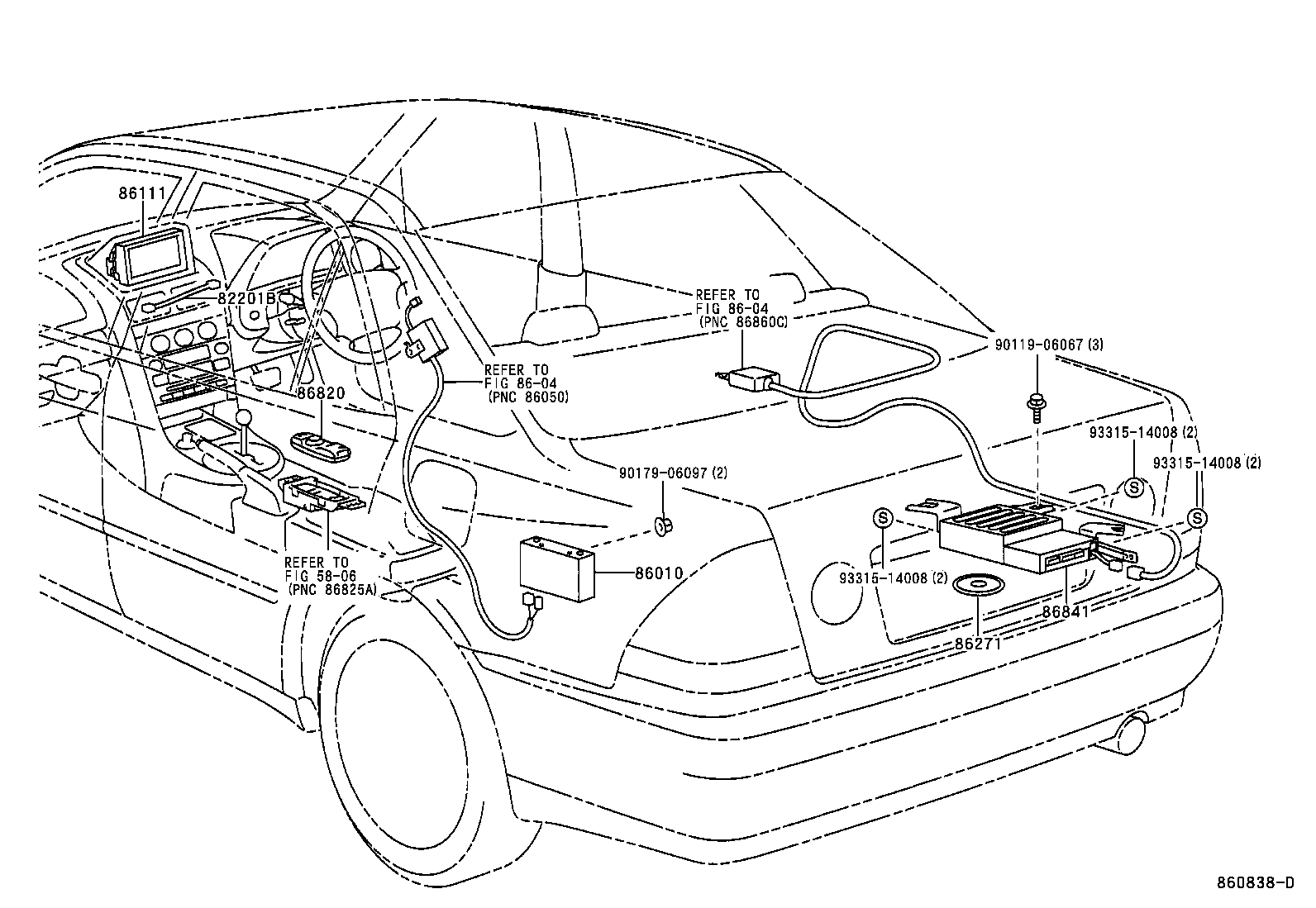

Click highlighted areas on diagram

Part #	Description	Period	Qty
82201B - WIRE, INSTRUMENT PANEL
82201-53010	GXE10,SXE10	10/1998 - 05/2001	1
82201-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
82201-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
86010 - TUNER ASSY, TELEVISION
86010-53010	GXE10,SXE10	10/1998 - 05/2001	1
86010-53030	GXE10,SXE10..SED	05/2001 - 12/2999	1
86111 - MULTI-DISPLAY
86111-53010	GXE10,SXE10 FUJITSU TEN	10/1998 - 05/2001	1
86111-53020	GXE1#,JCE1#,SXE10 PANASONIC	05/2001 - 07/2005	1
86271 - DISC, DISC PLAYER
86271-13031	GXE1#,JCE1#,SXE10	09/2003 - 04/2004	1
86271-33011	GXE10,SXE10	10/1998 - 05/2001	1
86271-13033	GXE1#,JCE1#,SXE10	09/2004 - 12/2999	1
86271-13030	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 09/2003	1
86271-13032	GXE1#,JCE1#,SXE10	04/2004 - 08/2004	1
86820 - CONTROLLER ASSY, NAVIGATION
86820-53030	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
86820-53020	GXE10,SXE10	10/1998 - 05/2001	1
86841 - COMPUTER, NAVIGATION
86841-53010	GXE10,SXE10	10/1998 - 05/2001	1
86841-51030	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
Common parts
90119-06067
90179-06097
93315-14008
Linked diagrams
5806
8604

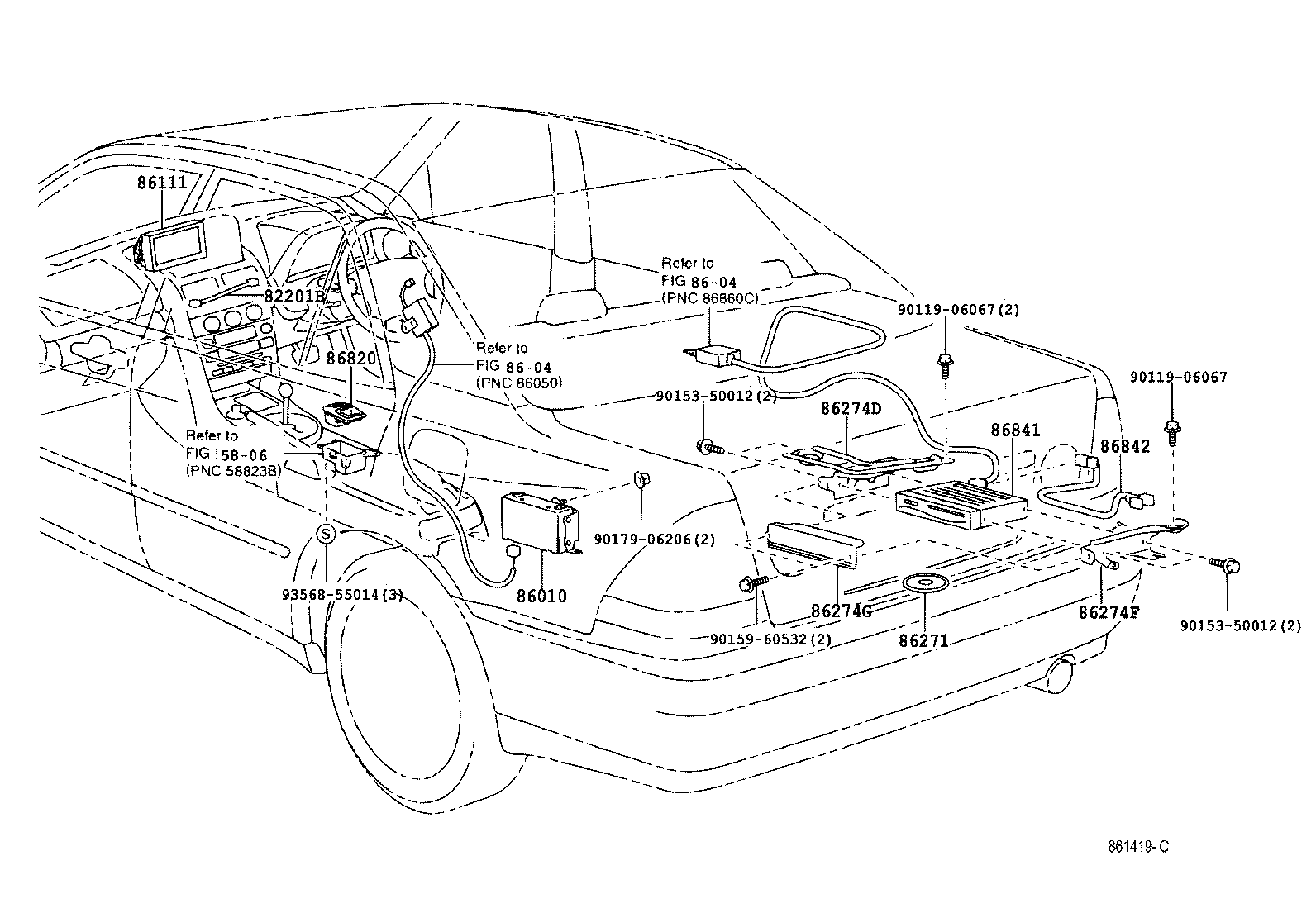

Click highlighted areas on diagram

Part #	Description	Period	Qty
82201B - WIRE, INSTRUMENT PANEL
82201-53010	GXE10,SXE10	10/1998 - 05/2001	1
82201-53010	GXE1#,JCE1#,SXE10	08/2003 - 12/2999	1
82201-53010	GXE1#,JCE1#,SXE10	05/2001 - 08/2003	1
86010 - TUNER ASSY, TELEVISION
86010-53010	GXE10,SXE10	10/1998 - 05/2001	1
86010-53030	GXE10,SXE10..SED	05/2001 - 12/2999	1
86111 - MULTI-DISPLAY
86111-53010	GXE10,SXE10 FUJITSU TEN	10/1998 - 05/2001	1
86111-53020	GXE1#,JCE1#,SXE10 PANASONIC	05/2001 - 07/2005	1
86271 - DISC, DISC PLAYER
86271-13031	GXE1#,JCE1#,SXE10	09/2003 - 04/2004	1
86271-33011	GXE10,SXE10	10/1998 - 05/2001	1
86271-13033	GXE1#,JCE1#,SXE10	09/2004 - 12/2999	1
86271-13030	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 09/2003	1
86271-13032	GXE1#,JCE1#,SXE10	04/2004 - 08/2004	1
86274D - BRACKET, DISC PLAYER
86274-53010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
86274F - BRACKET, DISC PLAYER, NO.2
86274-53020	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
86274G - BRACKET, DISC PLAYER, NO.3
86274-53060	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
86820 - CONTROLLER ASSY, NAVIGATION
86820-53030	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
86820-53020	GXE10,SXE10	10/1998 - 05/2001	1
86841 - COMPUTER, NAVIGATION
86841-51030	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
86841-53010	GXE10,SXE10	10/1998 - 05/2001	1
86842 - WIRE, NAVIGATION, NO.1
86842-53010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
Common parts
90119-06067
90153-50012
90159-60532
90179-06206
93568-55014
Linked diagrams
5806
8604
