GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita
(0105-0308)SED

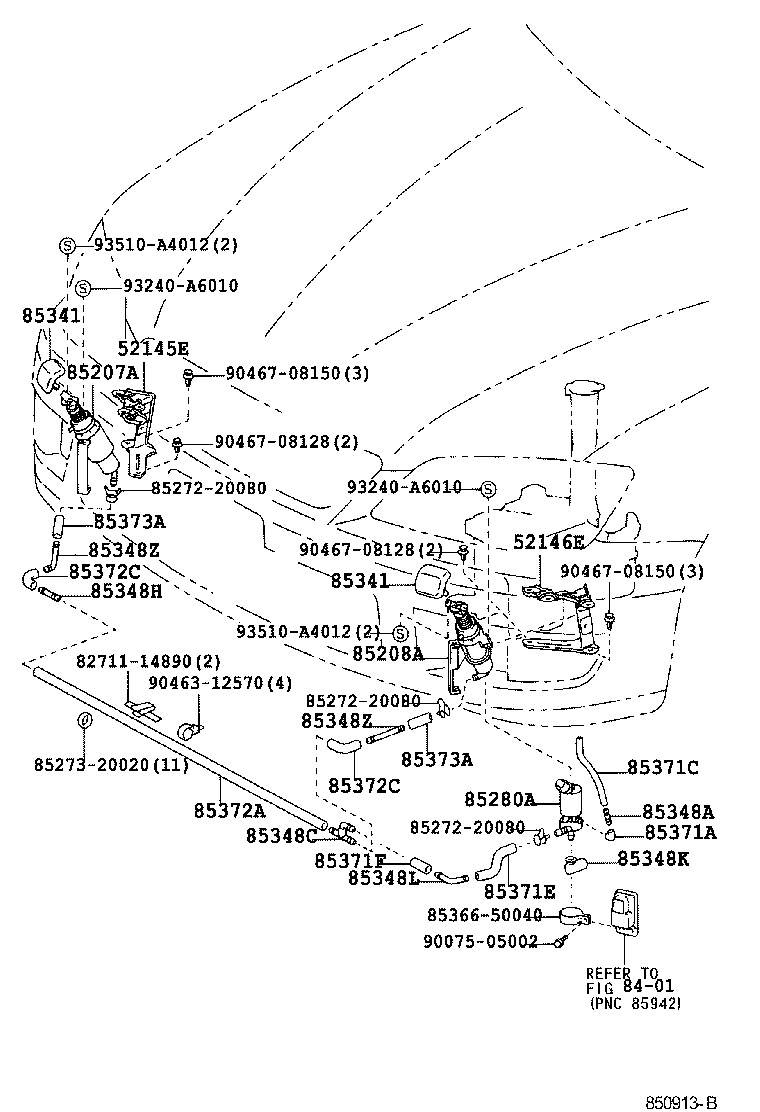

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52145E - BRACKET, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52145-53010 |
GXE10,SXE10..SED |
1 | ||
| 52146E - BRACKET, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52146-53010 |
GXE10,SXE10..SED |
1 | ||
| 85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH | ||||
| 85207-53010 |
GXE10,SXE10..SED |
1 | ||
| 85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH | ||||
| 85208-53010 |
GXE10,SXE10..SED |
1 | ||
| 85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER | ||||
| 85280-30020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-53060B2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,GRAY ME.,1D2,右側 |
1 | ||
| 85381-53010A0 |
GXE10,SXE10..SED SUPER WHITE 2,040,右側 |
1 | ||
| 85381-53010A2 |
GXE10,SXE10..SED WHITE PEARL CS.,062,右側 |
1 | ||
| 85381-53010F0 |
GXE10,SXE10..SED SUPER BRIGHT YELLOW,576,右側 |
1 | ||
| 85382-53030J1 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,DK.BLUE MC.,8P8,左側 |
1 | ||
| 85381-53010G1 |
GXE10,SXE10..SED DARK GREEN MC.,6R4,右側 |
1 | ||
| 85381-53010B0 |
GXE10,SXE10..SED SILVER ME.,1C0,右側 |
1 | ||
| 85381-53060J2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,DK.BLUE MC.,8P8,右側 |
1 | ||
| 85382-53030B2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,GRAY ME.,1D2,左側 |
1 | ||
| 85381-53010B1 |
GXE10,SXE10..SED DK.GRAY M.M.,1C6,右側 |
1 | ||
| 85382-53010C0 |
GXE10,SXE10..SED BLACK,202,左側 |
1 | ||
| 85382-53010F0 |
GXE10,SXE10..SED SUPER BRIGHT YELLOW,576,左側 |
1 | ||
| 85381-53010J1 |
GXE10,SXE10..SED DK.BLUE MC.,8N8,右側 |
1 | ||
| 85381-53010C0 |
GXE10,SXE10..SED BLACK,202,右側 |
1 | ||
| 85382-53010G1 |
GXE10,SXE10..SED DARK GREEN MC.,6R4,左側 |
1 | ||
| 85382-53010A2 |
GXE10,SXE10..SED WHITE PEARL CS.,062,左側 |
1 | ||
| 85382-53010D1 |
GXE10,SXE10..SED SUPER RED 5,3P0,左側 |
1 | ||
| 85382-53010A0 |
GXE10,SXE10..SED SUPER WHITE 2,040,左側 |
1 | ||
| 85382-53010B0 |
GXE10,SXE10..SED SILVER ME.,1C0,左側 |
1 | ||
| 85381-53010D1 |
GXE10,SXE10..SED SUPER RED 5,3P0,右側 |
1 | ||
| 85382-53010B1 |
GXE10,SXE10..SED DK.GRAY M.M.,1C6,左側 |
1 | ||
| 85382-53010J1 |
GXE10,SXE10..SED DK.BLUE MC.,8N8,左側 |
1 | ||
| 85341 - NOZZLE, HEADLAMP CLEANER WASHER | ||||
| 85381-53060B2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,GRAY ME.,1D2,右側 |
1 | ||
| 85381-53010A0 |
GXE10,SXE10..SED SUPER WHITE 2,040,右側 |
1 | ||
| 85381-53010A2 |
GXE10,SXE10..SED WHITE PEARL CS.,062,右側 |
1 | ||
| 85381-53010F0 |
GXE10,SXE10..SED SUPER BRIGHT YELLOW,576,右側 |
1 | ||
| 85382-53030J1 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,DK.BLUE MC.,8P8,左側 |
1 | ||
| 85381-53010G1 |
GXE10,SXE10..SED DARK GREEN MC.,6R4,右側 |
1 | ||
| 85381-53010B0 |
GXE10,SXE10..SED SILVER ME.,1C0,右側 |
1 | ||
| 85381-53060J2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,DK.BLUE MC.,8P8,右側 |
1 | ||
| 85382-53030B2 |
GXE10,SXE10..SED ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,GRAY ME.,1D2,左側 |
1 | ||
| 85381-53010B1 |
GXE10,SXE10..SED DK.GRAY M.M.,1C6,右側 |
1 | ||
| 85382-53010C0 |
GXE10,SXE10..SED BLACK,202,左側 |
1 | ||
| 85382-53010F0 |
GXE10,SXE10..SED SUPER BRIGHT YELLOW,576,左側 |
1 | ||
| 85381-53010J1 |
GXE10,SXE10..SED DK.BLUE MC.,8N8,右側 |
1 | ||
| 85381-53010C0 |
GXE10,SXE10..SED BLACK,202,右側 |
1 | ||
| 85382-53010G1 |
GXE10,SXE10..SED DARK GREEN MC.,6R4,左側 |
1 | ||
| 85382-53010A2 |
GXE10,SXE10..SED WHITE PEARL CS.,062,左側 |
1 | ||
| 85382-53010D1 |
GXE10,SXE10..SED SUPER RED 5,3P0,左側 |
1 | ||
| 85382-53010A0 |
GXE10,SXE10..SED SUPER WHITE 2,040,左側 |
1 | ||
| 85382-53010B0 |
GXE10,SXE10..SED SILVER ME.,1C0,左側 |
1 | ||
| 85381-53010D1 |
GXE10,SXE10..SED SUPER RED 5,3P0,右側 |
1 | ||
| 85382-53010B1 |
GXE10,SXE10..SED DK.GRAY M.M.,1C6,左側 |
1 | ||
| 85382-53010J1 |
GXE10,SXE10..SED DK.BLUE MC.,8N8,左側 |
1 | ||
| 85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1 | ||||
| 85349-89122 |
GXE10,SXE10..SED |
1 | ||
| 85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3 | ||||
| 85279-33020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4 | ||||
| 85379-89131 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1 | ||||
| 85279-50040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2 | ||||
| 85379-90K04 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 85279-53020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 85348Z - JOINT, HEADLAMP CLEANER HOSE, NO.5 | ||||
| 85279-53020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
GXE1#,JCE1#,SXE10 長さ=15 |
1 | ||
| 85371C - HOSE, HEADLAMP CLEANER, NO.1 | ||||
| 85275-35040 |
GXE1#,JCE1#,SXE10 長さ=120 |
1 | ||
| 85371E - HOSE, HEADLAMP CLEANER, NO.3 | ||||
| 85275-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 85371F - HOSE, HEADLAMP CLEANER, NO.4 | ||||
| 85275-42010 |
GXE1#,JCE1#,SXE10 長さ=45 |
1 | ||
| 85372A - HOSE, HEADLAMP CLEANER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90445-14072 |
GXE10,SXE10..SED 長さ=1320 |
1 | ||
| 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) | ||||
| 85375-32011 |
GXE1#,JCE1#,SXE10 長さ=35 |
2 | ||
| 85372C - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO VALVE) | ||||
| 85375-32011 |
GXE1#,JCE1#,SXE10 長さ=35 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85275-42010 |
GXE1#,JCE1#,SXE10 長さ=45 |
2 | ||
| 85373A - HOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) | ||||
| 85275-42010 |
GXE1#,JCE1#,SXE10 長さ=45 |
2 | ||
| Common parts | ||||
| 82711-14890 | ||||
| 85272-20080 | ||||
| 85273-20020 | ||||
| 85366-50040 | ||||
| 90075-05002 | ||||
| 90463-12570 | ||||
| 90467-08128 | ||||
| 90467-08150 | ||||
| 93240-A6010 | ||||
| 93510-A4012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
