Toyota Altezza/altezza gita GXE10 WIRELESS DOOR LOCK

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

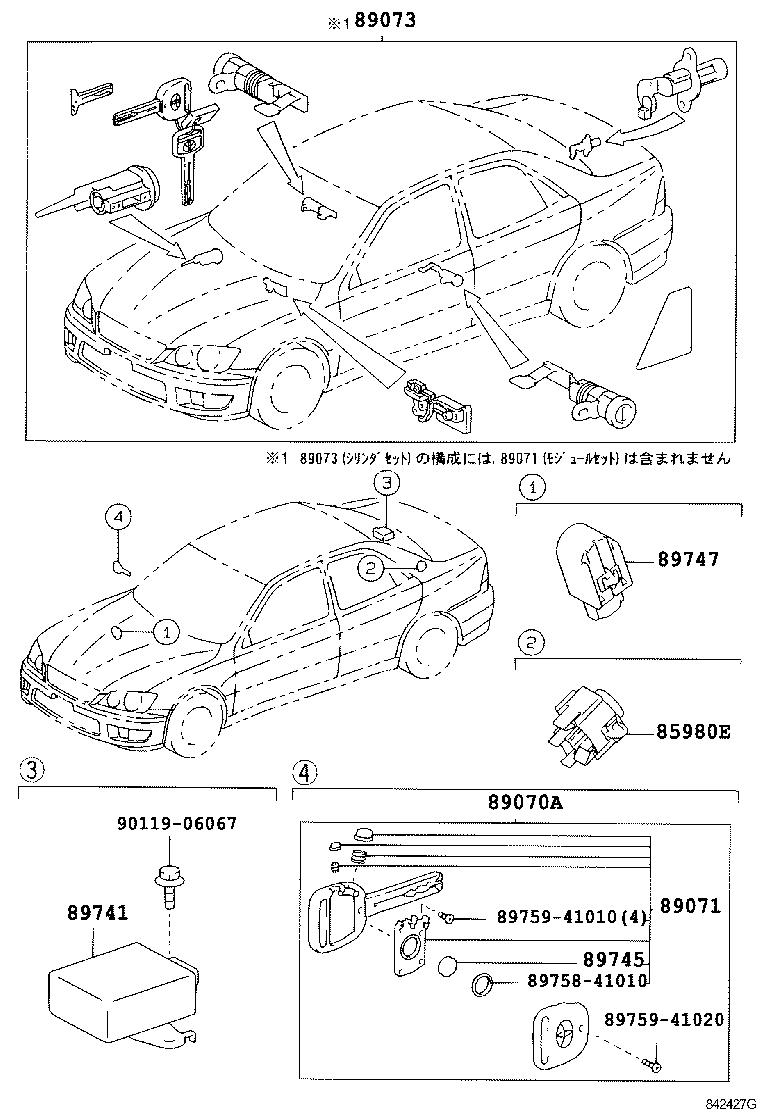

Click highlighted areas on diagram

Part #	Description	Period	Qty
85980E - RELAY ASSY, DOOR CONTROL
85980-22210	GXE10,SXE10	10/1998 - 05/2001	1
85980-22210	GXE10,SXE10..SED	05/2001 - 12/2999	1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-53210	GXE10,SXE10	10/1998 - 05/2001	1
89070-53780	GXE10,SXE10..SED	05/2001 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32010	GXE10,SXE10	10/1998 - 05/2001	1
89071-32010	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-53010	GXE10,SXE10	10/1998 - 05/2001	1
89073-53210	GXE10,SXE10 L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
69005-53090	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	1
69005-53100	GXE10,SXE10..SED L ｴﾃﾞｲｼﾖﾝ *(A)	05/2001 - 07/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-53010	GXE10,SXE10	10/1998 - 05/2001	1
89741-53140	GXE10,SXE10..SED	05/2001 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-41010	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	2
89745-41010	GXE10,SXE10	10/1998 - 05/2001	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010	GXE10,SXE10	10/1998 - 05/2001	1
89747-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
Common parts
89758-41010
89759-41010
89759-41020
90119-06067

Click highlighted areas on diagram

Part #	Description	Period	Qty
85980E - RELAY ASSY, DOOR CONTROL
85980-22210	GXE10,SXE10	10/1998 - 05/2001	1
85980-22210	GXE10,SXE10..SED	05/2001 - 12/2999	1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-53210	GXE10,SXE10	10/1998 - 05/2001	1
89070-53780	GXE10,SXE10..SED	05/2001 - 12/2999	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-32010	GXE10,SXE10	10/1998 - 05/2001	1
89071-32010	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-53010	GXE10,SXE10	10/1998 - 05/2001	1
89073-53210	GXE10,SXE10 L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
69005-53090	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	1
69005-53100	GXE10,SXE10..SED L ｴﾃﾞｲｼﾖﾝ *(A)	05/2001 - 07/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-53010	GXE10,SXE10	10/1998 - 05/2001	1
89741-53140	GXE10,SXE10..SED	05/2001 - 12/2999	1
89745 - BATTERY, TRANSMITTER
89745-41010	GXE10..SED;SXE10..ATM	05/2001 - 07/2005	2
89745-41010	GXE10,SXE10	10/1998 - 05/2001	1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-51010	GXE10,SXE10	10/1998 - 05/2001	1
89747-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
89751 - COVER, TRANSMITTER HOUSING
89751-51030	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	2
89752 - CASE, TRANSMITTER HOUSING
89752-51010	GXE10,SXE10..SED	05/2001 - 07/2005	1
Common parts
89758-41010
89759-41010
89759-41020
90119-06067
