Toyota Altezza/altezza gita GXE10 FOG LAMP

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

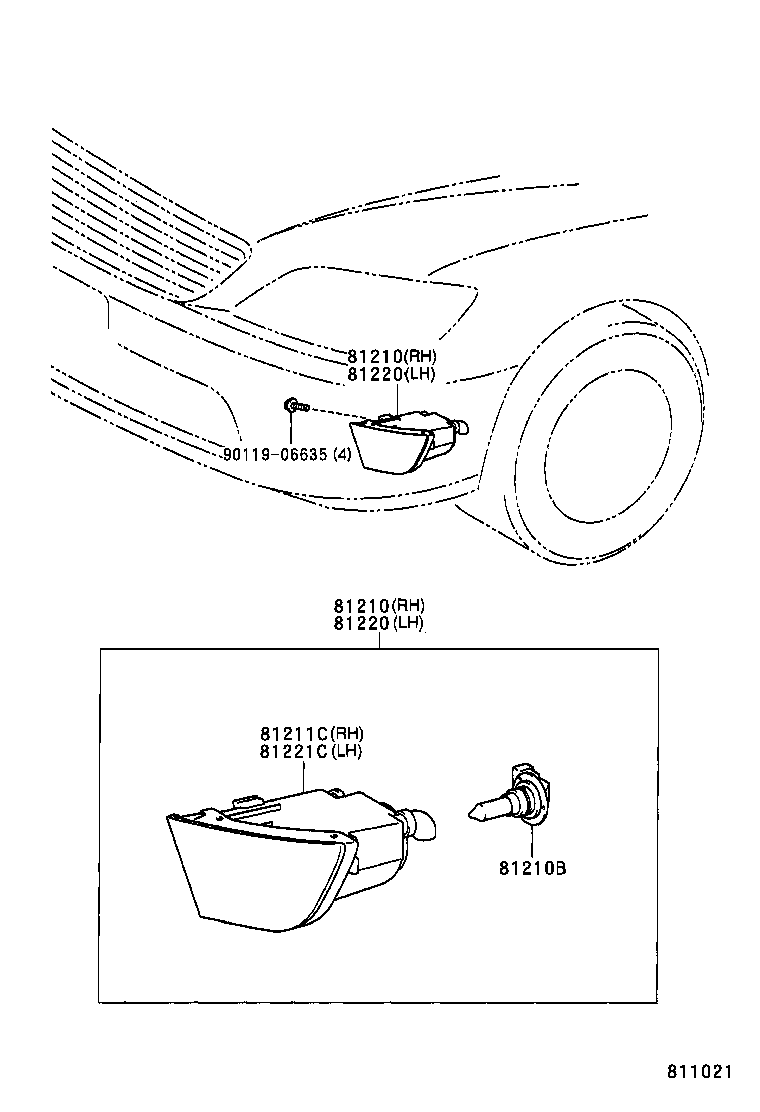

(9810-0105)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210 - LAMP ASSY, FOG
81210-53011	GXE10,SXE10	05/2000 - 05/2001	1
81210-53011	GXE10,SXE10..SED	05/2001 - 08/2002	1
81210-53010	GXE10,SXE10	10/1998 - 05/2000	1
81210 - LAMP ASSY, FOG
81210-53011	GXE10,SXE10	05/2000 - 05/2001	1
81210-53011	GXE10,SXE10..SED	05/2001 - 08/2002	1
81210-53010	GXE10,SXE10	10/1998 - 05/2000	1
81210B - BULB, FOG LAMP
90981-13047	GXE10,SXE10 12V 55W,ﾊﾛｹﾞﾝ	10/1998 - 05/2001	2
90981-13071	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	08/2002 - 07/2005	2
90981-13047	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	05/2001 - 08/2002	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81211-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81211-53010	GXE10,SXE10	10/1998 - 05/2000	1
81211-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81211-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
81211-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81211-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81220 - LAMP ASSY, FOG, LH
81220-53010	GXE10,SXE10	10/1998 - 05/2000	1
81220-53011	GXE10,SXE10	05/2000 - 05/2001	1
81220-53011	GXE10,SXE10..SED	05/2001 - 08/2002	1
81220 - LAMP ASSY, FOG, LH
81220-53010	GXE10,SXE10	10/1998 - 05/2000	1
81220-53011	GXE10,SXE10	05/2000 - 05/2001	1
81220-53011	GXE10,SXE10..SED	05/2001 - 08/2002	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81221-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81221-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81221-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81221-53010	GXE10,SXE10	10/1998 - 05/2000	1
81221-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81221-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
Common parts
90119-06635

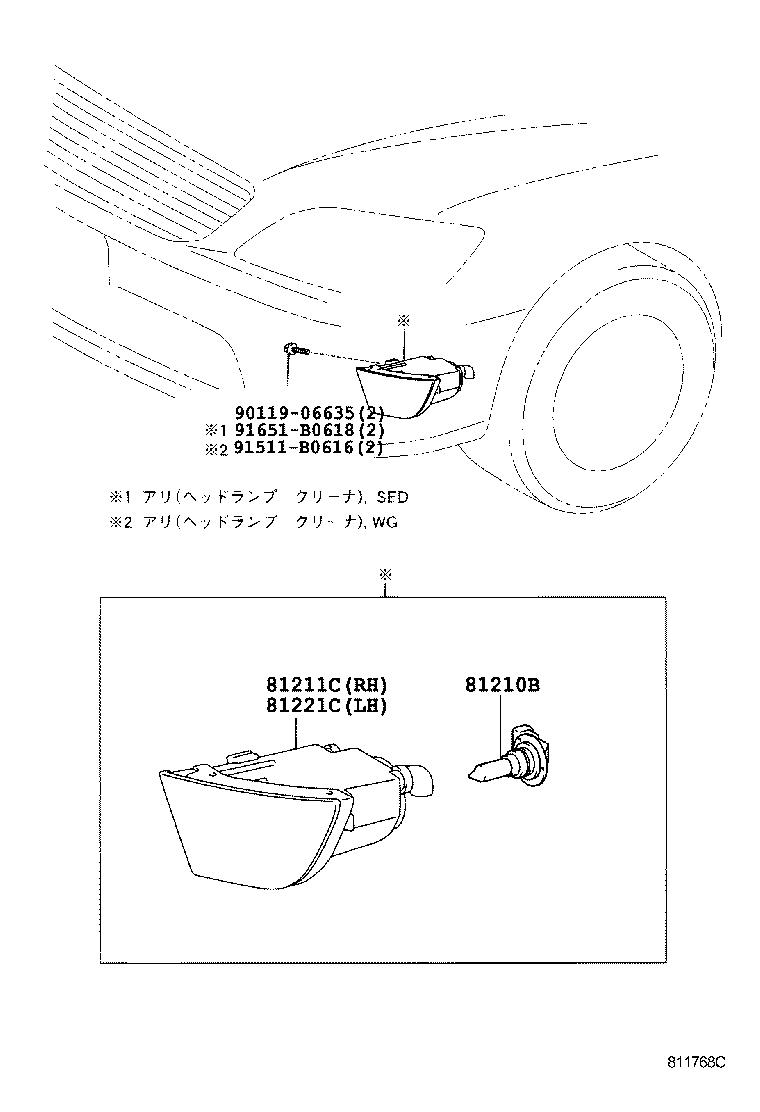

(0105-0208)

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210B - BULB, FOG LAMP
90981-13047	GXE10,SXE10 12V 55W,ﾊﾛｹﾞﾝ	10/1998 - 05/2001	2
90981-13071	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	08/2002 - 07/2005	2
90981-13047	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	05/2001 - 08/2002	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81211-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81211-53010	GXE10,SXE10	10/1998 - 05/2000	1
81211-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81211-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
81211-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81211-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81221C - LAMP UNIT, FOG LAMP, LH
81221-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81221-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81221-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81221-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81221-53010	GXE10,SXE10	10/1998 - 05/2000	1
81221-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81221-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
Common parts
90119-06635
91511-B0616
91651-B0618

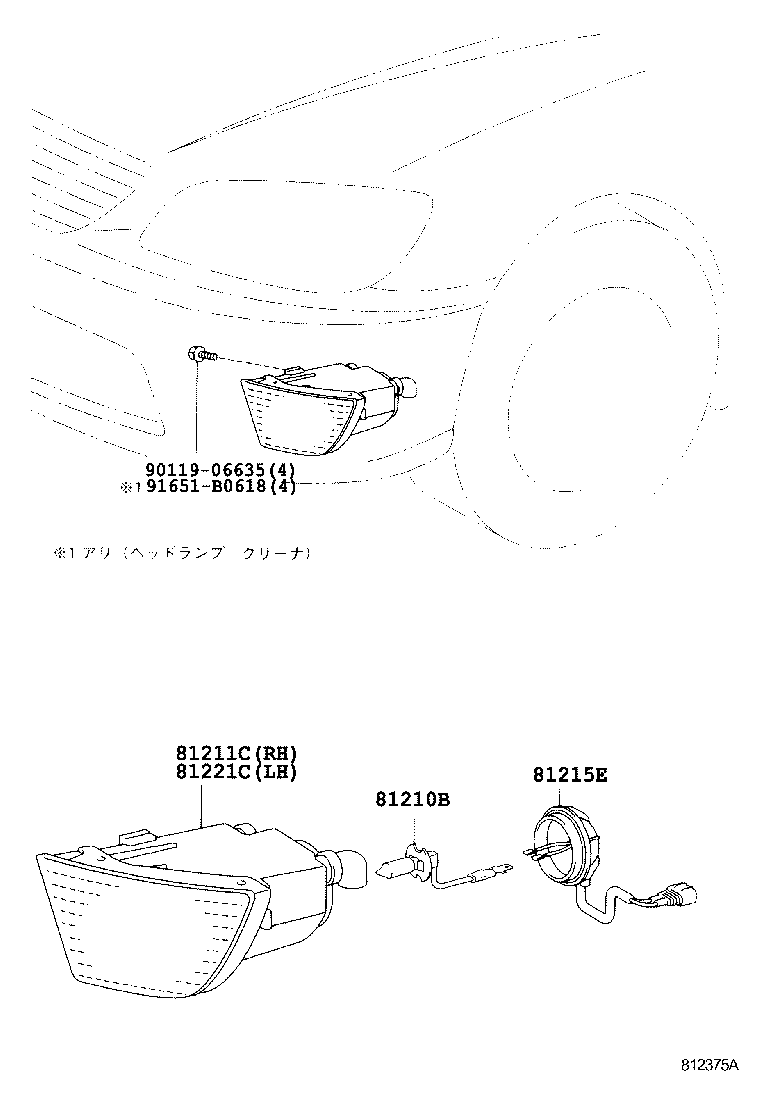

(0208- )SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81210B - BULB, FOG LAMP
90981-13047	GXE10,SXE10 12V 55W,ﾊﾛｹﾞﾝ	10/1998 - 05/2001	2
90981-13071	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	08/2002 - 07/2005	2
90981-13047	GXE1#,JCE1#,SXE10 12V 55W,ﾊﾛｹﾞﾝ	05/2001 - 08/2002	2
81211C - LAMP UNIT, FOG LAMP, RH
81211-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81211-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81211-53010	GXE10,SXE10	10/1998 - 05/2000	1
81211-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81211-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
81211-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81211-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81215E - CORD, FOG LAMP
81215-53130	GXE10,SXE10..SED	08/2002 - 07/2005	2
81221C - LAMP UNIT, FOG LAMP, LH
81221-53011	GXE10,SXE10 ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2000 - 05/2001	1
81221-53130	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	08/2002 - 08/2003	1
81221-53011	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｸﾘｱ	05/2001 - 08/2002	1
81221-53040	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	05/2001 - 08/2002	1
81221-53010	GXE10,SXE10	10/1998 - 05/2000	1
81221-53140	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2002 - 08/2003	1
81221-53180	GXE10,SXE10..SED ｲﾝﾅﾚﾝｽﾞｲｴﾛ-	08/2003 - 07/2005	1
Common parts
90119-06635
91651-B0618
