Toyota Altezza/altezza gita GXE10 FUEL TANK & TUBE

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

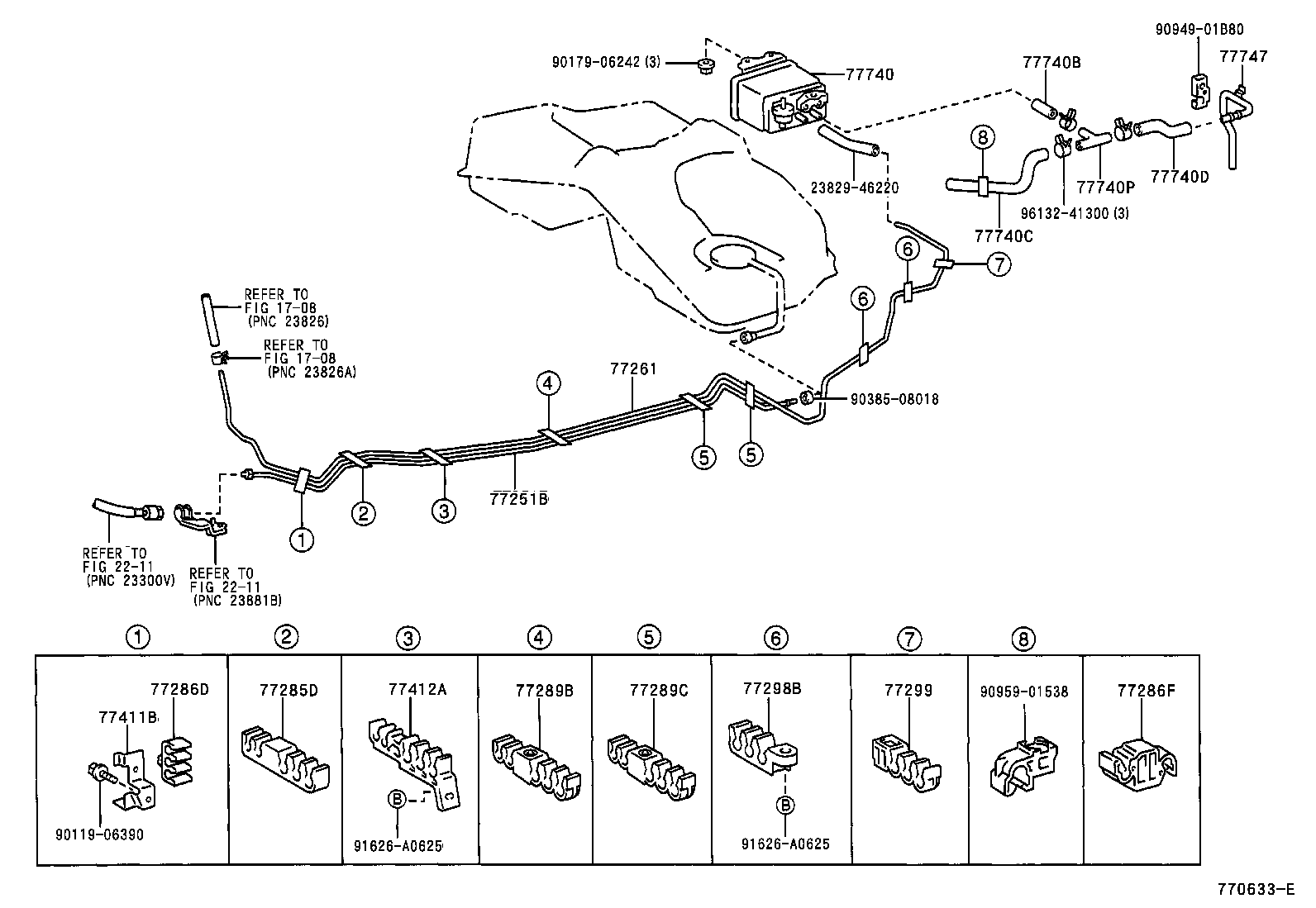

ILLUST NO. 2 OF 2(9810-0105)GXE10

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-53020	GXE10	10/1998 - 05/2000	1
77251-53021	GXE10	05/2001 - 12/2999	1
77251-53021	GXE10	05/2000 - 05/2001	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-53021	GXE10	05/2000 - 05/2001	1
77261-53021	GXE1#	05/2001 - 12/2999	1
77261-53020	GXE10	10/1998 - 05/2000	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-51010	GXE10,SXE10	10/1998 - 05/2001	1
77285-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-30100	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-30100	GXE10,SXE10	10/1998 - 05/2001	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-53010	SXE10;GXE10..MTM	10/1998 - 05/2001	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-51010	GXE10	10/1998 - 05/2001	1
77289-51010	GXE1#,JCE15	05/2001 - 12/2999	1
77289C - CLAMP, FUEL TUBE, NO.4
77289-51010	GXE1#,JCE15,SXE10	05/2001 - 12/2999	2
77289-51010	GXE10,SXE10	10/1998 - 05/2001	2
77298B - CLAMP, FUEL TUBE, NO.4
77298-51010	GXE10	10/2000 - 05/2001	2
77298-51010	GXE10	10/1998 - 10/2000	1
77298-51010	GXE1#,JCE1#	05/2001 - 12/2999	2
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-51010	GXE1#,JCE1#	05/2001 - 12/2999	1
77299-51010	GXE10	10/1998 - 05/2001	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22020	GXE10	10/1998 - 05/2001	1
77411-22020	GXE1#,JCE1#	05/2001 - 12/2999	1
77412A - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-51010	GXE10	10/1998 - 05/2001	1
77412-51010	GXE1#,JCE1#	05/2001 - 12/2999	1
77740 - CANISTER ASSY, CHARCOAL
77740-22460	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77740-51010	GXE10,SXE10	10/1998 - 05/2001	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23829-46320	GXE10,SXE10..SED 長さ=40,ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-74120	GXE10..SED;SXE10..ATM 長さ=40	05/2001 - 05/2002	1
23829-74120	GXE10,SXE10..SED 長さ=40	05/2002 - 12/2999	1
23826-70020	GXE10,SXE10 長さ=44	10/1998 - 05/2001	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
23829-46270	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
23829-46230	GXE10,SXE10	10/1998 - 05/2001	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740P - WAY, 3(FOR CHARCOAL CANISTER)
90413-07002	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
90413-07002	GXE10,SXE10	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
Common parts
23829-46220
90119-06390
90179-06242
90385-08018
90949-01B80
90959-01538
91626-A0625
96132-41300
Linked diagrams
1708
2211

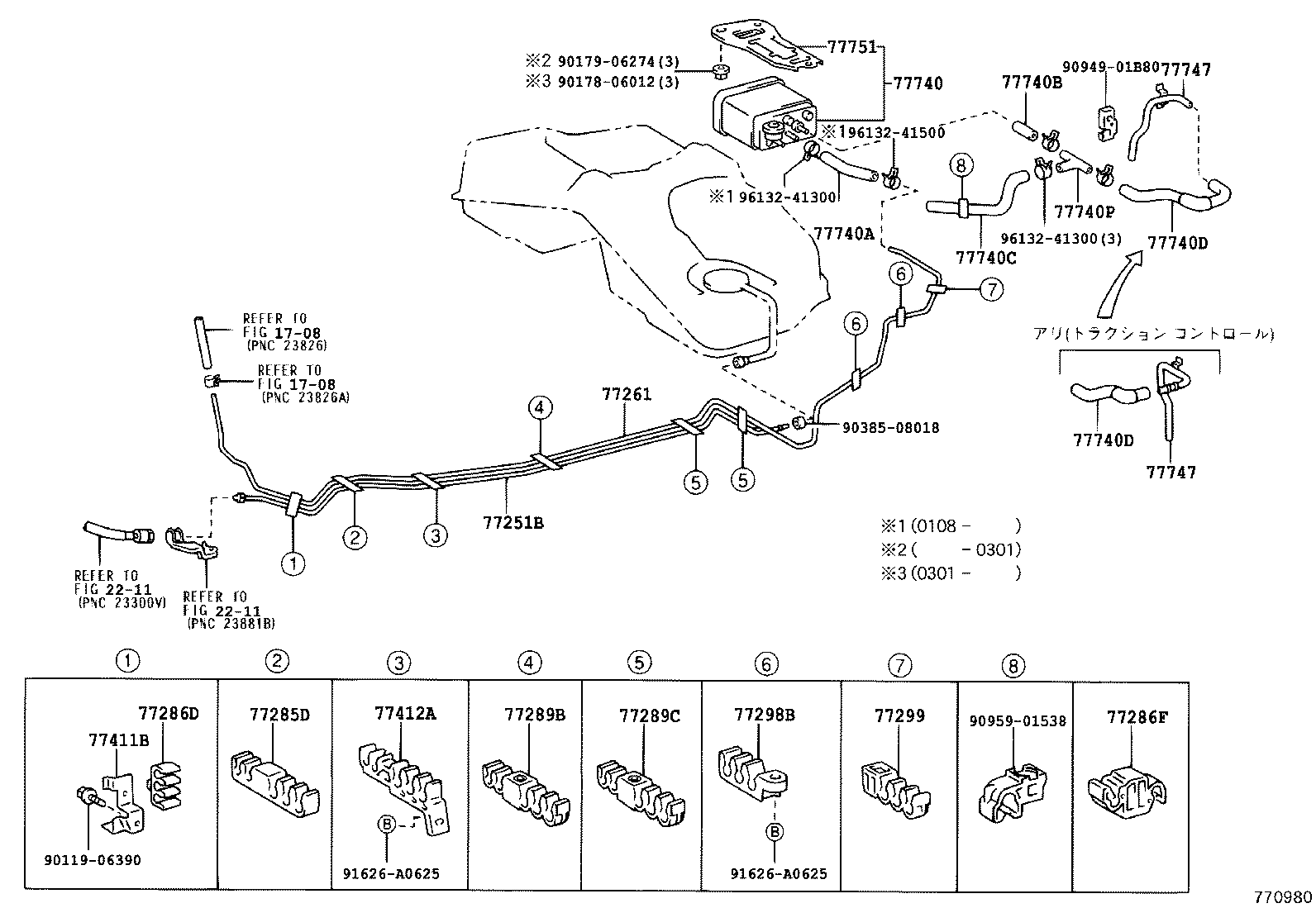

ILLUST NO. 2 OF 2(0105- )GXE10,JCE15 ; (0201- )GXE15

Click highlighted areas on diagram

Part #	Description	Period	Qty
77251B - TUBE, FUEL MAIN
77251-53020	GXE10	10/1998 - 05/2000	1
77251-53021	GXE10	05/2001 - 12/2999	1
77251-53021	GXE10	05/2000 - 05/2001	1
77261 - TUBE SUB-ASSY, FUEL EMISSION
77261-53021	GXE10	05/2000 - 05/2001	1
77261-53021	GXE1#	05/2001 - 12/2999	1
77261-53020	GXE10	10/1998 - 05/2000	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-51010	GXE10,SXE10	10/1998 - 05/2001	1
77285-51010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286D - CLAMP, FUEL TUBE, NO.2
77286-30100	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-30100	GXE10,SXE10	10/1998 - 05/2001	1
77286F - CLAMP, FUEL TUBE, NO.2
77286-53010	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77286-53010	SXE10;GXE10..MTM	10/1998 - 05/2001	1
77289B - CLAMP, FUEL TUBE, NO.3
77289-51010	GXE10	10/1998 - 05/2001	1
77289-51010	GXE1#,JCE15	05/2001 - 12/2999	1
77289C - CLAMP, FUEL TUBE, NO.4
77289-51010	GXE1#,JCE15,SXE10	05/2001 - 12/2999	2
77289-51010	GXE10,SXE10	10/1998 - 05/2001	2
77298B - CLAMP, FUEL TUBE, NO.4
77298-51010	GXE10	10/2000 - 05/2001	2
77298-51010	GXE10	10/1998 - 10/2000	1
77298-51010	GXE1#,JCE1#	05/2001 - 12/2999	2
77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5
77299-51010	GXE1#,JCE1#	05/2001 - 12/2999	1
77299-51010	GXE10	10/1998 - 05/2001	1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22020	GXE10	10/1998 - 05/2001	1
77411-22020	GXE1#,JCE1#	05/2001 - 12/2999	1
77412A - SUPPORT, FUEL TUBE GROMMET, NO.2
77412-51010	GXE10	10/1998 - 05/2001	1
77412-51010	GXE1#,JCE1#	05/2001 - 12/2999	1
77740 - CANISTER ASSY, CHARCOAL
77740-22460	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
77740-51010	GXE10,SXE10	10/1998 - 05/2001	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
23829-46290	GXE1#,JCE1# 長さ=185	05/2001 - 12/2999	1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
23829-46320	GXE10,SXE10..SED 長さ=40,ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-74120	GXE10..SED;SXE10..ATM 長さ=40	05/2001 - 05/2002	1
23829-74120	GXE10,SXE10..SED 長さ=40	05/2002 - 12/2999	1
23826-70020	GXE10,SXE10 長さ=44	10/1998 - 05/2001	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
23829-46270	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
23829-46230	GXE10,SXE10	10/1998 - 05/2001	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740D - HOSE, FUEL, NO.4(FOR CHARCOAL CANISTER)
23829-46280	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
23829-46310	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
23829-70020	GXE10,SXE10	10/1998 - 05/2001	1
23829-46310	GXE10,SXE10..SED	05/2002 - 12/2999	1
77740P - WAY, 3(FOR CHARCOAL CANISTER)
90413-07002	GXE1#,JCE1#,SXE10	05/2001 - 12/2999	1
90413-07002	GXE10,SXE10	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
77747 - PIPE, CHARCOAL CANISTER, NO.1
77747-53010	GXE10;SXE10..ATM	10/1998 - 05/2001	1
77747-53010	GXE10,SXE10..SED	05/2002 - 12/2999	1
77747-51010	GXE10,SXE10..SED ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	05/2001 - 12/2999	1
77747-53010	GXE10..SED;SXE10..ATM	05/2001 - 05/2002	1
77747-53020	GXE10,SXE10 ｱﾘ(ﾄﾗｸｼﾖﾝｺﾝﾄﾛ-ﾙ)	10/1998 - 05/2001	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-22140	GXE1#,JCE1#,SXE10	05/2001 - 07/2005	1
Common parts
90119-06390
90178-06012
90179-06274
90385-08018
90949-01B80
90959-01538
91626-A0625
96132-41300
96132-41500
Linked diagrams
1708
2211
