GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita

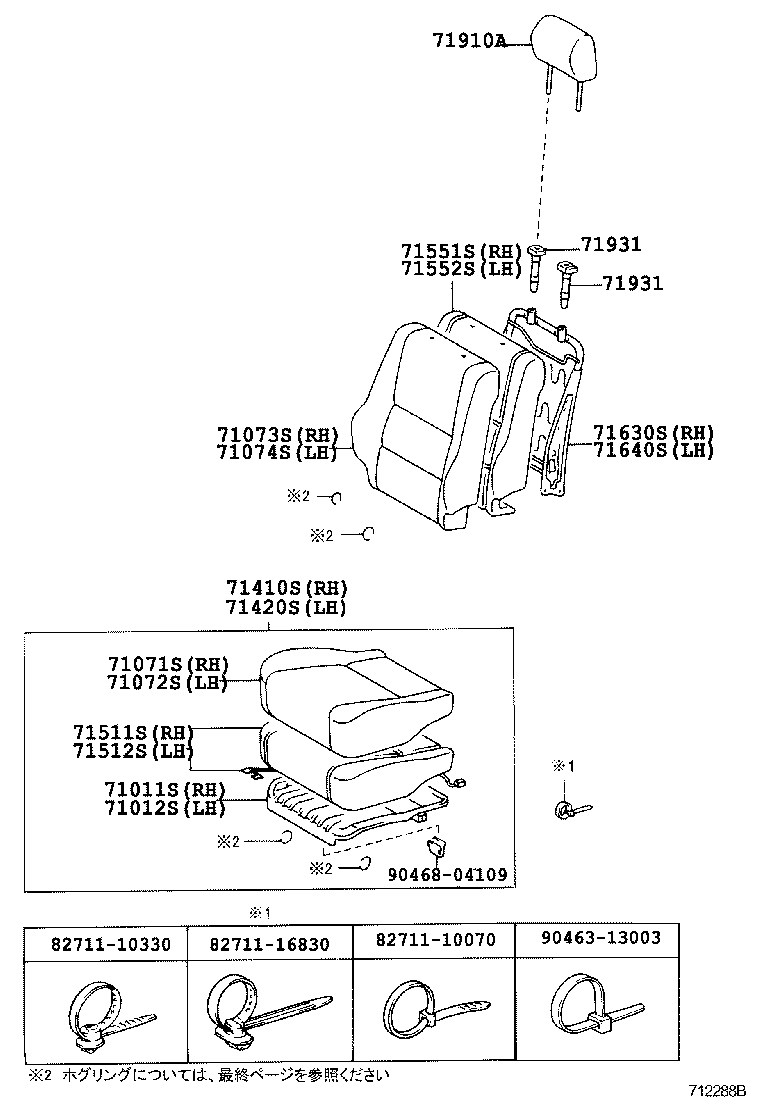

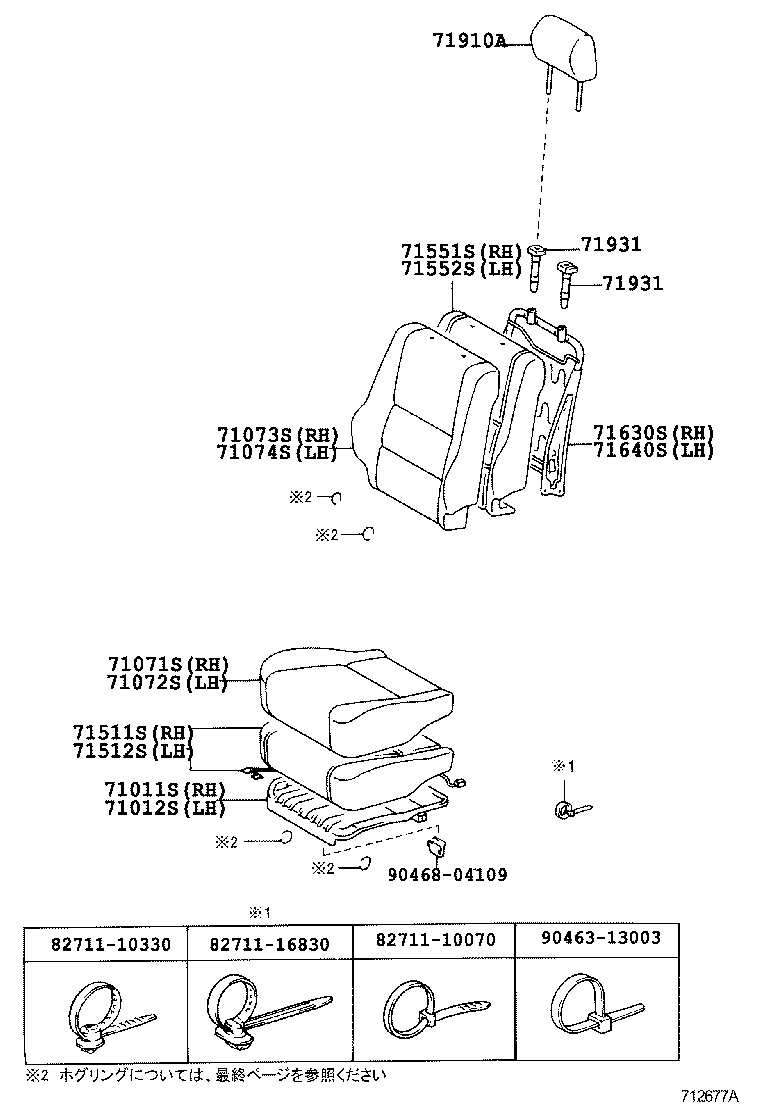

ILLUST NO. 1 OF 3(9810-0105)
ﾅｼ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-53020 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71011-53010 |
GXE10,SXE10 |
1 | ||
| 71011-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 71011-53020 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 71011-53020 |
GXE10,JCE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71012-53010 |
GXE10,SXE10 |
1 | ||
| 71011-53020 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71011-53020 |
GXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-53040C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-53130A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71071-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53140B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71071-53110A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-53040C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-53110C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53210C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53020C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM0#,2# |
1 | ||
| 71071-53030C2 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53111C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53111A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-53140B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71071-53210A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53150A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-53211A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53211C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53020A0 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53150C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-53150A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-53020C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53010C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53120B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71072-53090A1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-53190A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-53090C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53010C2 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53190C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71072-53101A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-53100A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-53120B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71072-53100C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53150C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53101C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53191C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53191A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53060C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53030C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53040C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53020A1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-53050C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53040C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53130C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-53130C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-53210C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53150A0 |
GXE1#,JCE1#,SXE10 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-53100C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53260A0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71073-53140A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53100A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71073-53060C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53140C0 |
GXE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53210A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-53211C1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53150C0 |
GXE1#,JCE1#,SXE10 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-53050C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53020C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53020C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53050A2 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-53010C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71074-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53140A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-53150C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71074-53150A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-53200A0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53030C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53010C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71074-53070C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53090C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-53100A0 |
GXE10,SXE10..SED ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-53070A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-53100C0 |
GXE10,SXE10..SED ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53140C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53090C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-53151C1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-53370A0 |
GXE10 ***,ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71410-53020C0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71410-53090A0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71410-53090C0 |
GXE10,SXE10 ***,L ｴﾃﾞｲｼﾖﾝ *(A) & ｼｰﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71410-53180B0 |
GXE10 ***,I ｴﾃﾞｲｼﾖﾝ *(I),BLACK,TRIM2# |
1 | ||
| 71410-53180B0 |
GXE10 ***,I ｴﾃﾞｲｼﾖﾝ *(I),BLACK,TRIM2# |
1 | ||
| 71410-53010C0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-53010C0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71420-53020C0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71420-53100C0 |
GXE10,SXE10 ***,L ｴﾃﾞｲｼﾖﾝ *(A) & ｼｰﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71420-53360A0 |
GXE10 ***,ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71420-53150B0 |
GXE10 ***,I ｴﾃﾞｲｼﾖﾝ *(I),BLACK,TRIM2# |
1 | ||
| 71420-53100A0 |
GXE10,SXE10 ***,ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71420-53150B0 |
GXE10 ***,I ｴﾃﾞｲｼﾖﾝ *(I),BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-53030 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-53020 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71511-53010 |
GXE10,SXE10 |
1 | ||
| 71511-53060 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71511-53061 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71511-53031 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-53020 |
GXE10,SXE10..SED Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71511-53030 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-53010 |
GXE10,SXE10 |
1 | ||
| 71052-53020 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71052-53030 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53030 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53032 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53080 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71052-53020 |
GXE10,SXE10..SED Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71052-53082 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-53030 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53010 |
GXE10,SXE10 |
1 | ||
| 71551-53030 |
GXE10..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53030 |
GXE10..SED..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-53030 |
GXE10..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53030 |
GXE10..SED..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53010 |
GXE10,SXE10 |
1 | ||
| 71551-53030 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-53010 |
GXE10,SXE10 |
1 | ||
| 71630-53040 |
GXE1#,JCE1#,SXE10 ﾎﾝｶﾞﾜ |
1 | ||
| 71630-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 71630-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ﾎﾝｶﾞﾜ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-53010 |
GXE10,SXE10..SED |
1 | ||
| 71630-53010 |
GXE10,SXE10..SED ﾎﾝｶﾞﾜ |
1 | ||
| 71630-53010 |
GXE10,SXE10 |
1 | ||
| 71630-53040 |
GXE10,SXE10..SED ﾎﾝｶﾞﾜ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-53010C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
2 | ||
| 71910-53050C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71910-53030A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71910-53030C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71910-53040A2 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-53060A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
2 | ||
| 71910-53040C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
2 | ||
| 71910-53050C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71910-53020A0 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050C0 |
GXE10,SXE10 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71970-60290C0 |
GXE10,SXE10..SED ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020C0 |
GXE10,SXE10..SED ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-28040C0 |
GXE10,SXE10 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71970-60290A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050C0 |
GXE10,SXE10 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71970-60290C0 |
GXE10,SXE10..SED ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020C0 |
GXE10,SXE10..SED ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-28040C0 |
GXE10,SXE10 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71970-60290A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-10330 | ||||
| 82711-16830 | ||||
| 90463-13003 | ||||
| 90468-04109 | ||||
ILLUST NO. 1 OF 3(0105- )
ﾅｼ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-53020 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71011-53010 |
GXE10,SXE10 |
1 | ||
| 71011-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 71011-53020 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 71011-53020 |
GXE10,JCE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71012-53010 |
GXE10,SXE10 |
1 | ||
| 71011-53020 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71011-53020 |
GXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-53040C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-53130A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71071-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53140B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71071-53110A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-53040C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71071-53110C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53210C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53020C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM0#,2# |
1 | ||
| 71071-53030C2 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53111C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71071-53111A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71071-53140B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71071-53210A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53150A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71071-53211A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53211C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71071-53020A0 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71071-53150C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-53020C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53010C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53120B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71072-53090A1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-53190A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71072-53090C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53010C2 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53190C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71072-53101A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-53100A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71072-53120B0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71072-53100C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53150A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71072-53150C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71072-53101C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71072-53191C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71072-53191A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53060C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53030C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53040C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53020A1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-53050C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53020C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53040C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53130C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-53130C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71073-53210C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53150A0 |
GXE1#,JCE1#,SXE10 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-53100C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53260A0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71073-53140A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71073-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53100A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71073-53060C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53140C0 |
GXE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53210A0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71073-53211C1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53150C0 |
GXE1#,JCE1#,SXE10 ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-53050C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53020C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53020C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53050A2 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-53010C0 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71074-53050C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71073-53250A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53140A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-53150C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71074-53150A0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
1 | ||
| 71074-53200A0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
1 | ||
| 71073-53030C1 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53010C2 |
GXE10,SXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71073-53120C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71074-53070C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
1 | ||
| 71074-53090C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-53100A0 |
GXE10,SXE10..SED ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
1 | ||
| 71074-53070A1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE B-*104,IVORY,TRIM0# |
1 | ||
| 71074-53100C0 |
GXE10,SXE10..SED ｱﾘ(SRS ｻｲﾄﾞｴｱﾊﾞﾂｸﾞ) & ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71073-53140C0 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
1 | ||
| 71074-53090C0 |
GXE10 ｱﾘ(ｻｲﾄﾞ ｴｱﾊﾞﾂｸﾞ),BLACK,TRIM2# |
1 | ||
| 71074-53151C1 |
GXE10,SXE10..SED ｼ-ﾄ = TYPE C-*104,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-53030 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-53020 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71511-53010 |
GXE10,SXE10 |
1 | ||
| 71511-53060 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71511-53061 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71511-53031 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71511-53020 |
GXE10,SXE10..SED Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71511-53030 |
GXE1#,JCE1#,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71052-53010 |
GXE10,SXE10 |
1 | ||
| 71052-53020 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71052-53030 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53030 |
GXE10,SXE10 ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53032 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ) |
1 | ||
| 71052-53080 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71052-53020 |
GXE10,SXE10..SED Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71052-53082 |
GXE10,SXE10..SED ｱﾘ(ﾊﾟﾜ-ｼ-ﾄ & ﾎﾝｶﾞﾜｼ-ﾄ) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-53010 |
GXE10,SXE10 |
1 | ||
| 71551-53030 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53030 |
GXE10..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53030 |
GXE10..SED..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-53030 |
GXE10..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53030 |
GXE10..SED..MTM Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71551-53010 |
GXE10,SXE10 |
1 | ||
| 71551-53030 |
GXE10,SXE10 Z ｴﾃﾞｲｼﾖﾝ *(Z) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-53010 |
GXE10,SXE10 |
1 | ||
| 71630-53040 |
GXE1#,JCE1#,SXE10 ﾎﾝｶﾞﾜ |
1 | ||
| 71630-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 71630-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ﾎﾝｶﾞﾜ |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-53010 |
GXE10,SXE10..SED |
1 | ||
| 71630-53010 |
GXE10,SXE10..SED ﾎﾝｶﾞﾜ |
1 | ||
| 71630-53010 |
GXE10,SXE10 |
1 | ||
| 71630-53040 |
GXE10,SXE10..SED ﾎﾝｶﾞﾜ |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-53010C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE B-*104,BLACK,TRIM2# |
2 | ||
| 71910-53050C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71910-53030A1 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,IVORY,TRIM0# |
2 | ||
| 71910-53030C0 |
GXE10,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71910-53030C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE A-*104,BLACK,TRIM2# |
2 | ||
| 71910-53040A2 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B OR TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71910-53060A0 |
GXE10 ｼ-ﾄ = TYPE D-*104,IVORY,TRIM0# |
2 | ||
| 71910-53040C0 |
GXE1#,JCE1#,SXE10 ｼ-ﾄ = TYPE B OR TYPE C-*104,BLACK,TRIM2# |
2 | ||
| 71910-53050C0 |
GXE10 I EDITION *(I),BLACK,TRIM2# |
1 | ||
| 71910-53020A0 |
GXE10,SXE10 ｼ-ﾄ = TYPE C-*104,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050C0 |
GXE10,SXE10 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71970-60290C0 |
GXE10,SXE10..SED ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020C0 |
GXE10,SXE10..SED ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-28040C0 |
GXE10,SXE10 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71970-60290A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-28050C0 |
GXE10,SXE10 ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71970-60290C0 |
GXE10,SXE10..SED ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020C0 |
GXE10,SXE10..SED ﾛｯｸ無,BLACK,TRIM2# |
2 | ||
| 71930-28040C0 |
GXE10,SXE10 ﾛｯｸ付,BLACK,TRIM2# |
2 | ||
| 71932-60020A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71970-60290A0 |
SXE10;GXE10..SED..MTM ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 82711-10070 | ||||
| 82711-10330 | ||||
| 82711-16830 | ||||
| 90463-13003 | ||||
| 90468-04109 | ||||
ILLUST NO. 3 OF 3(9810-0105)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0105- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
