GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita

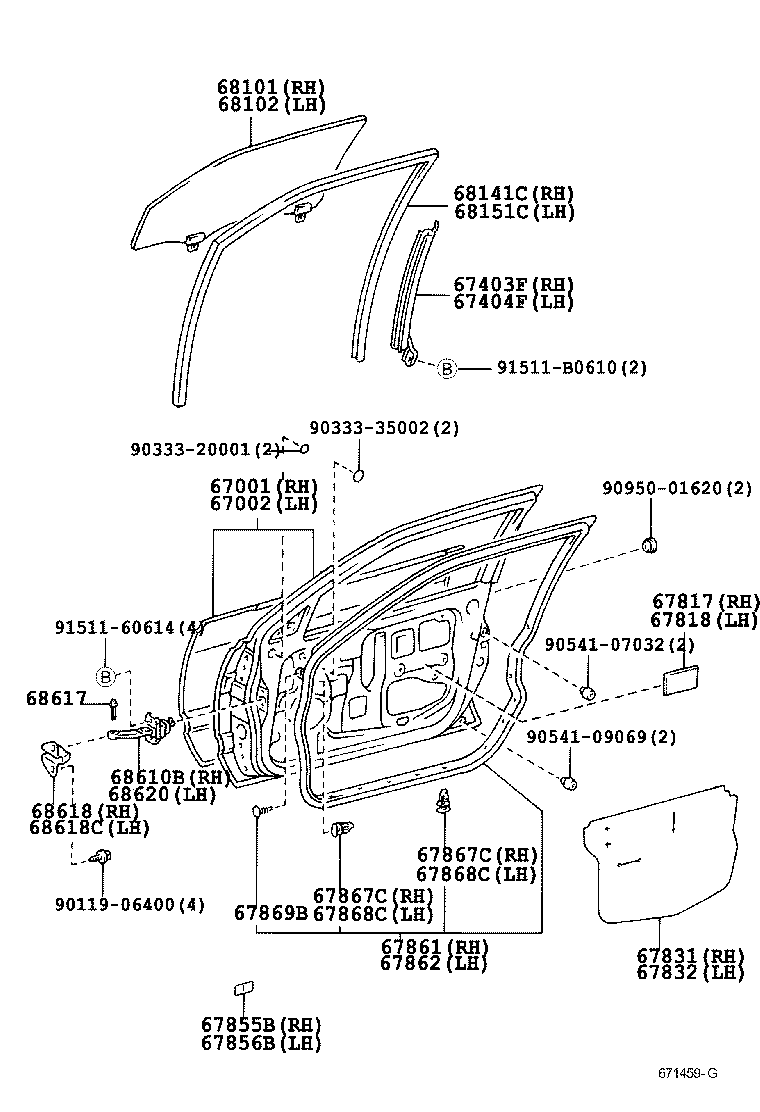

ILLUST NO. 2 OF 3(9810-0105)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-53010 |
GXE10,SXE10 |
1 | ||
| 67001-53013 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67001-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67001-53012 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-53013 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002-53010 |
GXE10,SXE10 |
1 | ||
| 67002-53012 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002-53040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-53010 |
GXE10,SXE10 |
1 | ||
| 67403-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67403-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67404-53010 |
GXE10,SXE10 |
1 | ||
| 67404-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817 - PACKING, FRONT DOOR PROTECTOR, RH | ||||
| 67817-53010 |
GXE10,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67818 - PACKING, FRONT DOOR PROTECTOR, LH | ||||
| 67817-53010 |
GXE10,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53010 |
GXE10,SXE10 |
1 | ||
| 67831-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53010 |
GXE10,SXE10 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-53010 |
GXE10,SXE10 |
1 | ||
| 67861-53020 |
GXE10,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67861-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 67861-53020 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 67862-53020 |
GXE10,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67862-53010 |
GXE10,SXE10 |
1 | ||
| 67862-53020 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
GXE10,SXE10 |
2 | ||
| 67869-20030 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 67869-20030 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-53010 |
GXE10,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-53010 |
GXE10,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68141-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68141-53010 |
GXE10,SXE10 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68151-53010 |
GXE10,SXE10 |
1 | ||
| 68151-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-53010 |
GXE10,SXE10 |
1 | ||
| 68610-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20050 |
GXE10,SXE10 |
2 | ||
| 68617-53010 |
GXE10,SXE10 |
2 | ||
| 68618 - BRACKET, FRONT DOOR CHECK ARM, RH | ||||
| 68618-20020 |
GXE10,SXE10 |
1 | ||
| 68618C - BRACKET, FRONT DOOR CHECK ARM, LH | ||||
| 68618-20020 |
GXE10,SXE10 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68620-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610-53010 |
GXE10,SXE10 |
1 | ||
| Common parts | ||||
| 90119-06400 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90541-07032 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 91511-60614 | ||||
| 91511-B0610 | ||||
ILLUST NO. 3 OF 3(9810-0105)
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 3 OF 3(0105- )
| Part # | Description | Qty | Price |
|---|

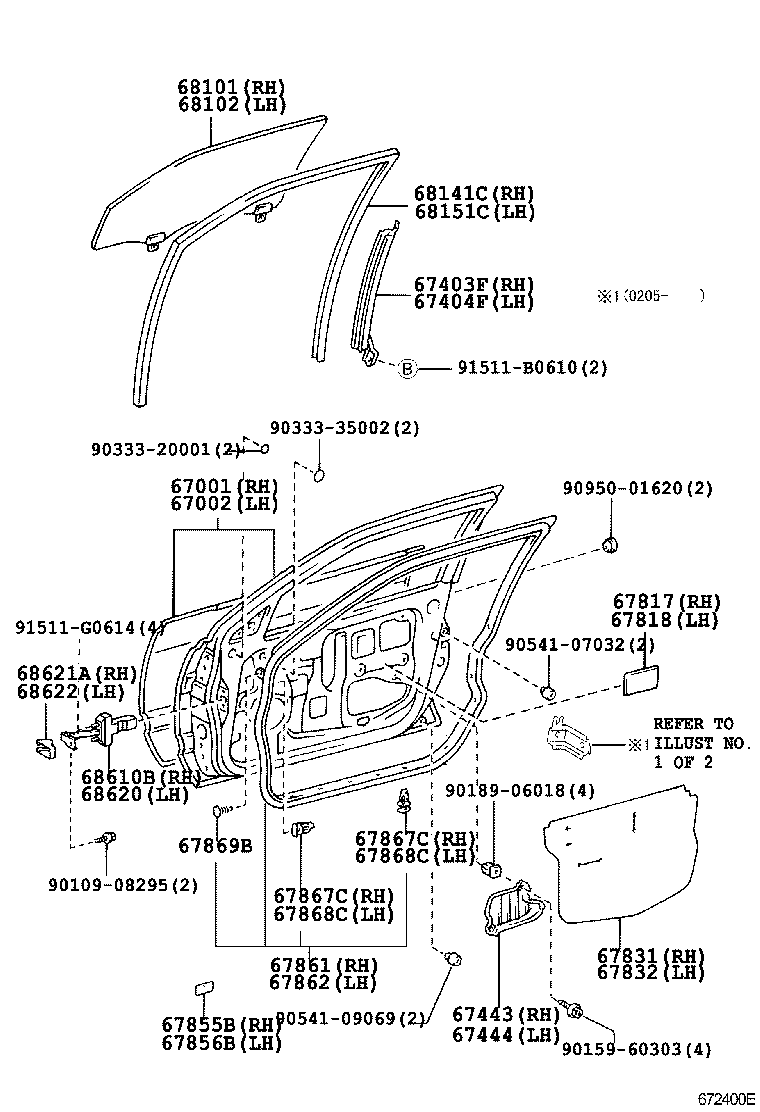

ILLUST NO. 2 OF 3(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-53010 |
GXE10,SXE10 |
1 | ||
| 67001-53013 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67001-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67001-53012 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-53013 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002-53010 |
GXE10,SXE10 |
1 | ||
| 67002-53012 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67002-53040 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-53010 |
GXE10,SXE10 |
1 | ||
| 67403-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67403-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67404-53010 |
GXE10,SXE10 |
1 | ||
| 67404-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67443 - PROTECTOR, FRONT DOOR LOCKING ROD, RH | ||||
| 67443-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67443-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67444 - PROTECTOR, FRONT DOOR LOCKING ROD, LH | ||||
| 67444-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67444-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817 - PACKING, FRONT DOOR PROTECTOR, RH | ||||
| 67817-53010 |
GXE10,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67818 - PACKING, FRONT DOOR PROTECTOR, LH | ||||
| 67817-53010 |
GXE10,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67817-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53010 |
GXE10,SXE10 |
1 | ||
| 67831-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67831-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67832-53010 |
GXE10,SXE10 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67855-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-53010 |
GXE10,SXE10 |
1 | ||
| 67861-53020 |
GXE10,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67861-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 67861-53020 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-53010 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 |
1 | ||
| 67862-53020 |
GXE10,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67862-53010 |
GXE10,SXE10 |
1 | ||
| 67862-53020 |
GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
GXE10,SXE10 |
15 | ||
| 67867-12150 |
GXE1#,JCE1#,SXE10 |
15 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
GXE10,SXE10 |
2 | ||
| 67869-20030 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 67869-20030 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-53010 |
GXE10,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-53010 |
GXE10,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-53010 |
GXE1#,JCE1#,SXE10 *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68141-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68141-53010 |
GXE10,SXE10 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68151-53010 |
GXE10,SXE10 |
1 | ||
| 68151-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-53010 |
GXE10,SXE10 |
1 | ||
| 68610-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68620-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68610-53010 |
GXE10,SXE10 |
1 | ||
| 68621A - COVER, FRONT DOOR CHECK, RH | ||||
| 68621-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68621-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68622 - COVER, FRONT DOOR CHECK, LH | ||||
| 68622-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 68622-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90159-60303 | ||||
| 90189-06018 | ||||
| 90333-20001 | ||||
| 90333-35002 | ||||
| 90541-07032 | ||||
| 90541-09069 | ||||
| 90950-01620 | ||||
| 91511-B0610 | ||||
| 91511-G0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
