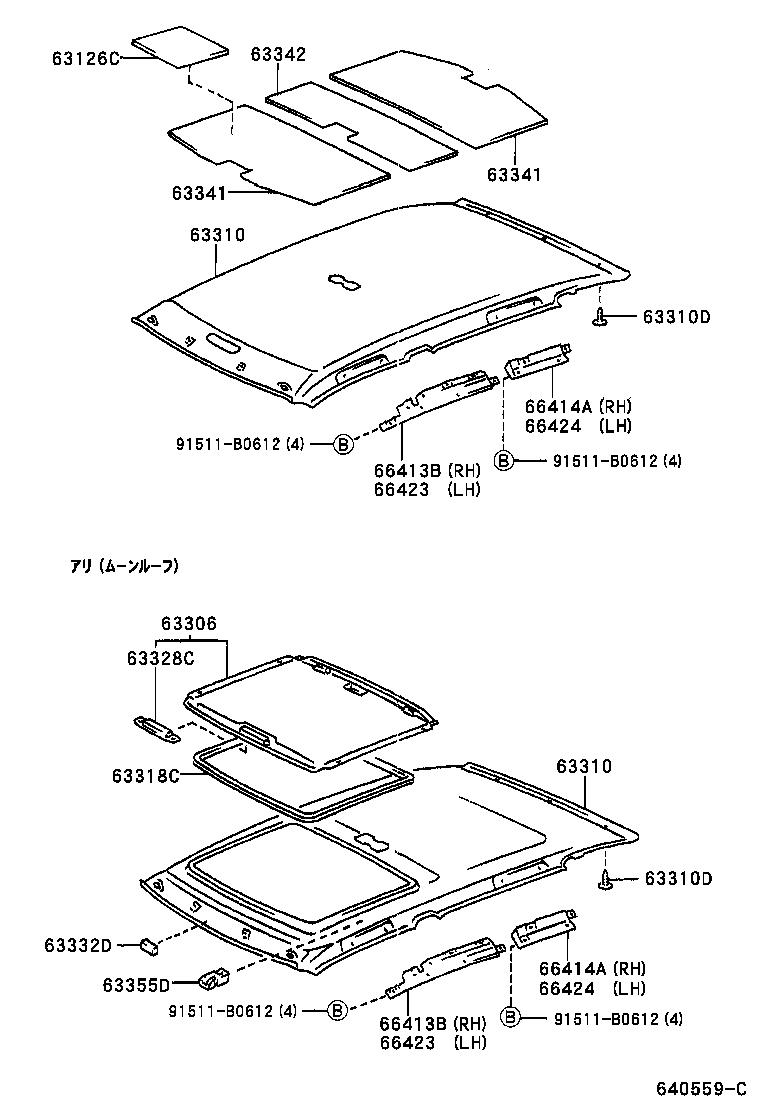

GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita
(9810-0105)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63306-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-44020B5 |
GXE1#,JCE1#,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-44020A3 |
GXE1#,JCE1#,SXE10 IVORY,TRIM0# |
1 | ||
| 63306-44020B5 |
GXE1#,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63314-53010A0 |
SXE10;GXE10..SED..MTM ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 63310-53030B1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63310-53030A1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53010B0 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53010B0 |
GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63313-53010A0 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63314-53010A0 |
SXE10;GXE10..SED..MTM ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 63310-53030B1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63310-53030A1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53010B0 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53010B0 |
GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63313-53010A0 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
2 | ||
| 90467-05021B6 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
GXE10,SXE10 IVORY,TRIM0# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
2 | ||
| 90467-05021B6 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
GXE10,SXE10 IVORY,TRIM0# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-53021B1 |
GXE1#,JCE1#,SXE10 長さ=2377,MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63318-53020B1 |
GXE1#,JCE1#,SXE10 長さ=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE1#,JCE1#,SXE10 長さ=2377,IVORY,TRIM0# |
1 | ||
| 63318-53020B1 |
GXE10,SXE10 長さ=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10,SXE10 長さ=2377,IVORY,TRIM0# |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
GXE1#,JCE1#,SXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030B4 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030A1 |
JCE1#,SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63328-12030A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63332D - PAD, SUN ROOF HEADLINING | ||||
| 63332-53010 |
GXE10,SXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-53010 |
GXE10,SXE10 |
1 | ||
| 63342-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-53010 |
GXE10,SXE10 |
1 | ||
| 63356-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66413-53010 |
GXE10,SXE10 |
1 | ||
| 66413-53010 |
GXE1#,SXE10 |
1 | ||
| 66413-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66413-53010 |
GXE10,SXE10 |
1 | ||
| 66413-53010 |
GXE1#,SXE10 |
1 | ||
| 66413-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-53010 |
GXE10,SXE10 |
1 | ||
| 66414-53010 |
GXE10,SXE10..SED |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-53010 |
GXE10,SXE10 |
1 | ||
| 66414-53010 |
GXE10,SXE10..SED |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE10,SXE10 |
1 | ||
| 66423-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE1#,SXE10 |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE10,SXE10 |
1 | ||
| 66423-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE1#,SXE10 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-53010 |
GXE10,SXE10 |
1 | ||
| 66424-53010 |
GXE10,SXE10..SED |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-53010 |
GXE10,SXE10 |
1 | ||
| 66424-53010 |
GXE10,SXE10..SED |
1 | ||
| Common parts | ||||
| 91511-B0612 | ||||

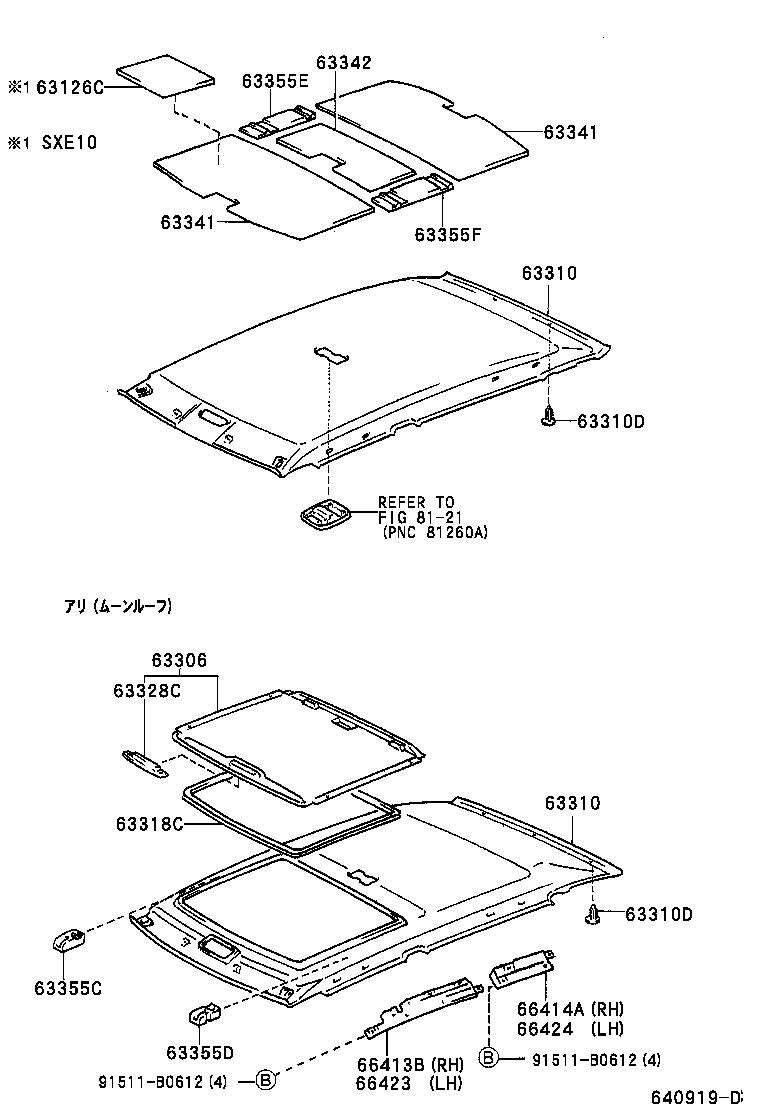

(0105- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63306-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-44020B5 |
GXE1#,JCE1#,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63306-44020A3 |
GXE1#,JCE1#,SXE10 IVORY,TRIM0# |
1 | ||
| 63306-44020B5 |
GXE1#,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63314-53010A0 |
SXE10;GXE10..SED..MTM ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 63310-53030B1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63310-53030A1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53010B0 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53010B0 |
GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63313-53010A0 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-53010B1 |
GXE10,SXE10 MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63314-53010A0 |
SXE10;GXE10..SED..MTM ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),IVORY,TRIM0# |
1 | ||
| 63310-53030B1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MEDIUM CHARCOAL,TRIM2# |
1 | ||
| 63310-53010A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63310-53030A1 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020A0 |
SXE10;GXE10..SED..MTM ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63313-53010B0 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53020B0 |
GXE10,SXE10..SED ｱﾘ(SRS ｶ-ﾃﾝｼ-ﾙﾄﾞ ｴｱﾊﾞﾂｸﾞ & ﾑ-ﾝ ﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63314-53010B0 |
GXE10,SXE10..SED ｱﾘ(ﾑ-ﾝﾙ-ﾌ),MD.CHARCOAL,TRIM2# |
1 | ||
| 63313-53010A0 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
2 | ||
| 90467-05021B6 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
GXE10,SXE10 IVORY,TRIM0# |
2 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05021B6 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05164B4 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
SXE10;GXE10..SED..MTM IVORY,TRIM0# |
2 | ||
| 90467-05021B6 |
GXE10,SXE10..SED MD.CHARCOAL,TRIM2# |
2 | ||
| 90467-05021A1 |
GXE10,SXE10 IVORY,TRIM0# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-53021B1 |
GXE1#,JCE1#,SXE10 長さ=2377,MEDIUM CHACOAL,TRIM2# |
1 | ||
| 63318-53020B1 |
GXE1#,JCE1#,SXE10 長さ=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE1#,JCE1#,SXE10 長さ=2377,IVORY,TRIM0# |
1 | ||
| 63318-53020B1 |
GXE10,SXE10 長さ=2377,MD.CHARCOAL,TRIM2# |
1 | ||
| 63318-53020A1 |
GXE10,SXE10 長さ=2377,IVORY,TRIM0# |
1 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B4 |
GXE1#,JCE1#,SXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030B4 |
GXE10,SXE10 MD.CHARCOAL,TRIM2# |
1 | ||
| 63328-12030A1 |
JCE1#,SXE10;GXE10..SED..MTM IVORY,TRIM0# |
1 | ||
| 63328-12030A1 |
GXE10,SXE10 IVORY,TRIM0# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-53010 |
GXE10..SED |
2 | ||
| 63341-53020 |
GXE10 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-53010 |
GXE10,SXE10 |
1 | ||
| 63342-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 63355C - PAD, ROOF HEADLINING, RH | ||||
| 63355-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 63355D - PAD, ROOF HEADLINING, LH | ||||
| 63356-53010 |
GXE10,SXE10 |
1 | ||
| 63356-53010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 63355E - PAD, ROOF HEADLINING, NO.2 RH | ||||
| 63355-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 63355F - PAD, ROOF HEADLINING, NO.2 LH | ||||
| 63356-53030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66413-53010 |
GXE10,SXE10 |
1 | ||
| 66413-53010 |
GXE1#,SXE10 |
1 | ||
| 66413-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-53010 |
GXE10,SXE10 |
1 | ||
| 66414-53010 |
GXE10,SXE10..SED |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-53020 |
GXE10,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE10,SXE10 |
1 | ||
| 66423-53020 |
GXE1#,SXE10 ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 66423-53010 |
GXE1#,SXE10 |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-53010 |
GXE10,SXE10 |
1 | ||
| 66424-53010 |
GXE10,SXE10..SED |
1 | ||
| Common parts | ||||
| 91511-B0612 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
