Toyota Altezza/altezza gita GXE10 RADIATOR GRILLE

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

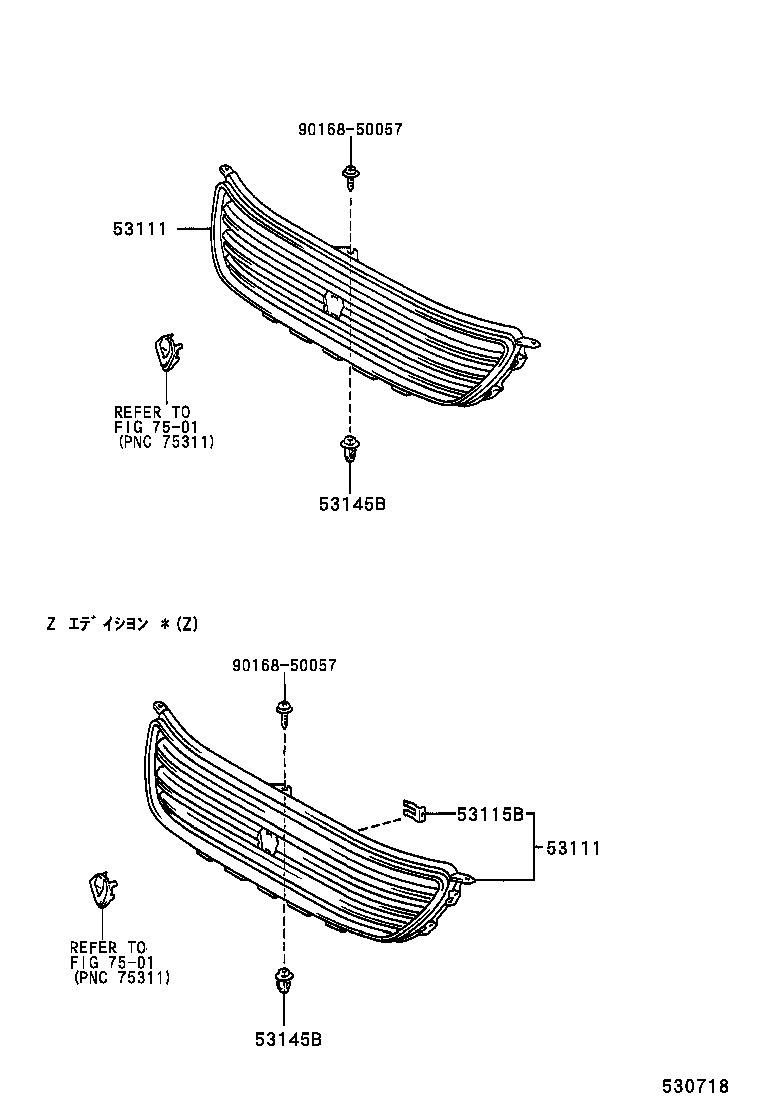

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	05/2001 - 06/2001	1
53111-53030	GXE10;SXE10..ATM L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
53111-53030	GXE10 EURO EDITION *(E)	01/2001 - 05/2001	1
53111-53010	GXE10,SXE10	10/1998 - 05/2001	1
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	08/2000 - 05/2001	1
53101-53090	GXE10,SXE10..SED	08/2003 - 12/2999	1
53101-53060	GXE10,SXE10..SED	05/2001 - 08/2003	1
53111 - GRILLE, RADIATOR
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	05/2001 - 06/2001	1
53111-53030	GXE10;SXE10..ATM L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
53111-53030	GXE10 EURO EDITION *(E)	01/2001 - 05/2001	1
53111-53010	GXE10,SXE10	10/1998 - 05/2001	1
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	08/2000 - 05/2001	1
53101-53090	GXE10,SXE10..SED	08/2003 - 12/2999	1
53101-53060	GXE10,SXE10..SED	05/2001 - 08/2003	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	GXE10,SXE10	10/1998 - 05/2001	1
53145-16010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	GXE10,SXE10	10/1998 - 05/2001	1
53145-16010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
Common parts
90168-50057
Linked diagrams
7501

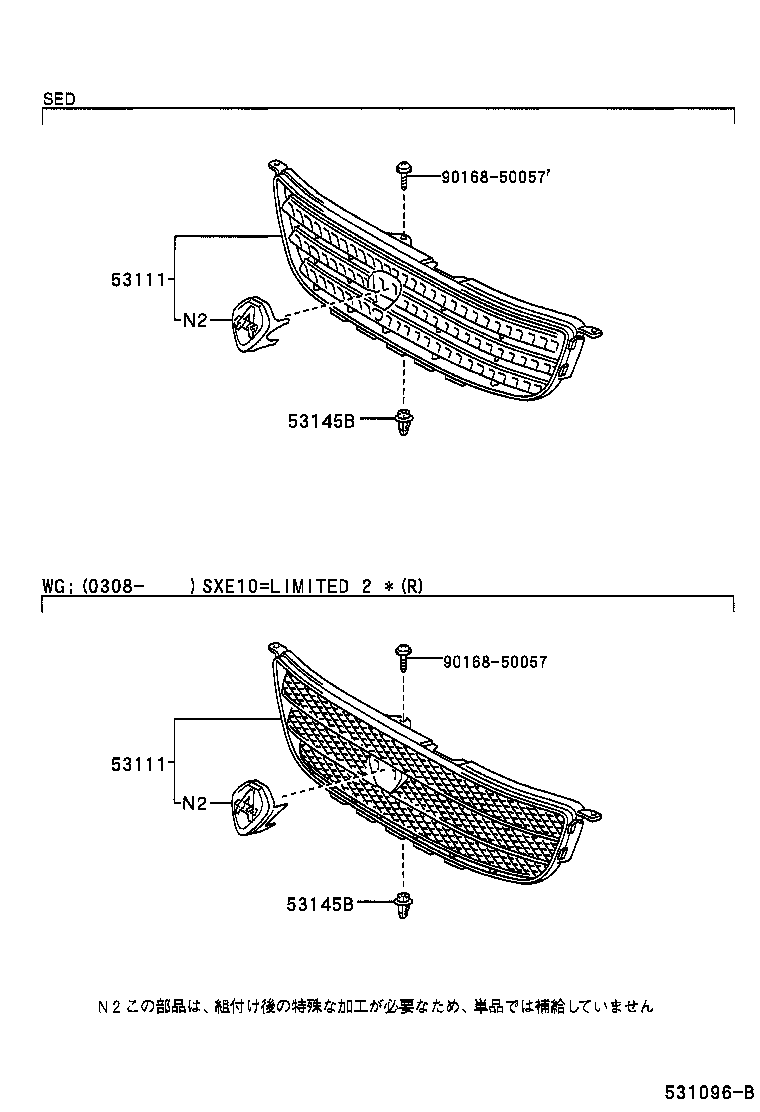

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	05/2001 - 06/2001	1
53111-53030	GXE10;SXE10..ATM L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
53111-53030	GXE10 EURO EDITION *(E)	01/2001 - 05/2001	1
53111-53010	GXE10,SXE10	10/1998 - 05/2001	1
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	08/2000 - 05/2001	1
53101-53090	GXE10,SXE10..SED	08/2003 - 12/2999	1
53101-53060	GXE10,SXE10..SED	05/2001 - 08/2003	1
53111 - GRILLE, RADIATOR
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	05/2001 - 06/2001	1
53111-53030	GXE10;SXE10..ATM L ｴﾃﾞｲｼﾖﾝ *(A)	05/2000 - 05/2001	1
53111-53030	GXE10 EURO EDITION *(E)	01/2001 - 05/2001	1
53111-53010	GXE10,SXE10	10/1998 - 05/2001	1
53111-53030	GXE10 I ｴﾃﾞｲｼﾖﾝ *(I)	08/2000 - 05/2001	1
53101-53090	GXE10,SXE10..SED	08/2003 - 12/2999	1
53101-53060	GXE10,SXE10..SED	05/2001 - 08/2003	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	GXE10,SXE10	10/1998 - 05/2001	1
53145-16010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-16010	GXE10,SXE10	10/1998 - 05/2001	1
53145-16010	GXE10..ATM;GXE10..SED..MTM;GXE15,JCE1#,SXE10	05/2001 - 12/2999	1
Common parts
90168-50057
