GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita
Production
May 2000
-
Jul 2005
Engine
1GFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0005- )GXE10..MTM

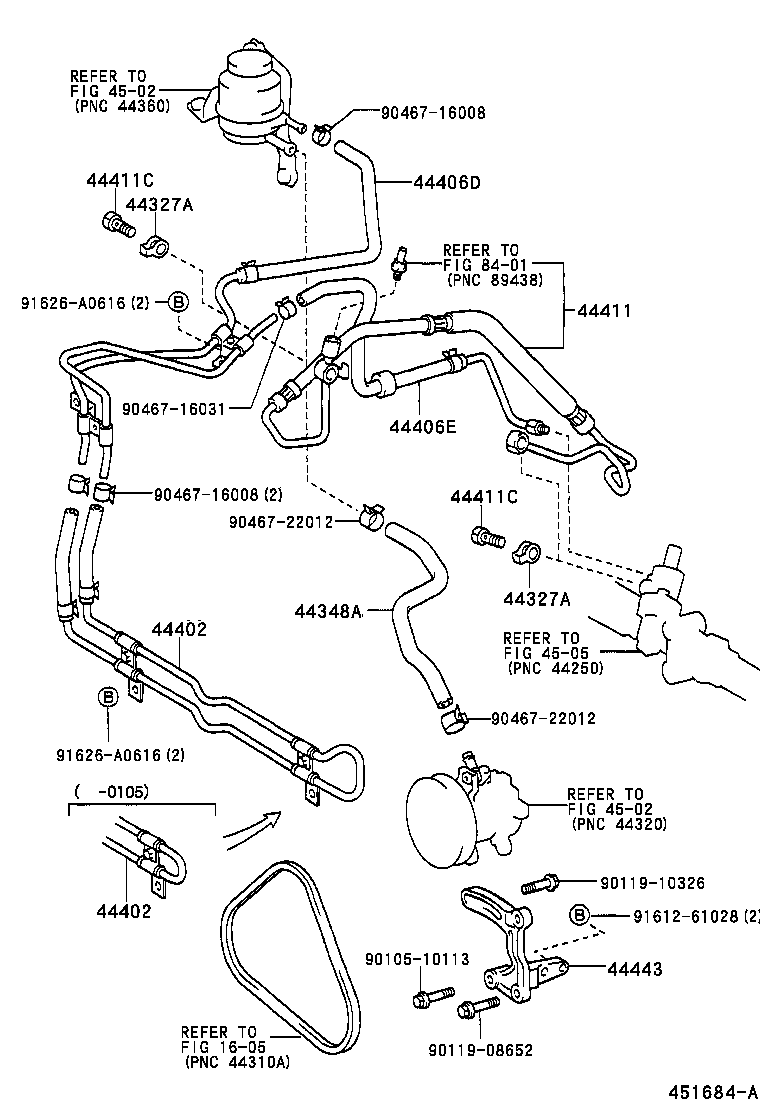

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GXE10,SXE10 |
2 | ||
| 44327-30030 |
GXE1#,SXE10 |
2 | ||
| 44327-30030 |
GXE1#,SXE10 |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GXE10,SXE10 |
2 | ||
| 44327-30030 |
GXE1#,SXE10 |
2 | ||
| 44327-30030 |
GXE1#,SXE10 |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-53020 |
GXE10 |
1 | ||
| 44348-53020 |
GXE10 |
1 | ||
| 44348-53020 |
GXE10 |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-53021 |
GXE10..MTM |
1 | ||
| 44402-53021 |
GXE10..MTM |
1 | ||
| 44402-53020 |
GXE10..MTM |
1 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-53021 |
GXE10..MTM |
1 | ||
| 44402-53021 |
GXE10..MTM |
1 | ||
| 44402-53020 |
GXE10..MTM |
1 | ||
| 44406D - TUBE SUB-ASSY, RETURN, NO.1 | ||||
| 44406-53050 |
GXE10..MTM |
1 | ||
| 44406-53050 |
GXE10..MTM |
1 | ||
| 44406-53050 |
GXE10..MTM |
1 | ||
| 44406E - TUBE SUB-ASSY, RETURN, NO.2 | ||||
| 44406-53040 |
GXE10..MTM |
1 | ||
| 44406-53040 |
GXE10..MTM |
1 | ||
| 44406-53040 |
GXE10..MTM |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-53020 |
GXE10 |
1 | ||
| 44411-53020 |
GXE10 |
1 | ||
| 44411-53020 |
GXE10 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 96341-41603 |
GXE10,SXE10 |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-22150 |
GXE1# |
1 | ||
| 44443-22150 |
GXE10 |
1 | ||
| 44443-22150 |
GXE1# |
1 | ||
| Common parts | ||||
| 90105-10113 | ||||
| 90119-08652 | ||||
| 90119-10326 | ||||
| 90467-16008 | ||||
| 90467-16031 | ||||
| 90467-22012 | ||||
| 91612-61028 | ||||
| 91626-A0616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 4502 | ||||
| 4505 | ||||
| 8401 | ||||
