GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita

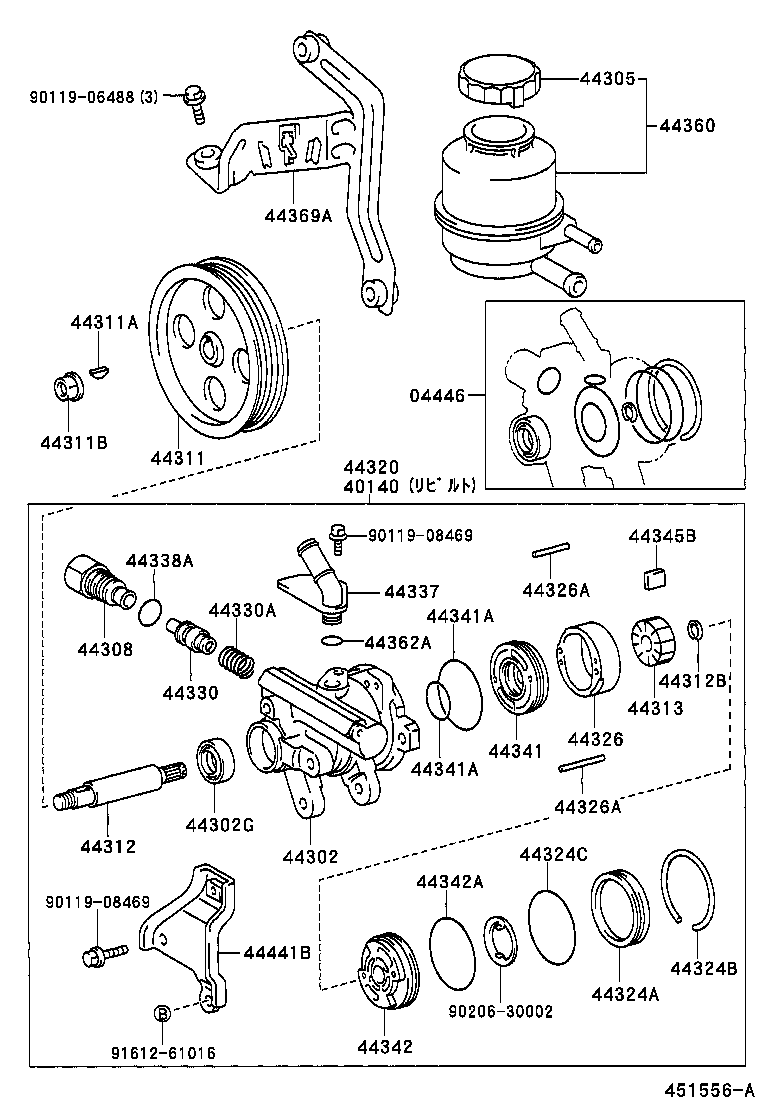

(9810-0105)GXE10
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-10021 |
GXE10 |
1 | ||
| 04446-10021 |
GXE1# |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-53020 |
GXE1# TOYODA KOKI |
1 | ||
| 40140-53020 |
GXE10 TOYODA KOKI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22080 |
GXE10 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18007 |
GXE10 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
GXE10 |
1 | ||
| 44305-22030 |
GXE1# |
1 | ||
| 44305-22030 |
GXE1# |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-53020 |
GXE10 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22050 |
GXE1# |
1 | ||
| 44311-22050 |
GXE10 |
1 | ||
| 44311-22050 |
GXE1# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GXE10 |
1 | ||
| 90280-05008 |
GXE1# |
1 | ||
| 90280-05008 |
GXE1# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90178-12003 |
GXE10,SXE10 |
1 | ||
| 90178-12003 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GXE10 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GXE10,SXE10 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22050 |
GXE10 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
GXE10 ﾏｰｸ無し |
1 | ||
| 44313-22070 |
GXE10 ﾏｰｸ 3 |
1 | ||
| 44313-22060 |
GXE10 ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GXE10 ﾏｰｸ 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-53020 |
GXE1# |
1 | ||
| 44320-53020 |
GXE10 |
1 | ||
| 44320-53020 |
GXE1# |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
GXE10 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
GXE10 |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-53006 |
GXE10 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-50020 |
GXE10 ﾏｰｸ 1 |
1 | ||
| 44325-50010 |
GXE10 ﾏｰｸ無し |
1 | ||
| 44325-50030 |
GXE10 ﾏｰｸ 2 |
1 | ||
| 44325-50040 |
GXE10 ﾏｰｸ 3 |
1 | ||
| 44325-50050 |
GXE10 ﾏｰｸ 4 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GXE10 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GXE10 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04049 |
GXE10 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GXE10 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-35221 |
GXE10 ﾏｰｸ D |
1 | ||
| 44330-35191 |
GXE10 ﾏｰｸ A |
1 | ||
| 44330-35211 |
GXE10 ﾏｰｸ C |
1 | ||
| 44330-35201 |
GXE10 ﾏｰｸ B |
1 | ||
| 44330-35241 |
GXE10 ﾏｰｸ F |
1 | ||
| 44330-35231 |
GXE10 ﾏｰｸ E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GXE10 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22140 |
GXE1# |
1 | ||
| 44337-22140 |
GXE1# |
1 | ||
| 44337-22140 |
GXE10 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
GXE10,SXE10 内径=19.2,外径=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-32010 |
GXE10 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
GXE10 内側 |
1 | ||
| 90301-52001 |
GXE10 外側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
GXE10 内側 |
1 | ||
| 90301-52001 |
GXE10 外側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
GXE10 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GXE10 |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12020 |
GXE10 長さ=14.995 |
10 | ||
| 44345-12040 |
GXE10 長さ=14.991 |
10 | ||
| 44345-12050 |
GXE10 長さ=14.989 |
10 | ||
| 44345-12030 |
GXE10 長さ=14.993 |
10 | ||
| 44345-12010 |
GXE10 長さ=14.997 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-16050 |
GXE10 |
1 | ||
| 44360-16050 |
GXE1# |
1 | ||
| 44360-16050 |
GXE1# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11016 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90301-11016 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90301-11016 |
GXE10,SXE10 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-53010 |
GXE1# |
1 | ||
| 44390-53010 |
GXE1# |
1 | ||
| 44390-53010 |
GXE10 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-22030 |
GXE1# |
1 | ||
| 44441-22030 |
GXE10 |
1 | ||
| 44441-22030 |
GXE1# |
1 | ||
| Common parts | ||||
| 90119-06488 | ||||
| 90119-08469 | ||||
| 90206-30002 | ||||
| 91612-61016 | ||||

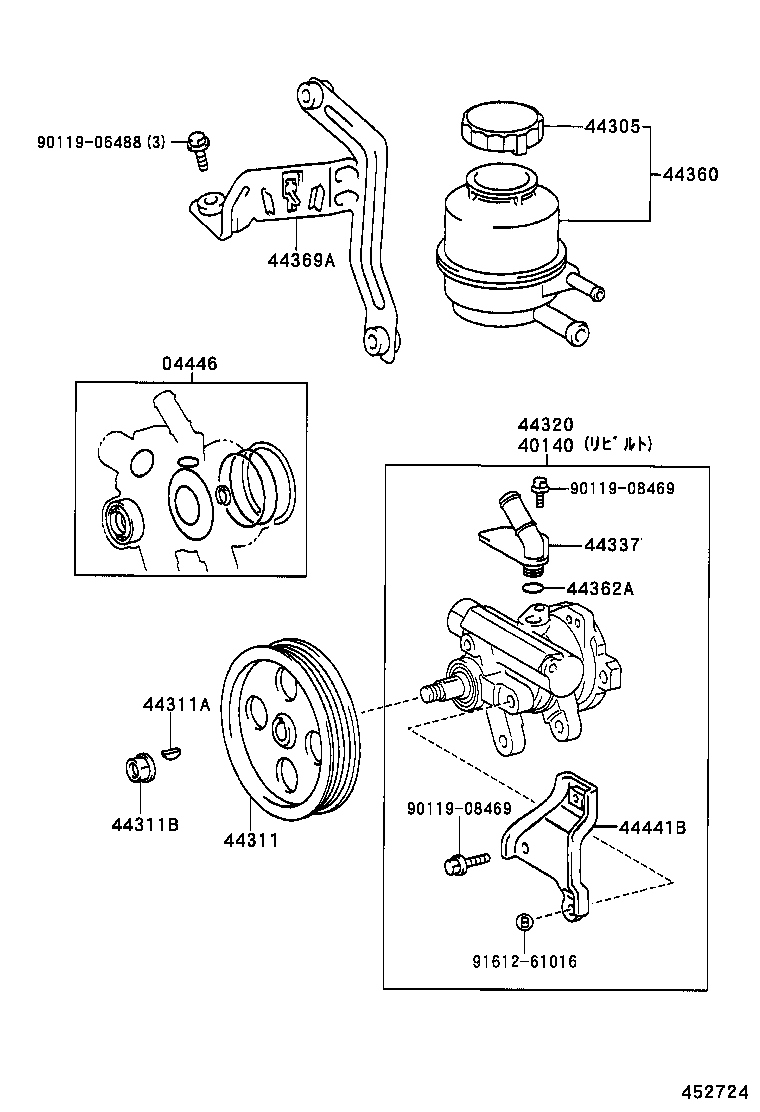

(0105- )GXE1#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-10021 |
GXE10 |
1 | ||
| 04446-10021 |
GXE1# |
1 | ||
| 40140 - PUMP ASSY,VANE REBUILT | ||||
| 40140-53020 |
GXE1# TOYODA KOKI |
1 | ||
| 40140-53020 |
GXE10 TOYODA KOKI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
GXE10 |
1 | ||
| 44305-22030 |
GXE1# |
1 | ||
| 44305-22030 |
GXE1# |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22050 |
GXE1# |
1 | ||
| 44311-22050 |
GXE10 |
1 | ||
| 44311-22050 |
GXE1# |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GXE10 |
1 | ||
| 90280-05008 |
GXE1# |
1 | ||
| 90280-05008 |
GXE1# |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90178-12003 |
GXE10,SXE10 |
1 | ||
| 90178-12003 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-53020 |
GXE1# |
1 | ||
| 44320-53020 |
GXE10 |
1 | ||
| 44320-53020 |
GXE1# |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22140 |
GXE1# |
1 | ||
| 44337-22140 |
GXE1# |
1 | ||
| 44337-22140 |
GXE10 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-16050 |
GXE10 |
1 | ||
| 44360-16050 |
GXE1# |
1 | ||
| 44360-16050 |
GXE1# |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11016 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90301-11016 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 90301-11016 |
GXE10,SXE10 |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44390-53010 |
GXE1# |
1 | ||
| 44390-53010 |
GXE1# |
1 | ||
| 44390-53010 |
GXE10 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-22030 |
GXE1# |
1 | ||
| 44441-22030 |
GXE10 |
1 | ||
| 44441-22030 |
GXE1# |
1 | ||
| Common parts | ||||
| 90119-06488 | ||||
| 90119-08469 | ||||
| 91612-61016 | ||||
