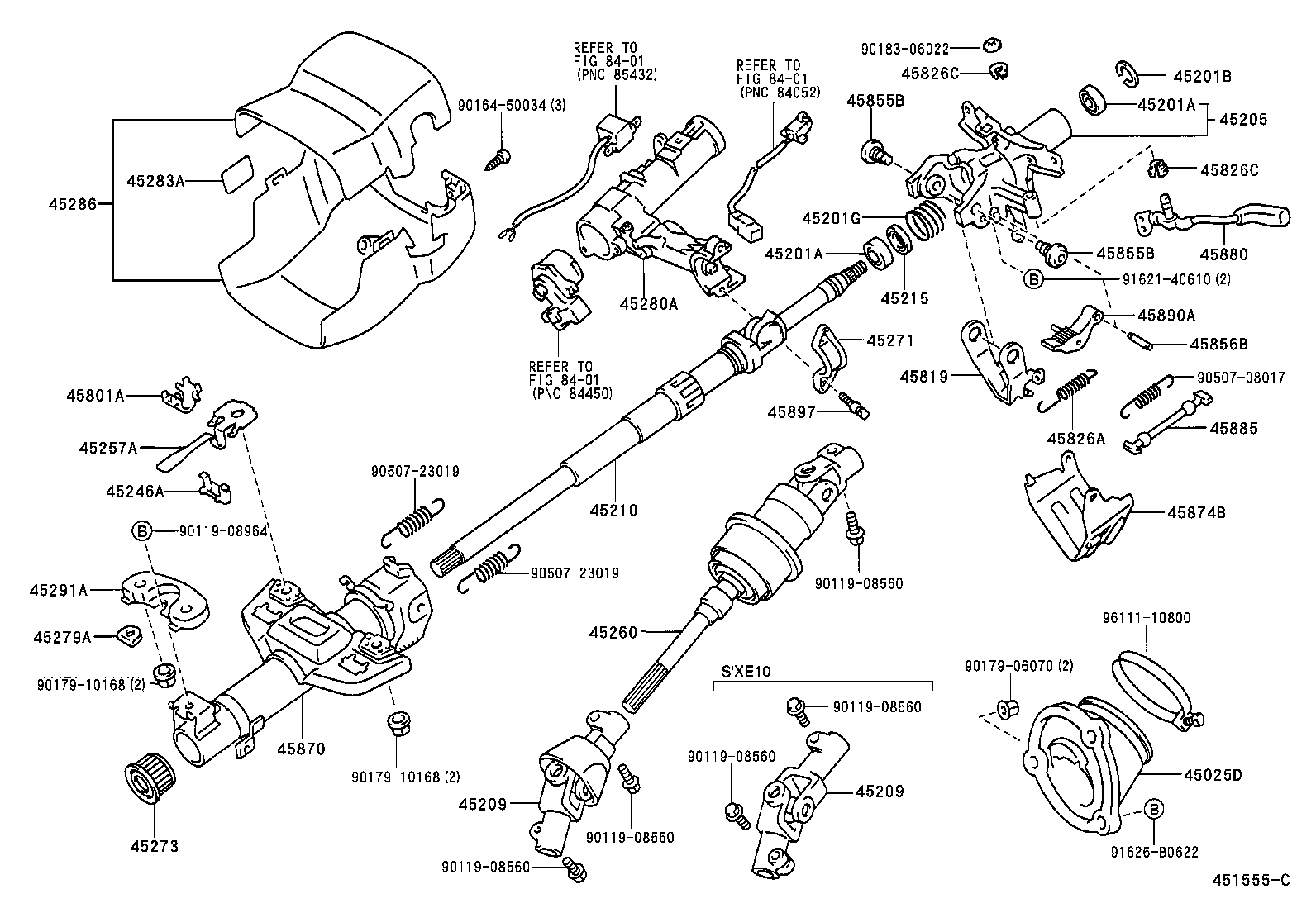

GXE10-AEFVK (2000)
Toyota Altezza/Altezza Gita
(9810-0105)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-53010 |
GXE10,SXE10 |
1 | ||
| 45025-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45025-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GXE10,SXE10 |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18005 |
GXE10,SXE10 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GXE1#,JCE1#,SXE10 厚さ=1.20 |
1 | ||
| 90520-17042 |
GXE1#,JCE1#,SXE10 厚さ=1.20 |
1 | ||
| 90520-17042 |
GXE10,SXE10 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
GXE10,SXE10 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-33120 |
GXE10,SXE10 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45206-51010 |
GXE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45206-51010 |
GXE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-53010 |
GXE10,SXE10 |
1 | ||
| 45210-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45210-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
GXE10,SXE10 |
1 | ||
| 45246A - GUIDE, STEERING ENERGY ABSORBING PLATE | ||||
| 45246-28040 |
GXE10,SXE10 |
2 | ||
| 45257A - PLATE, STEERING COLUMN ENERGY ABSORBING | ||||
| 45257-28010 |
GXE10,SXE10 |
2 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-53010 |
GXE10,SXE10 |
1 | ||
| 45260-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45260-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
GXE10,SXE10 |
1 | ||
| 45271-12060 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45271-12060 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
GXE10,SXE10 |
1 | ||
| 45273-33030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45273-33030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45279A - ATTACHMENT, STEERING COLUMN TUBE, LWR | ||||
| 45279-33030 |
GXE10,SXE10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45283-22010 |
GXE10,SXE10 |
1 | ||
| 45283-22010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53900C0 |
GXE10..MTM;JCE1#,SXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE10,SXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE1#,JCE1#,SXE10 BLACK,TRIM0#,2# |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-33020 |
GXE10,SXE10 |
1 | ||
| 45801A - PIN SUB-ASSY, STEERING ENERGY ABSORBING | ||||
| 45875-12010 |
GXE10,SXE10 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-33010 |
GXE10,SXE10 |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07010 |
GXE10,SXE10 |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
GXE10,SXE10 |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
GXE10,SXE10 |
2 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
GXE10,SXE10 |
2 | ||
| 45855B - SHAFT, T1LT STEERING, NO.1 | ||||
| 45855-26010 |
GXE10,SXE10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-26010 |
GXE10,SXE10 ﾎﾜｲﾄ ﾍﾟｲﾝﾄ |
1 | ||
| 45856-26020 |
GXE10,SXE10 ｲｴﾛｰ ﾍﾟｲﾝﾄ |
1 | ||
| 45856-26030 |
GXE10,SXE10 ﾌﾞﾗｯｸ ﾍﾟｲﾝﾄ |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-53010 |
GXE10,SXE10 |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-33030 |
GXE10,SXE10 |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-22030 |
GXE10,SXE10 |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
GXE10,SXE10 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-26010 |
GXE10,SXE10 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 45897-12020 |
GXE10,SXE10 |
2 | ||
| 45897-12020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90119-08964 | ||||
| 90164-50034 | ||||
| 90179-06070 | ||||
| 90179-10168 | ||||
| 90183-06022 | ||||
| 90507-08017 | ||||
| 90507-23019 | ||||
| 91621-40610 | ||||
| 91626-B0622 | ||||
| 96111-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

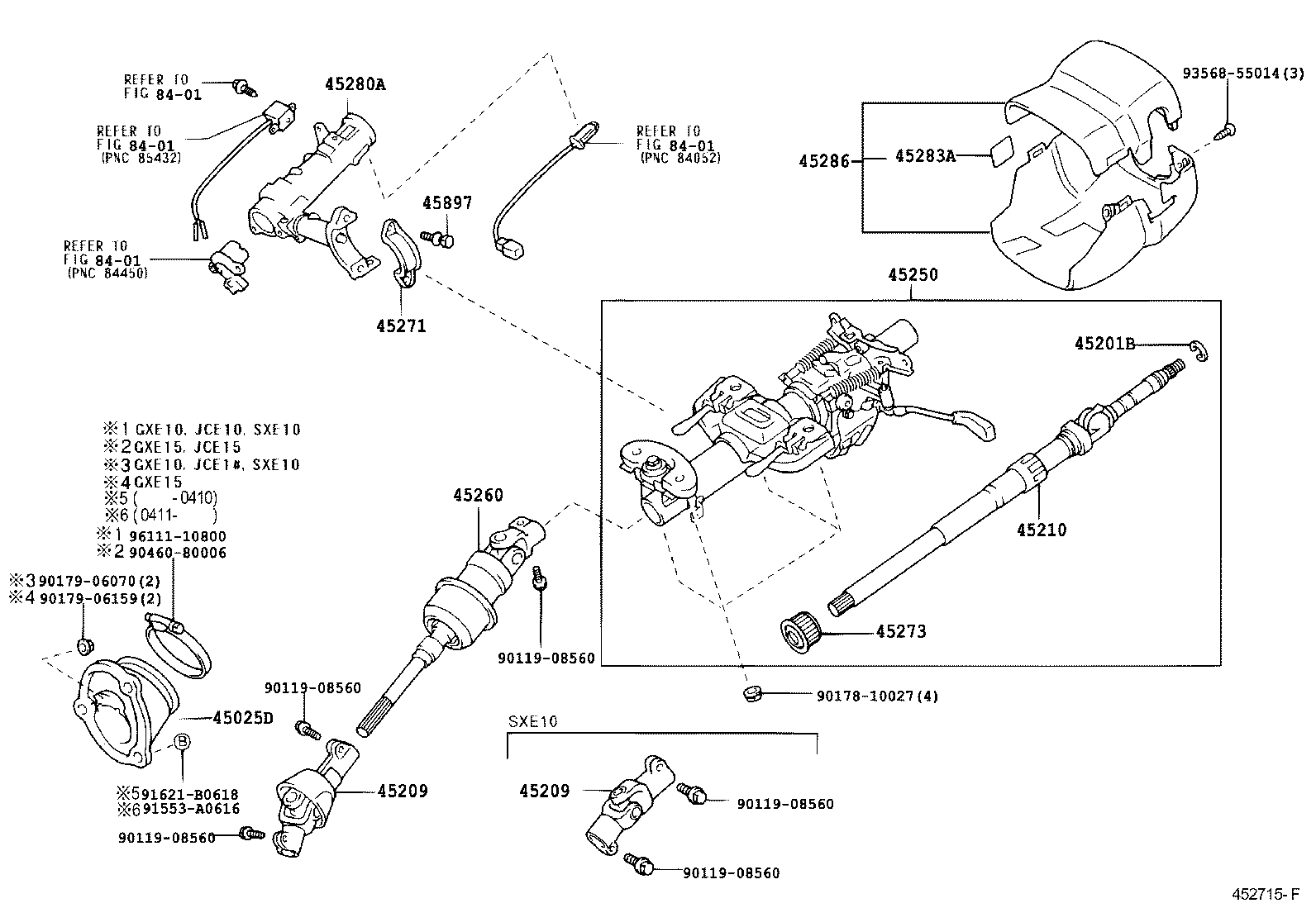

(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-53010 |
GXE10,SXE10 |
1 | ||
| 45025-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45025-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GXE1#,JCE1#,SXE10 厚さ=1.20 |
1 | ||
| 90520-17042 |
GXE1#,JCE1#,SXE10 厚さ=1.20 |
1 | ||
| 90520-17042 |
GXE10,SXE10 厚さ=1.20 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45206-51010 |
GXE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45206-51010 |
GXE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45206-51010 |
GXE10,JCE10 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-53010 |
GXE10,SXE10 |
1 | ||
| 45210-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45210-53020 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-53011 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45250-53011 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-53010 |
GXE10,SXE10 |
1 | ||
| 45260-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45260-53010 |
GXE10,JCE10,SXE10 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12060 |
GXE10,SXE10 |
1 | ||
| 45271-12060 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45271-12060 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-33030 |
GXE10,SXE10 |
1 | ||
| 45273-33030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45273-33030 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45280-53020 |
GXE10,SXE10..MTM |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45283-22010 |
GXE10,SXE10 |
1 | ||
| 45283-22010 |
GXE1#,JCE1#,SXE10 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-53900C0 |
GXE10..MTM;JCE1#,SXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE10,SXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE10 BLACK,TRIM2# |
1 | ||
| 45286-53900C0 |
GXE1#,JCE1#,SXE10 BLACK,TRIM0#,2# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| 45897-12020 |
GXE10,SXE10 |
2 | ||
| 45897-12020 |
GXE1#,JCE1#,SXE10 |
2 | ||
| Common parts | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90179-06070 | ||||
| 90179-06159 | ||||
| 90460-80006 | ||||
| 91553-A0616 | ||||
| 91621-B0618 | ||||
| 93568-55014 | ||||
| 96111-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
