Toyota Altezza/altezza gita GXE10 SHIFT LEVER & RETAINER

GXE10-AEFVK (2000)

Toyota Altezza/Altezza Gita

Production May 2000 - Jul 2005

Engine 1GFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9810-0208)MTM

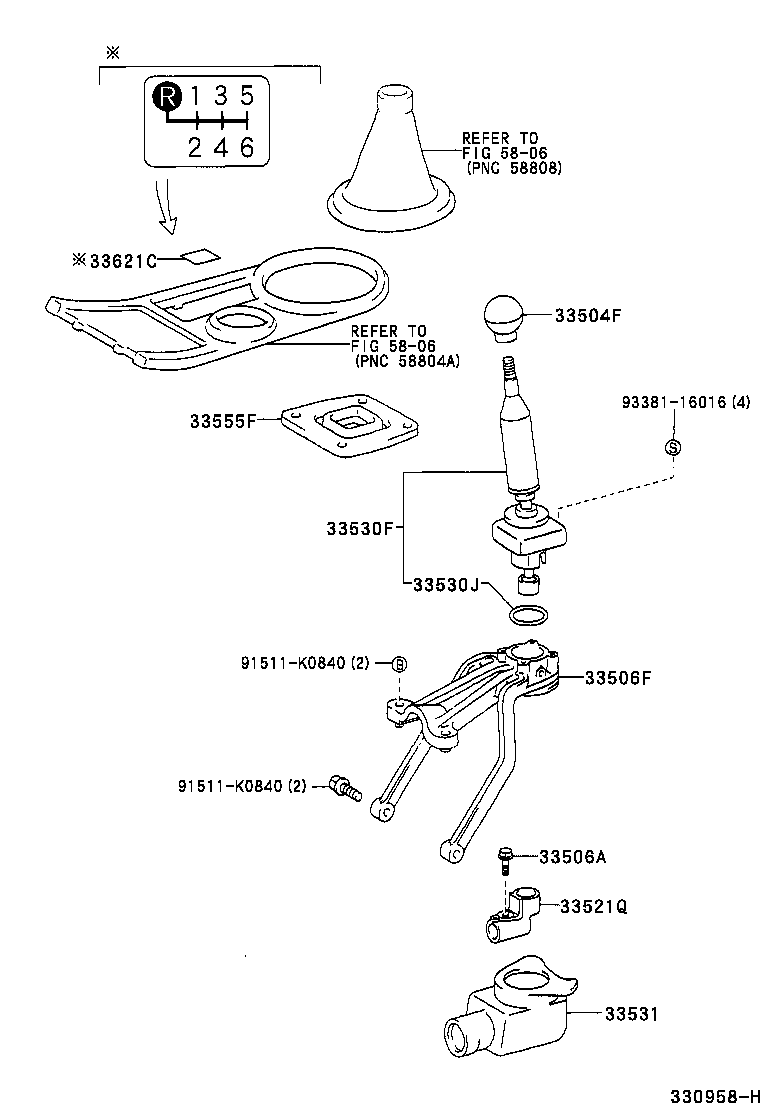

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-53050	GXE10..MTM EURO EDITION *(E)	01/2001 - 05/2001	1
33504-53060C0	GXE10,JCE1#,SXE10 ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,BLACK,TRIM20	10/2001 - 03/2002	1
33504-53011	GXE10,SXE10..MTM	08/2003 - 12/2999	1
33504-53011	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33504-53030	GXE10,SXE10..MTM ﾎﾝｶﾞﾜ	05/2001 - 08/2003	1
33504-53030	GXE10,SXE10..MTM ﾎﾝｶﾞﾜ	08/2003 - 12/2999	1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90105-08079	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90105-08079	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-53010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33506-53010	GXE10,SXE10..MTM	05/2001 - 08/2002	1
33506-53011	GXE10,SXE10..MTM	08/2002 - 07/2005	1
33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521-53020	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33521-53020	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-53011	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33530J - RING, O (FOR SHIFT LEVER)
96711-19033	GXE10,SXE10..MTM	05/2001 - 07/2005	1
96711-19033	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-53020	GXE10..MTM	05/2000 - 05/2001	1
33531-53020	GXE10..MTM	05/2001 - 07/2005	1
33555F - BOOT, SHIFT & SELECT LEVER, NO.2
33555-53030	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33555-53030	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33555-53030	GXE10,SXE10..MTM	08/2003 - 12/2999	1
33621C - LABEL, CONTROL LEVER INFORMATION
33621-53010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33621-53010	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33621-53010	GXE10,SXE10..MTM	08/2003 - 12/2999	1
Common parts
91511-K0840
93381-16016
Linked diagrams
5806

(0208- )MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-53050	GXE10..MTM EURO EDITION *(E)	01/2001 - 05/2001	1
33504-53060C0	GXE10,JCE1#,SXE10 ﾓﾃﾞﾘｽﾀ-ｴｳﾞｵﾘﾕｴ,BLACK,TRIM20	10/2001 - 03/2002	1
33504-53011	GXE10,SXE10..MTM	08/2003 - 12/2999	1
33504-53011	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33504-53030	GXE10,SXE10..MTM ﾎﾝｶﾞﾜ	05/2001 - 08/2003	1
33504-53030	GXE10,SXE10..MTM ﾎﾝｶﾞﾜ	08/2003 - 12/2999	1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90105-08079	GXE10,SXE10..MTM	10/1998 - 05/2001	1
90105-08079	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-53010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33506-53010	GXE10,SXE10..MTM	05/2001 - 08/2002	1
33506-53011	GXE10,SXE10..MTM	08/2002 - 07/2005	1
33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT)
33521-53020	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33521-53020	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-53011	GXE10,SXE10..MTM	05/2001 - 07/2005	1
33530J - RING, O (FOR SHIFT LEVER)
96711-19033	GXE10,SXE10..MTM	05/2001 - 07/2005	1
96711-19033	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER)
33531-53020	GXE10..MTM	05/2000 - 05/2001	1
33531-53020	GXE10..MTM	05/2001 - 07/2005	1
33555F - BOOT, SHIFT & SELECT LEVER, NO.2
33555-53030	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33555-53030	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33555-53030	GXE10,SXE10..MTM	08/2003 - 12/2999	1
33575 - RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33506-53020	GXE10..MTM	08/2002 - 07/2005	1
33621C - LABEL, CONTROL LEVER INFORMATION
33621-53010	GXE10,SXE10..MTM	10/1998 - 05/2001	1
33621-53010	GXE10,SXE10..MTM	05/2001 - 08/2003	1
33621-53010	GXE10,SXE10..MTM	08/2003 - 12/2999	1
Common parts
91621-J0814
91641-80825
93381-16016
Linked diagrams
5806

GXE10-AEFVK (2000)

(9810-0208)MTM

(0208- )MTM
