ATH10W-PRXGB (2003)
Toyota Alphard Hv

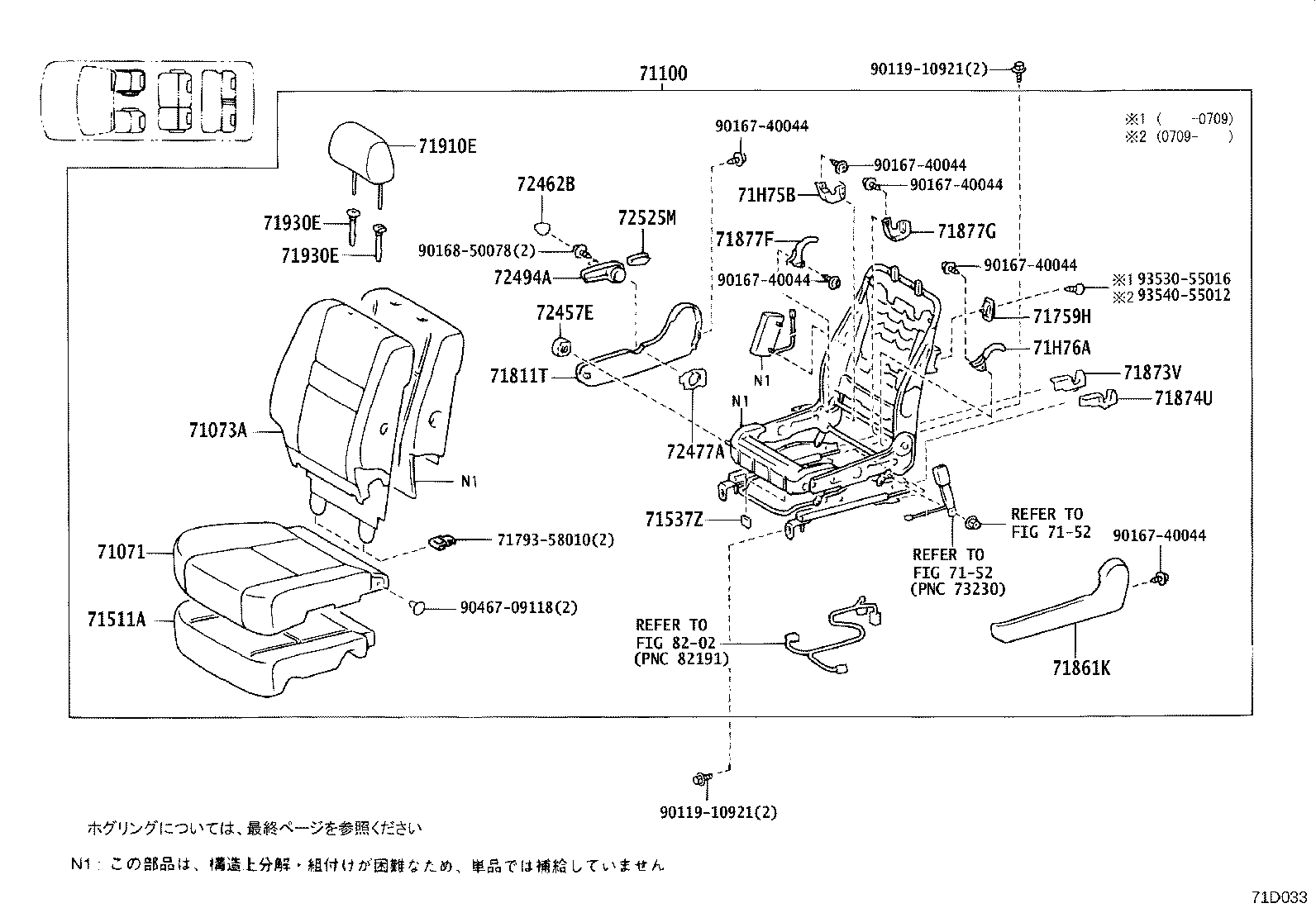

ILLUST NO. 1 OF 3(0307- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ & ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71071-58060A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71071-58100A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58080A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58090A1 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58131A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58121A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58130A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58120A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58241A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58230A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58231A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58240A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-58100A3 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58280A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58100A2 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58140A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58281A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58271A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58270A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71511-58030 |
ATH10 |
1 | ||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71759-28050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71811-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71861-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71873-58020 |
ATH10 |
1 | ||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72497F - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 72497-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72498E - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72498-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-80062 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90463-15003 | ||||
| 90467-09118 | ||||
| 93530-54010 | ||||
| 93530-55016 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

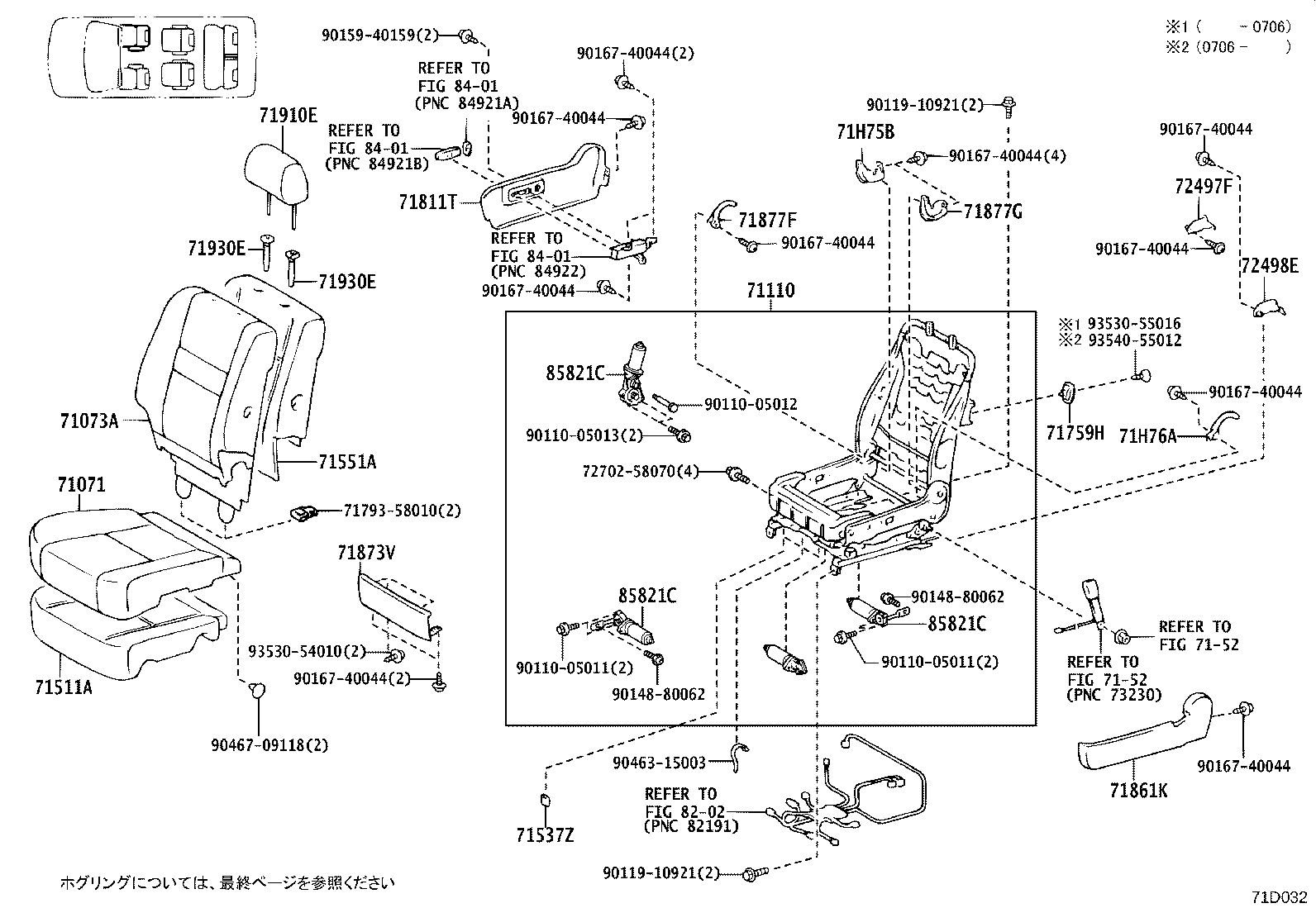

ILLUST NO. 1 OF 3(0307- )
ｳﾝﾃﾝｾｷ-ｱﾘ(ﾊﾟﾜｰｼｰﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71071-58060A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71071-58100A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58080A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58090A1 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58131A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58121A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58130A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58120A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58241A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58230A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58231A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58240A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-58051 |
ATH10 |
1 | ||
| 71110-58060 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71110-58061 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71110-58050 |
ATH10 |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71511-58030 |
ATH10 |
1 | ||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58051 |
ATH10 |
1 | ||
| 71551-58050 |
ATH10 |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71759-28050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71811-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71861-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71873-58020 |
ATH10 |
1 | ||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72497F - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 72497-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72498E - COVER, VERTICAL ADJUSTER BRACKET | ||||
| 72498-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72498-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘﾌﾄ用 |
1 | ||
| 85801-58030 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘﾌﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾁﾙﾄ用 |
1 | ||
| 85801-58040 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾁﾙﾄ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ,ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 72702-58070 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-80062 | ||||
| 90159-40159 | ||||
| 90167-40044 | ||||
| 90463-15003 | ||||
| 90467-09118 | ||||
| 93530-54010 | ||||
| 93530-55016 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

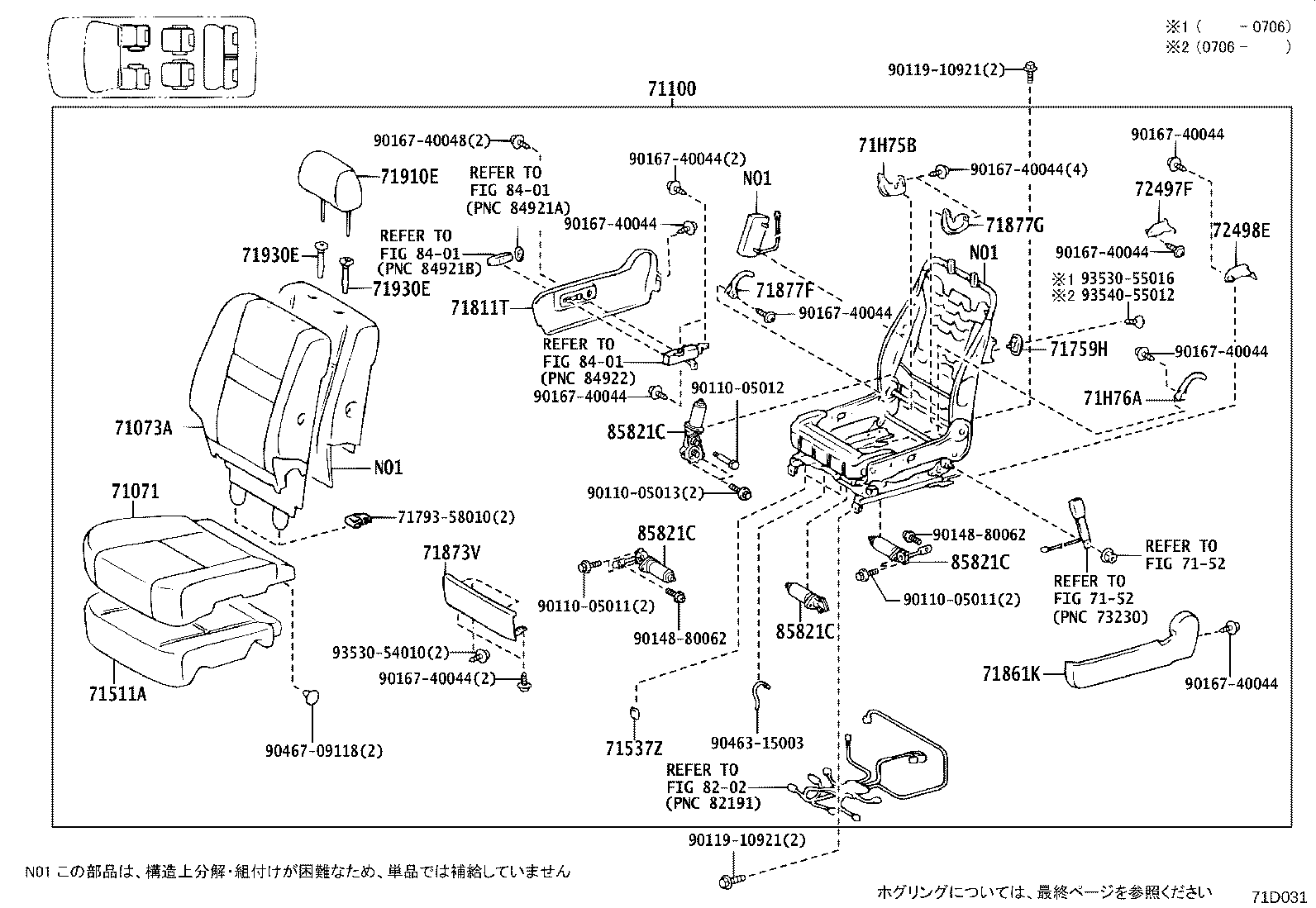

ILLUST NO. 1 OF 3(0307- )
ｳﾝﾃﾝｾｷｱﾘ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71071-58060A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71071-58100A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58080A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58090A1 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58131A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58121A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58130A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58120A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58241A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58230A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58231A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58240A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-58100A3 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58280A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58100A2 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58140A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58281A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58271A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71100-58270A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71511-58030 |
ATH10 |
1 | ||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71759-28050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71811-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71861-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71873-58020 |
ATH10 |
1 | ||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
ATH10 |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72457E - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72457-58010A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58020 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72462-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
ATH10 |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-58020 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72494-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72525-58030 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 93530-55016 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

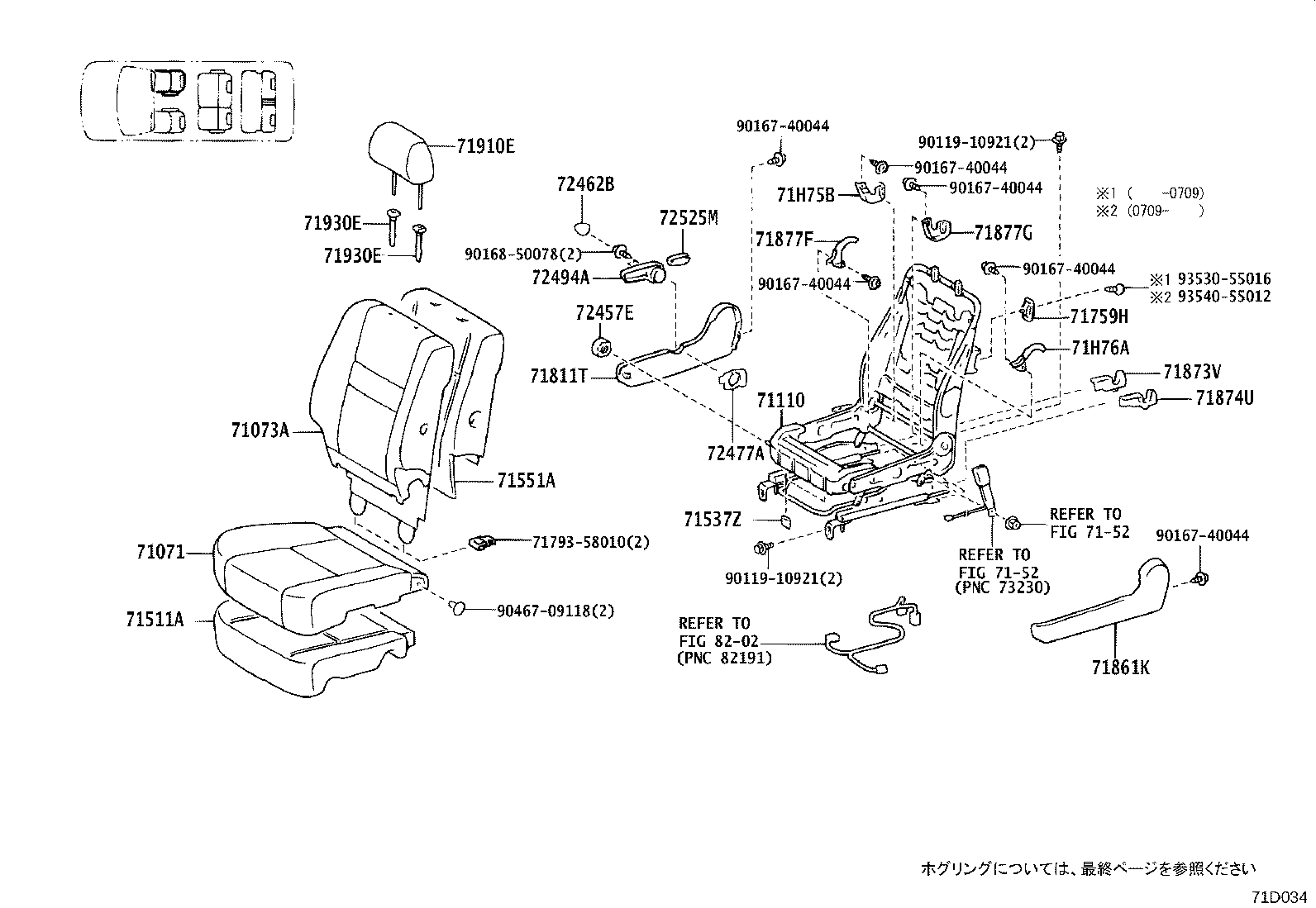

ILLUST NO. 1 OF 3(0307- )
ｳﾝﾃﾝｾｷｱﾘ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71071-58060A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71071-58050A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71071-58100A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-58080A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58090A1 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58131A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58121A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58130A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58120A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71073-58241A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71073-58230A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58231A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71073-58240A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-58051 |
ATH10 |
1 | ||
| 71110-58060 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71110-58061 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71110-58050 |
ATH10 |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71511-58030 |
ATH10 |
1 | ||
| 71511-58010 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-58051 |
ATH10 |
1 | ||
| 71551-58050 |
ATH10 |
1 | ||
| 71759H - HOOK, FRONT SEAT BACK | ||||
| 71759-28040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71759-28050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71811-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71811-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71861-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71861-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71873-58020 |
ATH10 |
1 | ||
| 71873-58010A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
ATH10 |
1 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71876-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H75B - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT BACK F | ||||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71875-58050 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71H76A - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT BACK F | ||||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71876-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72457E - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72457-58010A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-58020 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72462-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
ATH10 |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-58020 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72494-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72525-58030 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 93530-55016 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

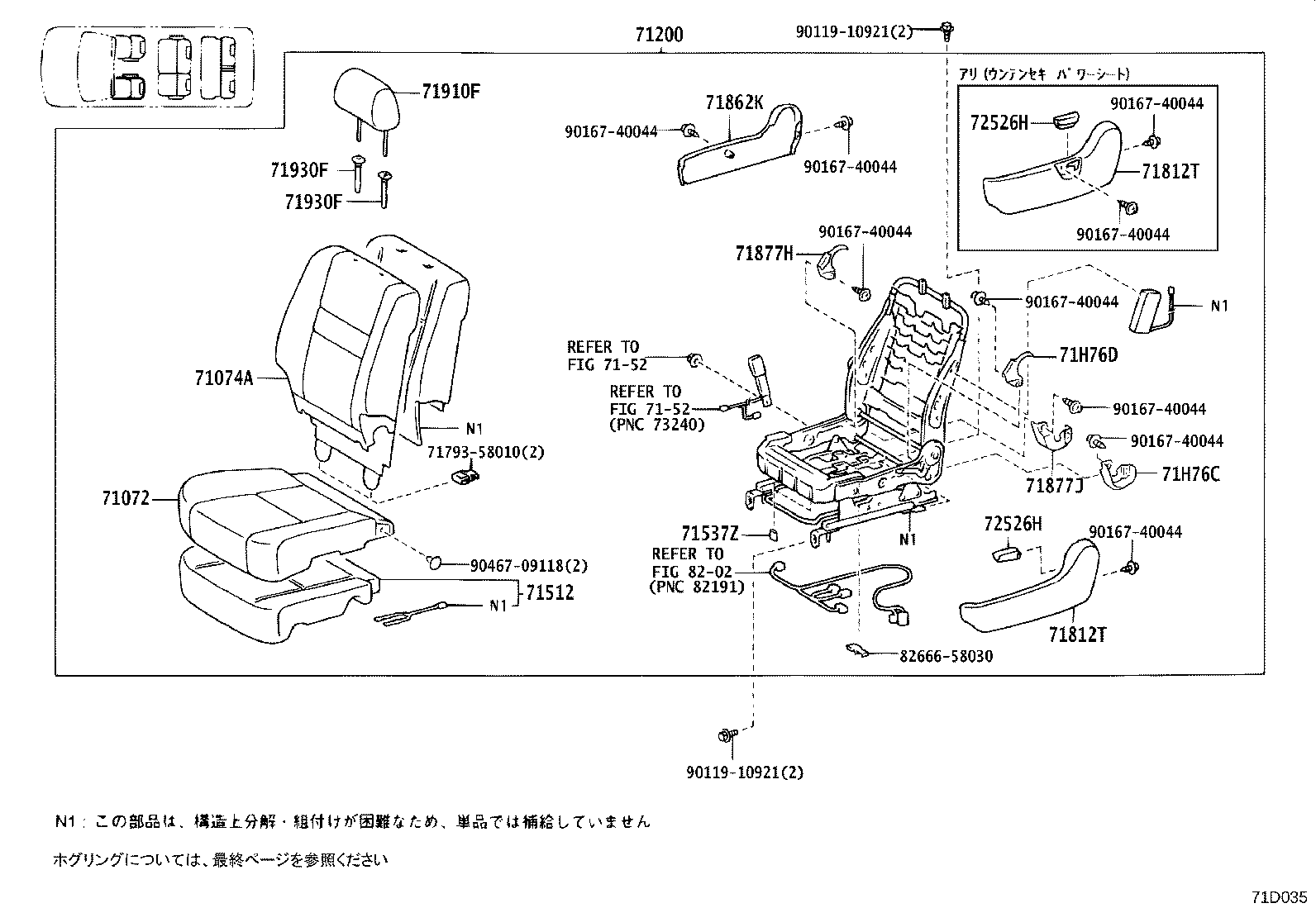

ILLUST NO. 2 OF 3(0307- )
ｼﾞｮｼｭｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71072-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71072-58120A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71072-58050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58100A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71074-58110A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58130A1 |
ATH10..08S SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58120A1 |
ATH10..08S IVORY,TRIM0# |
1 | ||
| 71074-58101A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71074-58111A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58271A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71074-58281A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58280A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58270A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71200 - SEAT ASSY, FRONT LH | ||||
| 71200-58160A1 |
ATH10..08S SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71200-58341A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71200-58351A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71200-58140A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71200-58340A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71200-58350A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71052-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71052-58030 |
ATH10 |
1 | ||
| 71052-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71812-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71812-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71812-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71812-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58030 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71862-58030A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71875-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,BLACK |
1 | ||
| 71875-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,BLACK |
1 | ||
| 71876-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 72526-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 72526-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 72526-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 72526-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90467-09118 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

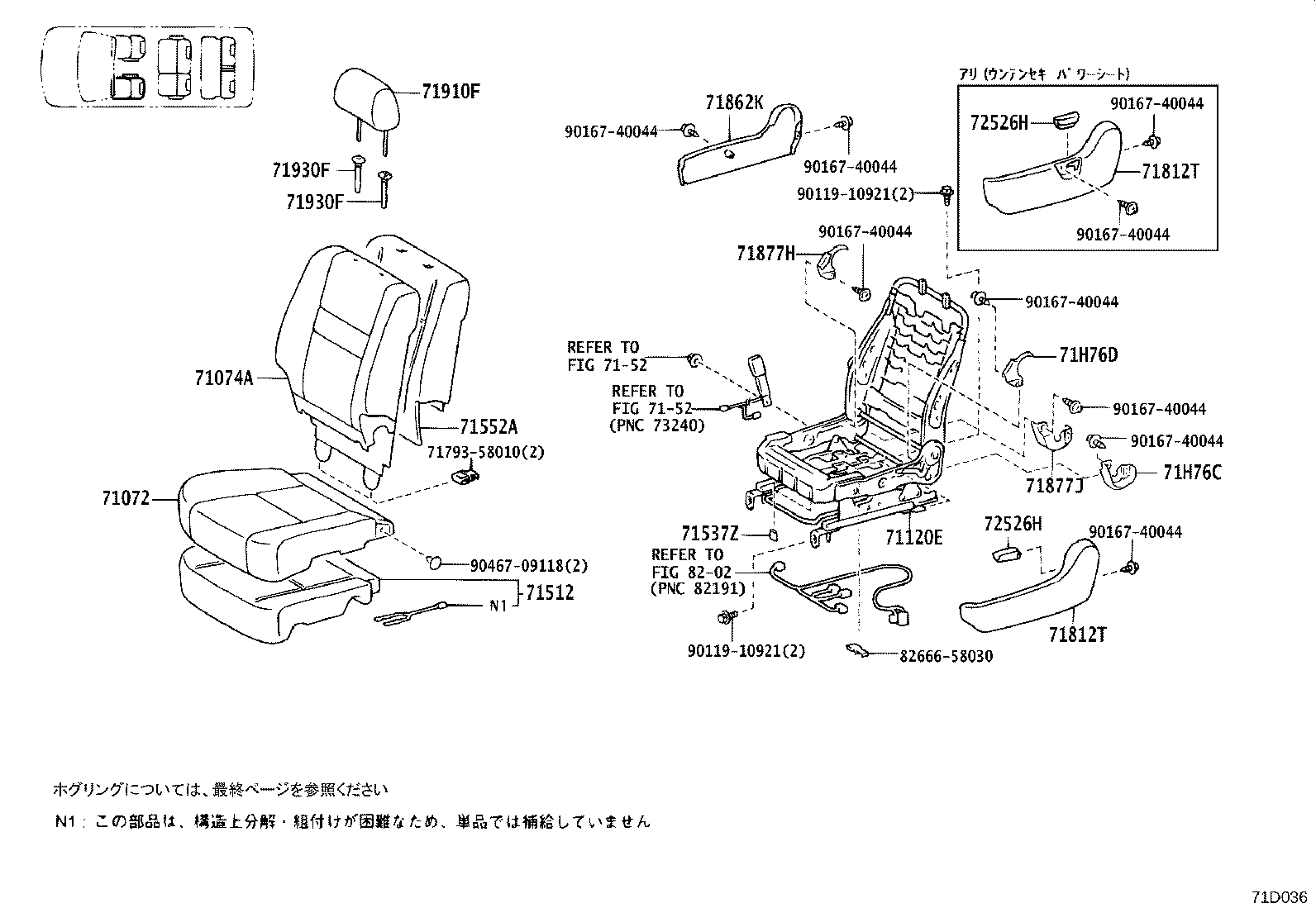

ILLUST NO. 2 OF 3(0307- )
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71072-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71072-58120A1 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71072-58050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-58100A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71074-58110A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58130A1 |
ATH10..08S SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58120A1 |
ATH10..08S IVORY,TRIM0# |
1 | ||
| 71074-58101A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71074-58111A2 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58271A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71074-58281A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58280A0 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71074-58270A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-58070 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71120-58051 |
ATH10 |
1 | ||
| 71120-58071 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71120-58050 |
ATH10 |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71052-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ |
1 | ||
| 71052-58030 |
ATH10 |
1 | ||
| 71052-58020 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71537Z - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
ATH10 |
4 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-58030 |
ATH10 |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71812-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71812-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71812-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71812-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71812-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-58030 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71862-58030A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71875-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71875-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,BLACK |
1 | ||
| 71875-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK |
1 | ||
| 71875-58060 |
ATH10 |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71910-58050A2 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58080A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71910-58060A3 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71930-52030A0 |
ATH10 ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,BLACK |
1 | ||
| 71876-58060C0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK |
1 | ||
| 71876-58060 |
ATH10 |
1 | ||
| 71H76D - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT BACK F | ||||
| 71876-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71876-58070A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 71876-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71876-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 72526-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 72526-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 72526-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 72526-58030A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ&SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ,IVORY,TRIM0# |
1 | ||
| 72526-58040 |
ATH10 SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90167-40044 | ||||
| 90467-09118 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

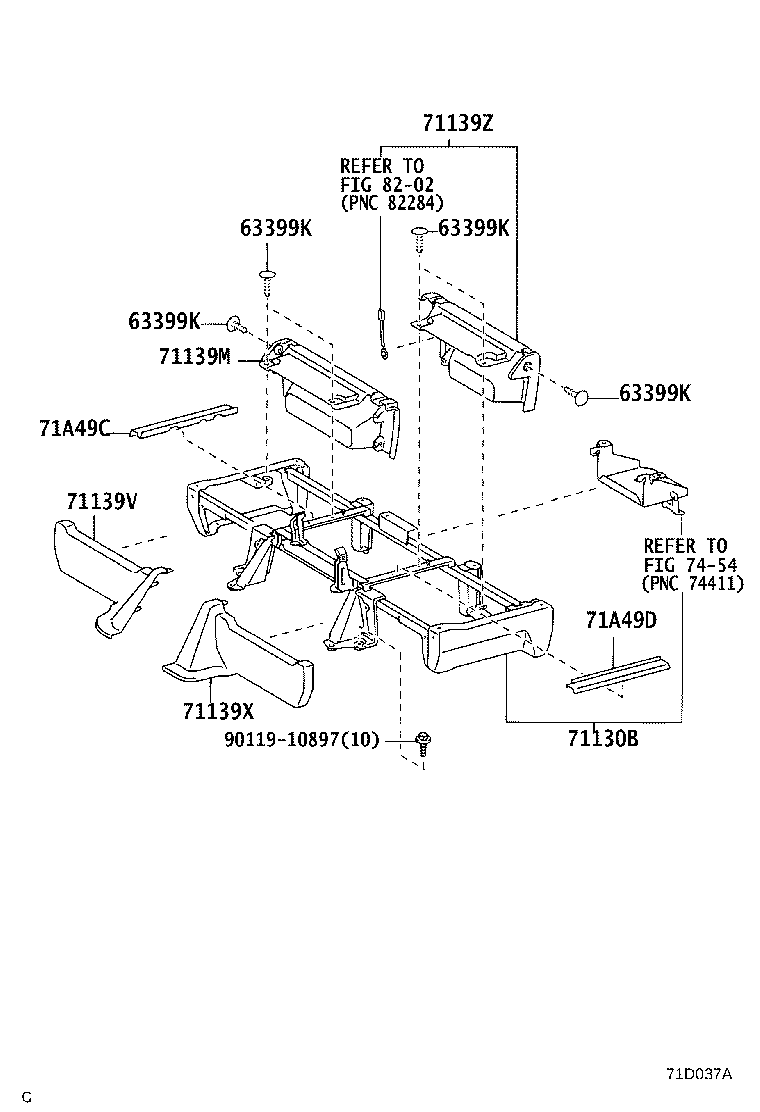

ILLUST NO. 3 OF 3(0307- )
ｳﾝﾃﾝｾｷ & ｼﾞｮｼｭｾｷ ｼｰﾄﾚｯｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63399K - CLIP, FRONT SEAT LEG COVER | ||||
| 63399-32010A0 |
ATH10 IVORY,TRIM0# |
6 | ||
| 63399K - CLIP, FRONT SEAT LEG COVER | ||||
| 63399-32010A0 |
ATH10 IVORY,TRIM0# |
6 | ||
| 63399K - CLIP, FRONT SEAT LEG COVER | ||||
| 63399-32010A0 |
ATH10 IVORY,TRIM0# |
6 | ||
| 63399K - CLIP, FRONT SEAT LEG COVER | ||||
| 63399-32010A0 |
ATH10 IVORY,TRIM0# |
6 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-58090A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71139-58060A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71139V - COVER, FRONT SEAT LEG NO.1 | ||||
| 71139-58040A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71139-58080A0 |
ATH10 G ｴﾃﾞｨｼｮﾝ,IVORY,TRIM0# |
1 | ||
| 71139X - COVER, FRONT SEAT LEG NO.2 | ||||
| 71139-58050A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71139Z - COVER, FRONT SEAT LEG, LH | ||||
| 71139-58070A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71A49C - COVER, FRONT SEAT LEG, INNER NO.1(FOR RH SEAT) | ||||
| 71149-58010A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| 71A49D - COVER, FRONT SEAT LEG, INNER NO.1(FOR LH SEAT) | ||||
| 71149-58020A0 |
ATH10 IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90119-10897 | ||||
| Linked diagrams | ||||
| 7454 | ||||
| 8202 | ||||
(0307- )

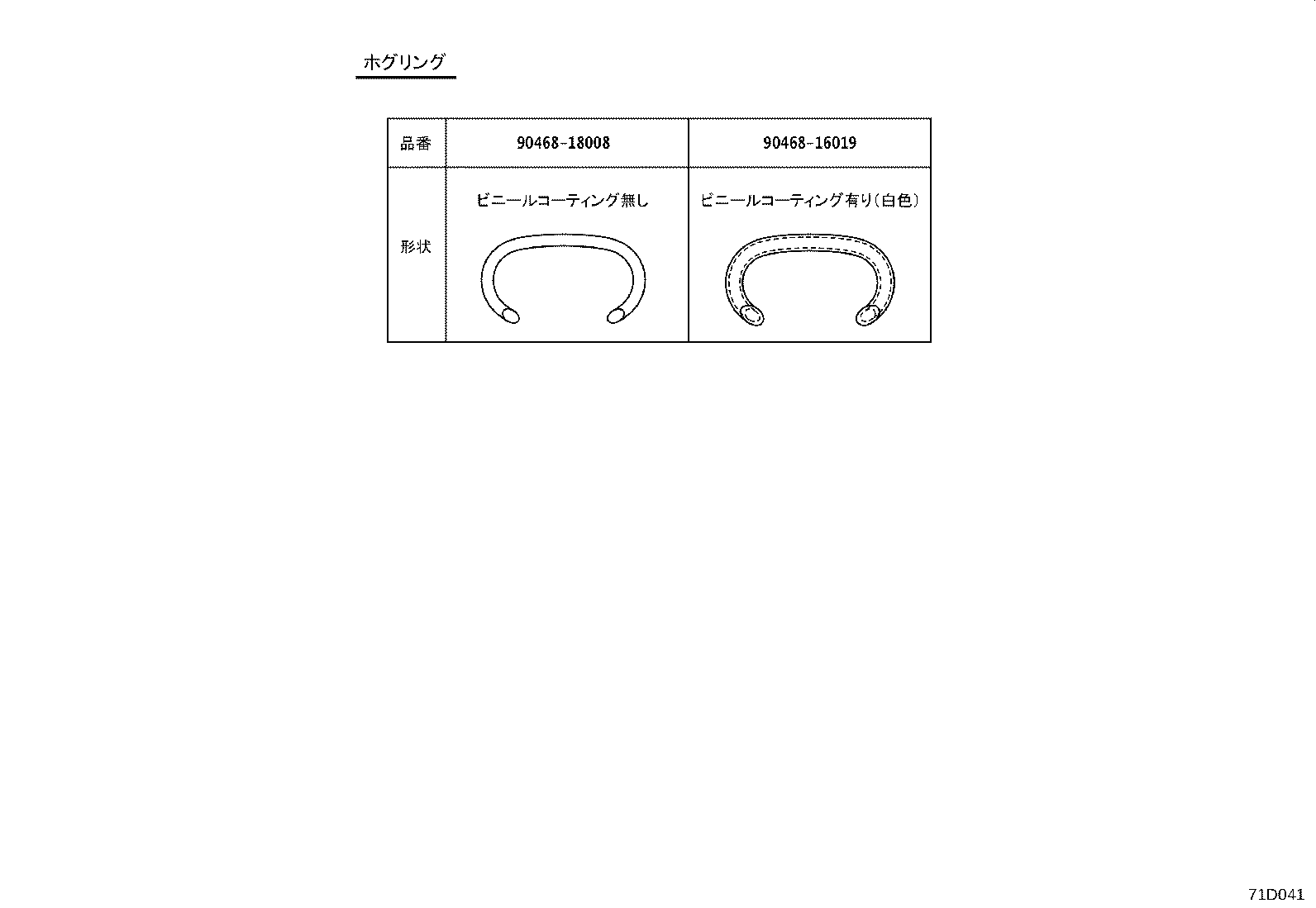

ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
