ATH10W-PRXGB (2003)

Toyota Alphard Hv

Production Jul 2003 - Apr 2008
Engine 2AZFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

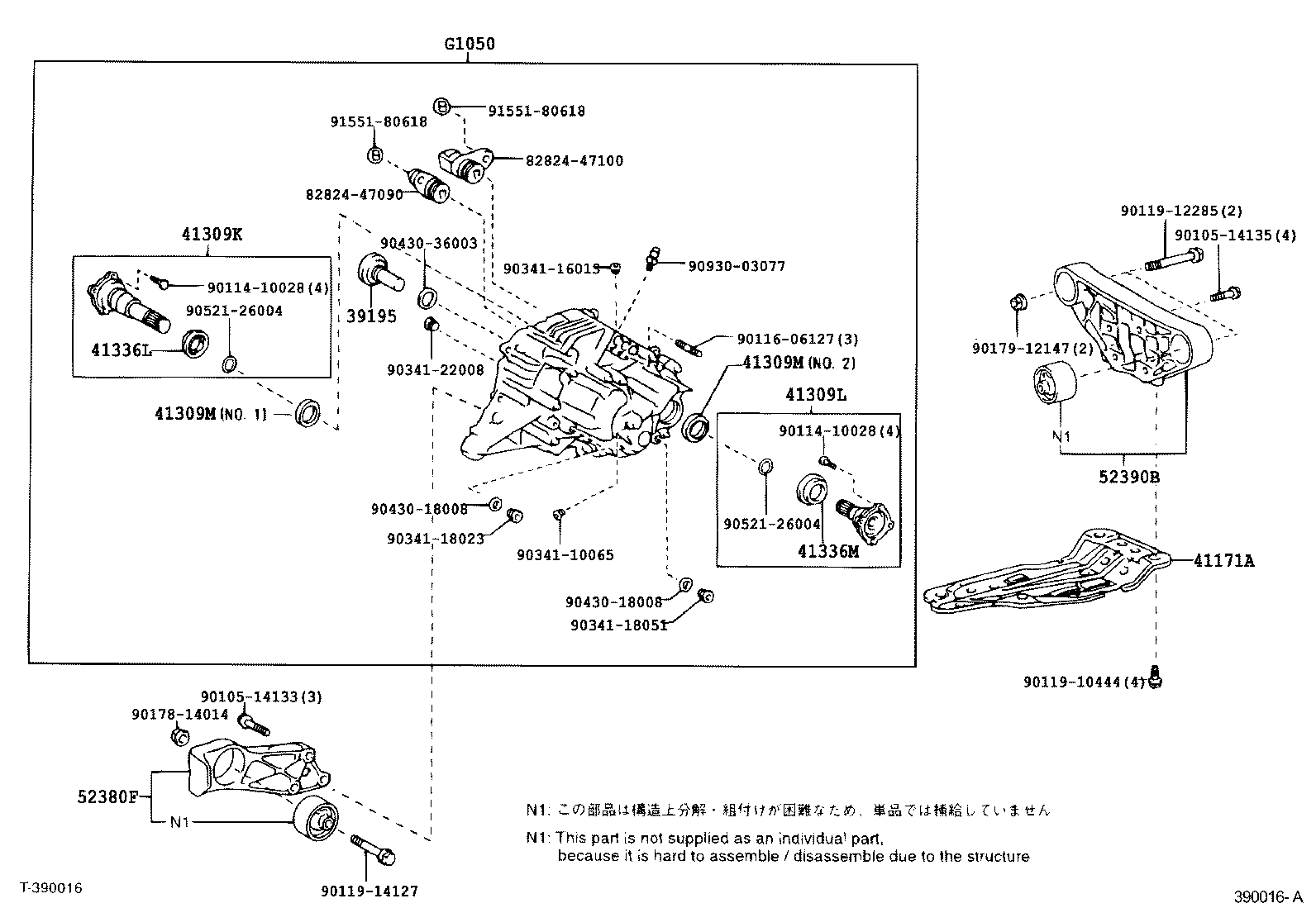

ILLUST NO. 2 OF 2(0307- )

Click highlighted areas on diagram

ﾘﾔ ﾄﾗﾝｽ ｱｸｽﾙ

diagram 39195 41171A 41309K 41309L 41309M 41309M 41336L 41336M 52380F 52390B 8282447090 8282447100 9010514133 9010514135 9011410028 9011410028 9011606127 9011910444 9011912285 9011914127 9017814014 9017912147 9034110065 9034116013 9034118023 9034118051 9034122008 9043018008 9043018008 9043036003 9052126004 9052126004 9093003077 9155180618 9155180618 G1050
Part # Description Qty Price
39195 - DAMPER, HV TRANSAXLE MASS
39195-28011

ATH10

 2
41171A - PROTECTOR, DIFFERENTIAL
41170-28010

ATH10

 1
41309K - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41309-28060

ATH10

 2
41309L - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH
41309-28050

ATH10

 2
41309M - SEAL, OIL(FOR REAR TRANSAXLE SIDE GEAR)
90311-38085

ATH10

NO.1

 2
90311-42038

ATH10

NO.2

 2
41309M - SEAL, OIL(FOR REAR TRANSAXLE SIDE GEAR)
90311-38085

ATH10

NO.1

 2
90311-42038

ATH10

NO.2

 2
41336L - DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, RH
41336-28050

ATH10

 2
41336M - DUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH
41336-28040

ATH10

 2
52380F - SUPPORT ASSY, DIFFERENTIAL, FRONT
52380-28040

ATH10

 1
52380-28041

ATH10

 1
52390B - SUPPORT ASSY, DIFFERENTIAL, REAR
52390-28020

ATH10

 1
G1050 - MOTOR ASSY, RR TRACTION W/TRANSAXLE
G1050-58020

ATH10

 1
G1050-58021

ATH10

 1
Common parts
82824-47090
82824-47100
90105-14133
90105-14135
90114-10028
90116-06127
90119-10444
90119-12285
90119-14127
90178-14014
90179-12147
90341-10065
90341-16013
90341-18023
90341-18051
90341-22008
90430-18008
90430-36003
90521-26004
90930-03077
91551-80618

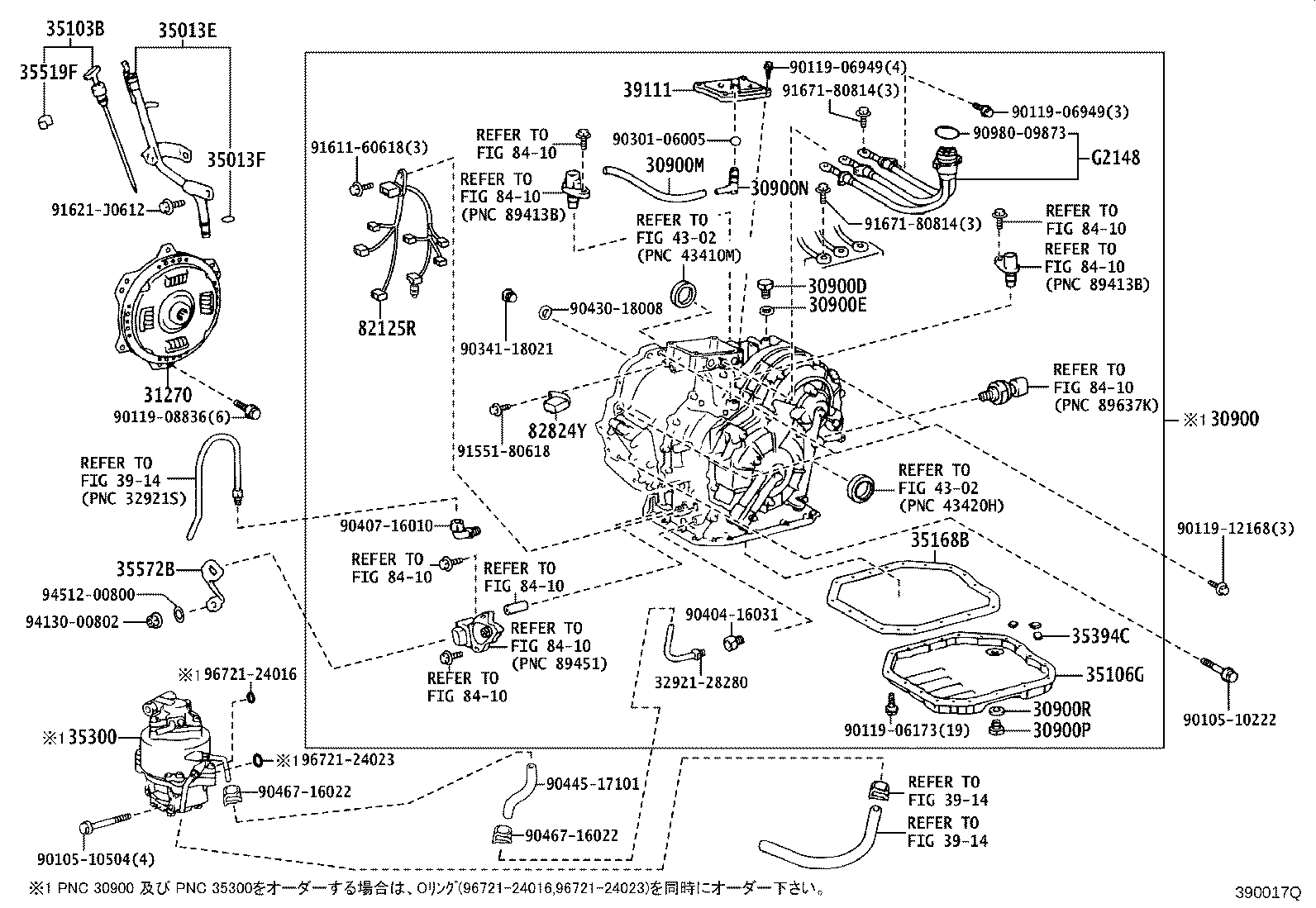

ILLUST NO. 1 OF 2(0307- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾄﾗﾝｽ ｱｸｽﾙ

diagram 30900 30900D 30900E 30900M 30900N 30900P 30900R 31270 3292128280 35013E 35013F 35103B 35106G 35168B 35300 35394C 35519F 35572B 39111 3914 3914 3914 4302 4302 82125R 82824Y 8410 8410 8410 8410 8410 8410 8410 8410 8410 9010510222 9010510504 9011906173 9011906949 9011906949 9011908836 9011912168 9030106005 9034118021 9040416031 9040716010 9043018008 9044517101 9046716022 9046716022 9098009873 9155180618 9161160618 91621J0612 9167180814 9167180814 9413000802 9451200800 9672124016 9672124023 G2148
Part # Description Qty Price
30900 - TRANSAXLE ASSY, HYBRID VEHICLE
30900-58030

ATH10

 1
30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS
90341-18006

ATH10

 1
90341-18061

ATH10

 1
30900E - GASKET(FOR TRANSAXLE HOUSING & CASE)
90430-18008

ATH10

 1
30900M - HOSE(FOR TRANSAXLE)
35121-58010

ATH10

 1
30900N - PLUG, BREATHER(FOR TRANSAXLE)
90930-03164

ATH10

 1
30900P - PLUG, DRAIN(HV)
90341-18016

ATH10

 1
30900R - GASKET, DRAIN PLUG(HV)
90430-18008

ATH10

 1
31270 - DAMPER ASSY, TRANSMISSION INPUT
31270-28010

ATH10

 1
35013E - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-28160

ATH10

 1
35013F - RING, O(FOR TRANSEAXLE GAGE)
90301-09173

ATH10

 1
35103B - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-28180

ATH10

 1
35106G - PAN SUB-ASSY, TRANSAXLE OIL
35106-63010

ATH10

 1
35168B - GASKET, TRANSAXLE OIL PAN
35168-63010

ATH10

 1
35300 - PUMP ASSY, OIL W/MOTOR
35300-28012

ATH10

 1
35394C - MAGNET, OIL CLEANER
35394-30011

ATH10

 3
35519F - LABEL, AUTOMATIC TRANS INFORMATION
35519-63010

ATH10

 1
35572B - LEVER, TRANSMISSION, OUTER
35572-28110

ATH10

 1
39111 - COVER, POWER CABLE
39111-28010

ATH10

 2
82125R - WIRE, TRANSMISSION
82125-28190

ATH10

 1
82824Y - CONNECTOR, WIRING HARNESS(FOR GENERATOR)
82824-47110

ATH10

 2
G2148 - CABLE, GENERATOR
G1148-28011

ATH10

 2
Common parts
32921-28280
90105-10222
90105-10504
90119-06173
90119-06949
90119-08836
90119-12168
90301-06005
90341-18021
90404-16031
90407-16010
90430-18008
90445-17101
90467-16022
90980-09873
91551-80618
91611-60618
91621-J0612
91671-80814
94130-00802
94512-00800
96721-24016
96721-24023
Linked diagrams
3914
4302
8410
