Toyota Alphard hv ATH10 RADIATOR GRILLE

ATH10W-PFXGB (2003)

Toyota Alphard Hv

Production Jul 2003 - Apr 2008

Engine 2AZFXE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0307-0504)

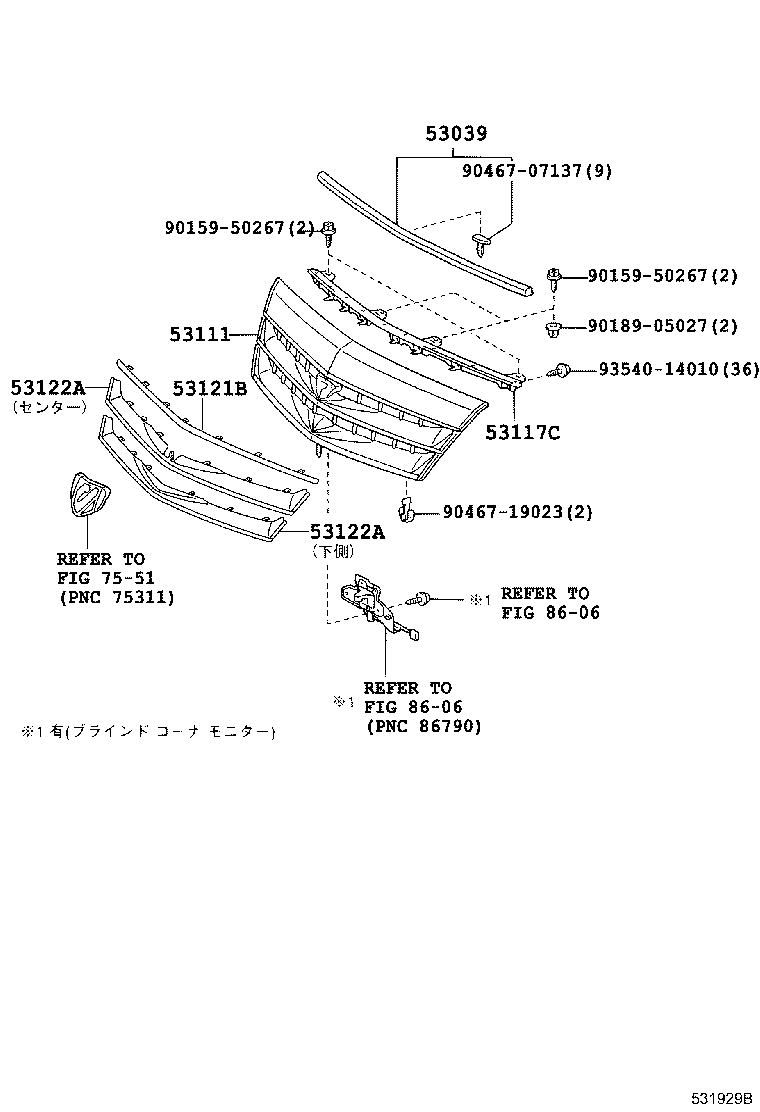

Click highlighted areas on diagram

Part #	Description	Period	Qty
53039 - SEAL, RADIATOR, UPPER
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53039-58020	ATH10	07/2003 - 12/2999	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-58050K0	ATH10 LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58050C0	ATH10 BLACK MC.,209	07/2003 - 04/2005	1
53111-58060A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,WHITE PM.,042	07/2003 - 04/2005	1
53111-58050B0	ATH10 SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060B0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,WHITE PM.,042	07/2003 - 04/2005	1
53111-58050A0	ATH10 WHITE PM.,042	07/2003 - 04/2005	1
53111-58060K0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58110A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,WHITE PM.,042	04/2005 - 04/2008	1
53111-58060J0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58060C0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,BLACK MC.,209	07/2003 - 04/2005	1
53111-58060J0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58110B1	ATH10 SILVER ME.,1F7	04/2005 - 04/2008	1
53111-58110J0	ATH10 PALE BLUE M.M.,8R0	04/2005 - 04/2008	1
53111-58110C0	ATH10 BLACK MC.,209	04/2005 - 04/2008	1
53111-58110A0	ATH10 WHITE PM.,042	04/2005 - 06/2007	1
53111-58060B0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060C0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,BLACK MC.,209	07/2003 - 04/2005	1
53111-58110A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,WHITE PM.,042	04/2005 - 04/2008	1
53111-58110G0	ATH10 LT.OLIVE M.M.,6T1	04/2005 - 04/2008	1
53111-58060K0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58050J0	ATH10 PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58110A1	ATH10 WHITE PEARL CS.,070	06/2007 - 04/2008	1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-58020	ATH10	07/2003 - 12/2999	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-58010	ATH10	07/2003 - 04/2005	1
53121-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53121-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53121-58020	ATH10	04/2005 - 12/2999	1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-58010	ATH10	07/2003 - 04/2005	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53123-58030	ATH10 下側	04/2005 - 12/2999	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53122-58020	ATH10 ｾﾝﾀ	04/2005 - 12/2999	1
Common parts
90159-50267
90189-05027
90467-07137
90467-19023
93540-54010
Linked diagrams
7551
8606

(0504- )

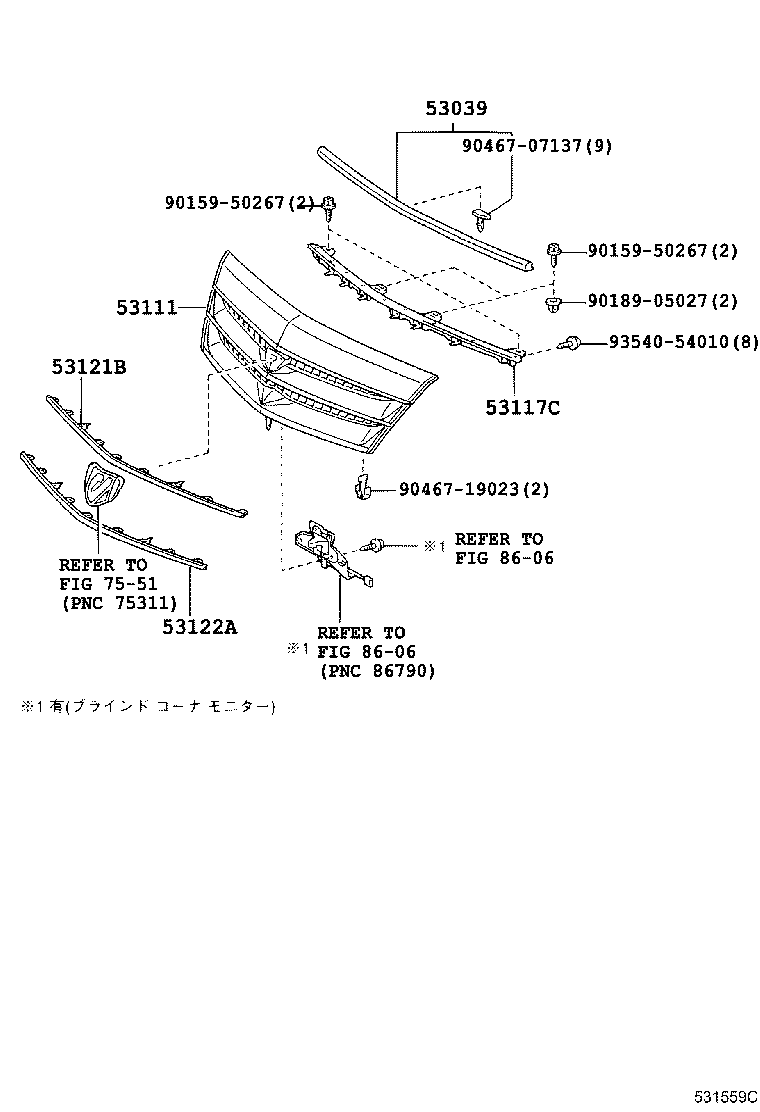

Click highlighted areas on diagram

Part #	Description	Period	Qty
53039 - SEAL, RADIATOR, UPPER
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53039-58020	ATH10	07/2003 - 12/2999	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53039-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53111 - GRILLE, RADIATOR
53111-58050K0	ATH10 LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58050C0	ATH10 BLACK MC.,209	07/2003 - 04/2005	1
53111-58060A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,WHITE PM.,042	07/2003 - 04/2005	1
53111-58050B0	ATH10 SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060B0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,WHITE PM.,042	07/2003 - 04/2005	1
53111-58050A0	ATH10 WHITE PM.,042	07/2003 - 04/2005	1
53111-58060K0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58110A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,WHITE PM.,042	04/2005 - 04/2008	1
53111-58060J0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58060C0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,BLACK MC.,209	07/2003 - 04/2005	1
53111-58060J0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58110B1	ATH10 SILVER ME.,1F7	04/2005 - 04/2008	1
53111-58110J0	ATH10 PALE BLUE M.M.,8R0	04/2005 - 04/2008	1
53111-58110C0	ATH10 BLACK MC.,209	04/2005 - 04/2008	1
53111-58110A0	ATH10 WHITE PM.,042	04/2005 - 06/2007	1
53111-58060B0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,SILVER ME.,1C0	07/2003 - 04/2005	1
53111-58060C0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,BLACK MC.,209	07/2003 - 04/2005	1
53111-58110A0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ,WHITE PM.,042	04/2005 - 04/2008	1
53111-58110G0	ATH10 LT.OLIVE M.M.,6T1	04/2005 - 04/2008	1
53111-58060K0	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ,LT.PURPLE ME.,942	07/2003 - 04/2005	1
53111-58050J0	ATH10 PALE BLUE M.M.,8R0	07/2003 - 04/2005	1
53111-58110A1	ATH10 WHITE PEARL CS.,070	06/2007 - 04/2008	1
53117C - RETAINER, RADIATOR GRILLE, NO.1
53117-58020	ATH10	07/2003 - 12/2999	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53117-58020	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	04/2005 - 12/2999	1
53121B - MOULDING, RADIATOR GRILLE, UPPER
53121-58010	ATH10	07/2003 - 04/2005	1
53121-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53121-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53121-58020	ATH10	04/2005 - 12/2999	1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-58010	ATH10	07/2003 - 04/2005	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53123-58030	ATH10 下側	04/2005 - 12/2999	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53122-58020	ATH10 ｾﾝﾀ	04/2005 - 12/2999	1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-58010	ATH10	07/2003 - 04/2005	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 10ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53123-58030	ATH10 下側	04/2005 - 12/2999	1
53122-58010	ATH10 ｵｰﾃﾞｨｵ−ﾃﾞｨｽﾌﾟﾚｲ一体式 6ｽﾋﾟｰｶ	07/2003 - 04/2005	1
53122-58020	ATH10 ｾﾝﾀ	04/2005 - 12/2999	1
Common parts
90159-50267
90189-05027
90467-07137
90467-19023
93540-14010
Linked diagrams
7551
8606
