MNH15W-PRPSK (2002)
Toyota Alphard G/V
ILLUST NO. 1 OF 6(0205-0504)

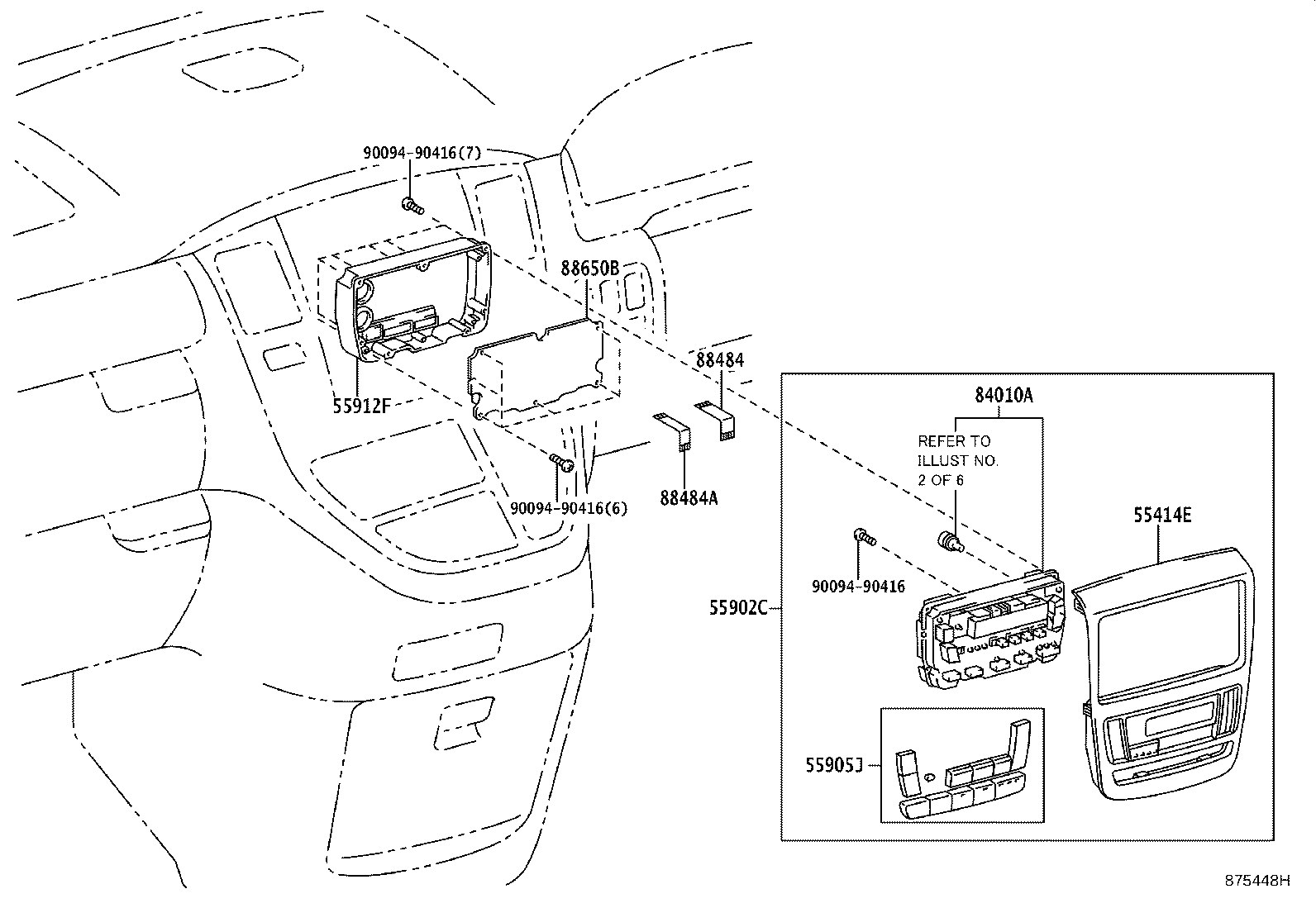

ﾌﾛﾝﾄﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55414E - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55414-58020 |
MNH1#..MZ |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55414-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55414-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55902-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55902-58030 |
MNH1#..MZ |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58030 |
MNH1#..MZ |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55905-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55905-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55912F - HOUSING, HEATER CONTROL | ||||
| 55912-58040 |
MNH1#..MZ |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 55912-58030 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 55912-58040 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 84010A - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84012-58010 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 84012-58020 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 84012-58030 |
MNH1#..MZ |
1 | ||
| 88484 - WIRE, COOLER, NO.1 | ||||
| 88484-58020 |
ANH1#,MNH1# |
1 | ||
| 88484A - WIRE, COOLER, NO.1 | ||||
| 88484-58030 |
MNH1#..MZ |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様 |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88484-58030 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-58020 |
MNH1#..4FC..MZ |
1 | ||
| 88650-58030 |
ANH1#,MNH1#..4FC 寒冷地仕様 |
1 | ||
| 88650-58010 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) |
1 | ||
| 88650-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58030 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88650-58021 |
MNH1#..MZ |
1 | ||
| 88650-58031 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 88650-58021 |
ANH1#,MNH1#..AS,AX,MS,MX ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58011 |
ANH1#,MNH1#..AS,AX,MS,MX |
1 | ||
| 88650-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) ｸﾘｱﾗﾝｽｿﾅｰ&ﾊﾞｯｸｿﾅｰ有り |
1 | ||
| 88650-58020 |
ANH1#,MNH1#..4FC..(AS,AX,MS,MX) 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88650-58031 |
ANH1#,MNH1#..AS,AX,MS,MX 寒冷地仕様&有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| 88650-58021 |
ANH1#,MNH1#..AS,AX,MS,MX 有り(音声案内&ｸﾘｱﾗﾝｽｿﾅｰ) |
1 | ||
| Common parts | ||||
| 90094-90416 | ||||
ILLUST NO. 3 OF 6(0205- )
ﾘﾔﾋ-ﾀ ｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

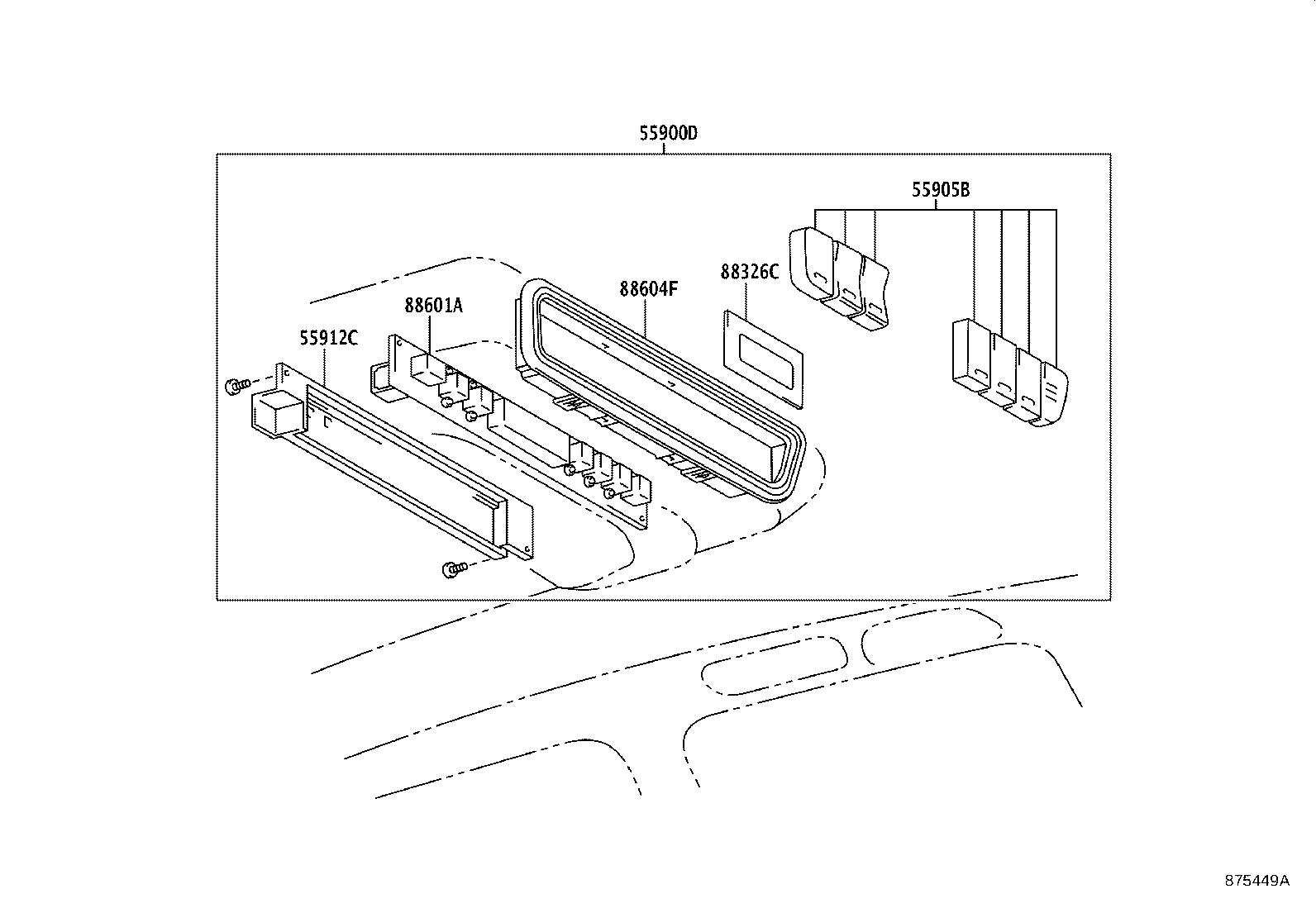

| 55900D - CONTROL ASSY, AIR CONDITIONER, NO.2 | ||||
| 84010-58020B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 84010-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 84010-58020A0 |
ANH1#,MNH1#..AX,MX,MZ 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 84010-58020A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 84010-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 84010-58020B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-58050A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 55905-58040B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 55905-58050A0 |
ANH1#,MNH1#..AX,MX,MZ 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 55905-58050B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 55905-58040A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 55905-58050B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 55912C - HOUSING, HEATER CONTROL | ||||
| 55912-58010 |
ANH1#,MNH1# |
1 | ||
| 88326C - PLATE, COVER | ||||
| 88326-58010 |
ANH1#,MNH1# |
1 | ||
| 88601A - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 84012-58050 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 84012-58040 |
ANH1#,MNH1# |
1 | ||
| 84012-58050 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88604F - PANEL SUB-ASSY, COOLER CONTROL | ||||
| 87491-58020B0 |
ANH1#,MNH1#..4FC..(AS,MS) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
| 87491-58020A0 |
ANH1#,MNH1#..4FC..(AX,MX,MZ) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 87491-58010A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 87491-58020A0 |
ANH1#,MNH1#..AX,MX,MZ 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),IVORY,TRIM0# |
1 | ||
| 87491-58010B0 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
1 | ||
| 87491-58020B0 |
ANH1#,MNH1#..AS,MS 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ),LT.GRAY,TRIM1# |
1 | ||
ILLUST NO. 4 OF 6(0205- )

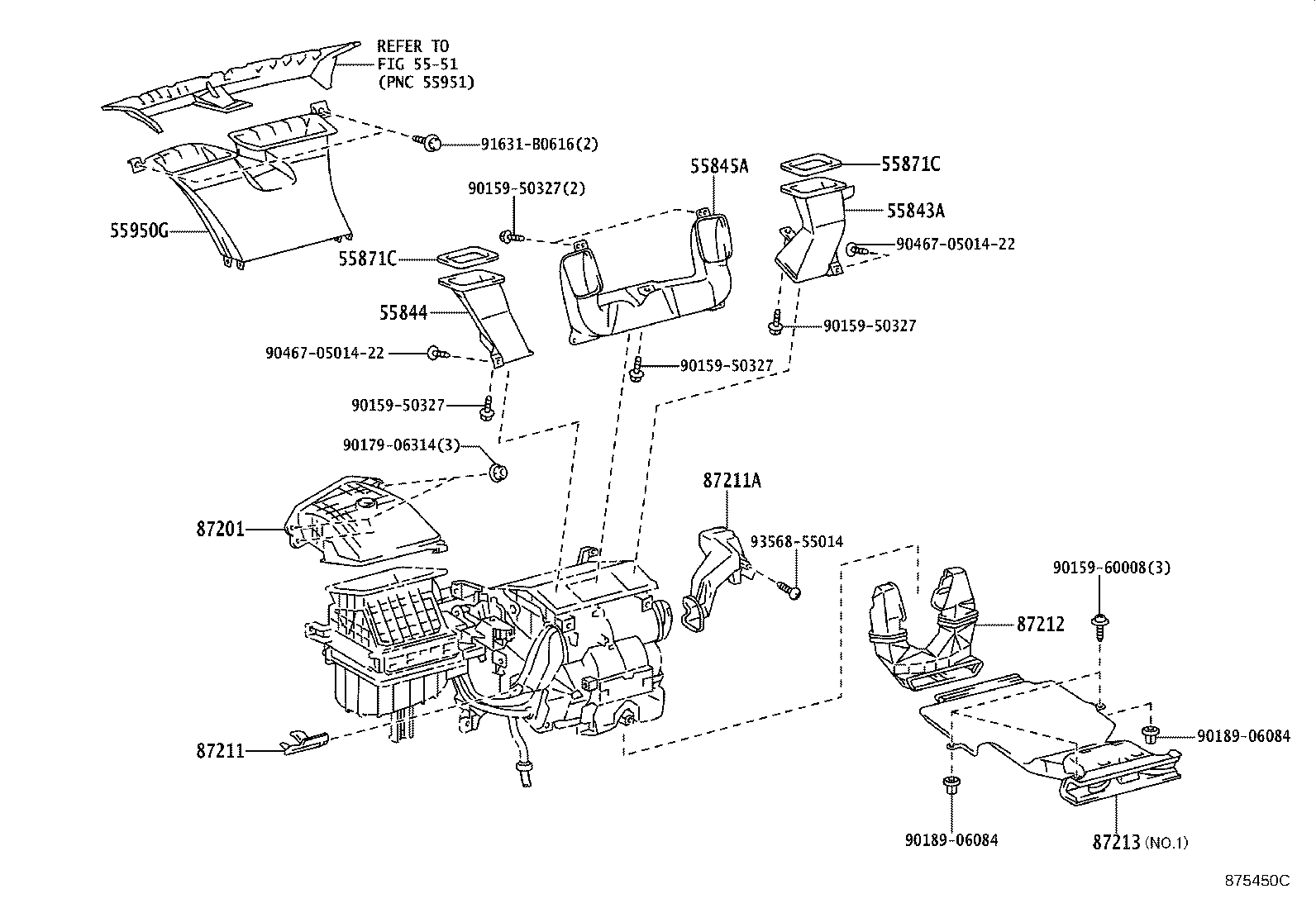

ﾌﾛﾝﾄ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-58010 |
ANH1#,MNH1# |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-58010 |
ANH1#,MNH1# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-58010 |
ANH1#,MNH1# |
1 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-58010 |
ANH1#,MNH1# |
2 | ||
| 55871C - SEAL, AIR DUCT | ||||
| 55871-58010 |
ANH1#,MNH1# |
2 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-58010 |
ANH1#,MNH1# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-58010 |
ANH1#,MNH1# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-58040 |
ANH1#,MNH1# 寒冷地仕様 |
1 | ||
| 87211-58030 |
ANH1#,MNH1# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-58010 |
ANH1#,MNH1# |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-58010 |
ANH1#,MNH1# |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-58010 |
ANH1#,MNH1# NO.2 |
1 | ||
| 87212-58020 |
ANH1#,MNH1# NO.1 |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90159-60008 | ||||
| 90179-06314 | ||||
| 90189-06084 | ||||
| 90467-0501422 | ||||
| 91631-B0616 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 5 OF 6(0205- )

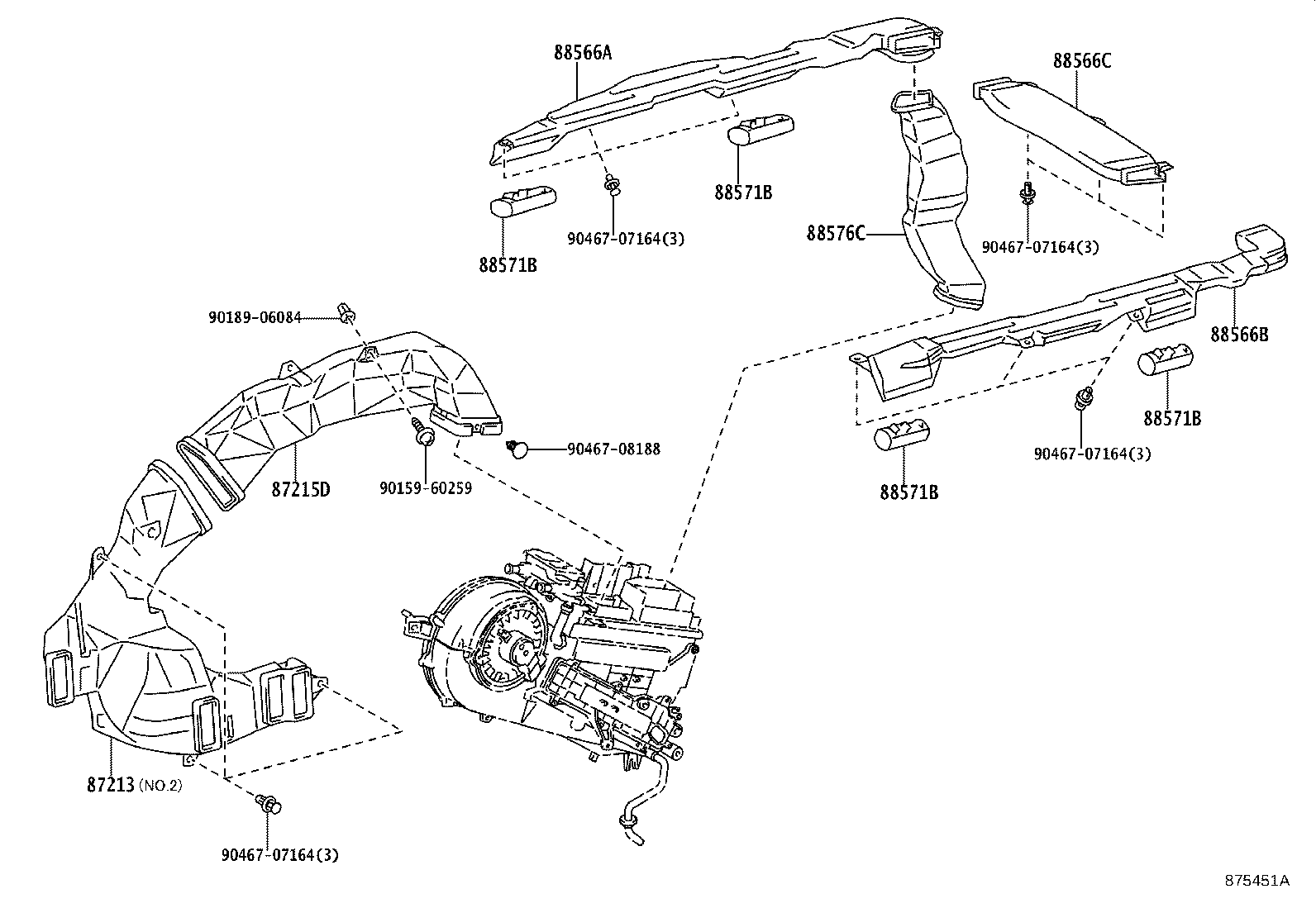

ﾘﾔ ｴｱﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-58010 |
ANH1#,MNH1# NO.2 |
1 | ||
| 87212-58020 |
ANH1#,MNH1# NO.1 |
1 | ||
| 87215D - DUCT, AIR, REAR NO.4 | ||||
| 87215-58010 |
ANH1#,MNH1# |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-58010 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566-58040 |
ANH1#,MNH1# |
1 | ||
| 88566-58010 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566B - DUCT, COOLER AIR, NO.2 | ||||
| 88566-58050 |
ANH1#,MNH1# |
1 | ||
| 88566-58020 |
ANH1#,MNH1# 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566-58020 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566C - DUCT, COOLER AIR, NO.3 | ||||
| 88566-58030 |
ANH1#,MNH1#..4FC 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566-58030 |
MNH15..08S;ANH1#,MNH10;MNH15..07S..(MX,MZ) 有り(ﾂｲﾝﾑｰﾝﾙｰﾌ) |
1 | ||
| 88566-58060 |
ANH1#,MNH1# |
1 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-28110A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 88571-28110B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-28110A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 88571-28110B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-28110A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 88571-28110B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-28110A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
4 | ||
| 88571-28110B3 |
ANH1#,MNH1#..AS,MS LT.GRAY,TRIM1# |
4 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-58010 |
ANH1#,MNH1# |
1 | ||
| Common parts | ||||
| 90159-60259 | ||||
| 90189-06084 | ||||
| 90467-07164 | ||||
| 90467-08188 | ||||
ILLUST NO. 6 OF 6(0205- )

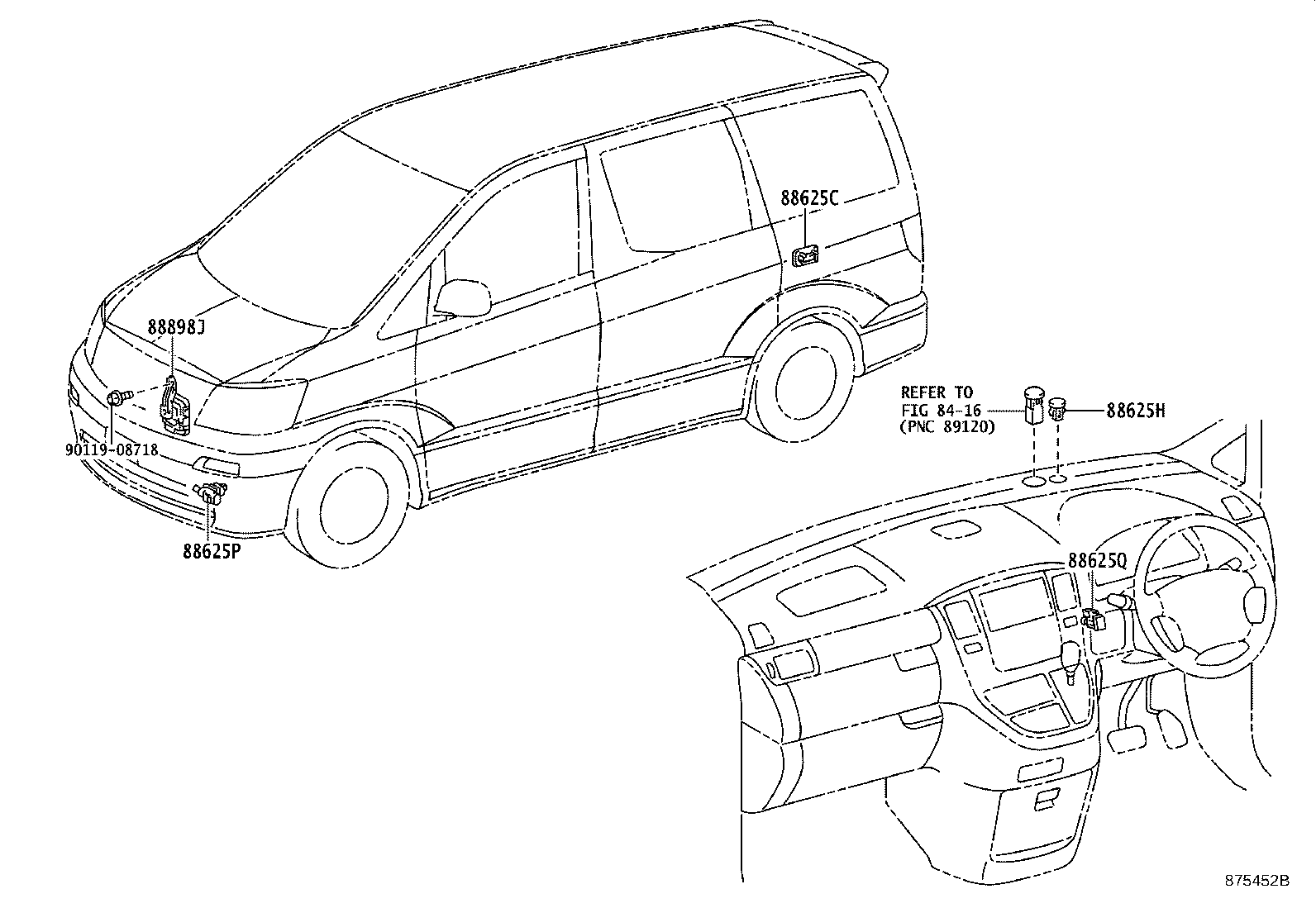

ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-34040A0 |
ANH1#,MNH1#..AX,MX,MZ IVORY,TRIM0# |
1 | ||
| 88625-34040B1 |
ANH1#,MNH1#..AS,MS STONE,TRIM1# |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
ANH1#,MNH1# |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ANH1#,MNH1# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-58020 |
ANH1#,MNH1# |
1 | ||
| 88898J - SENSOR, SMOG VENTILATION | ||||
| 88898-58010 |
MNH1#..MZ |
1 | ||
| Common parts | ||||
| 90119-08718 | ||||
| Linked diagrams | ||||
| 8416 | ||||
ILLUST NO. 2 OF 6(0205-0504)
ﾌﾛﾝﾄﾋｰﾀ ｺﾝﾄﾛｰﾙ--ﾊﾞﾙﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

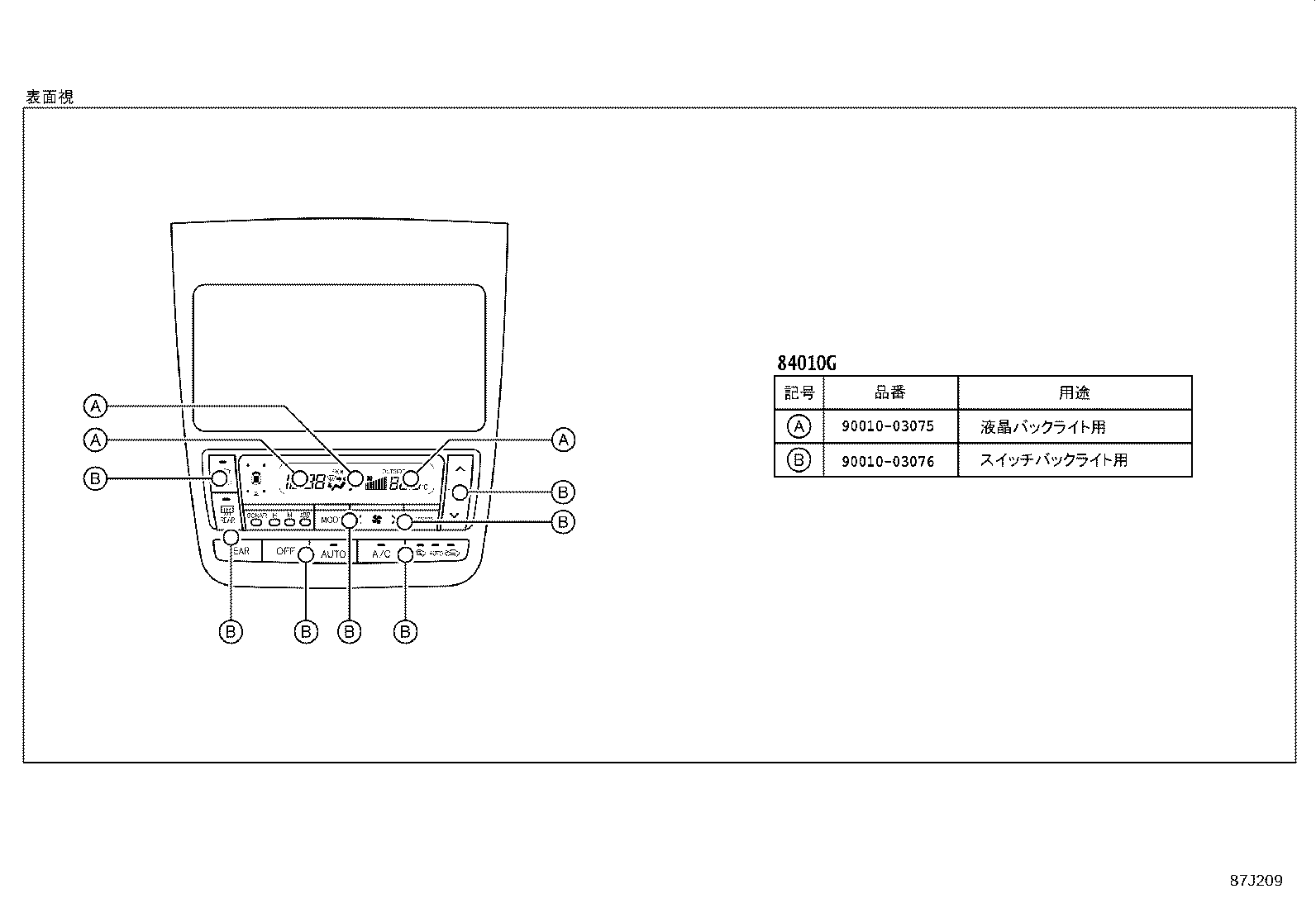

| 84010G - BULB, INTEGRATION CONTROL & PANEL | ||||
| 90010-03076 |
ANH1#,MNH1# 14V 0.84W,TYPE B:ｲﾗｽﾄ参照 |
7 | ||
| 90010-03075 |
ANH1#,MNH1# 14V 0.84W,TYPE A:ｲﾗｽﾄ参照 |
3 | ||
