MNH15W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

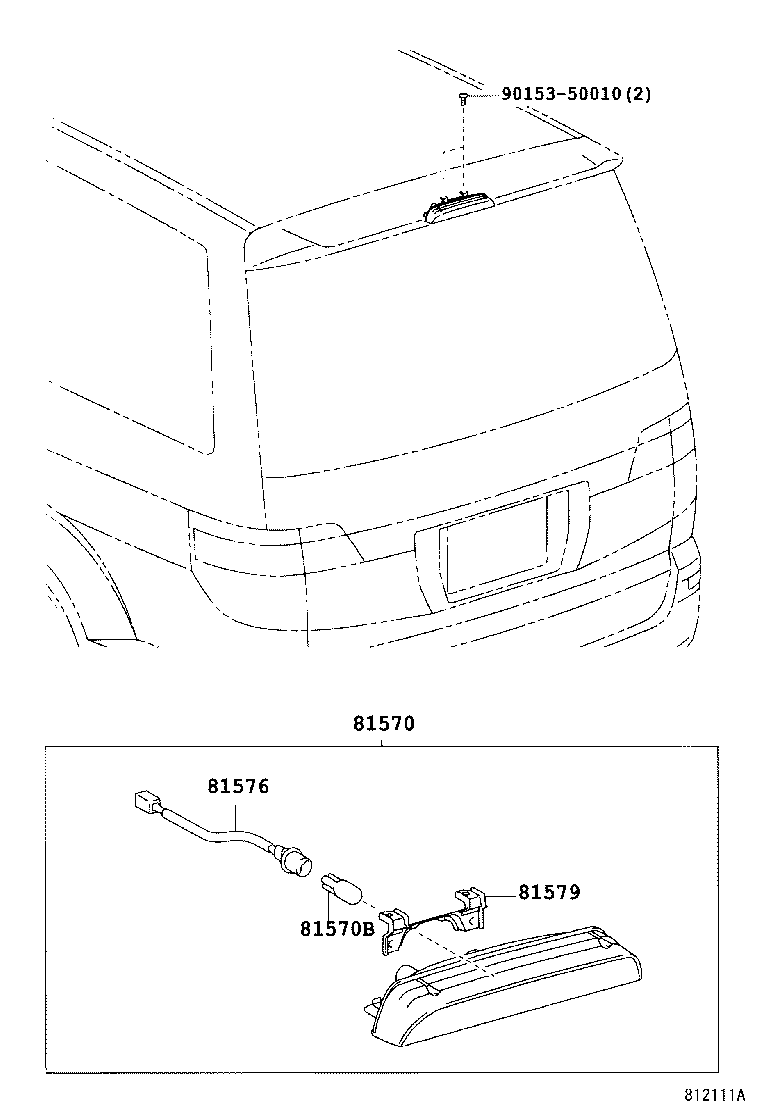

Click highlighted areas on diagram

diagram 81570 81570B 81576 81579 9015350010
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-58010

ANH1#,MNH1#

 1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11055

ANH1#,MNH1#

12V 16W

 1
81576 - SOCKET & WIRE, CENTER STOP LAMP
81576-58010

ANH1#,MNH1#

 1
81579 - BRACKET, CENTER STOP LAMP
81577-58010

ANH1#,MNH1#

 1
Common parts
90153-50010
