MNH15W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

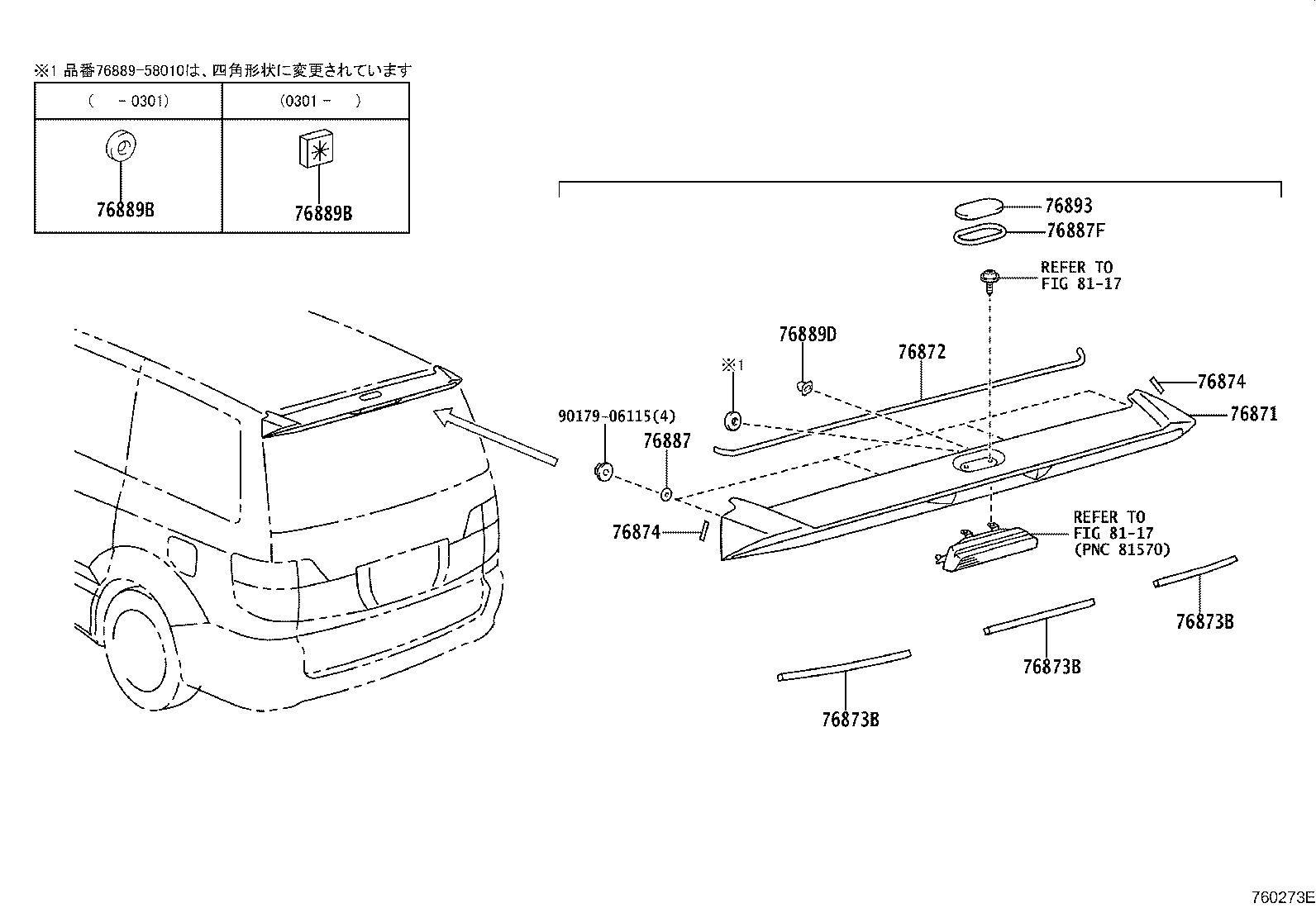

ILLUST NO. 2 OF 2(0205- )

Click highlighted areas on diagram

ﾘﾔ ｽﾎﾟｲﾗ-

diagram 76871 76872 76873B 76873B 76873B 76874 76874 76887 76887F 76889B 76889B 76889D 76893 8117 8117 9017906115
Part # Description Qty Price
76871 - SPOILER, REAR
76871-58900

ANH1#,MNH1#

要塗装

 1
76871-58901

ANH1#,MNH1#

要塗装,ﾘﾔｱﾝﾀﾞｰﾐﾗｰ−無し

 1
76872 - PROTECTOR, REAR SPOILER, NO.1
76872-58010

ANH1#,MNH1#

 1
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-58010

ANH1#,MNH1#

 3
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-58010

ANH1#,MNH1#

 3
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-58010

ANH1#,MNH1#

 3
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-58010

ANH1#,MNH1#

 2
76874 - PROTECTOR, REAR SPOILER, NO.3
76874-58010

ANH1#,MNH1#

 2
76887 - SEAL, REAR SPOILER
76887-58010

ANH1#,MNH1#

 7
76887F - SEAL, REAR SPOILER, NO.2
76889-58020

ANH1#,MNH1#

 1
76889B - SEAL, REAR SPOILER, NO.1
76889-58010

ANH1#,MNH1#

 1
76889B - SEAL, REAR SPOILER, NO.1
76889-58010

ANH1#,MNH1#

 1
76889D - CLIP, REAR SPOILER, NO.2
76889-44020

ANH1#,MNH1#

 1
76893 - COVER, REAR SPOILER, NO.1
76893-58010B1

ANH1#,MNH1#

GRAY M.M.,1E8

 1
76893-58010A0

ANH1#,MNH1#..AX,MX,MZ

WHITE PM.,042 ,2JD

 1
76893-58010D0

ANH1#,MNH1#..AX,MX,MZ

BORDEAUX MC.,3P2

 1
76893-58010F0

ANH1#,MNH1#..AX,MX,MZ

GOLD ME.,593

 1
76893-58010G0

ANH1#,MNH1#..AX,MX,MZ

LT. GREEN M.M.,6T2

 1
76893-58010C0

ANH1#,MNH1#

BLACK MC.,209

 1
76893-58010B0

ANH1#,MNH1#

SILVER ME.,1C0

 1
Common parts
90179-06115
Linked diagrams
8117
