MNH15W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0205-0309)

Click highlighted areas on diagram

diagram 5252 5252 53301 53341B 53341C 53381A 53381A 53381B 53382G 53801 53802 53867C 53868D 53882K 5752 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-58010

ANH1#,MNH1#

 1
53341B - INSULATOR, HOOD
53341-58010

ANH1#,MNH1#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08124

ANH1#,MNH1#

 7
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ANH1#,MNH1#

 8
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ANH1#,MNH1#

 8
53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH
53381-58010

ANH1#,MNH1#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53381-58020

ANH1#,MNH1#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53867C - RETAINER, FRONT SIDE PANEL, RH
53867-58030

ANH1#,MNH1#

 1
53868D - RETAINER, FRONT SIDE PANEL, LH
53867-58030

ANH1#,MNH1#

 1
53882K - SEAL, FRONT FENDER
53882-16030

ANH1#,MNH1#..4FC

 4
53882-26010

ANH1#,MNH1#

 4
Common parts
91631-B0614
Linked diagrams
5252
5752

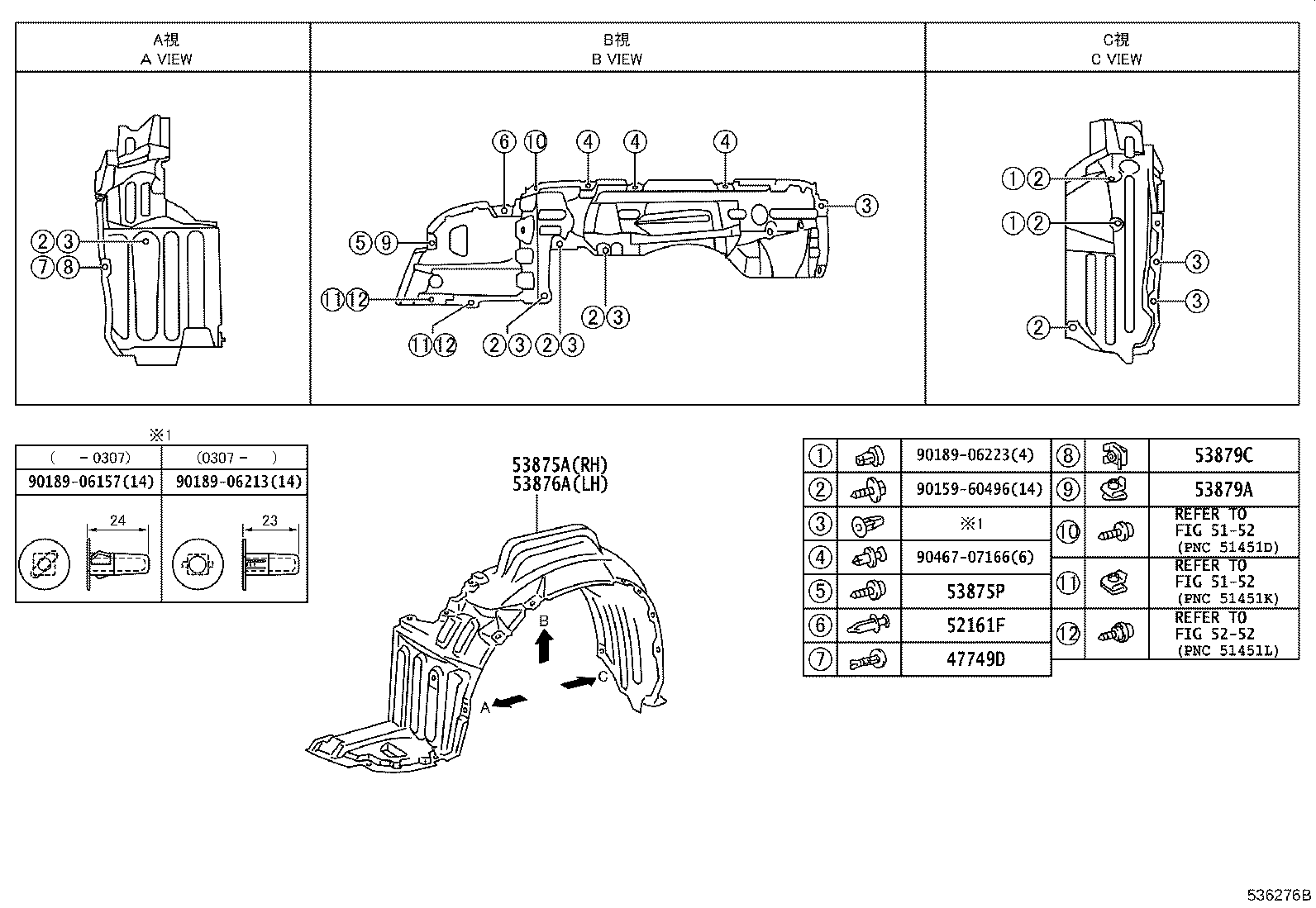

ILLUST NO. 2 OF 2(0205-0309)

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 47749D 5152 5152 52161F 5252 53875A 53875P 53876A 53879A 53879C 9015960496 9018906157 9018906213 9018906223 9046707166
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58010

ANH1#,MNH1#

 2
52161F - PIECE, FRONT BUMPER
52161-16010

ANH1#,MNH1#

 2
53875A - LINER, FRONT FENDER, RH
53875-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53875P - SCREW, NO.1
90159-50348

ANH1#,MNH1#

 2
53876A - LINER, FRONT FENDER, LH
53876-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

ANH1#,MNH1#

 2
53879C - RETAINER, FRONT FENDER LINER
53879-58010

ANH1#,MNH1#

 2
Common parts
90159-60496
90189-06157
90189-06213
90189-06223
90467-07166
Linked diagrams
5152
5252

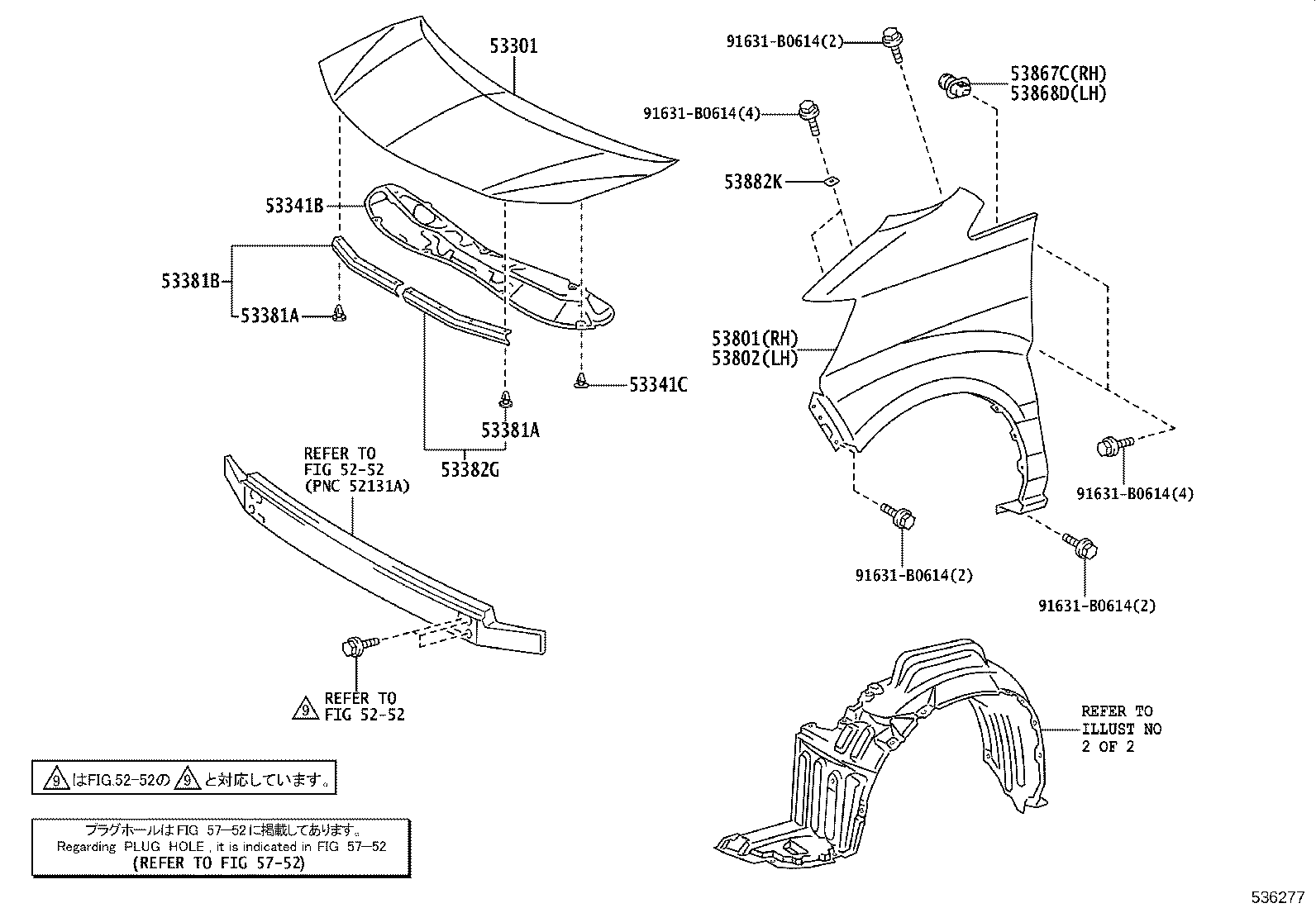

ILLUST NO. 1 OF 2(0309-0504)

Click highlighted areas on diagram

diagram 5252 5252 53301 53341B 53341C 53381A 53381A 53381B 53382G 53801 53802 53867C 53868D 53882K 5752 91631B0614 91631B0614 91631B0614 91631B0614 91631B0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-58010

ANH1#,MNH1#

 1
53341B - INSULATOR, HOOD
53341-58010

ANH1#,MNH1#

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-08124

ANH1#,MNH1#

 7
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ANH1#,MNH1#

 8
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

ANH1#,MNH1#

 8
53381B - SEAL, HOOD TO RADIATOR SUPPORT, RH
53381-58010

ANH1#,MNH1#

 1
53382G - SEAL, HOOD TO RADIATOR SUPPORT, LH
53381-58020

ANH1#,MNH1#

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53867C - RETAINER, FRONT SIDE PANEL, RH
53867-58030

ANH1#,MNH1#

 1
53868D - RETAINER, FRONT SIDE PANEL, LH
53867-58030

ANH1#,MNH1#

 1
53882K - SEAL, FRONT FENDER
53882-16030

ANH1#,MNH1#..4FC

 4
53882-26010

ANH1#,MNH1#

 4
Common parts
91631-B0614
Linked diagrams
5252
5752

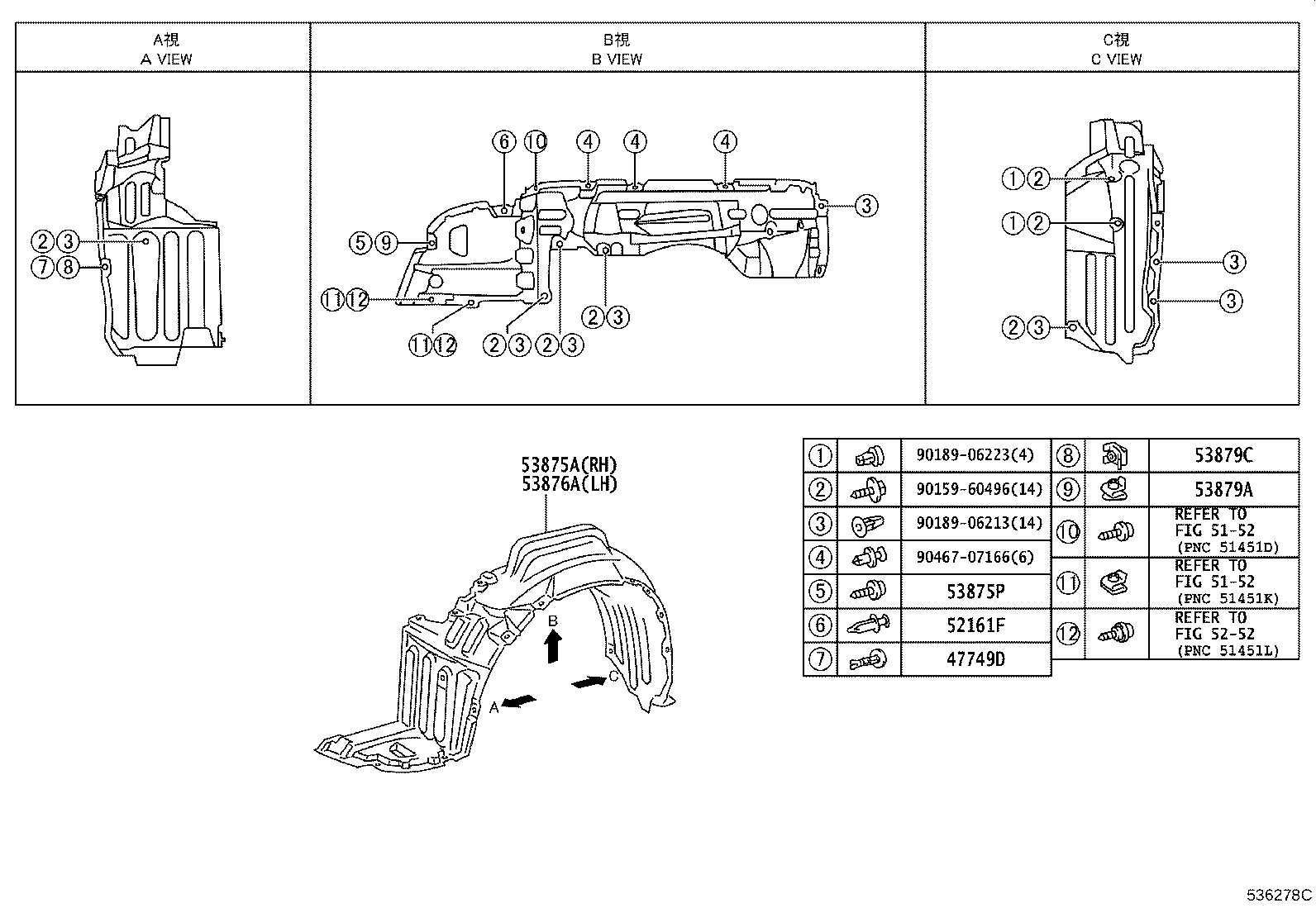

ILLUST NO. 2 OF 2(0309-0504)

Click highlighted areas on diagram

ﾌｴﾝﾀﾞﾗｲﾅ

diagram 47749D 5152 5152 52161F 5252 53875A 53875P 53876A 53879A 53879C 9015960496 9018906213 9018906223 9046707166
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58010

ANH1#,MNH1#

 2
52161F - PIECE, FRONT BUMPER
52161-16010

ANH1#,MNH1#

 2
53875A - LINER, FRONT FENDER, RH
53875-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53875P - SCREW, NO.1
90159-50348

ANH1#,MNH1#

 2
53876A - LINER, FRONT FENDER, LH
53876-58010

ANH1#,MNH1#..AX,MX,MZ

 1
53879A - RETAINER, FRONT FENDER LINER
53879-16010

ANH1#,MNH1#

 2
53879C - RETAINER, FRONT FENDER LINER
53879-58010

ANH1#,MNH1#

 2
Common parts
90159-60496
90189-06213
90189-06223
90467-07166
Linked diagrams
5152
5252
