MNH15W-PRPQK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

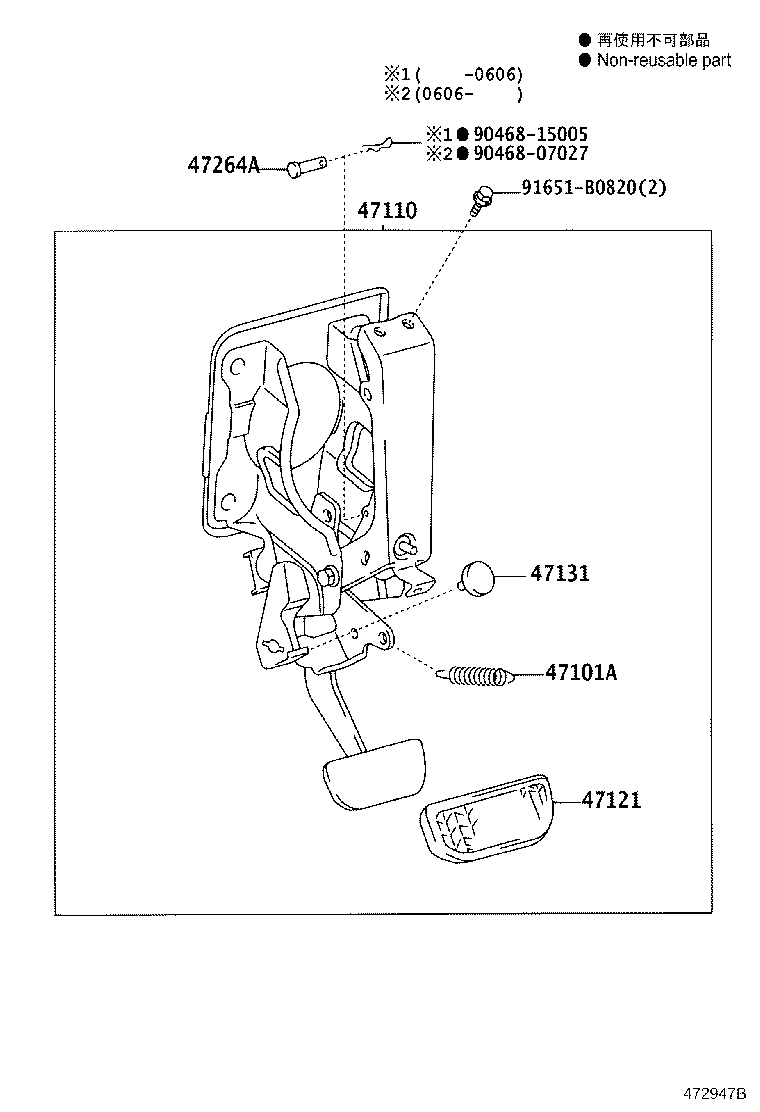

Click highlighted areas on diagram

diagram 47101A 47110 47121 47131 47264A 9046807027 9046815005 91651B0820
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-20075

ANH1#,MNH1#

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-58010

ANH1#,MNH1#

 1
47121 - PAD, BRAKE PEDAL
47121-52010

ANH1#,MNH1#

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06049

ANH1#,MNH1#

 1
47264A - PIN(FOR PUSH ROD)
90240-06023

ANH1#,MNH1#

 1
Common parts
90468-07027
90468-15005
91651-B0820
