MNH15W-PRPQK (2002)
Toyota Alphard G/V
Production
May 2002
-
Apr 2005
Engine
1MZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

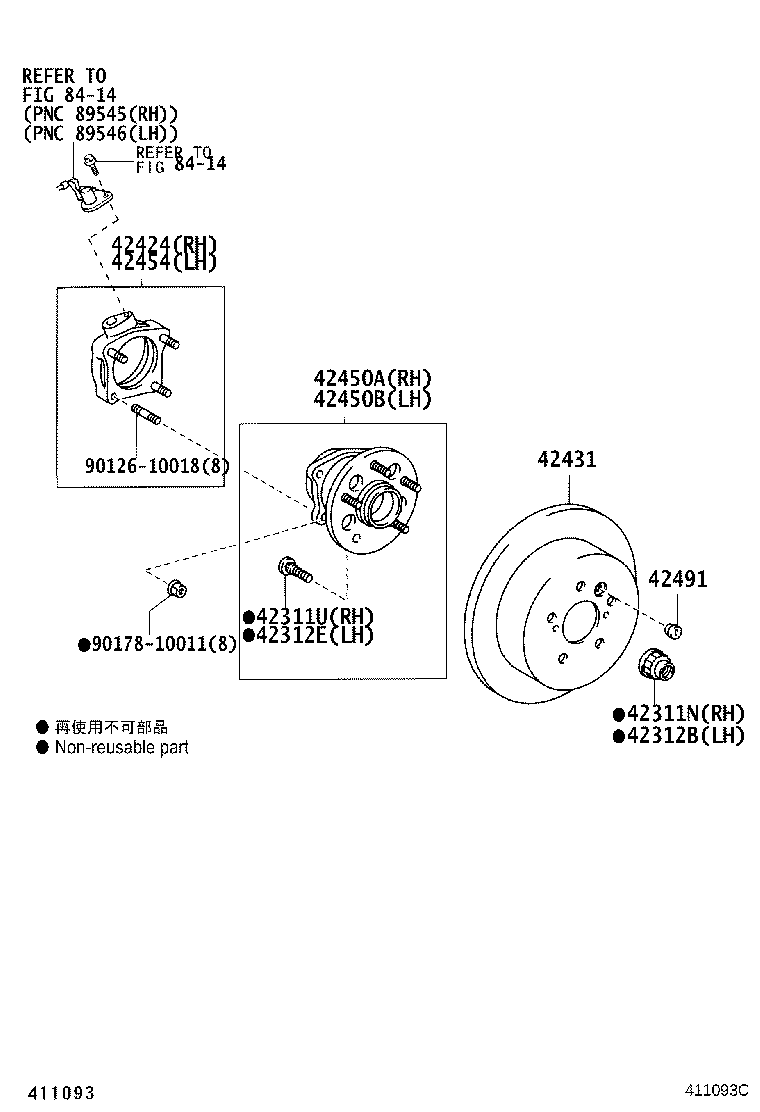

ILLUST NO. 2 OF 2(0205- )ANH15,MNH15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
ANH15,MNH15 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
ANH1#,MNH1# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
ANH15,MNH15 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
ANH1#,MNH1# |
5 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42405-28010 |
ANH15,MNH15 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-28091 |
ANH1#,MNH1# |
2 | ||
| 42431-28090 |
ANH1#,MNH1#..4FC |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-28021 |
ANH15,MNH15 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-28021 |
ANH15,MNH15 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42406-28010 |
ANH15,MNH15 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
ANH1#,MNH1# |
2 | ||
| Common parts | ||||
| 90126-10018 | ||||
| 90178-10011 | ||||
| Linked diagrams | ||||
| 8414 | ||||

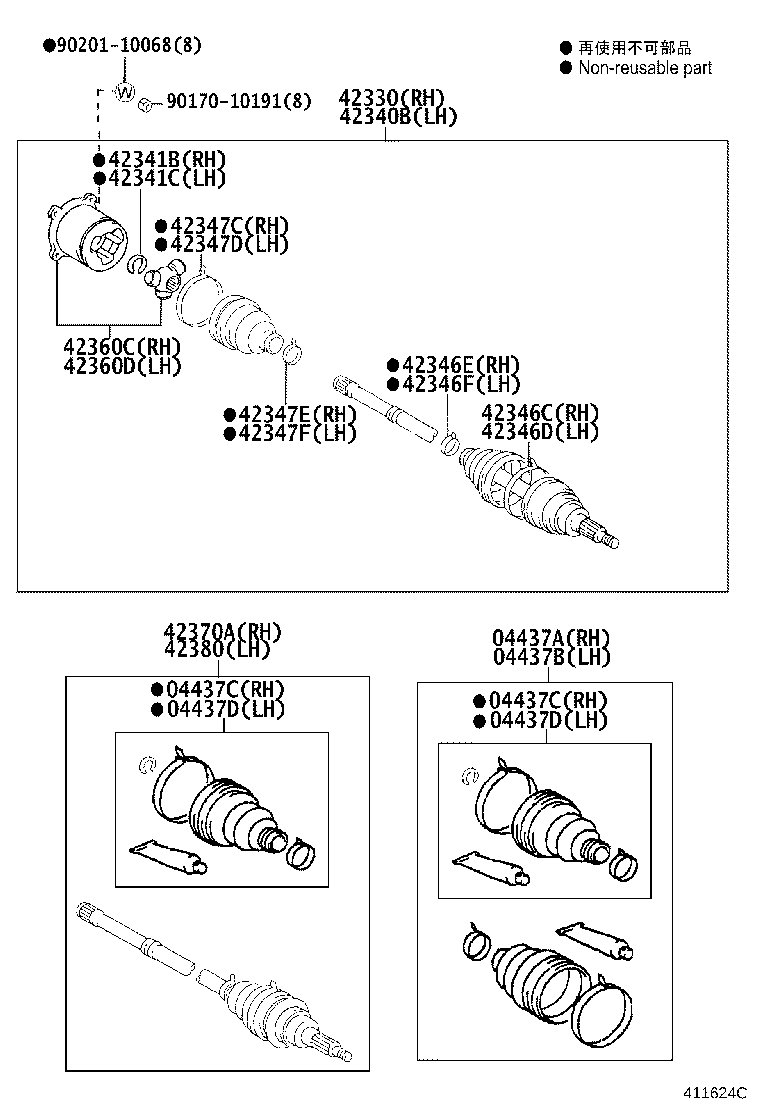

ILLUST NO. 1 OF 2(0205- )ANH15,MNH15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437A - BOOT KIT, REAR DRIVE SHAFT, RH | ||||
| 04437-48031 |
ANH15,MNH15 |
1 | ||
| 04429-58020 |
ANH15,MNH15 |
1 | ||
| 04437B - BOOT KIT, REAR DRIVE SHAFT, LH | ||||
| 04429-58020 |
ANH15,MNH15 |
1 | ||
| 04437-48031 |
ANH15,MNH15 |
1 | ||
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-48020 |
ANH15,MNH15 |
1 | ||
| 04439-58020 |
ANH15,MNH15 |
1 | ||
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04437-48020 |
ANH15,MNH15 |
1 | ||
| 04439-58020 |
ANH15,MNH15 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-48020 |
ANH15,MNH15 |
1 | ||
| 04439-58020 |
ANH15,MNH15 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04437-48020 |
ANH15,MNH15 |
1 | ||
| 04439-58020 |
ANH15,MNH15 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42340-58010 |
ANH15,MNH15 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-58010 |
ANH15,MNH15 |
1 | ||
| 42341B - RING, SNAP (FOR REAR DRIVE SHAFT RH) | ||||
| 90520-23024 |
ANH15,MNH15 |
1 | ||
| 42341C - RING, SNAP (FOR REAR DRIVE SHAFT LH) | ||||
| 90520-23024 |
ANH15,MNH15 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 90949-01473 |
ANH15,MNH15 内径=96.5 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 90949-01473 |
ANH15,MNH15 内径=96.5 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-14010 |
ANH15,MNH15 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-14010 |
ANH15,MNH15 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-14020 |
ANH15,MNH15 内径=93.97 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-14020 |
ANH15,MNH15 内径=93.97 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-14010 |
ANH15,MNH15 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-14010 |
ANH15,MNH15 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-58020 |
ANH15,MNH15 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-58020 |
ANH15,MNH15 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-59075 |
ANH15,MNH15 |
1 | ||
| 42370-59105 |
ANH15,MNH15 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-59075 |
ANH15,MNH15 |
1 | ||
| 42370-59105 |
ANH15,MNH15 |
1 | ||
| Common parts | ||||
| 90170-10191 | ||||
| 90201-10068 | ||||
