MNH15W-PRPGK (2002)

Toyota Alphard G/V

Production May 2002 - Apr 2005
Engine 1MZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0205- )

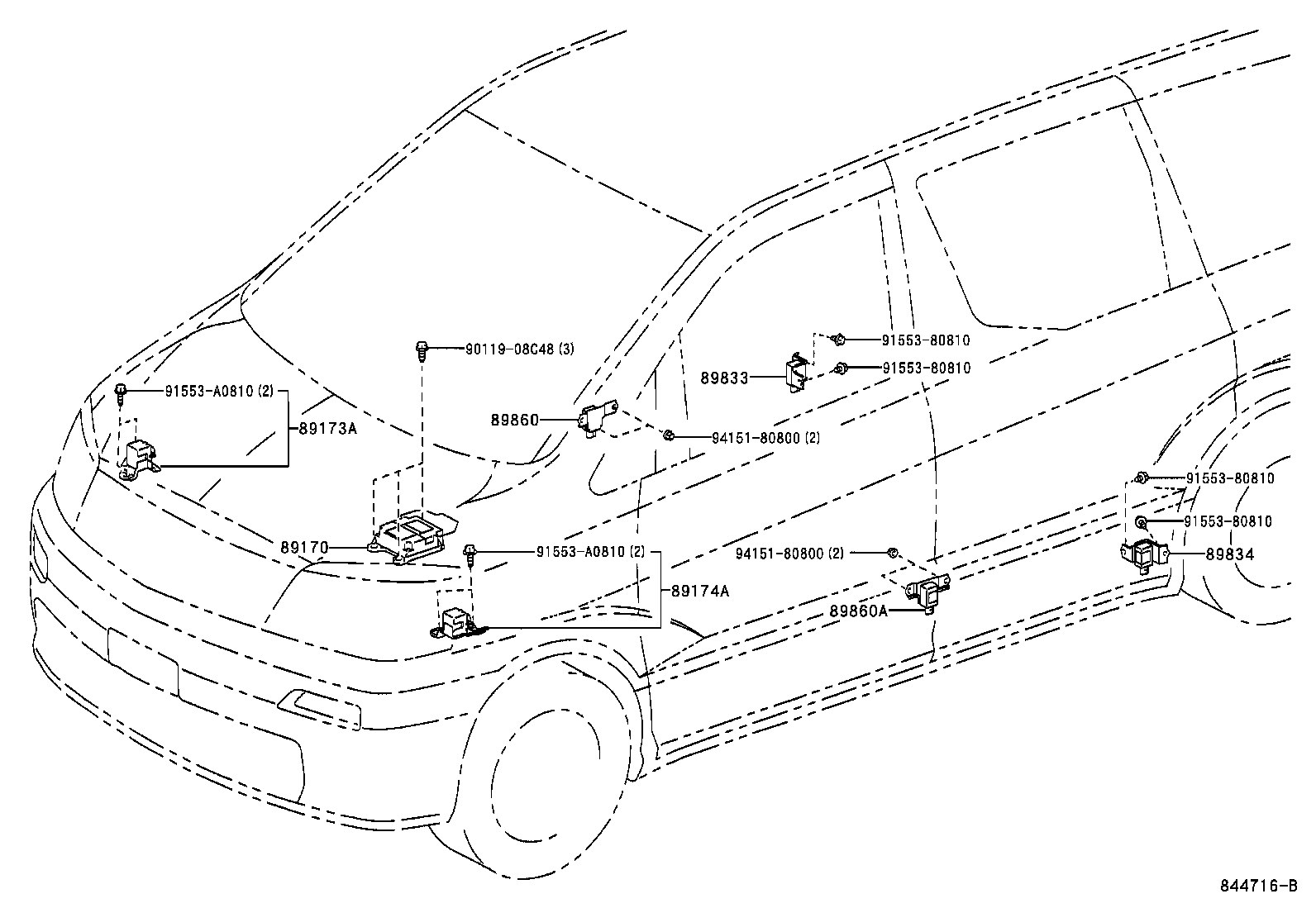

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89860 89860A 9011908C48 9155380810 9155380810 9155380810 9155380810 91553A0810 91553A0810 9415180800 9415180800
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-58020

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
89170-58030

ANH1#,MNH1#

 1
89170-58010

ANH1#,MNH1#..4FC

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-59205

ANH1#,MNH1#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-59135

ANH1#,MNH1#

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-58010

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-58010

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-58010

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-58010

ANH1#,MNH1#

SRSｴｱﾊﾞｯｸﾞ−ｶｰﾃﾝ&ｻｲﾄﾞ

 1
Common parts
90119-08C48
91553-80810
91553-A0810
94151-80800
